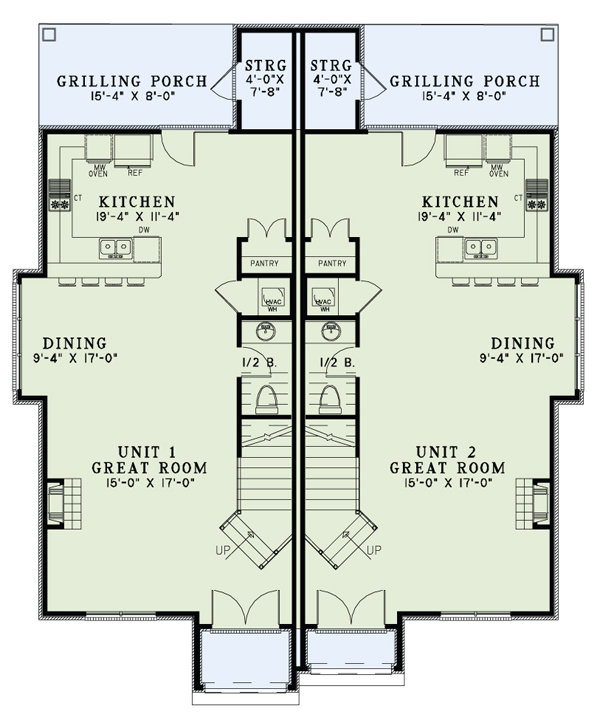

House Plan NDG 1436 Main Floor

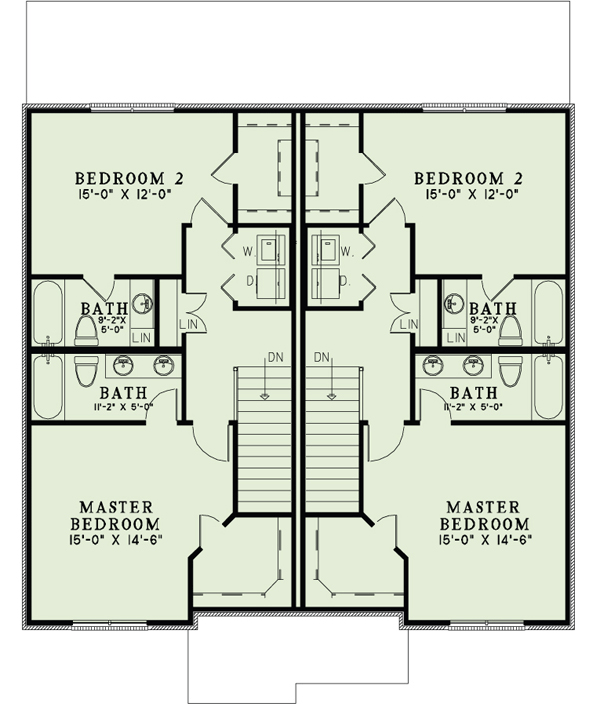

House Plan NDG 1436 Upper Floor
House Plan NDG 1436 Main Floor
House Plan NDG 1436 Upper Floor

Floor plans

NDG 1436

House Plan 1436 Capulet Circle, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1436
  • Total Living Space:1510Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 44
  • Width In.: 4
  • Depth Ft.: 52
  • Depth In.: 2

Description

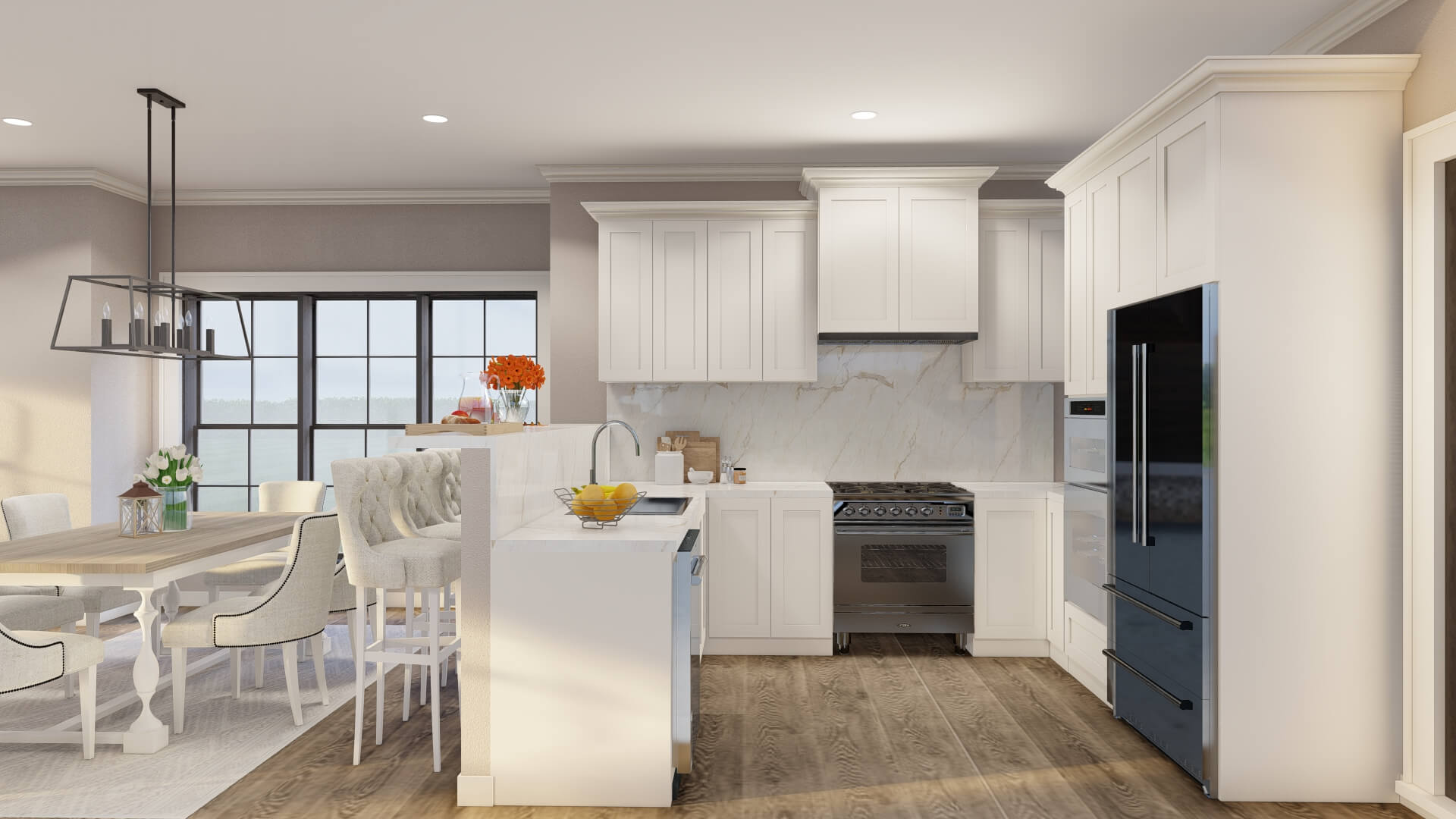

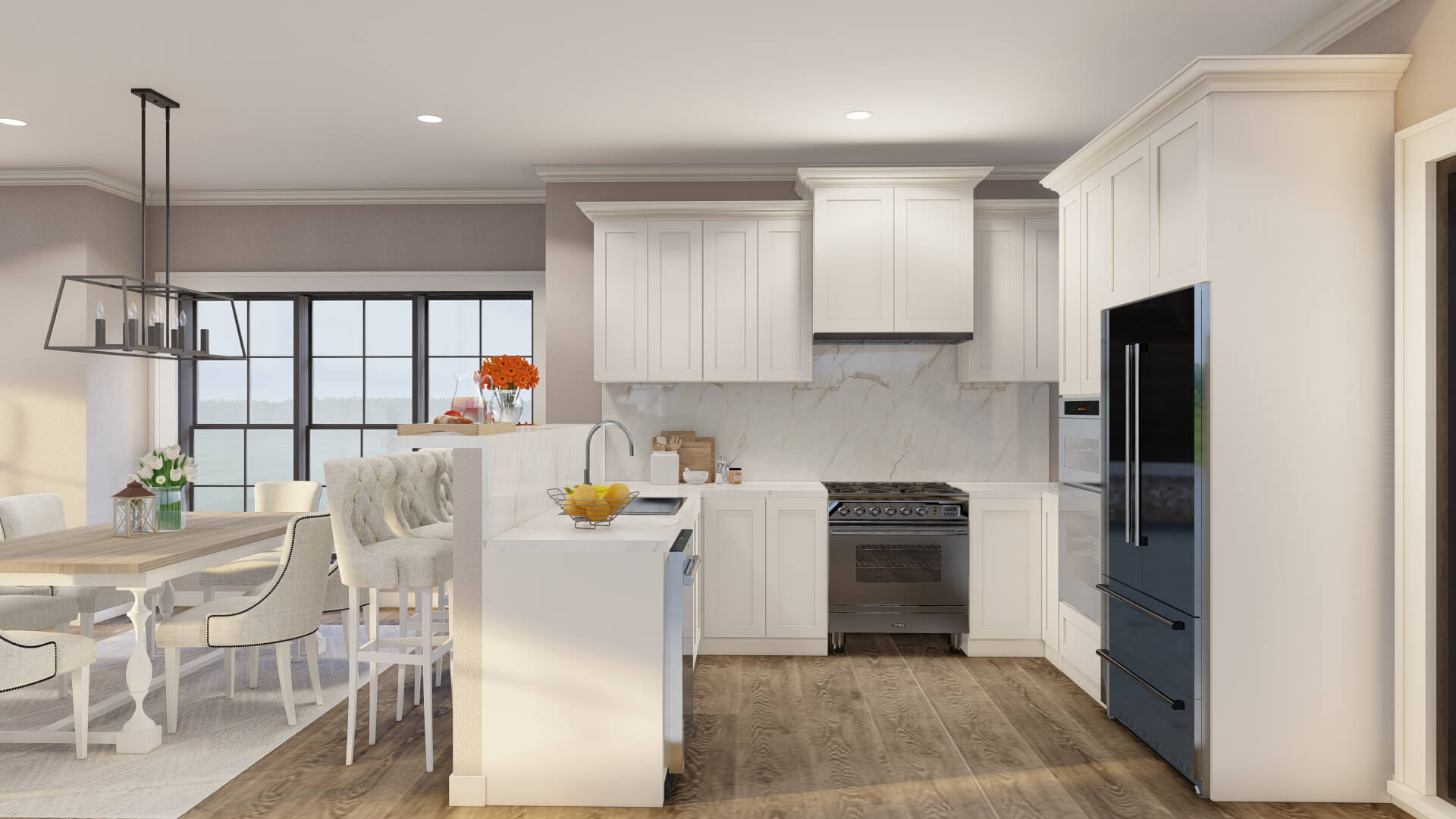

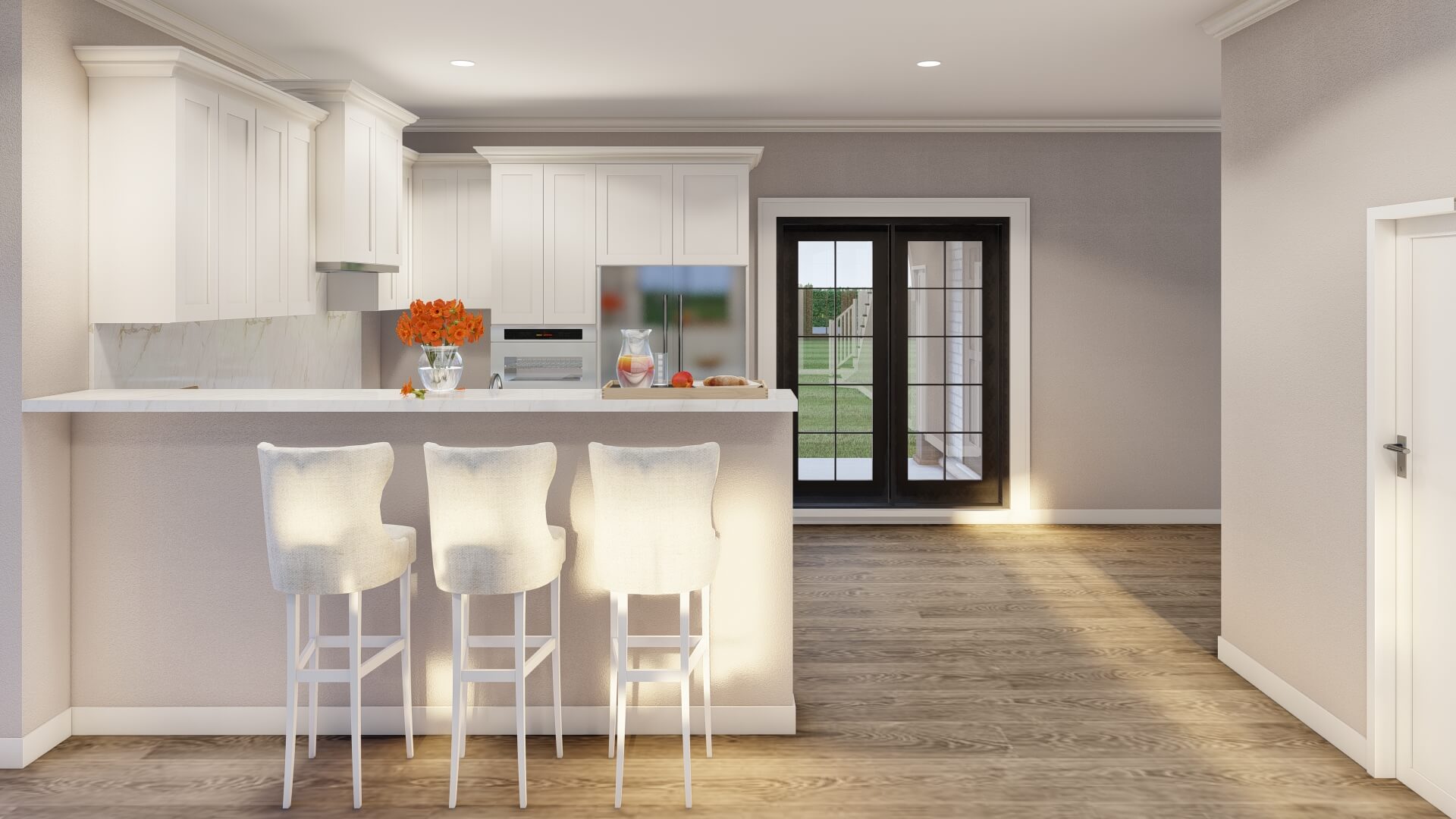

This duplex offers great living space downstairs. A grilling porch is located off of the kitchen. Two bedrooms are upstairs, each with large walk-in closets as well as 2 full baths.

Specifications

  • Total Living Space:1510Sq.Ft.
  • Main Floor: 794 Sq.Ft
  • Upper Floor (Sq.Ft.): 716 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 188 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1698 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
