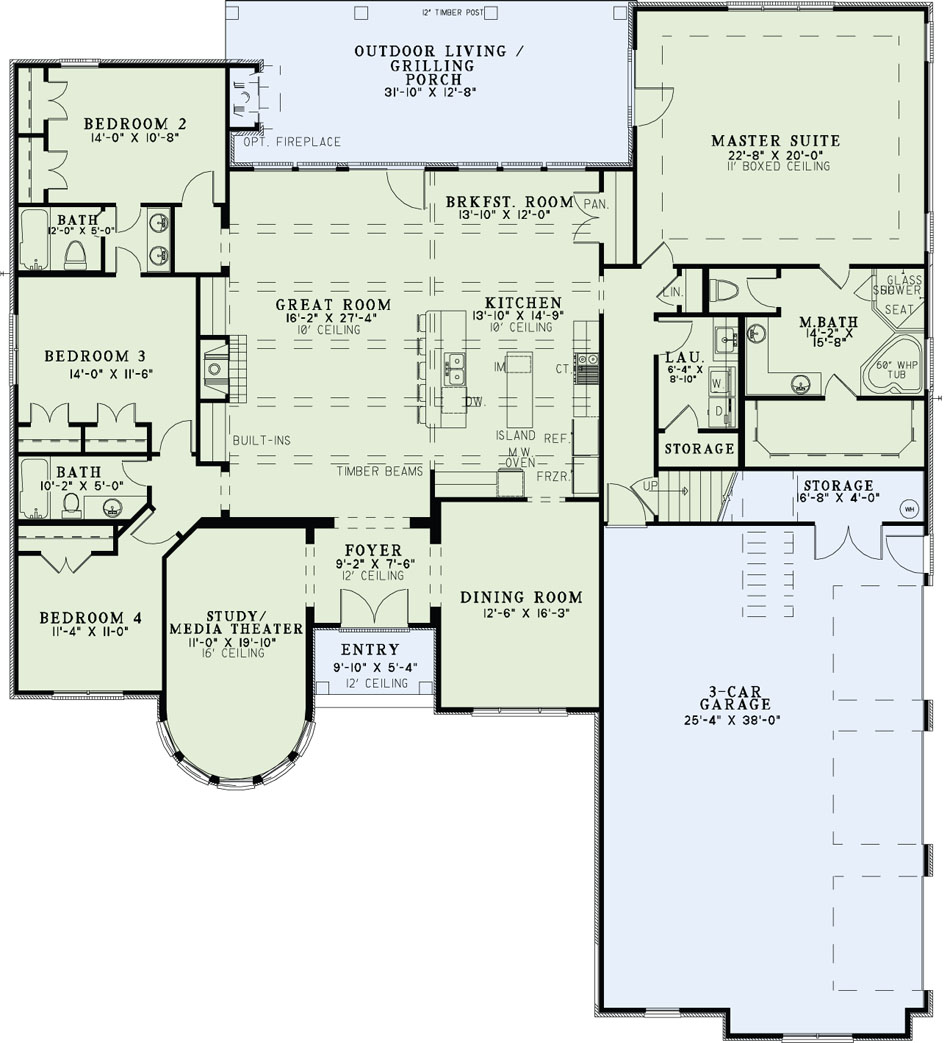

House Plan NDG 1421 Main Floor
House Plan NDG 1421 Bonus Room

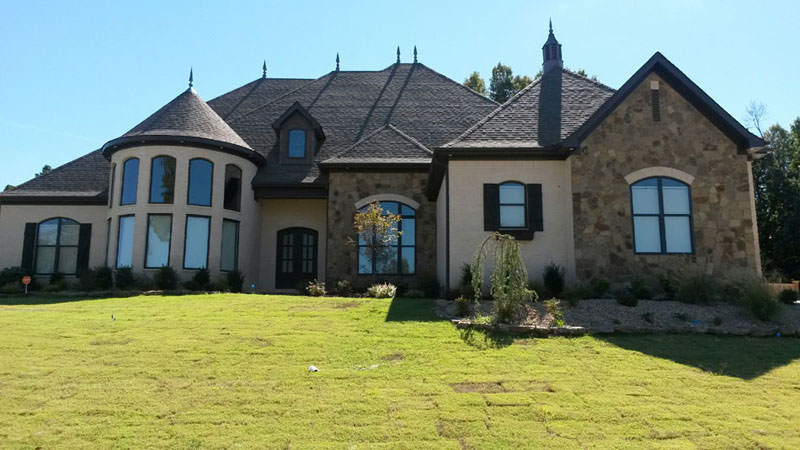

House Plan - NDG1421 Front Front View>
House Plan NDG 1421 Main Floor
House Plan NDG 1421 Bonus Room
House Plan - NDG1421 Front Front View

Floor plans

NDG 1421

House Plan 1421 Adeline Place, European House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1421
  • Total Living Space:3090Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 72
  • Width In.: 2
  • Depth Ft.: 81
  • Depth In.: 5

Description

This gorgeous European home features a 3-car side loading garage and an exterior with a castle like detail of a turret. A massive Great Room with built-ins and a fireplace and is open to the kitchen and breakfast room. The large kitchen features a prep island as well as an eat-at island bar. You'll enjoy the Master Suite with its huge bedroom and 11ft boxed ceiling and access to the Outdoor Living / Grilling Porch while the master bath features a corner glass shower, large corner whirlpool tub, and a spacious walk-in closet. Bedrooms 2, 3, and 4 are on the other side of the house. A large bonus room located over the garage could be perfect as a home theater or game room.

Specifications

  • Total Living Space:3090Sq.Ft.
  • Main Floor: 3090 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 443 Sq.Ft.
  • Porch (Sq.Ft.): 457 Sq.Ft.
  • Garage (Sq.Ft.): 1068 Sq.Ft.
  • Total Square Feet: 5058 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 11
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
