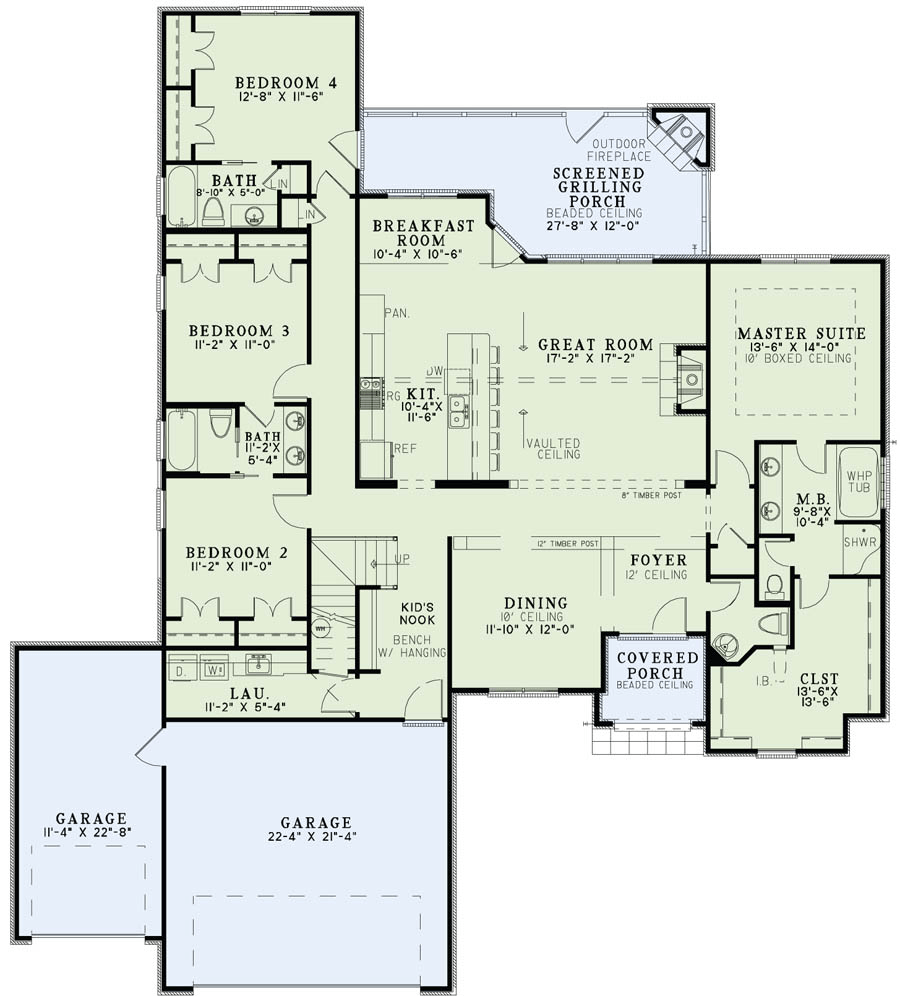

House Plan NDG 1417 Main Floor

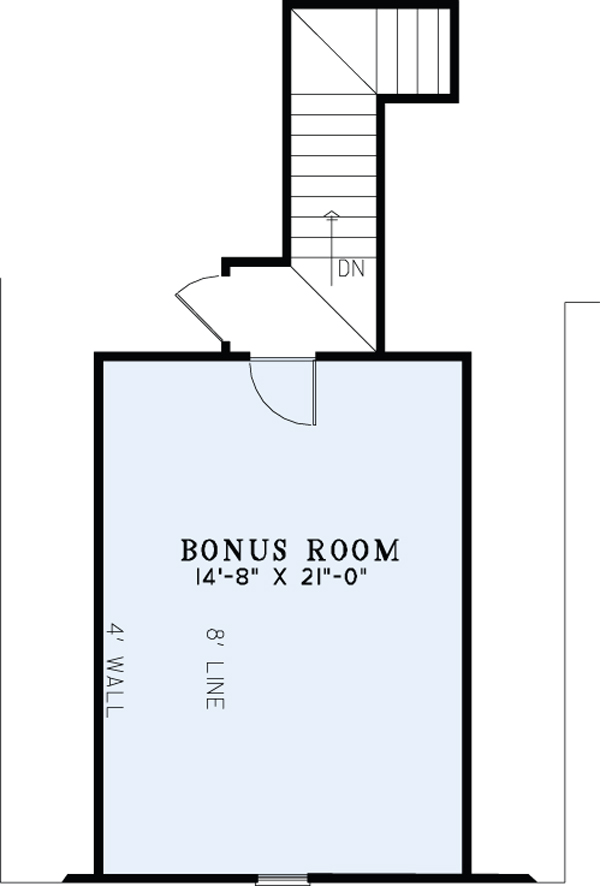

House Plan NDG 1417 Upper Floor/Bonus Room
House Plan NDG 1417 Main Floor
House Plan NDG 1417 Upper Floor/Bonus Room

Floor plans

NDG 1417

House Plan 1417 Grayson Lane, European House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1417
  • Total Living Space:2413Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 69
  • Width In.: N/A
  • Depth Ft.: 77
  • Depth In.: 8

Description

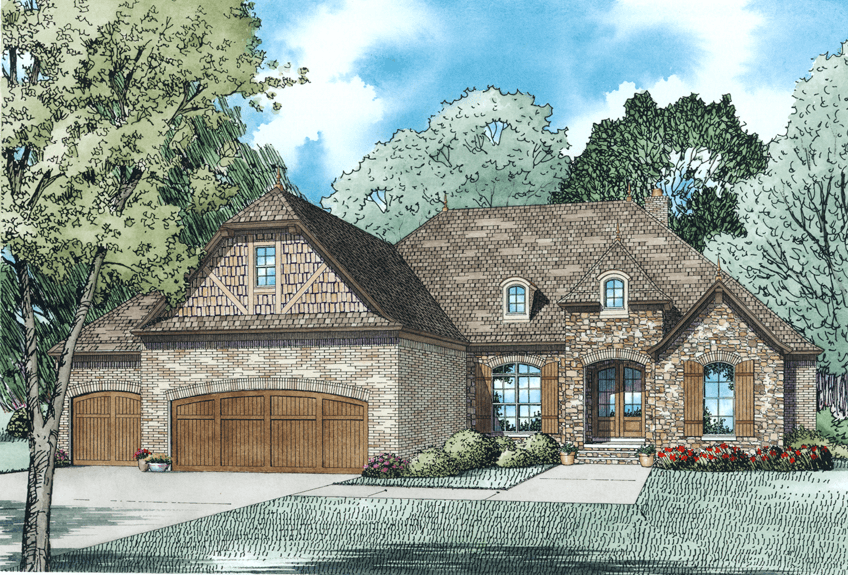

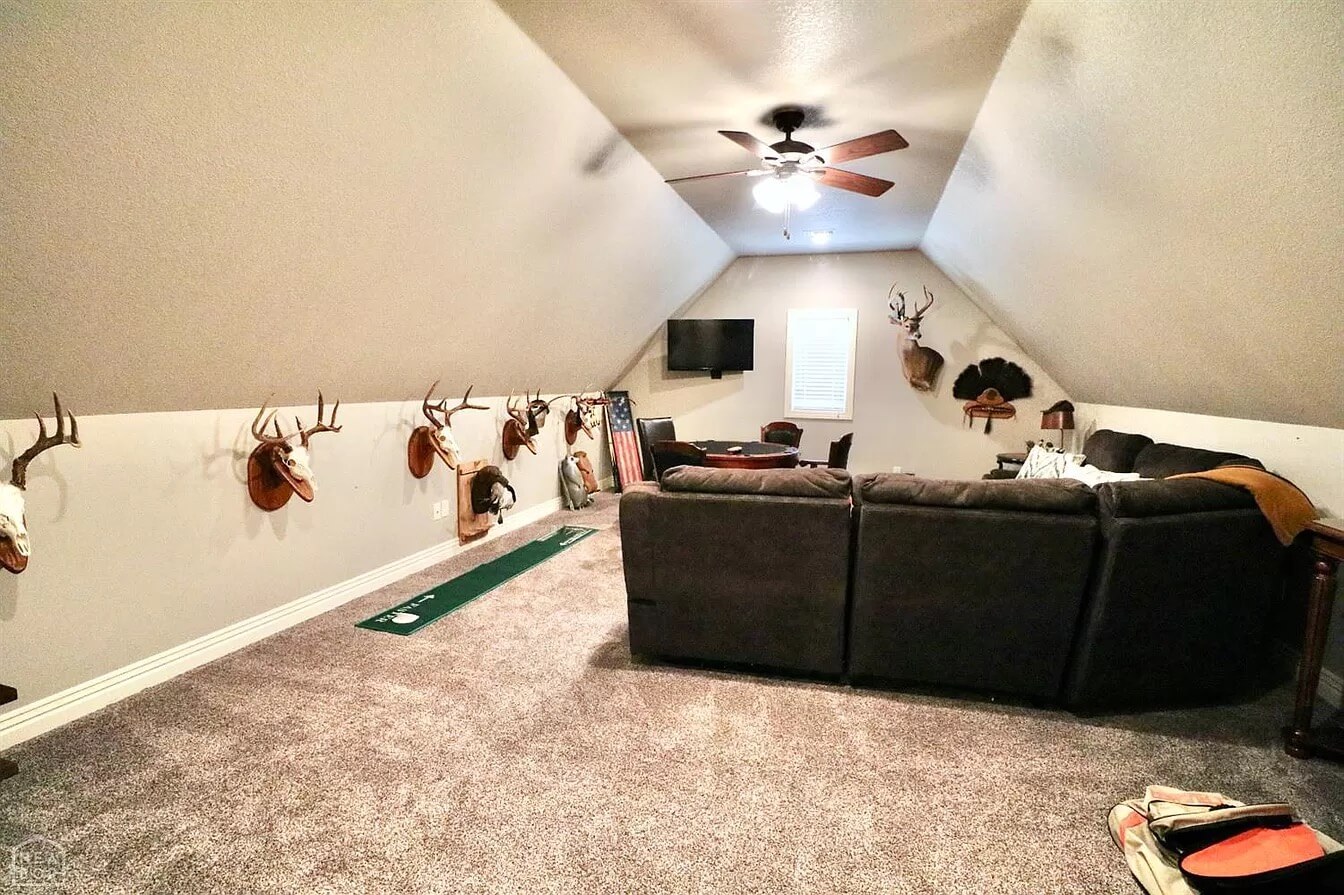

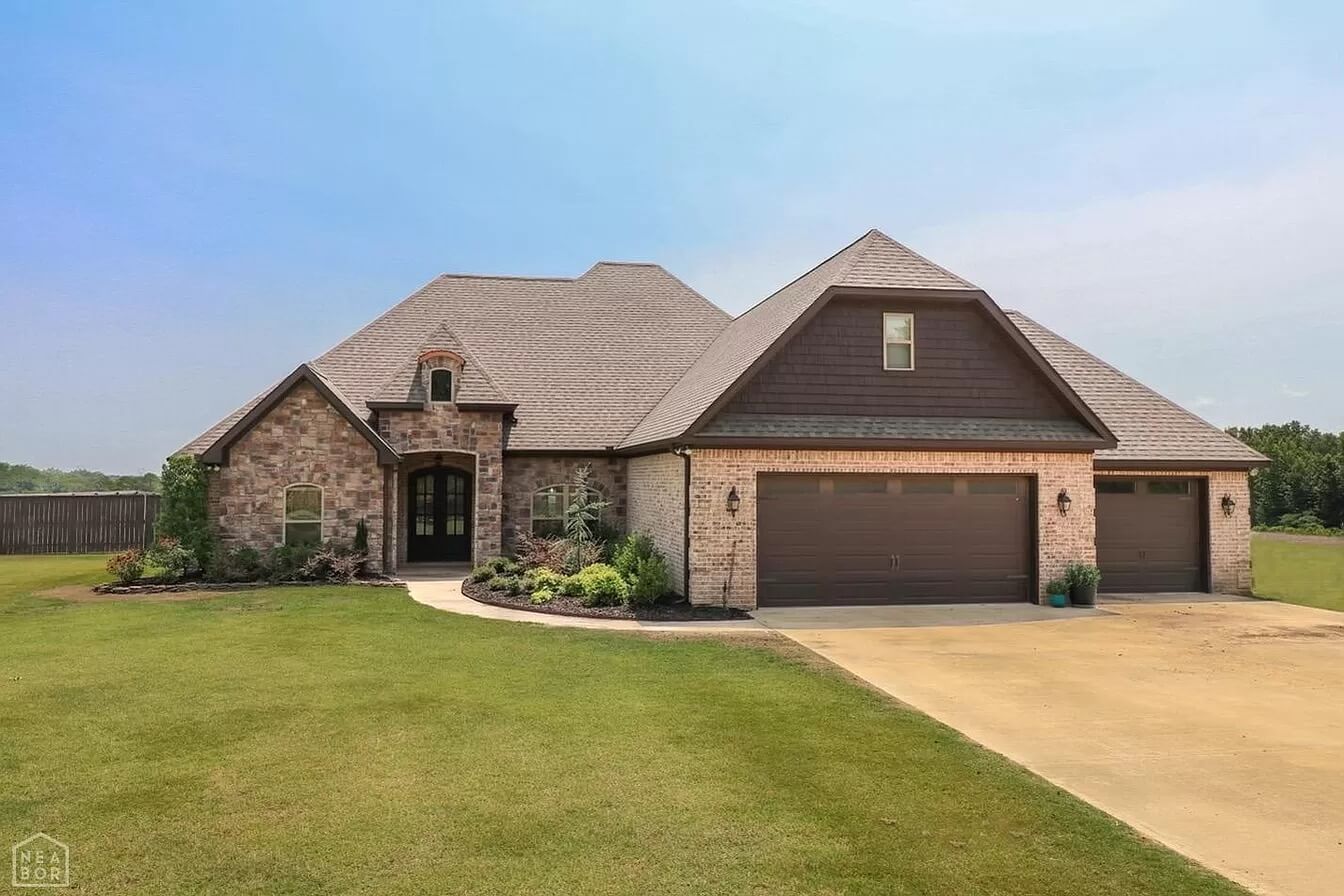

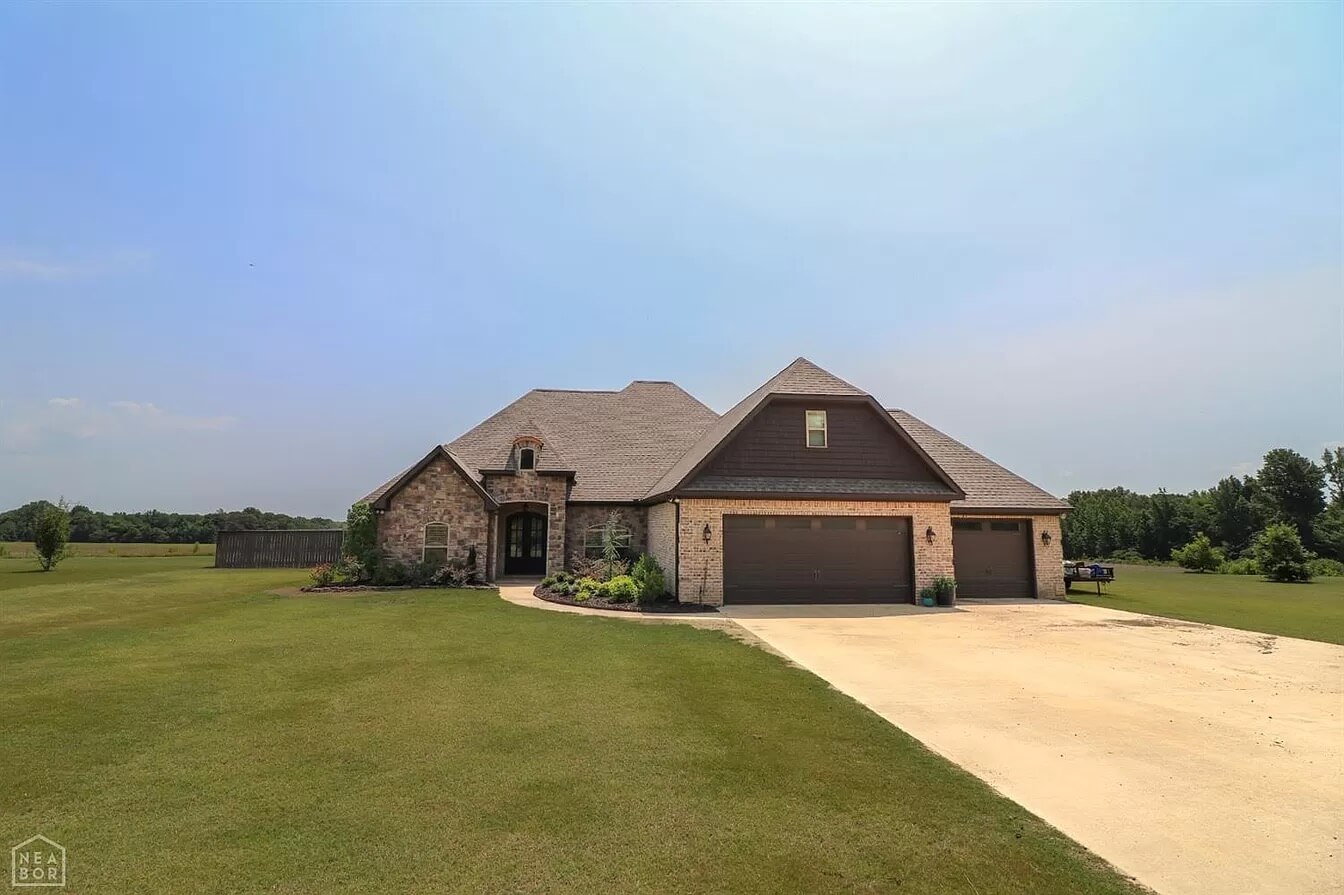

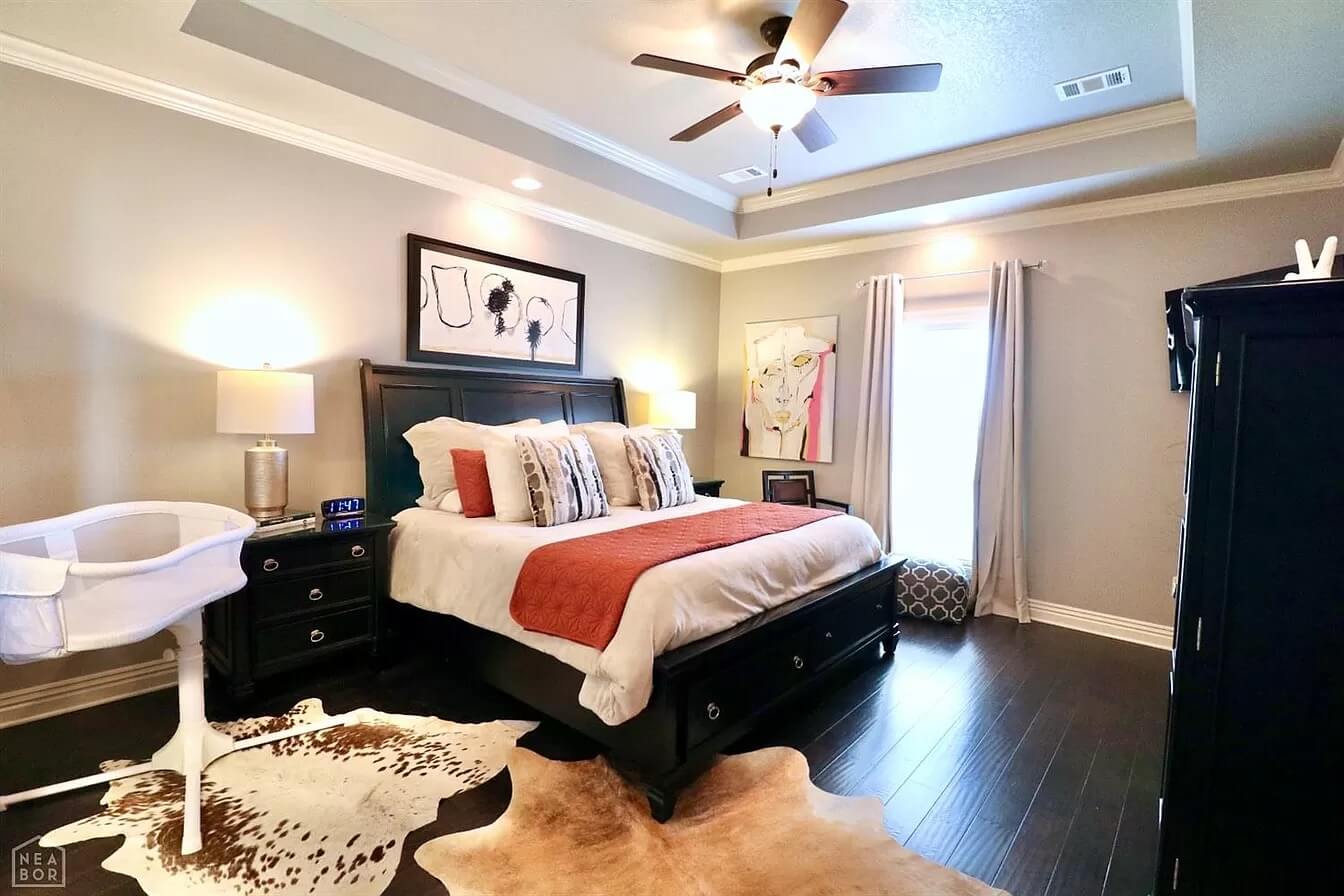

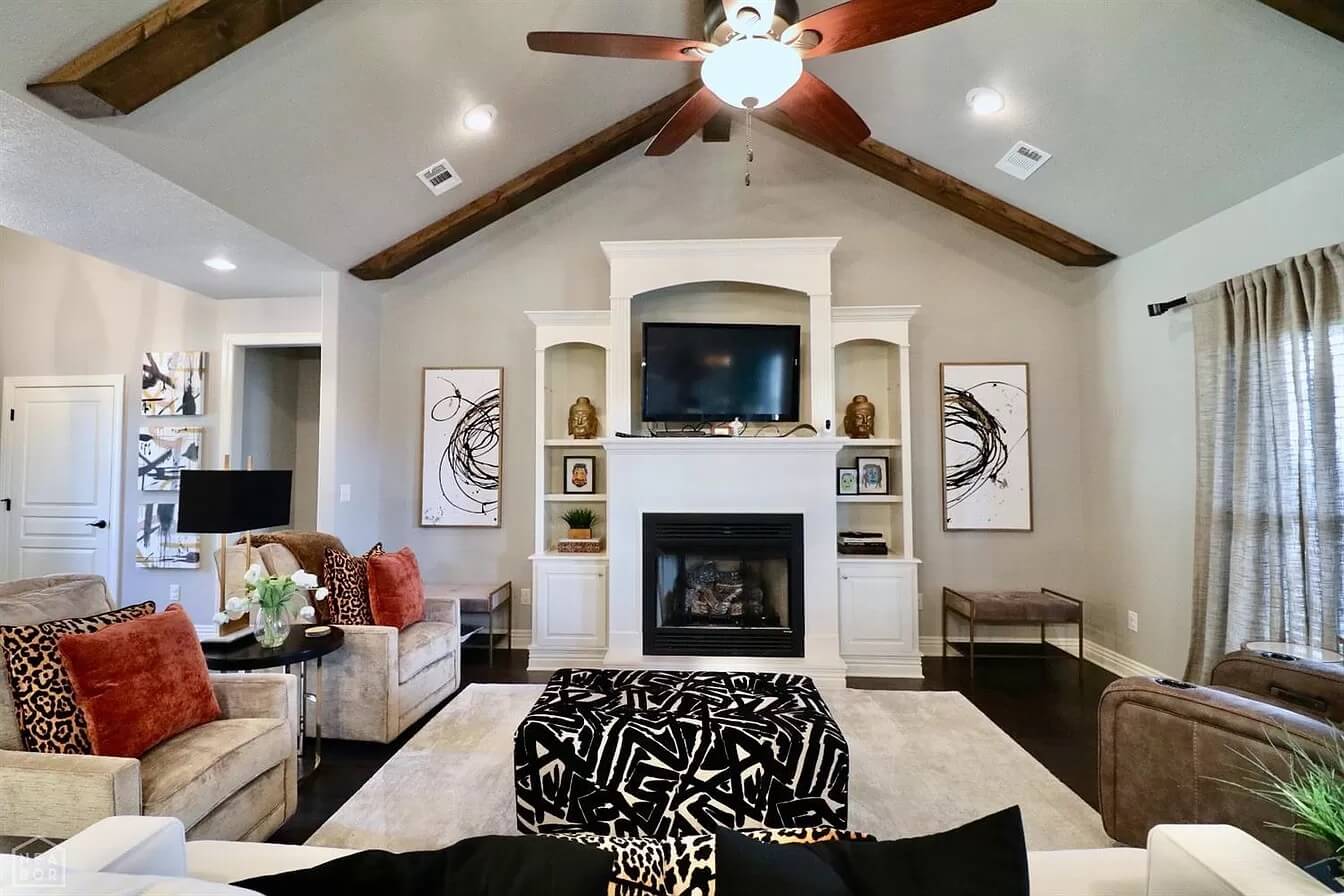

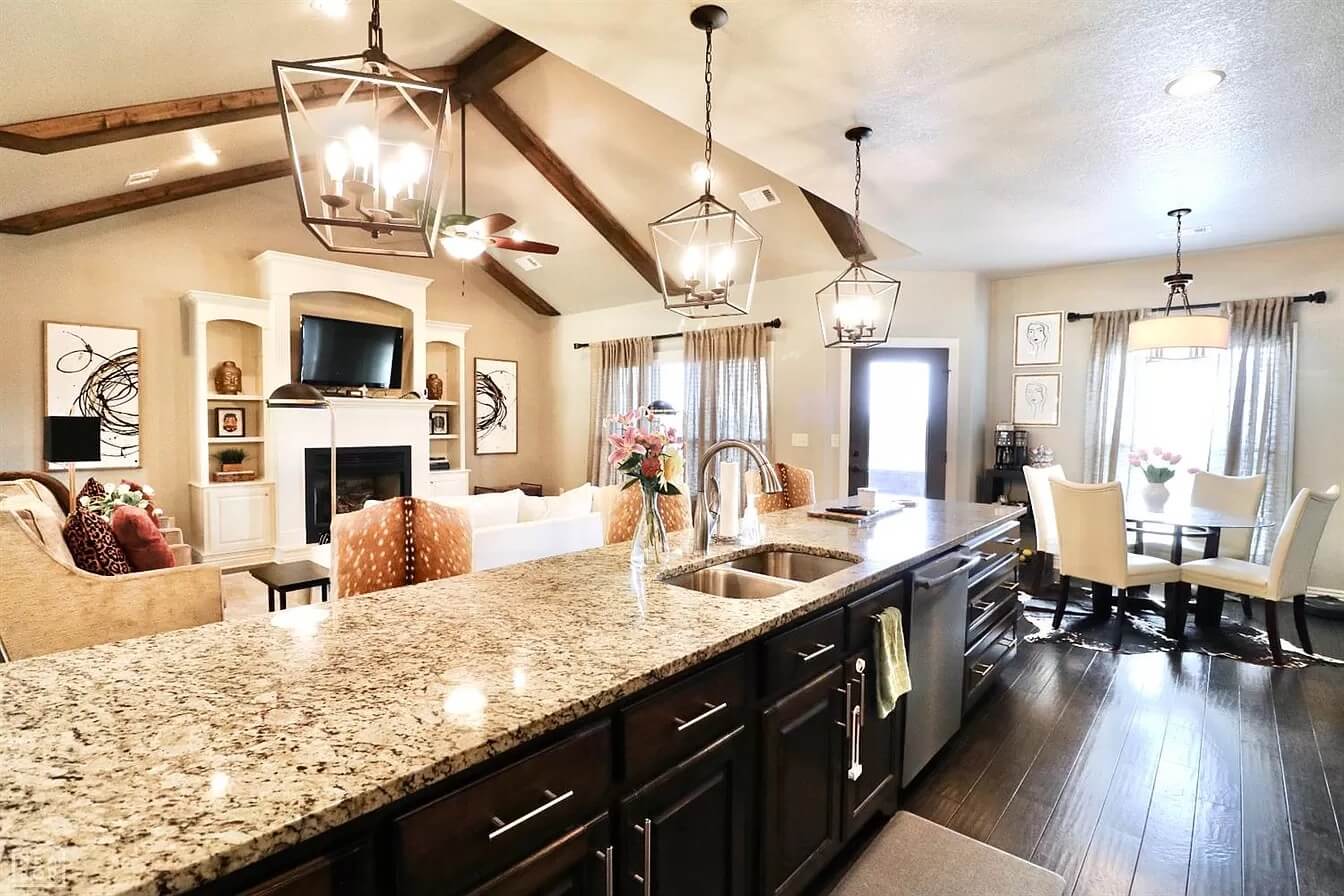

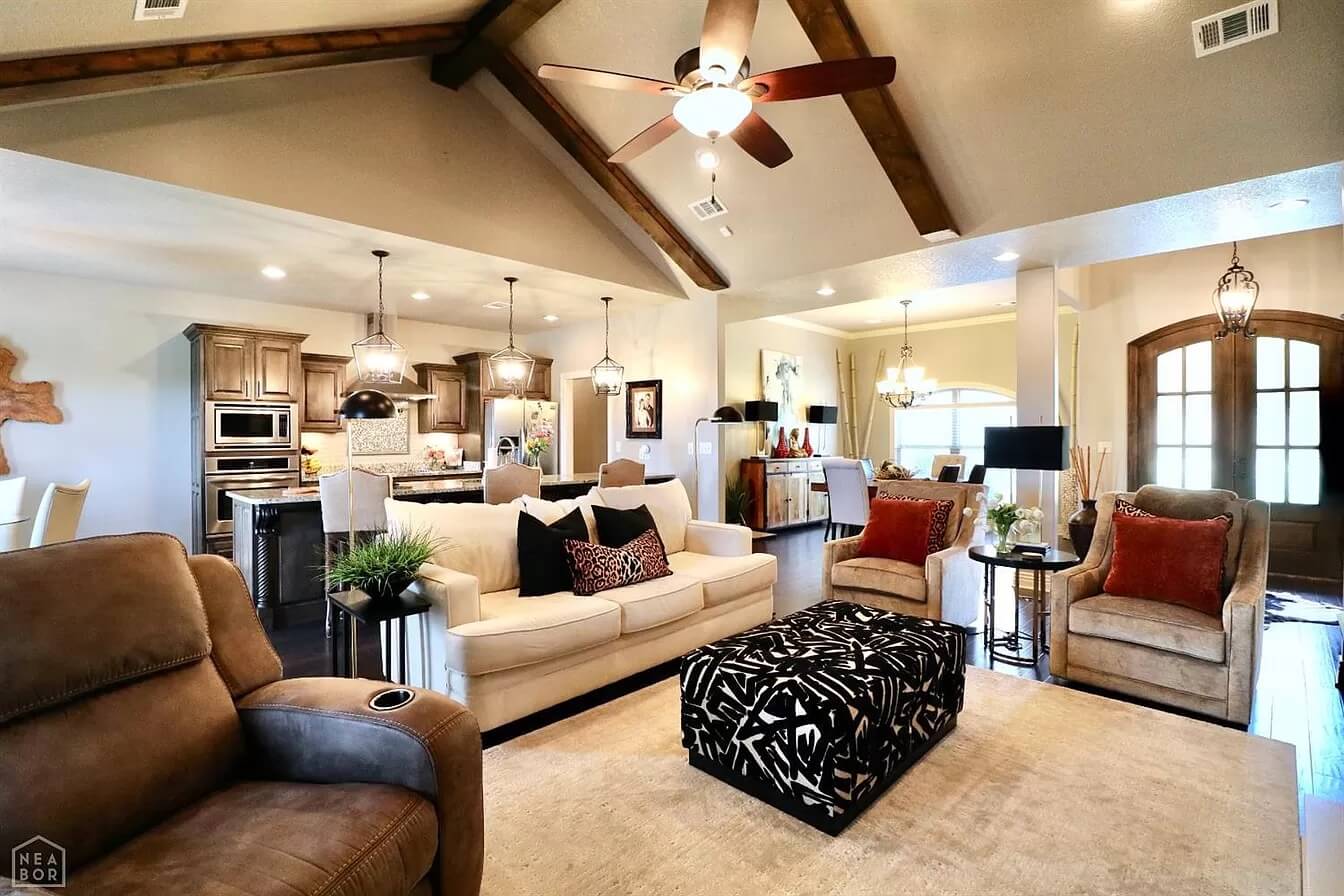

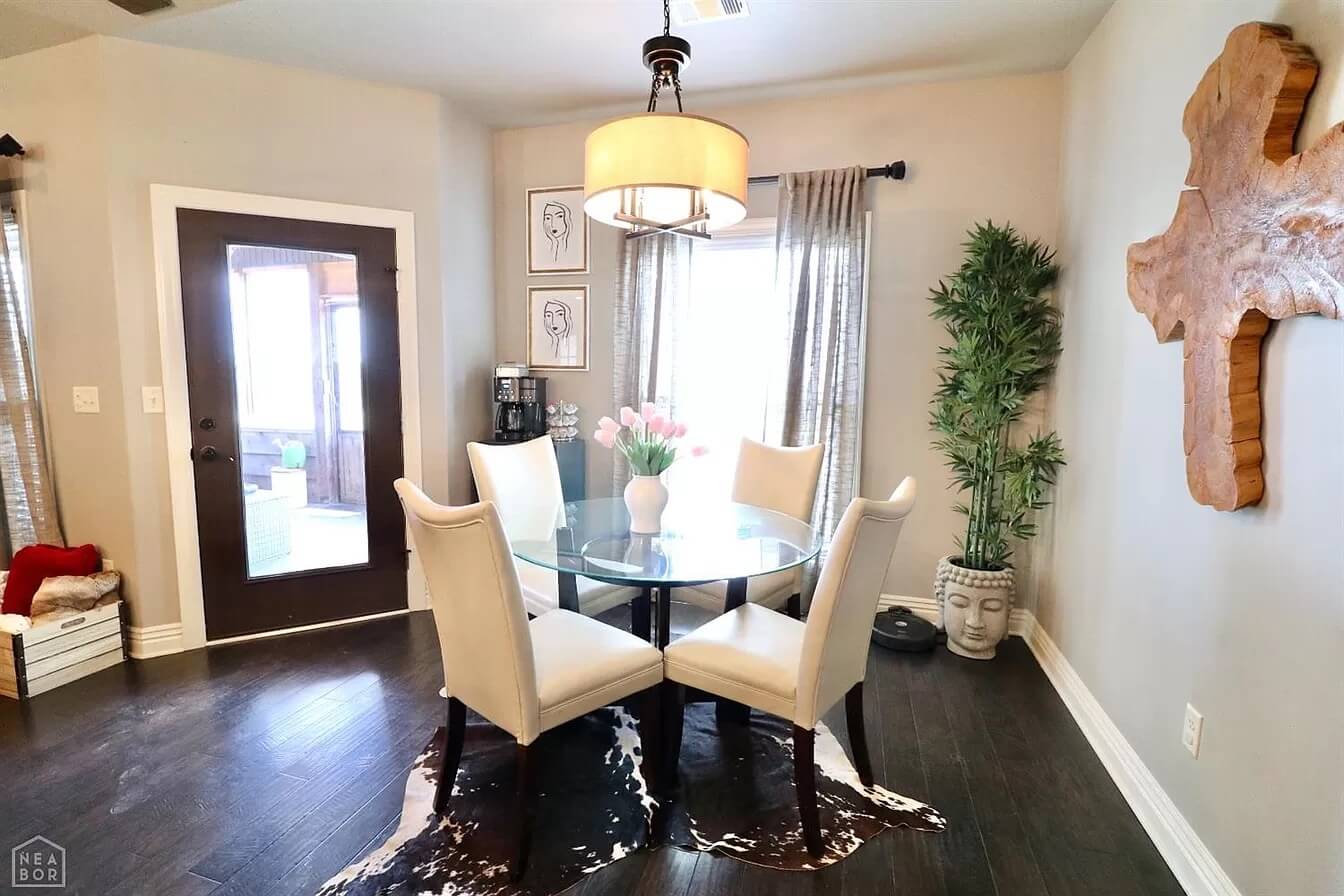

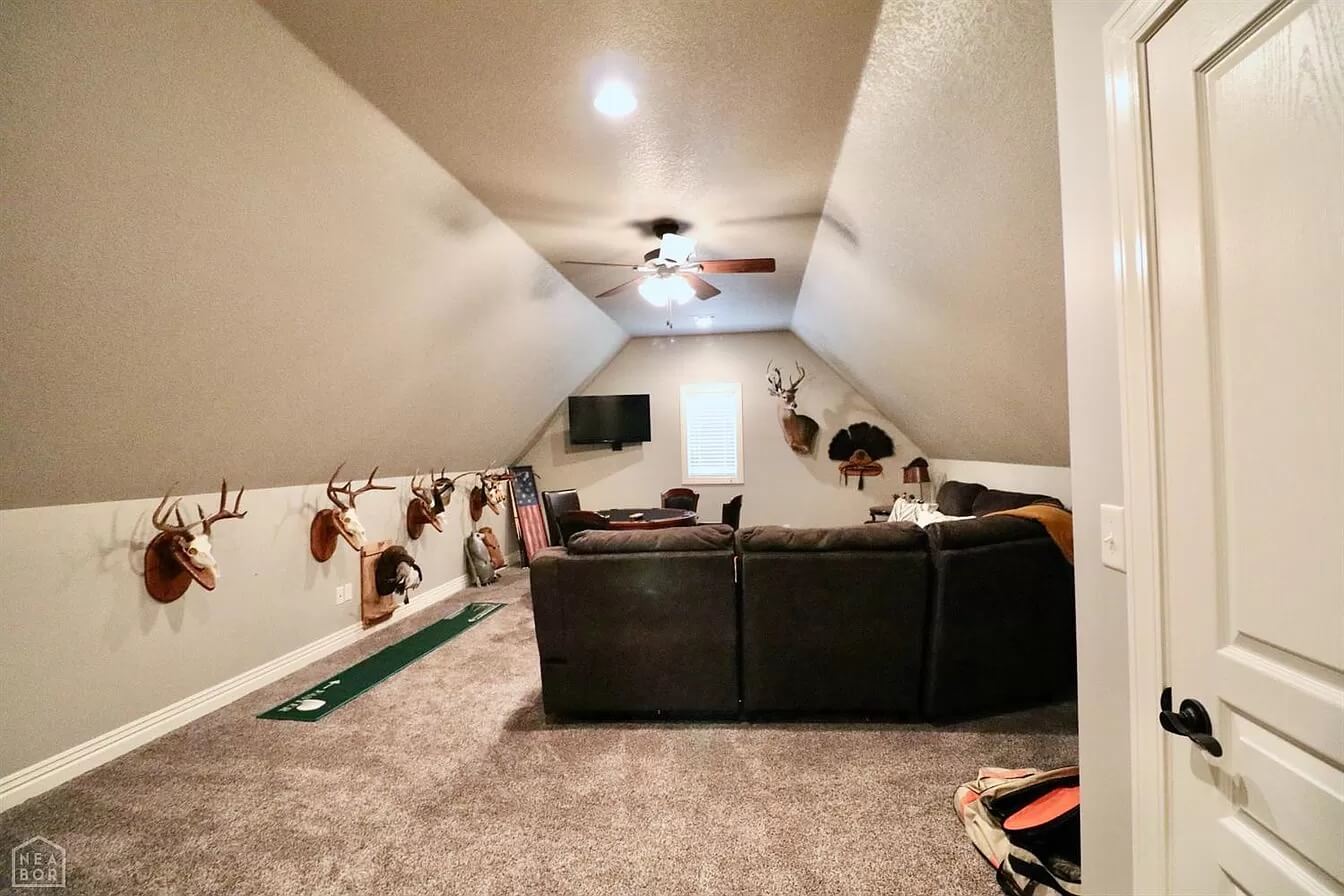

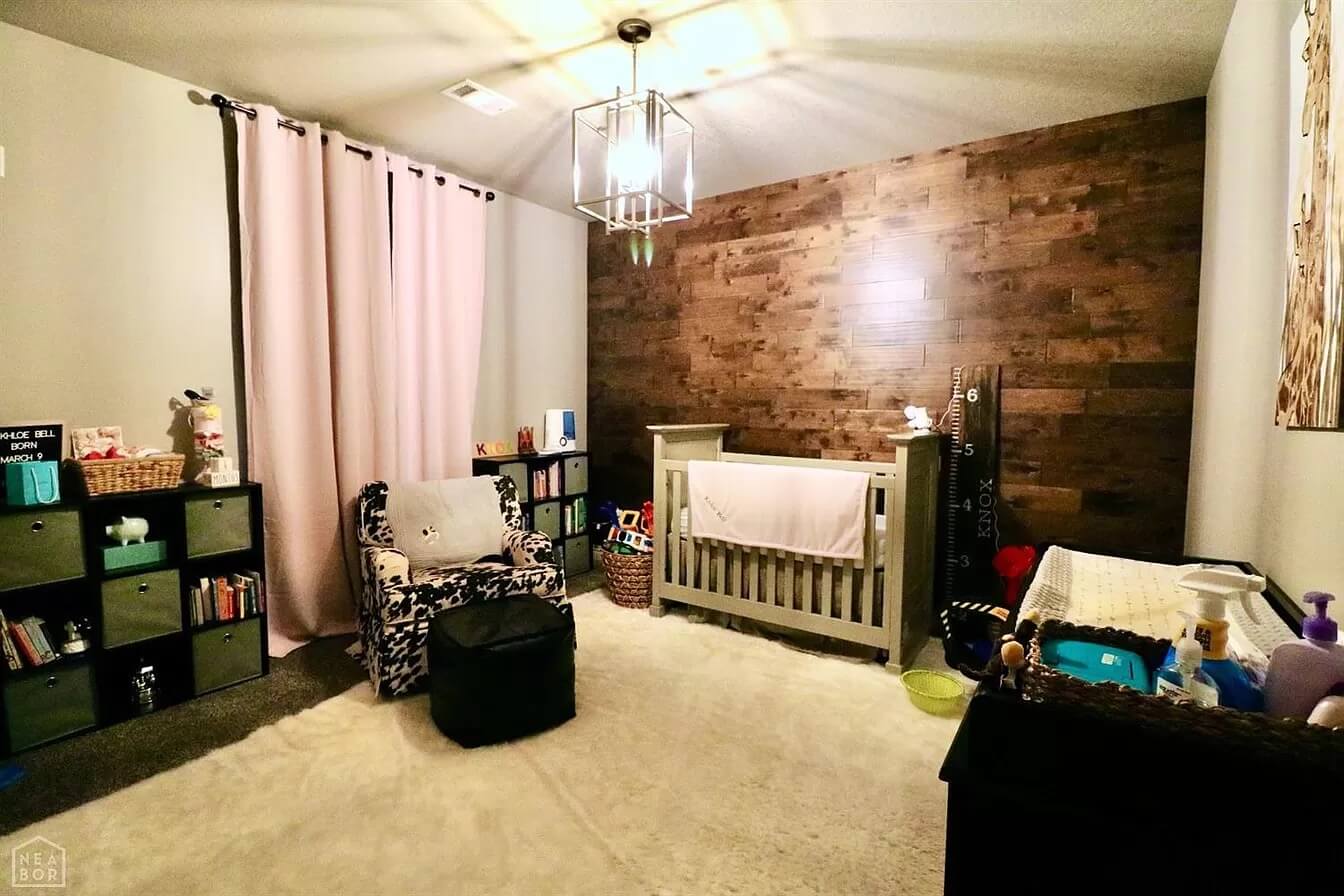

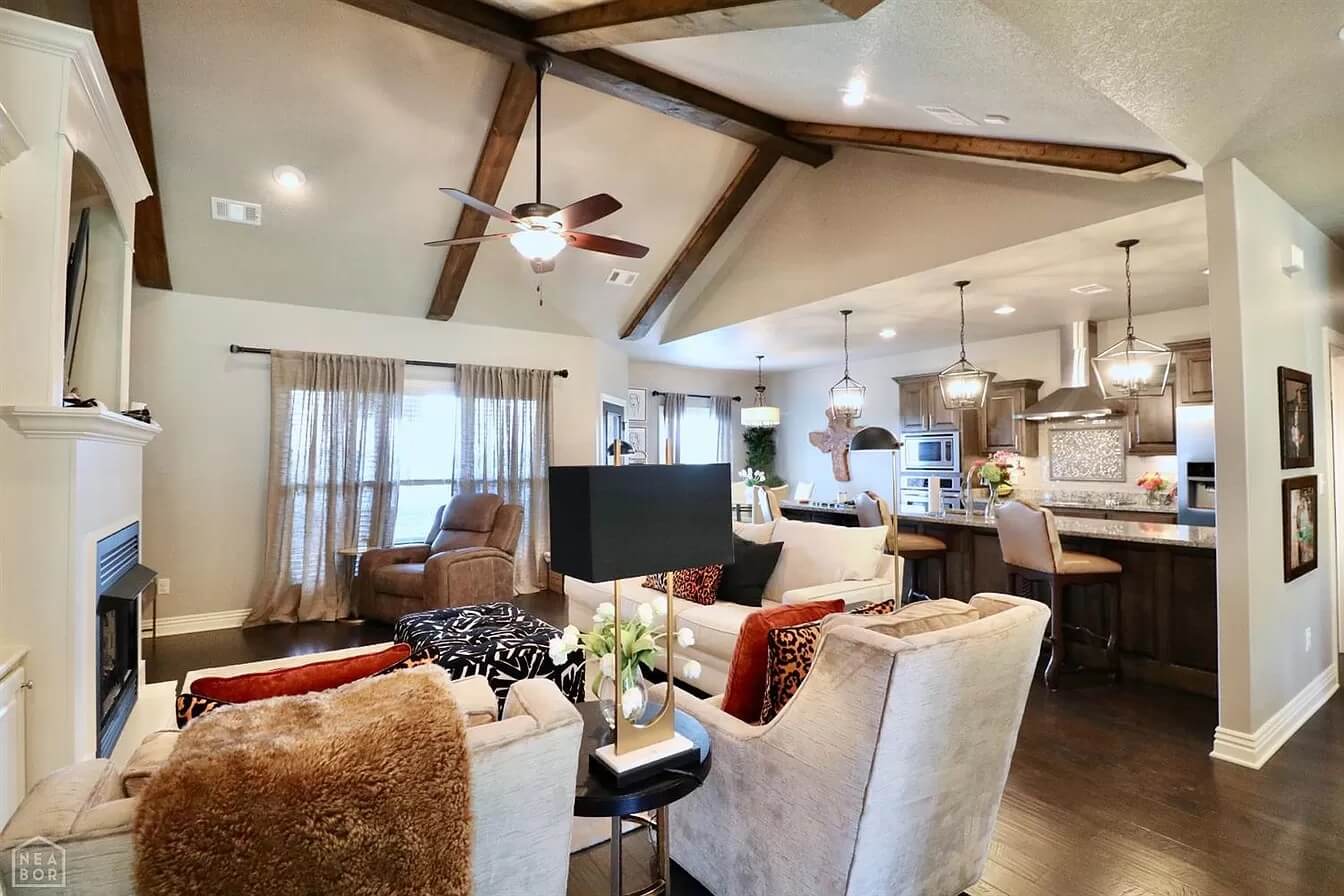

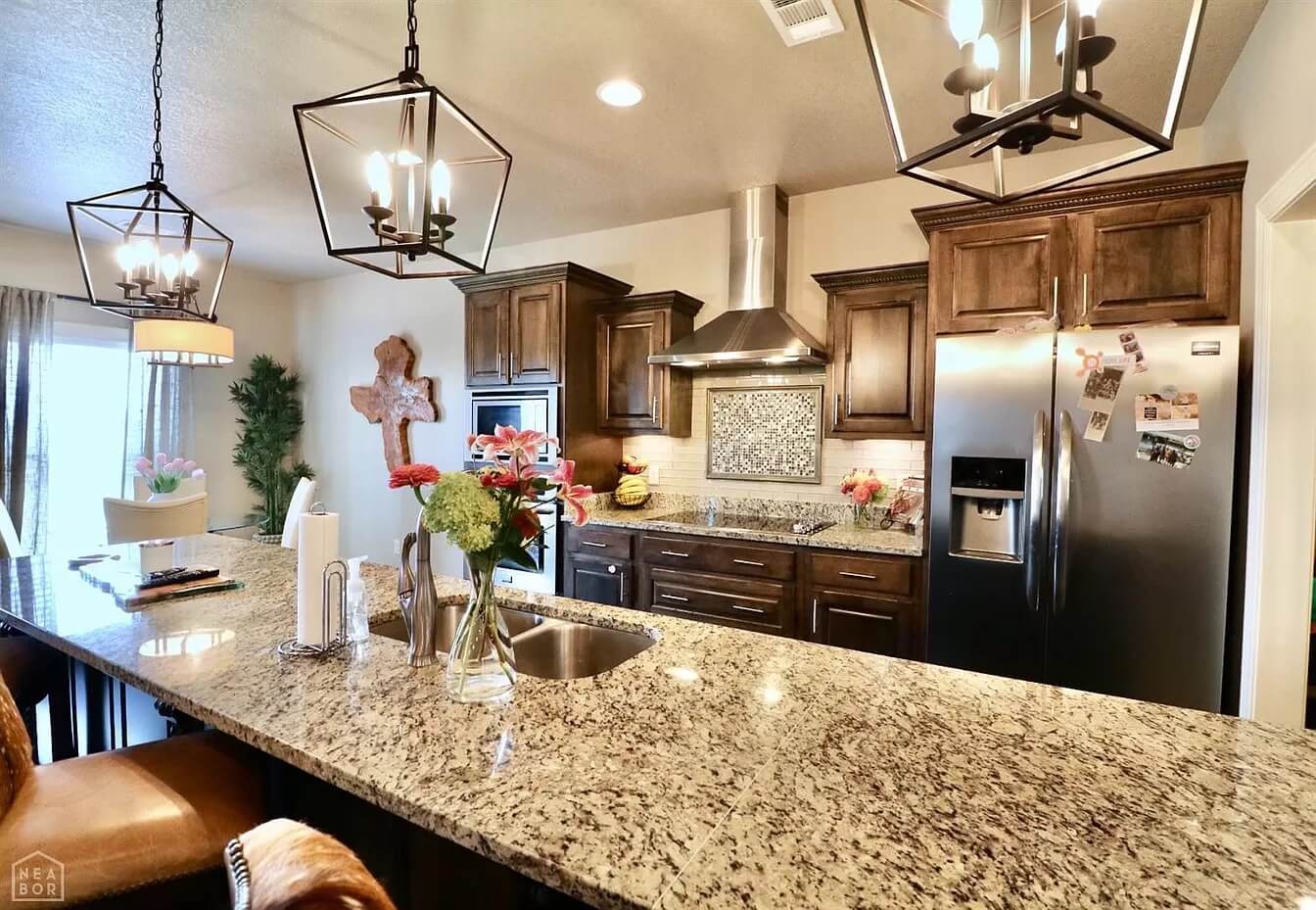

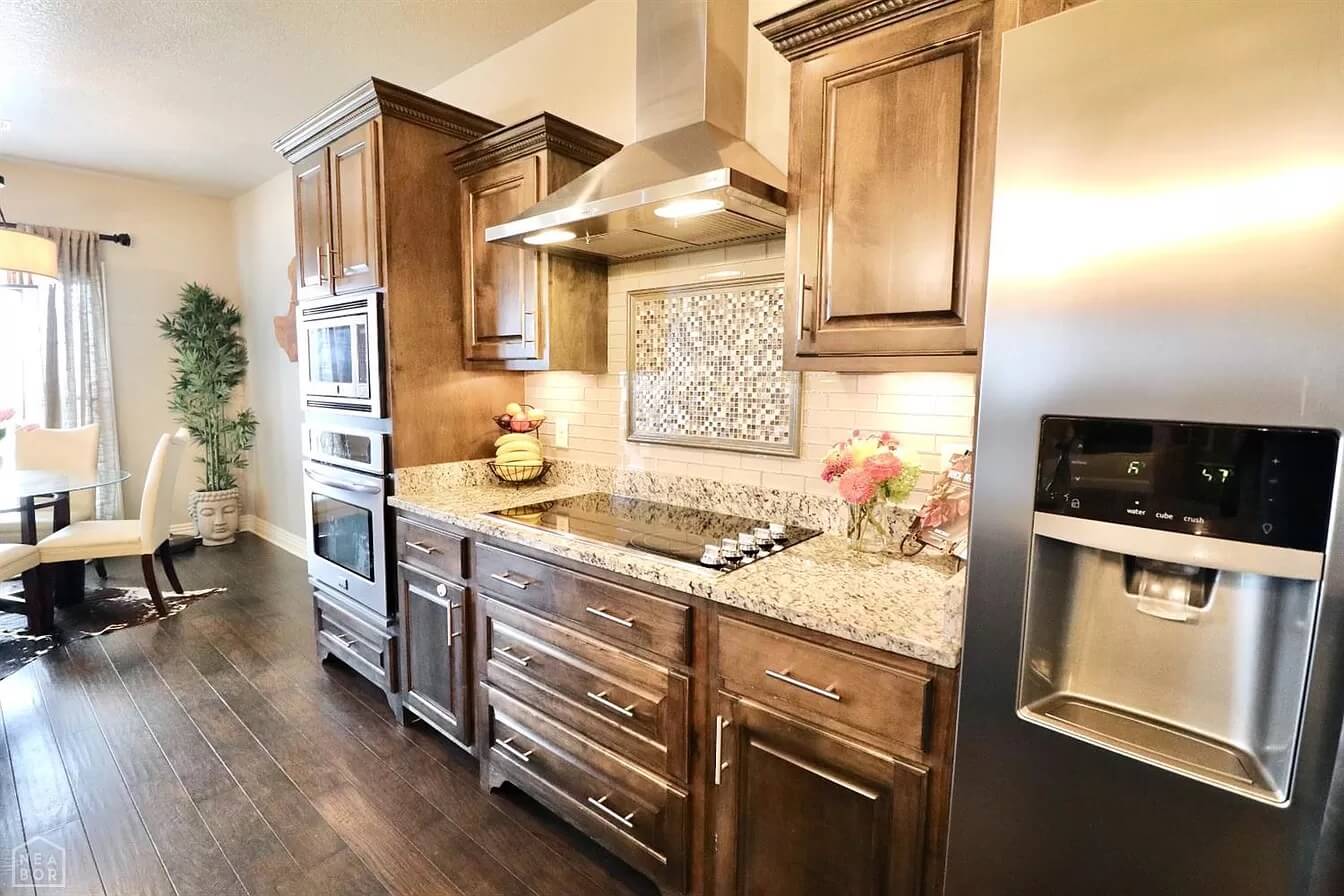

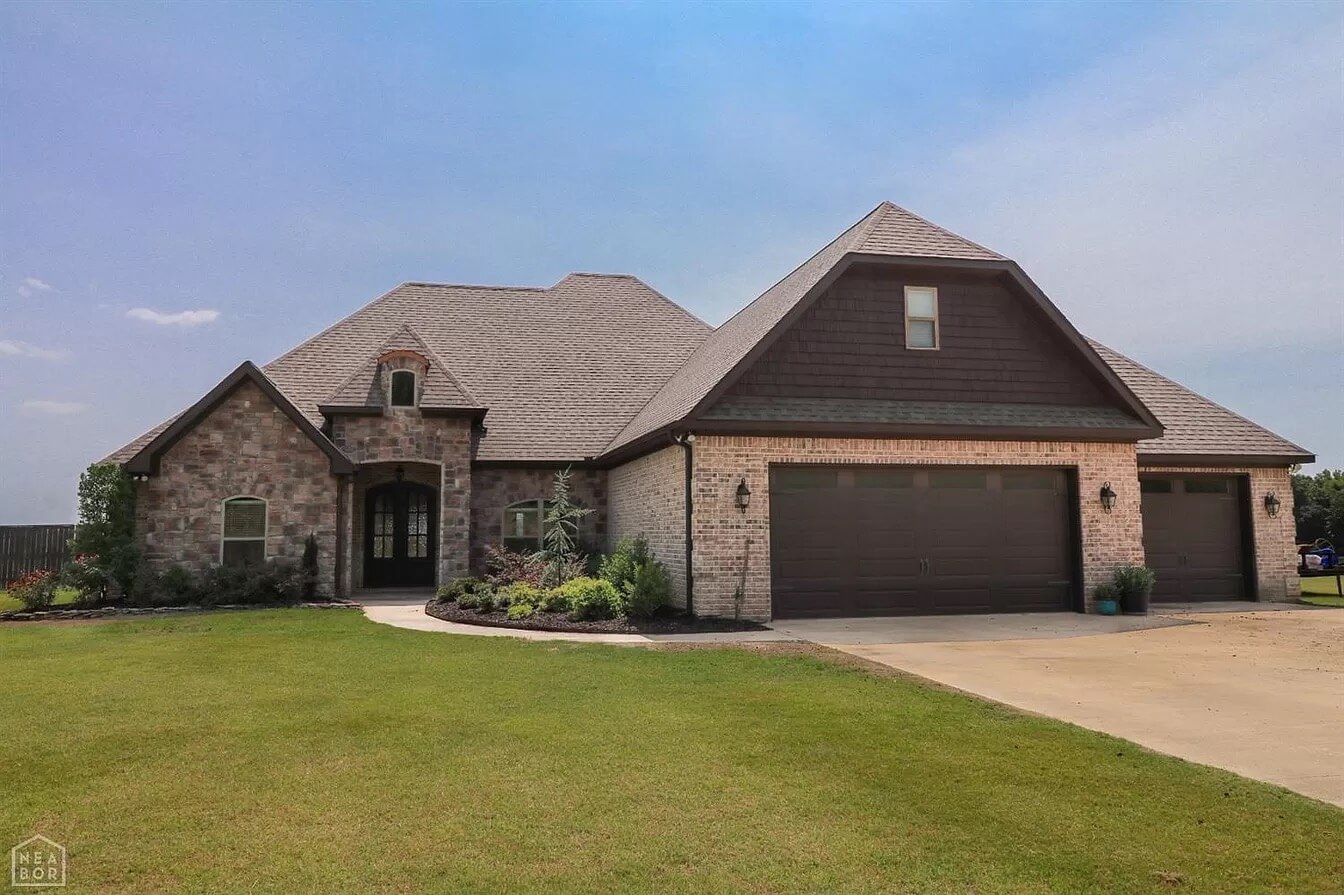

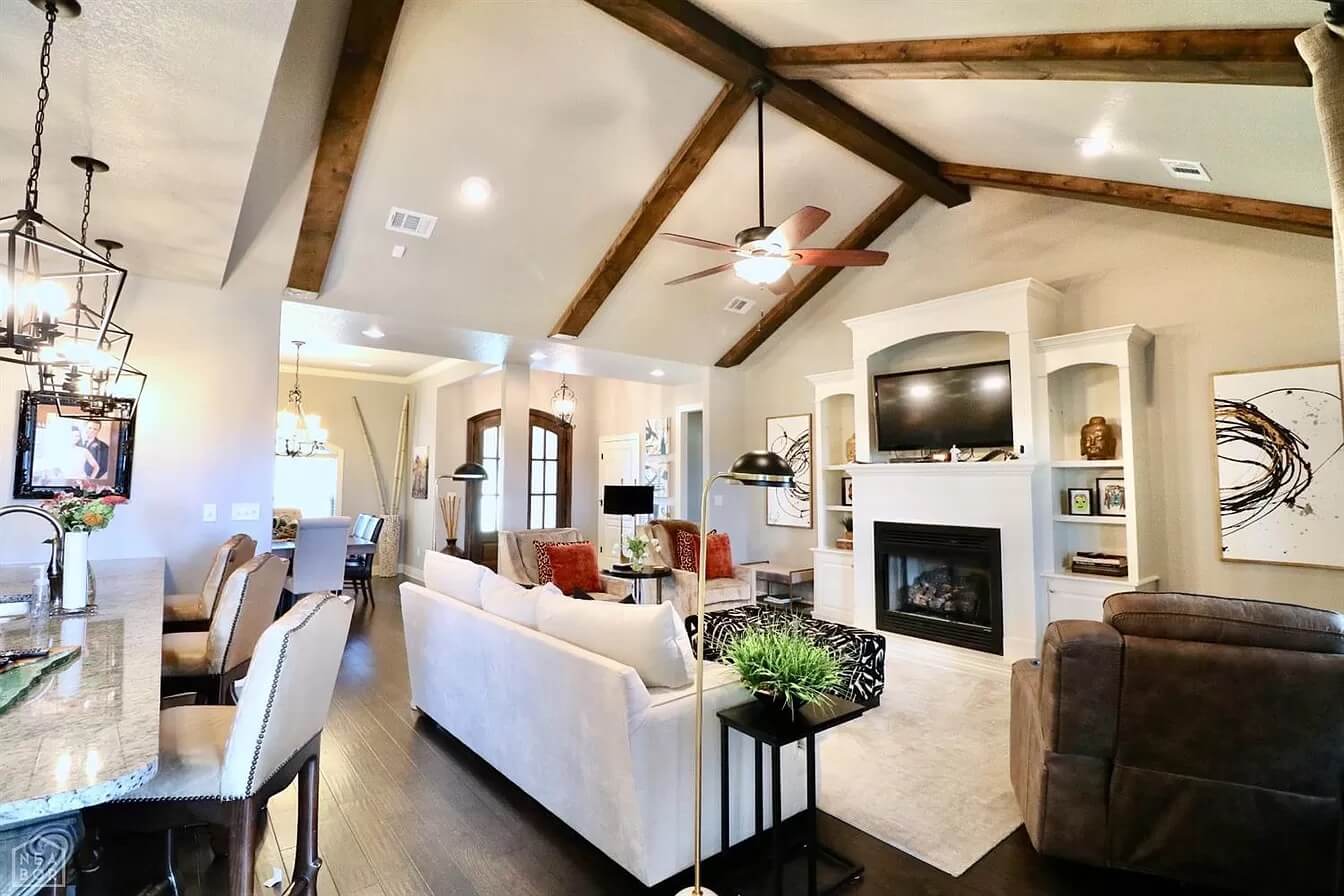

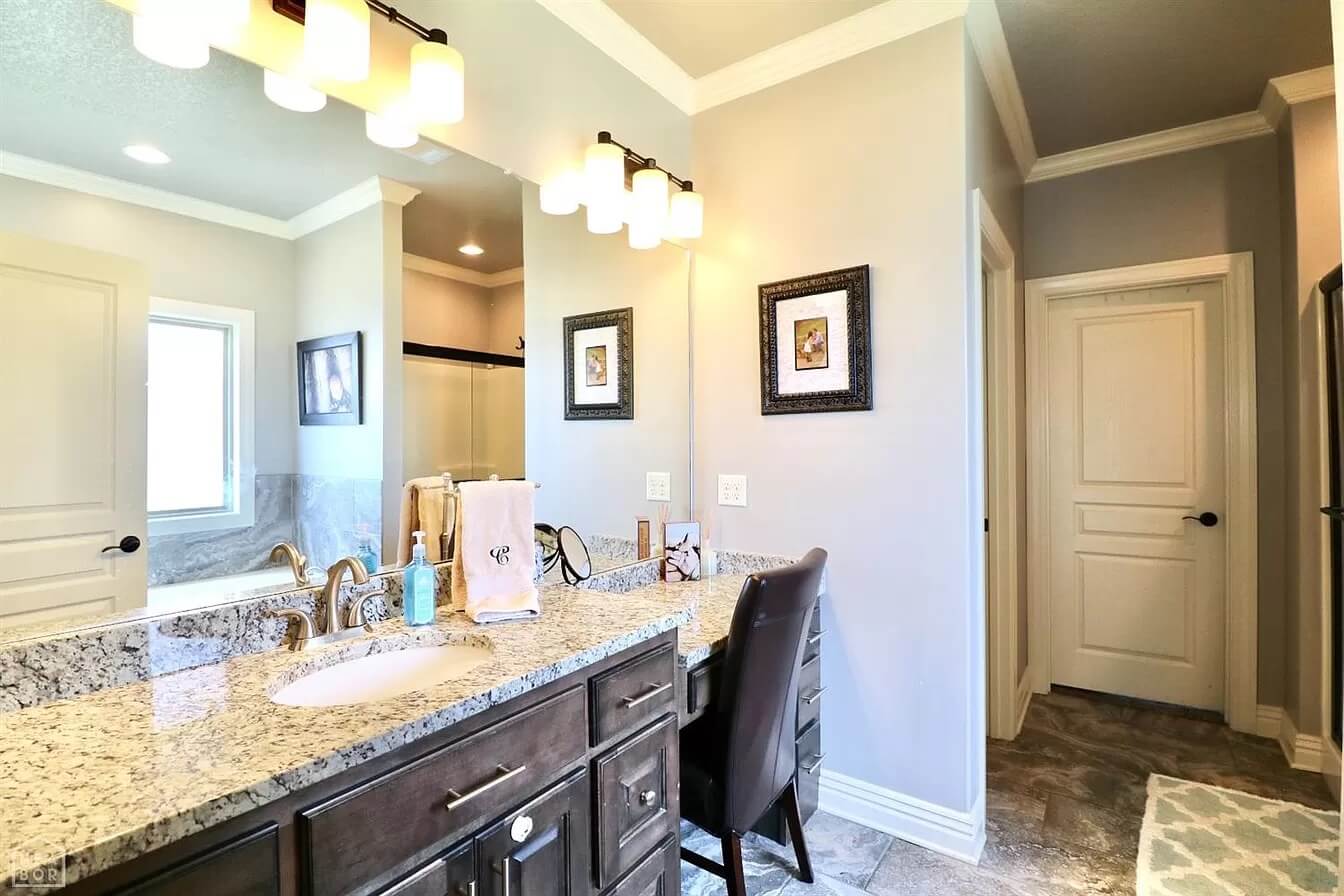

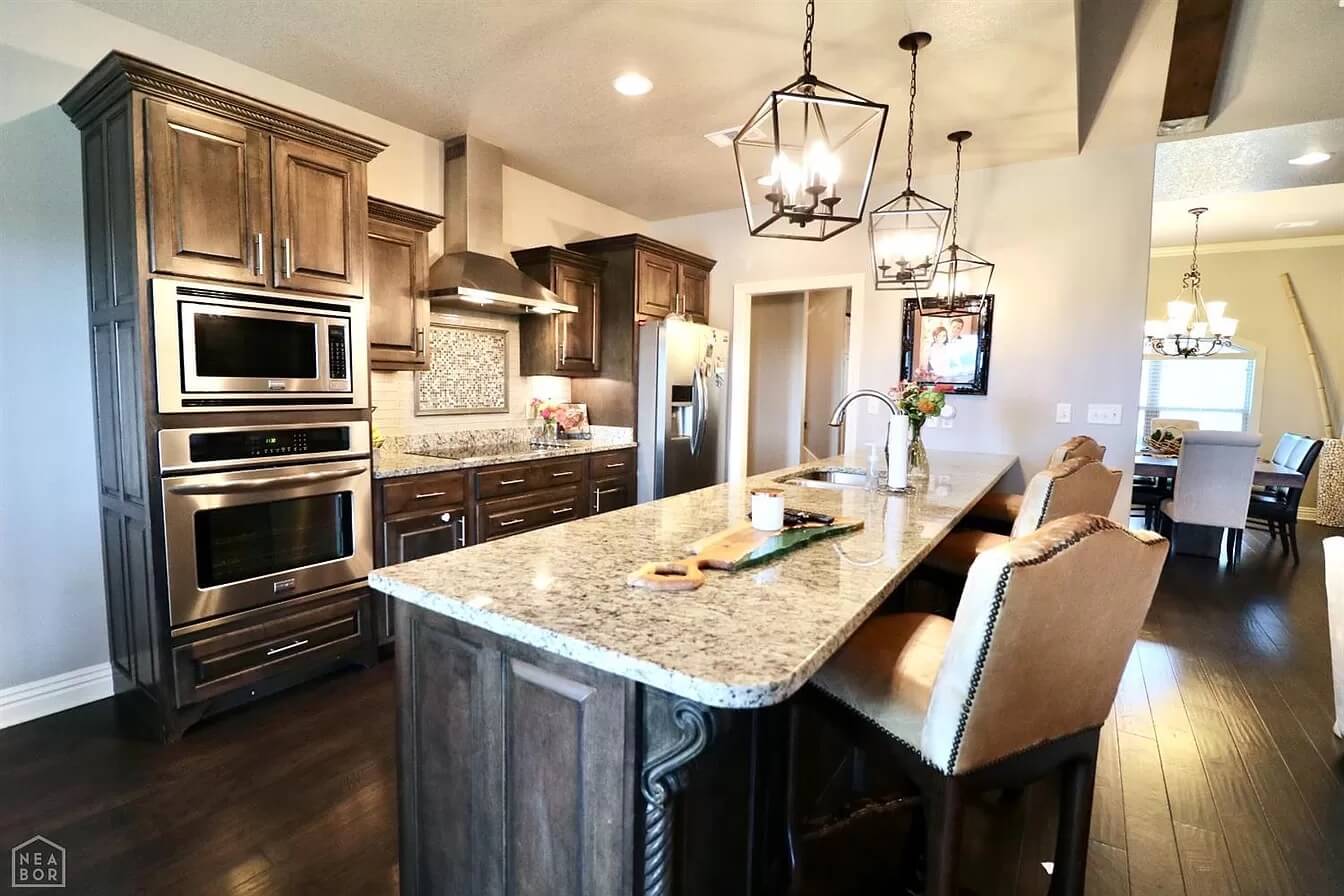

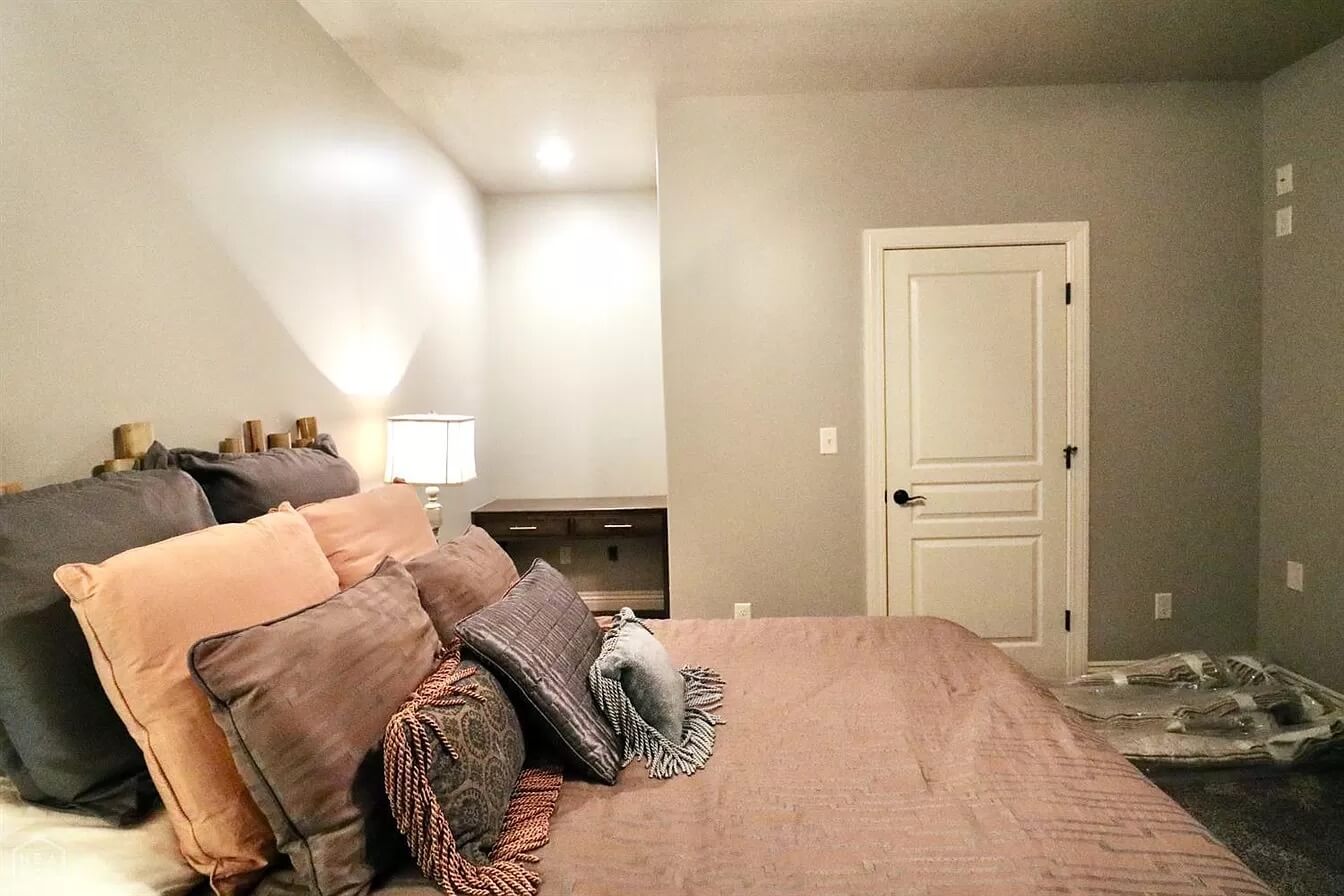

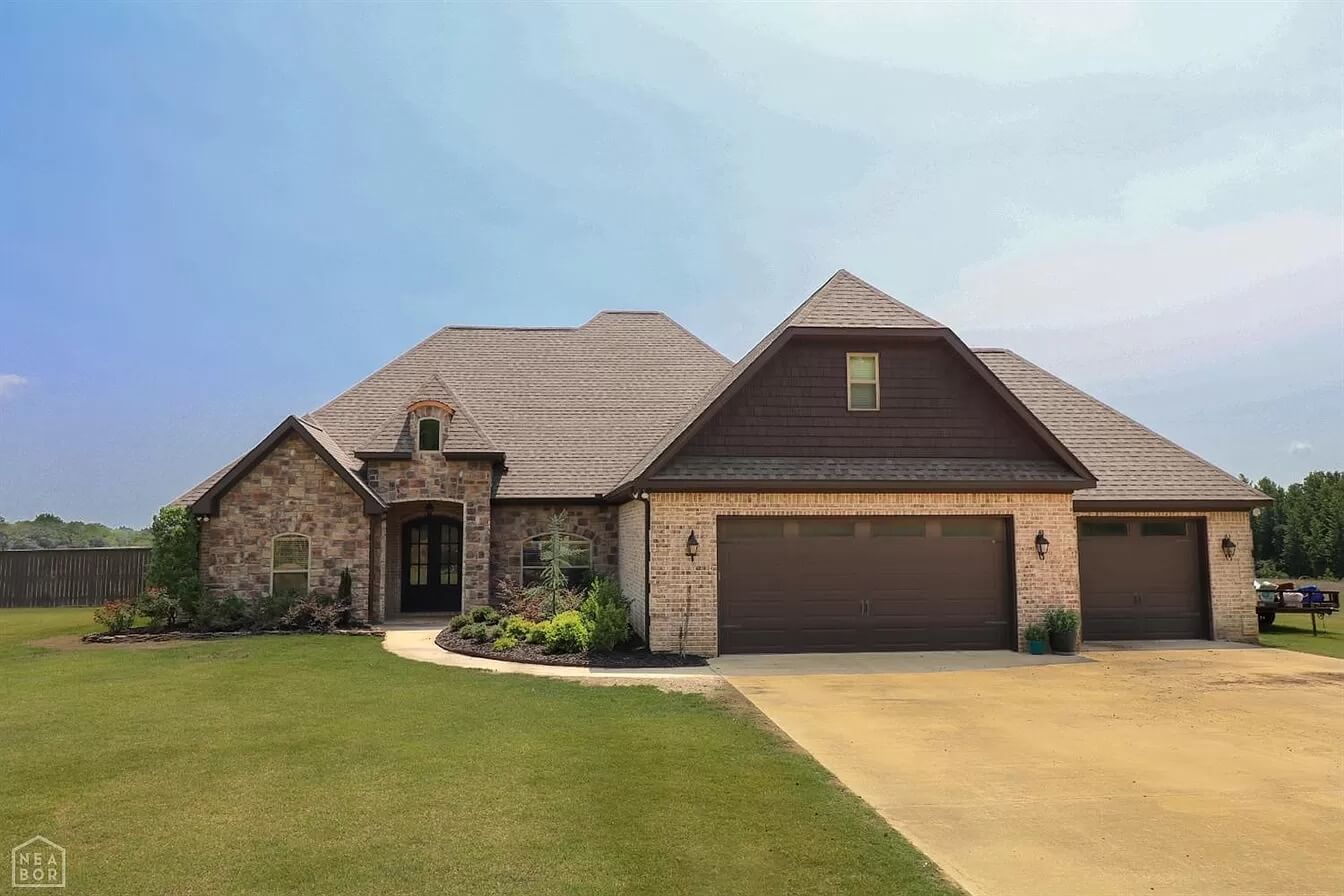

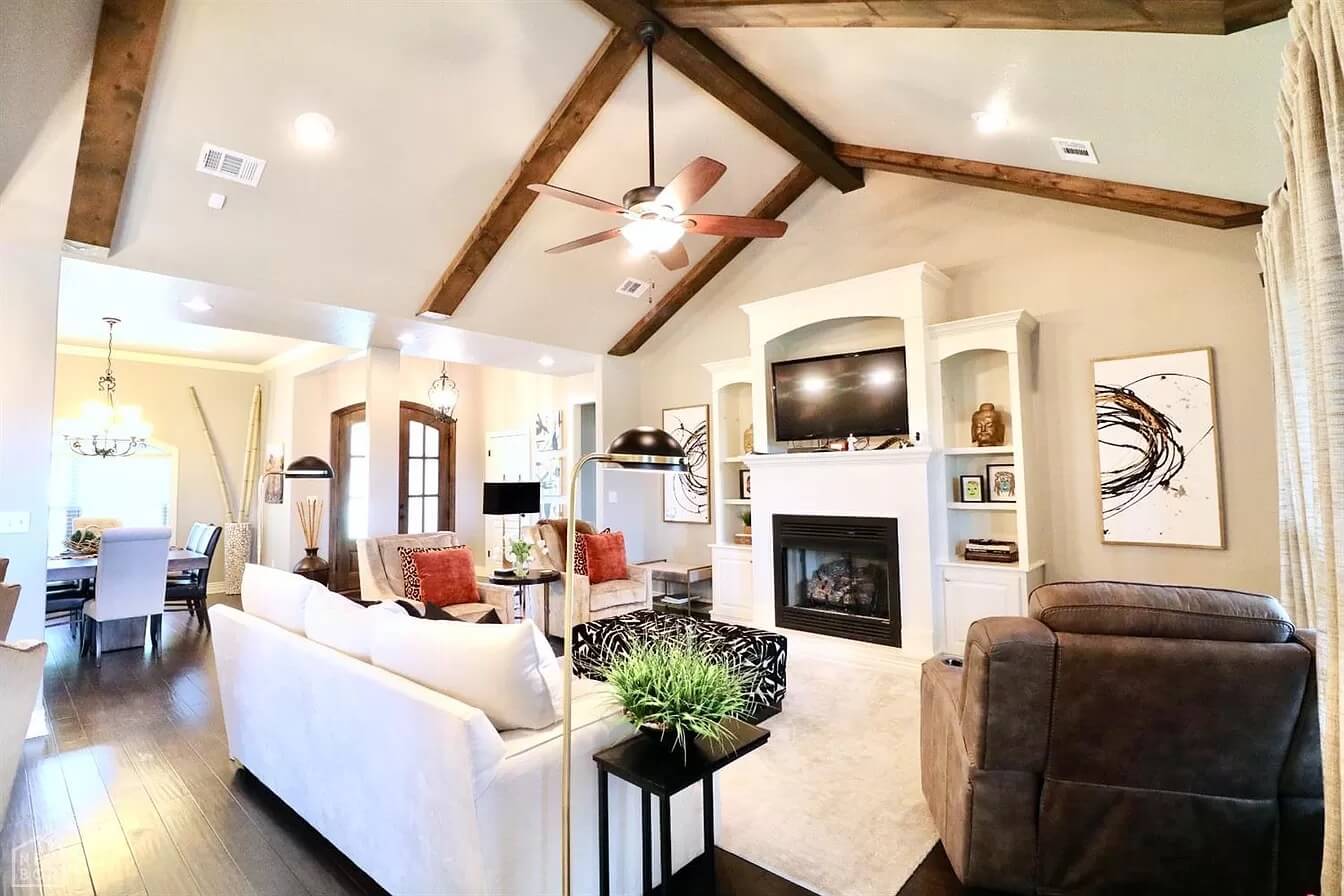

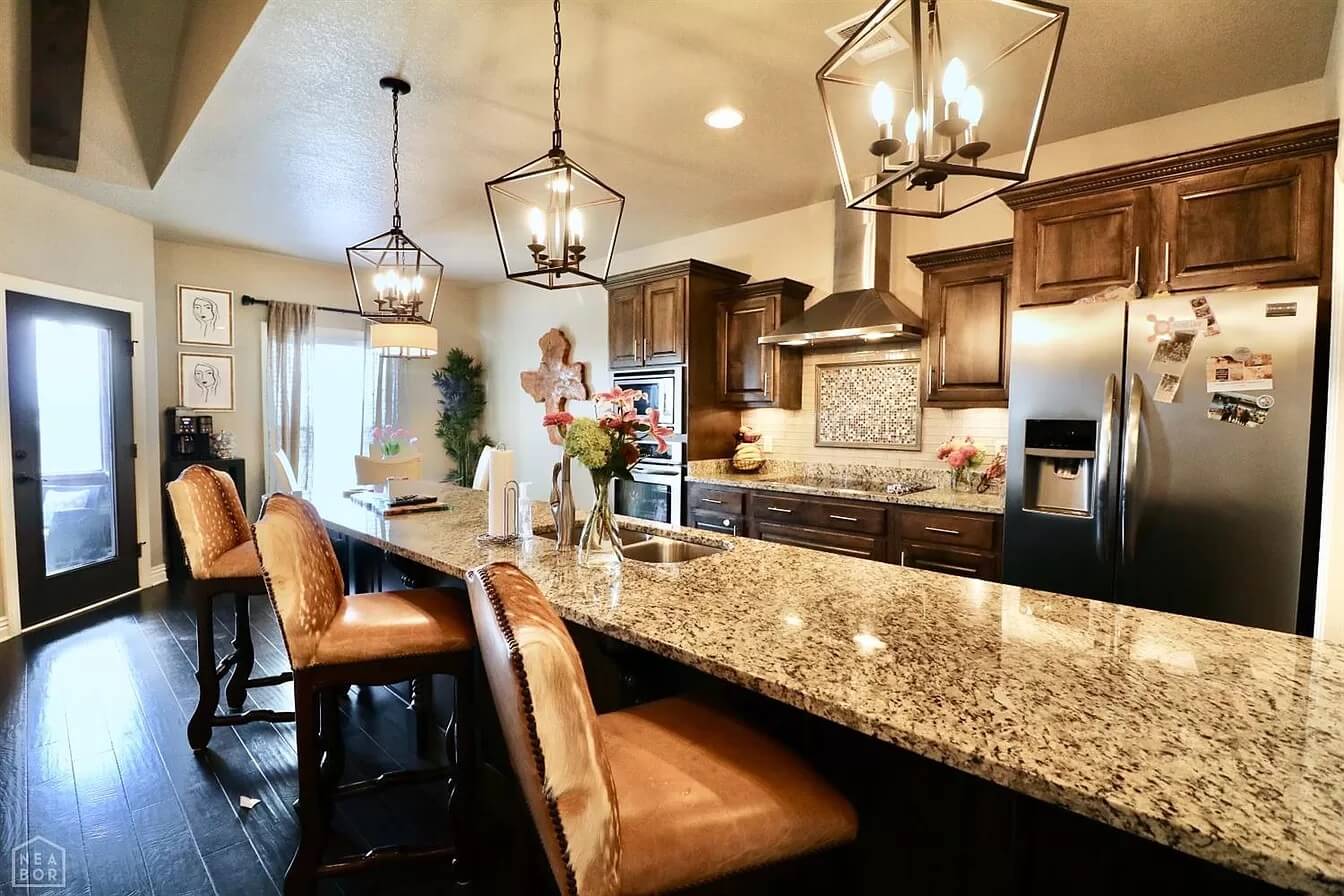

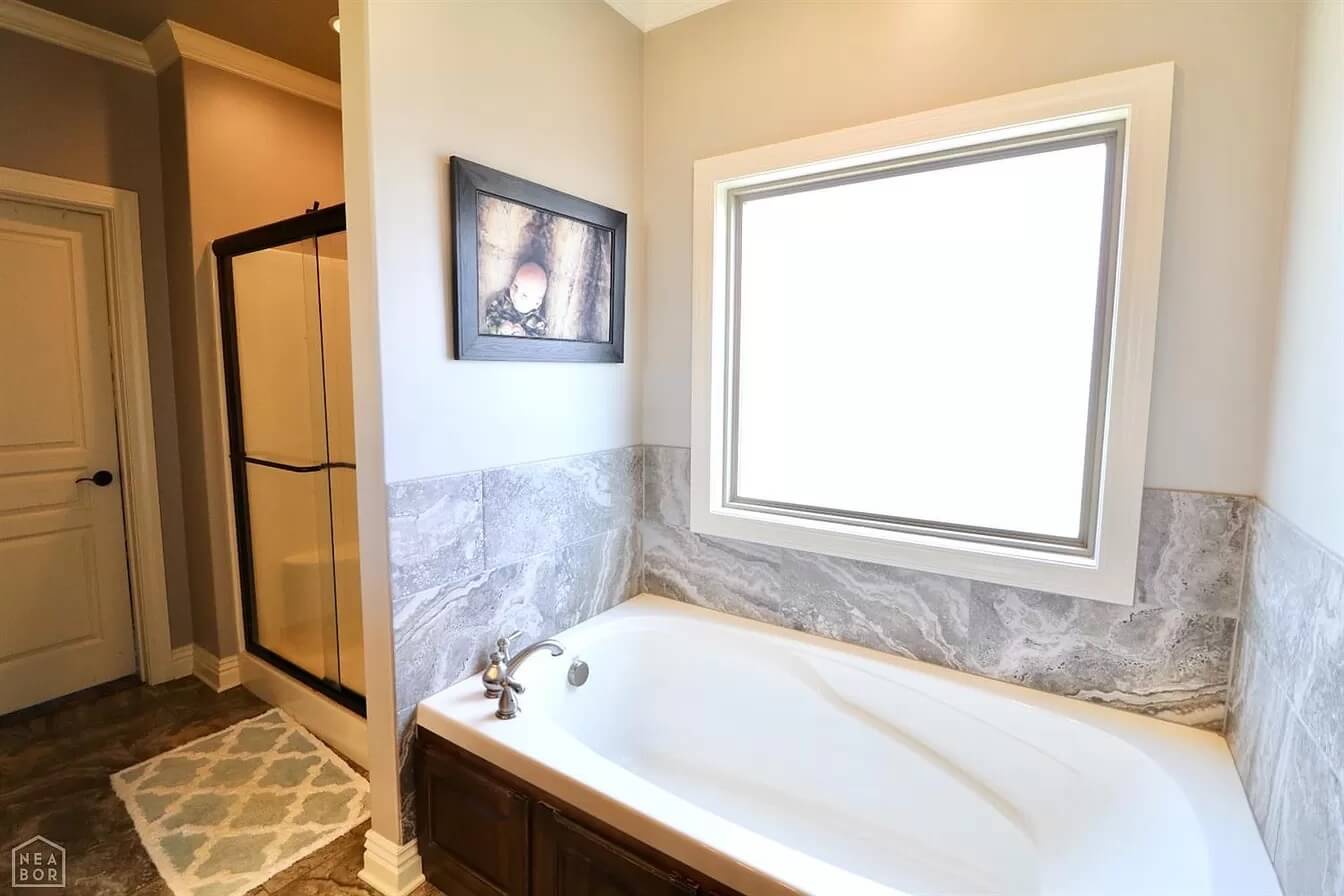

This charming European plan features brick, stone, and shake siding exterior with arched doors and windows and a 3-car garage. Upon entering the foyer, the Great Room with its vaulted ceiling is open to the kitchen and breakfast room which features an eat-at bar. The Master Suite has a 10ft boxed ceiling and a huge walk-in closet. Bedrooms 2, 3, and 4 are located on the other side of the house with 2 full baths. There's also a bonus room located over the garage.

Specifications

  • Total Living Space:2413Sq.Ft.
  • Main Floor: 2413 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 332 Sq.Ft.
  • Porch (Sq.Ft.): 335 Sq.Ft.
  • Garage (Sq.Ft.): 762 Sq.Ft.
  • Total Square Feet: 3842 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
