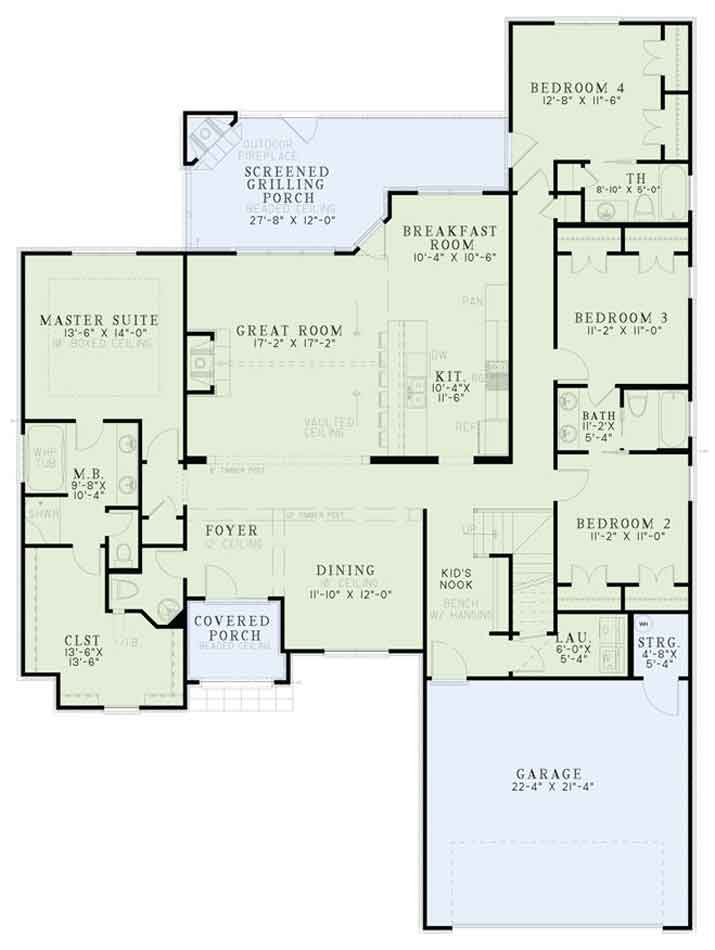

House Plan NDG 1416 Main Floor

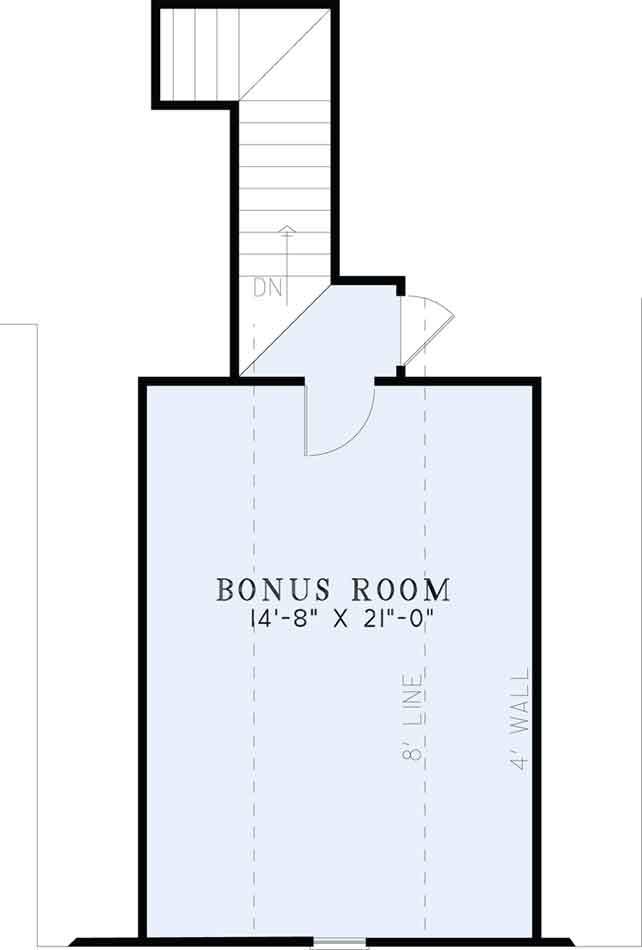

House Plan NDG 1416 Bonus Room

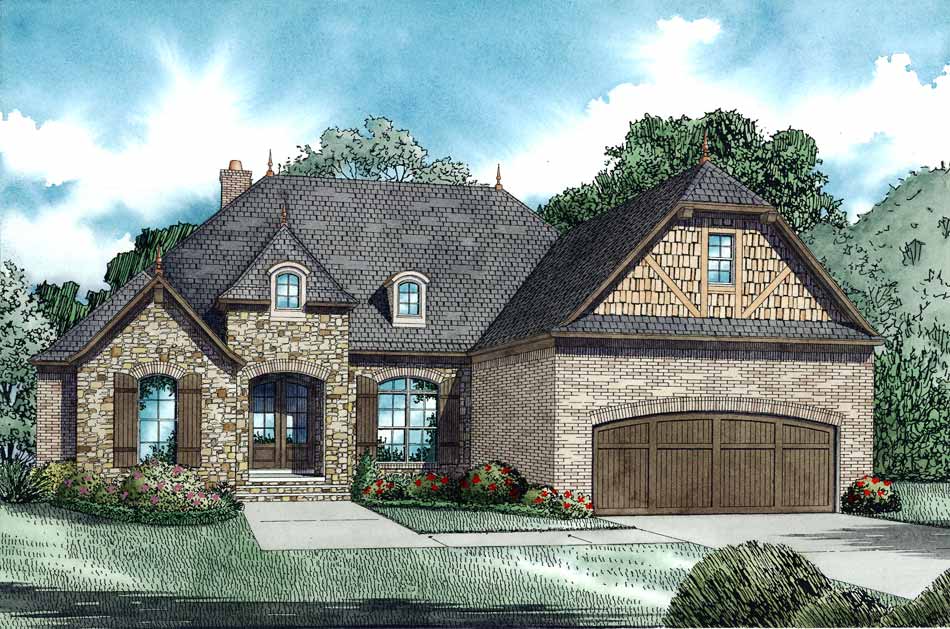

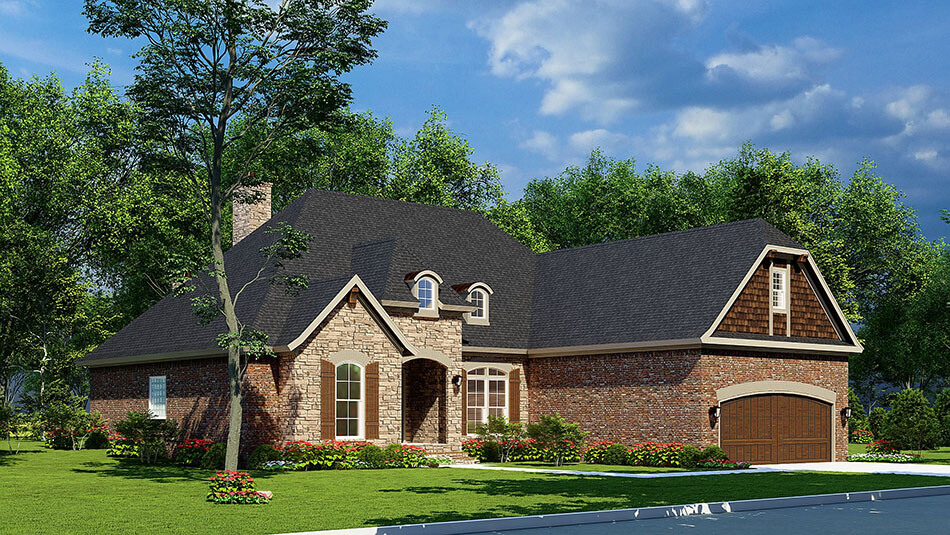

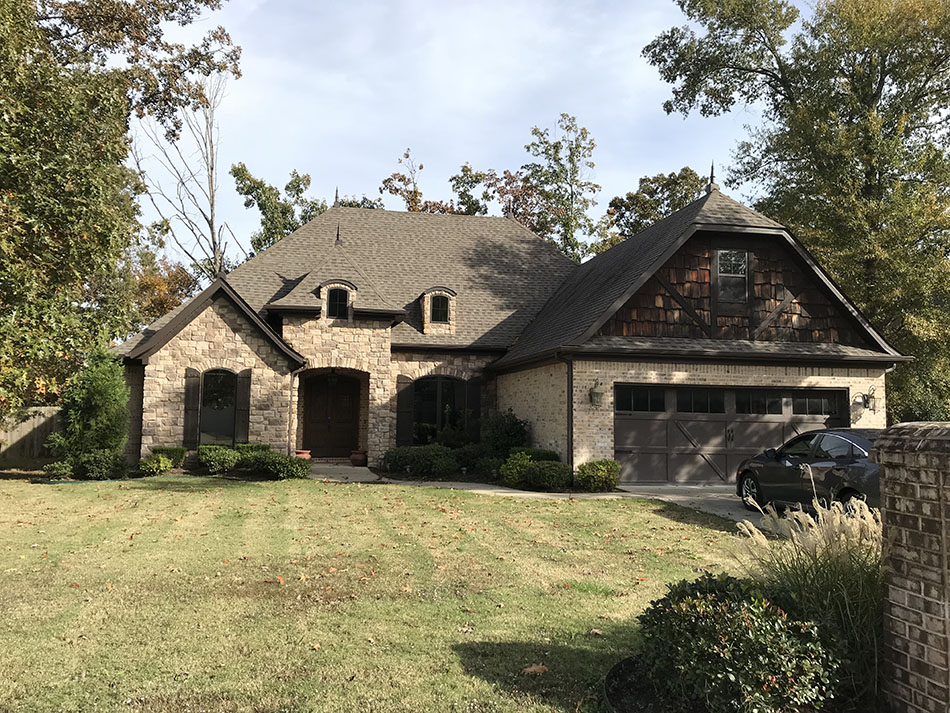

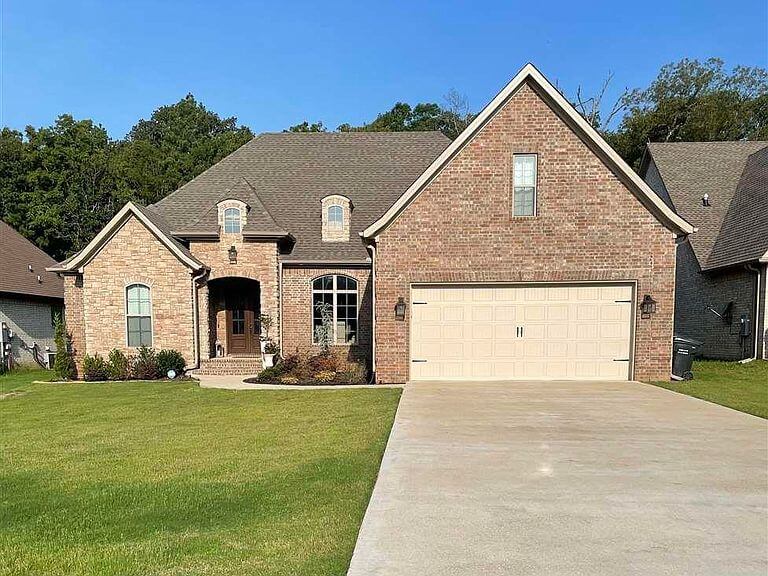

House Plan - NDG1416 Front View

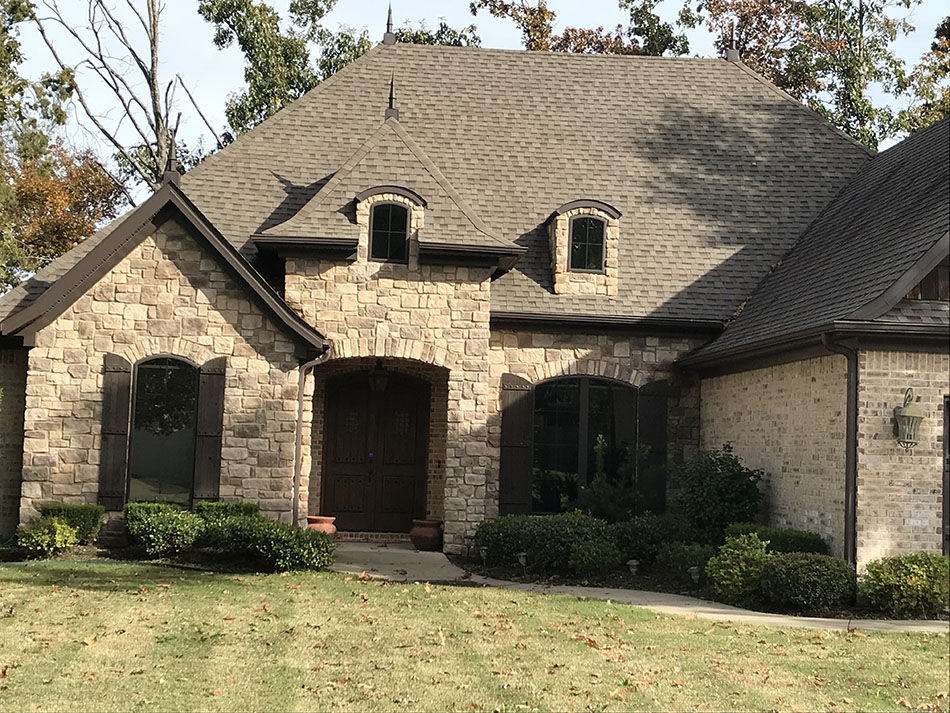

House Plan - NDG1456 Front View Up Close
House Plan NDG 1416 Main Floor
House Plan NDG 1416 Bonus Room
House Plan - NDG1416 Front View
House Plan - NDG1456 Front View Up Close

Floor plans

NDG 1416

House Plan 1416 The Fontana, European House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1416
  • Total Living Space:2384Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 57
  • Width In.: 4
  • Depth Ft.: 77
  • Depth In.: 8

Description

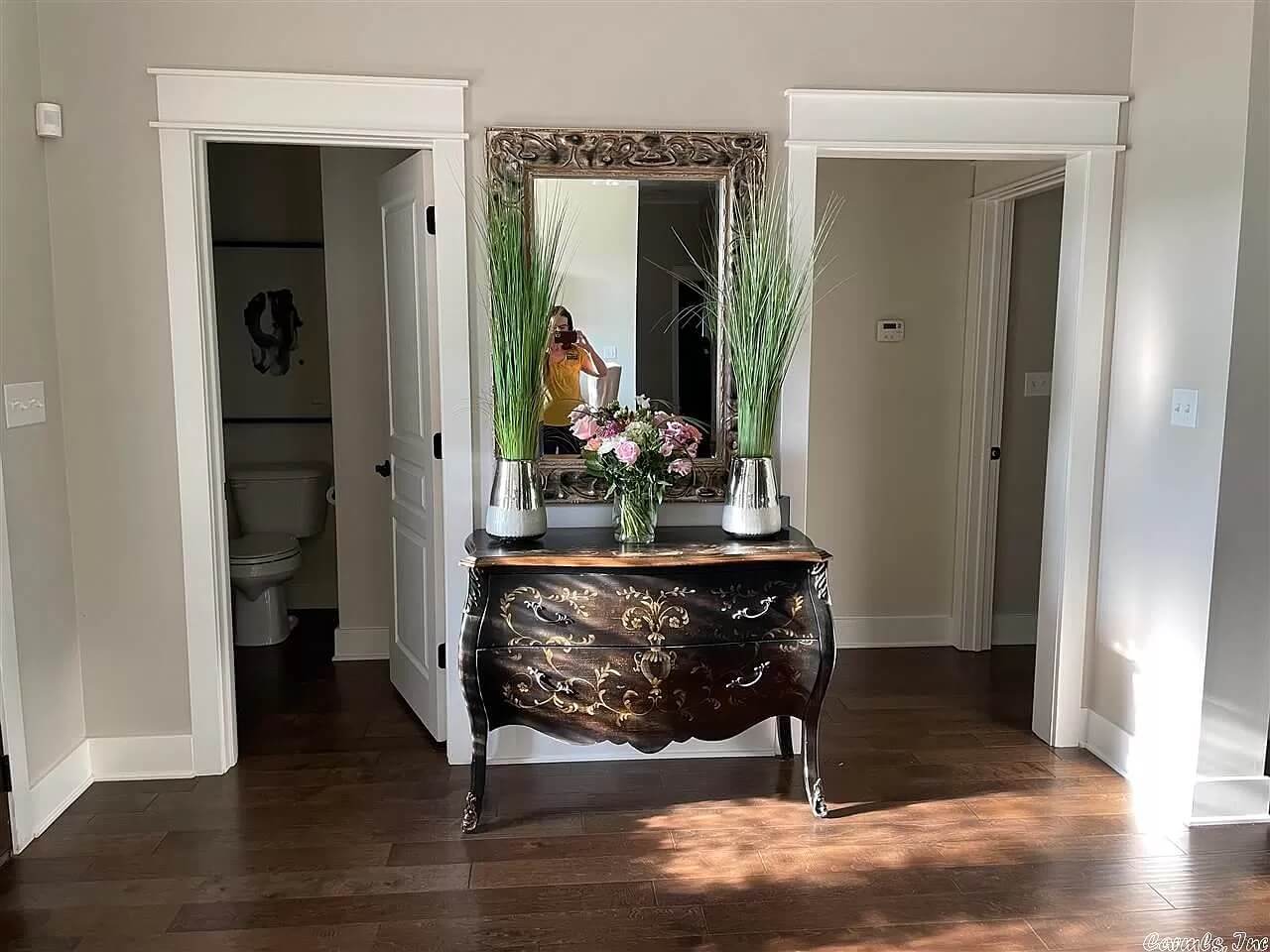

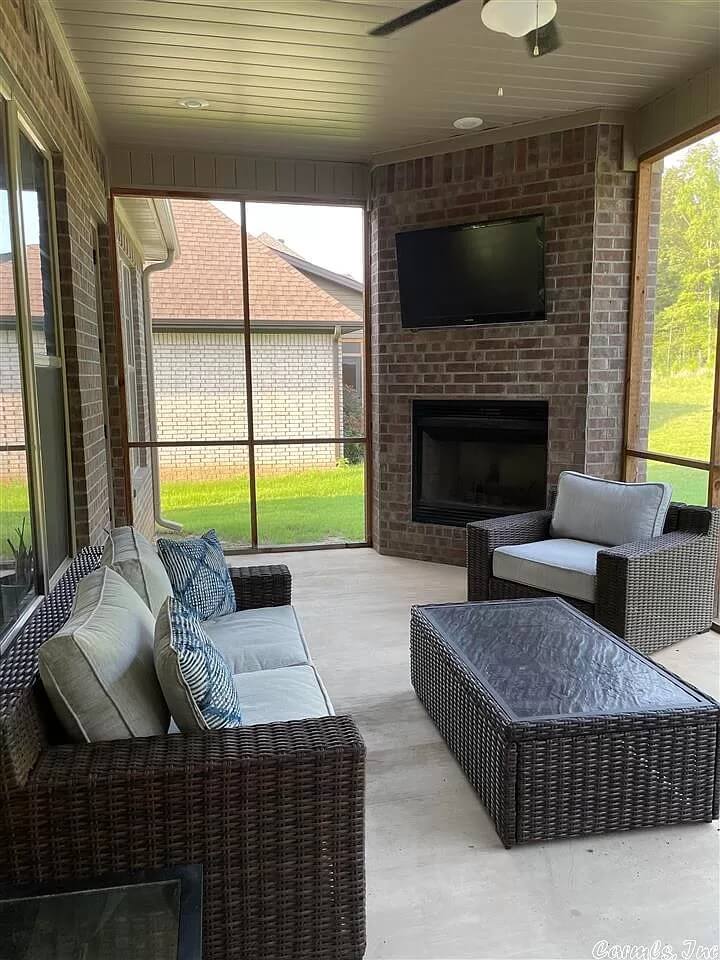

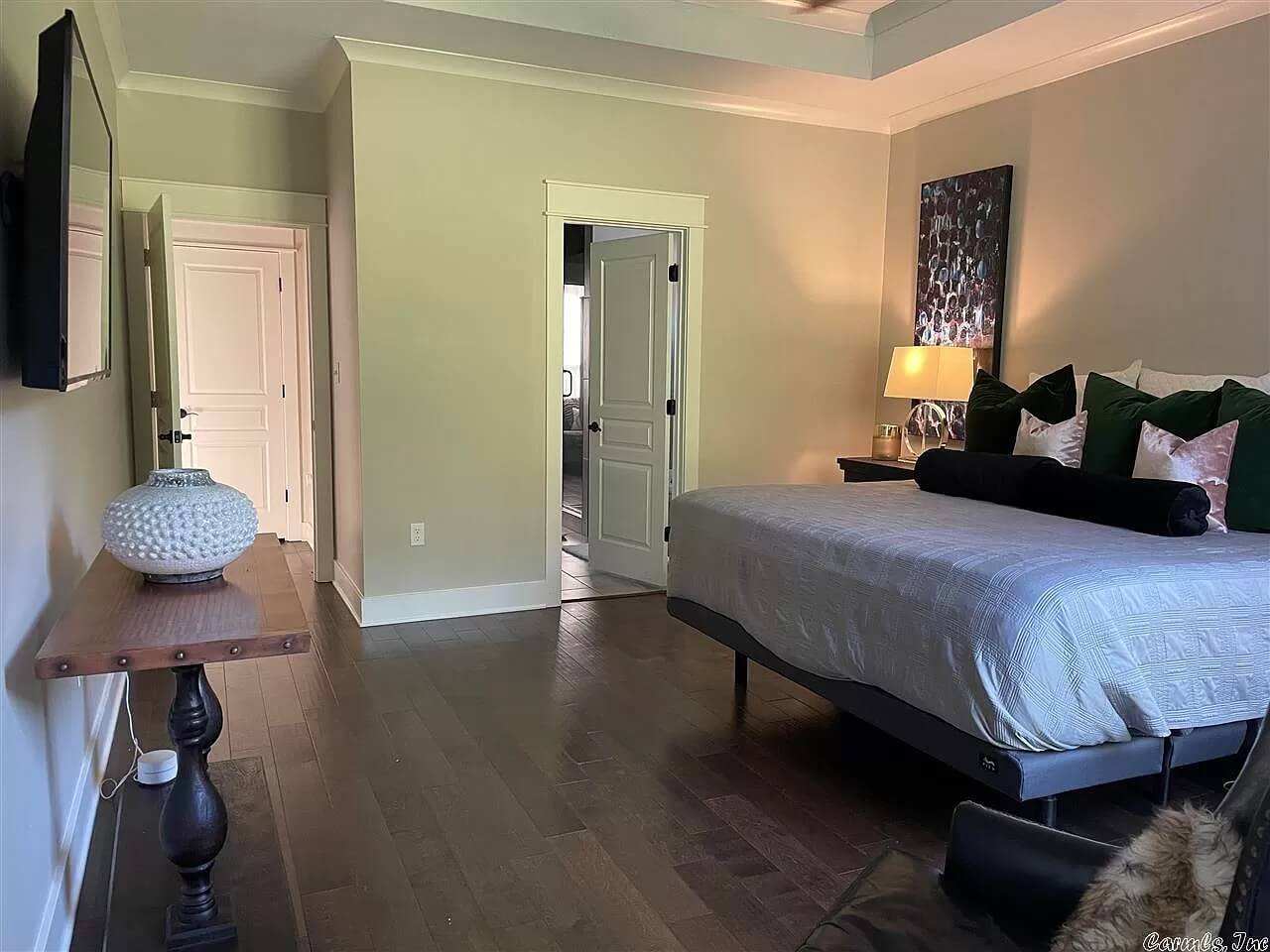

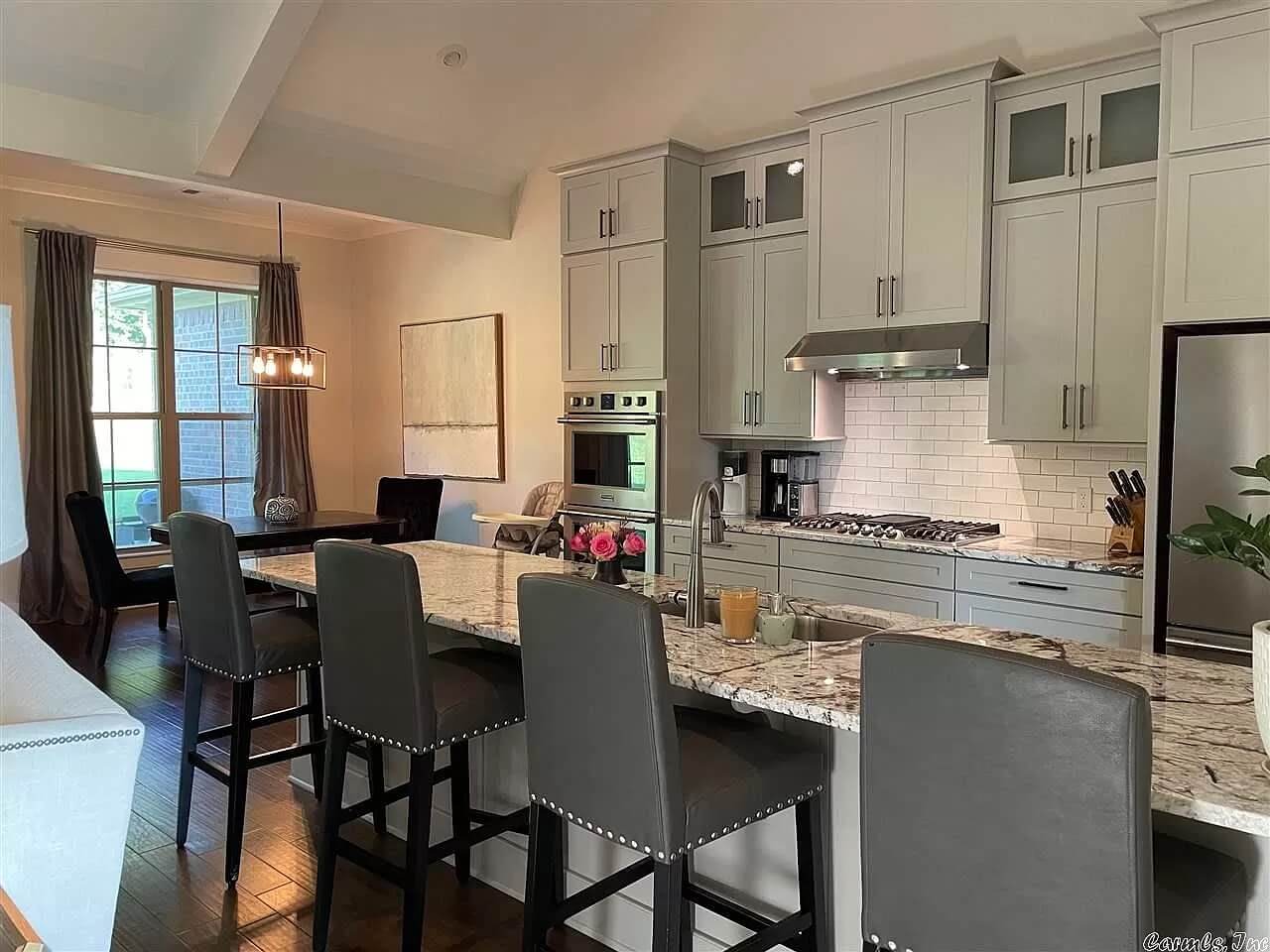

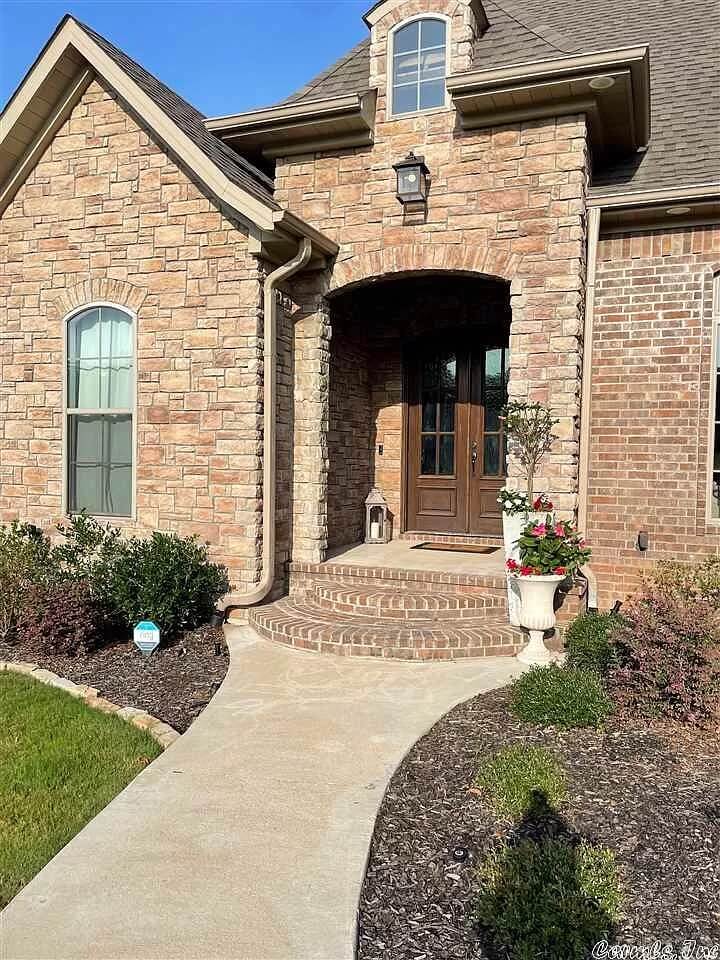

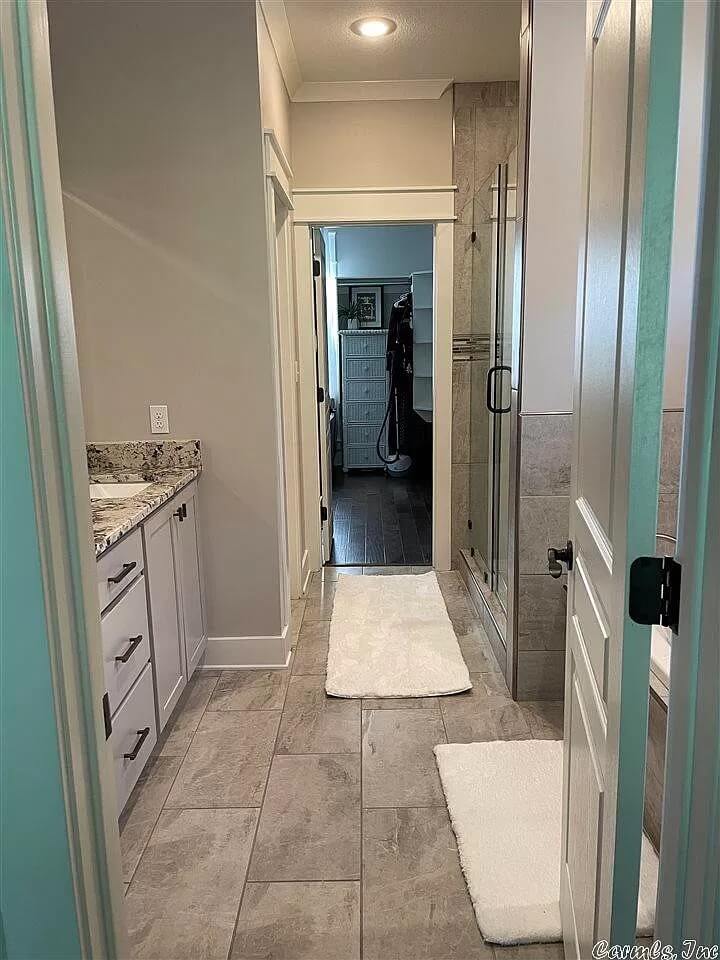

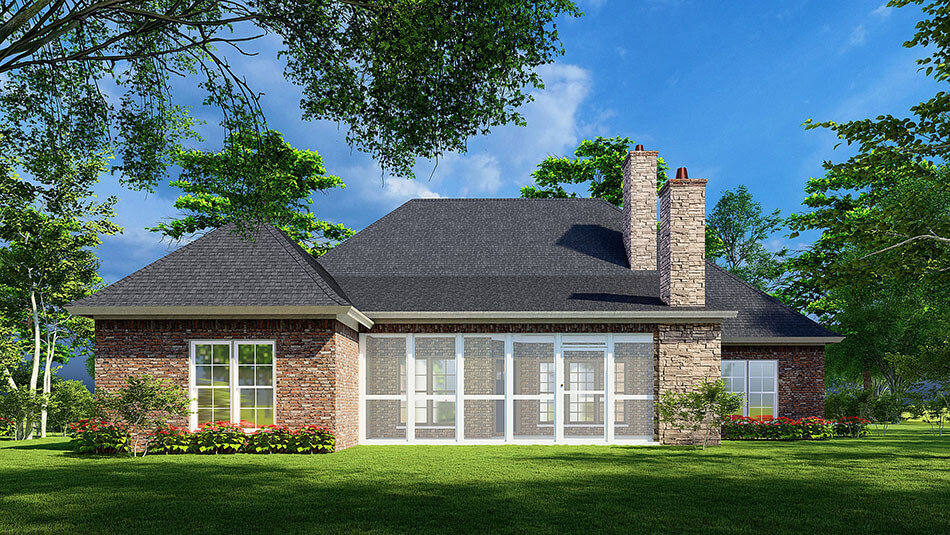

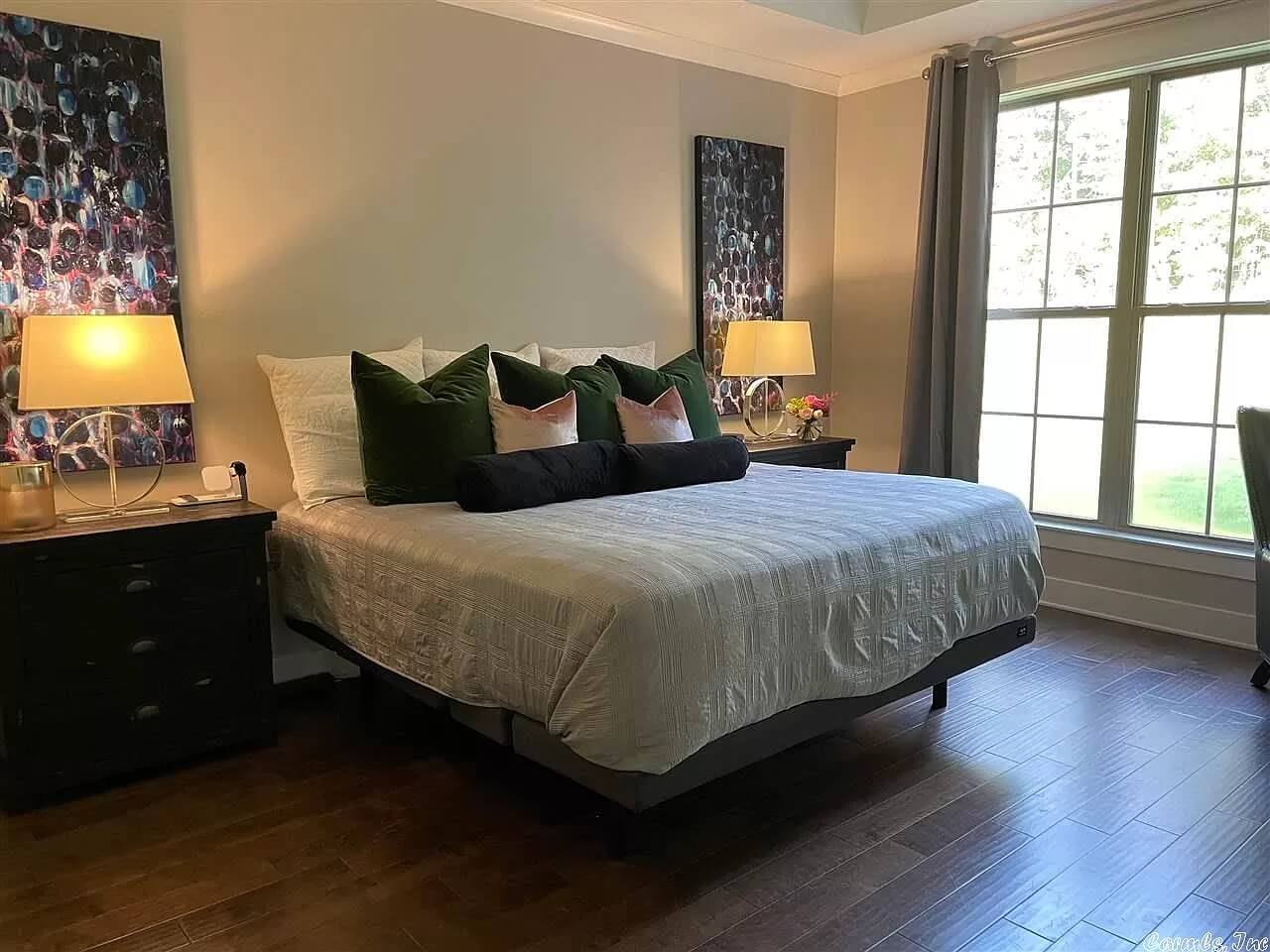

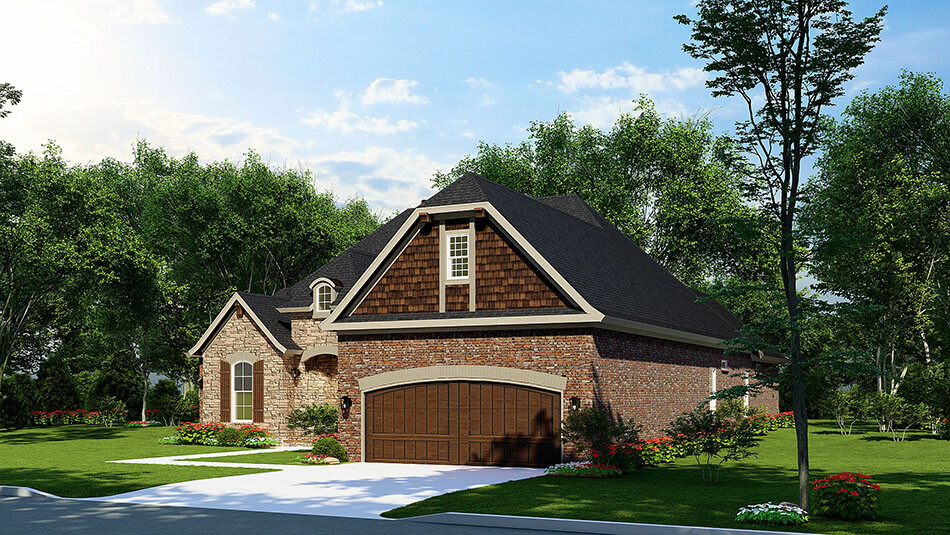

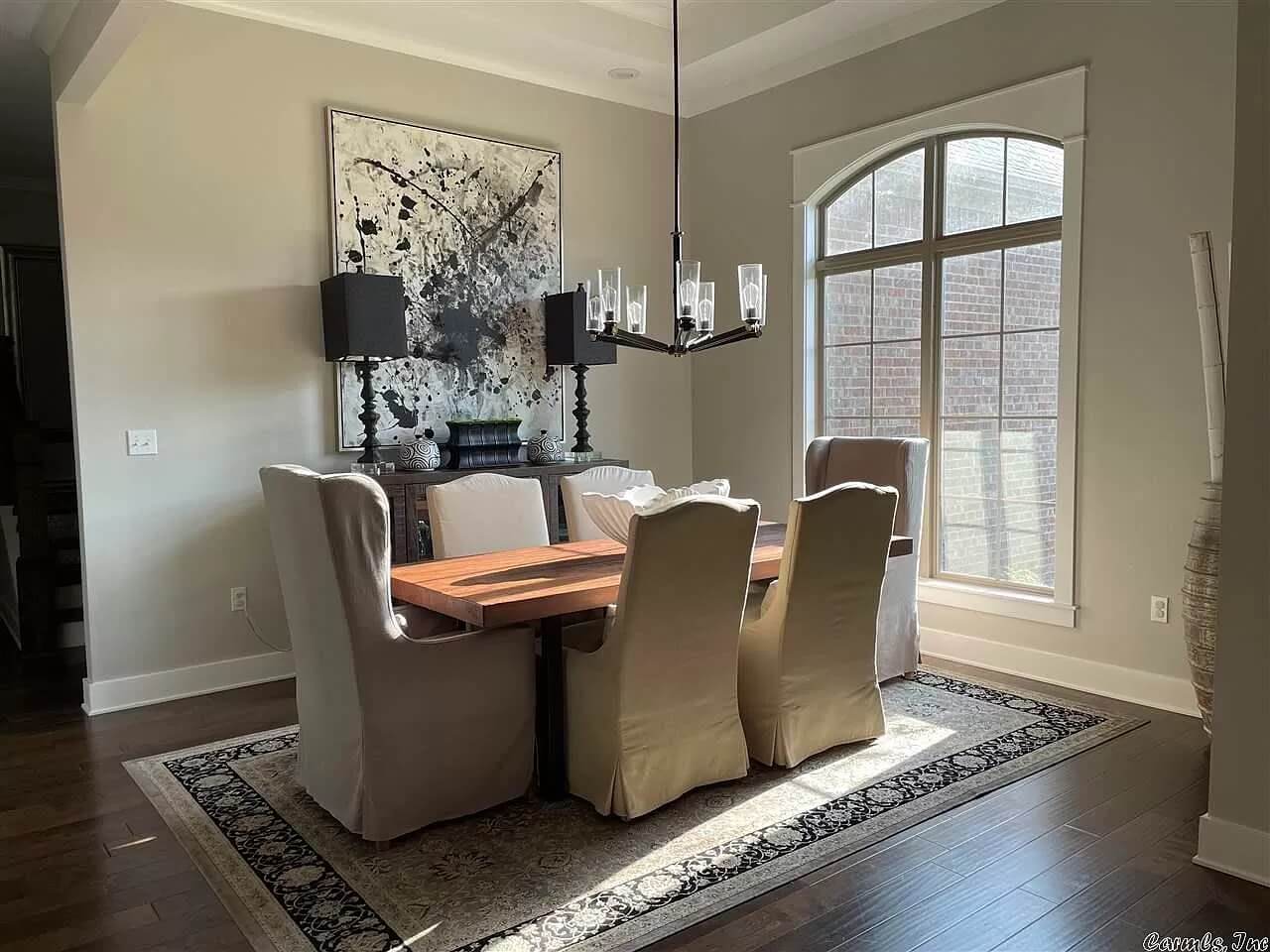

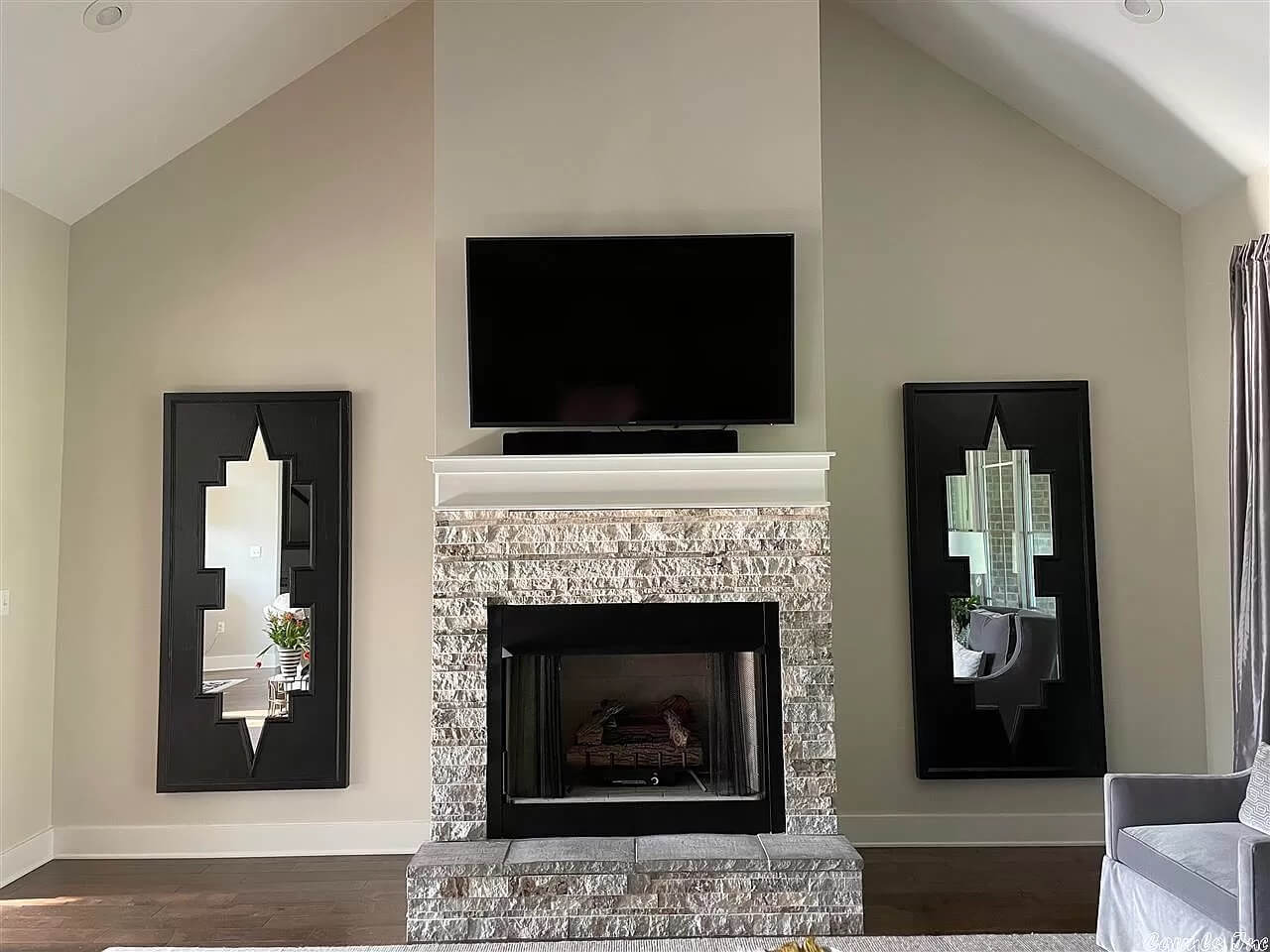

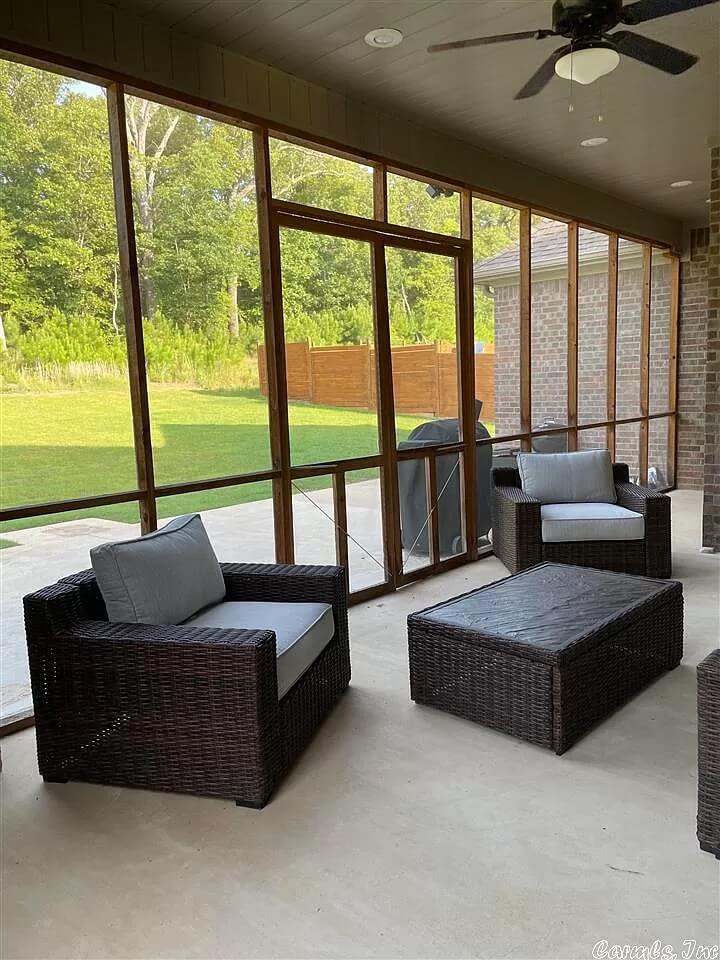

This gorgeous brick and stone European style home provides comfortable living and boasts elegant architectural details on the exterior. The main entrance, windows and garage door are all arched and the hip-gable over the garage features shake siding. Entering into the Foyer you’ll find an inviting Great Room with a fireplace and a Dining Room with 12″ timber columns in 2 corners. The Great Room is open to the Kitchen with a large eat-at bar and a Breakfast Boom as well as access to a relaxing Screened in Grilling Porch, complete with its own corner fireplace. The Master Suite features a 10′ boxed ceiling, a whirlpool tub, duel vanities and an enormous walk-in closet. 2 more Bedrooms share a bathroom on the other end of the house as well as a 4th Bedroom with its own bathroom and access to the Grilling Porch. Upstairs is a Bonus Room over the 2-car Garage that is perfect for a home theater or game room.

Specifications

  • Total Living Space:2384Sq.Ft.
  • Main Floor: 2384 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 332 Sq.Ft.
  • Porch (Sq.Ft.): 335 Sq.Ft.
  • Garage (Sq.Ft.): 520 Sq.Ft.
  • Total Square Feet: 3571 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
