House Plan 1413 Amber's Place, European House Plan

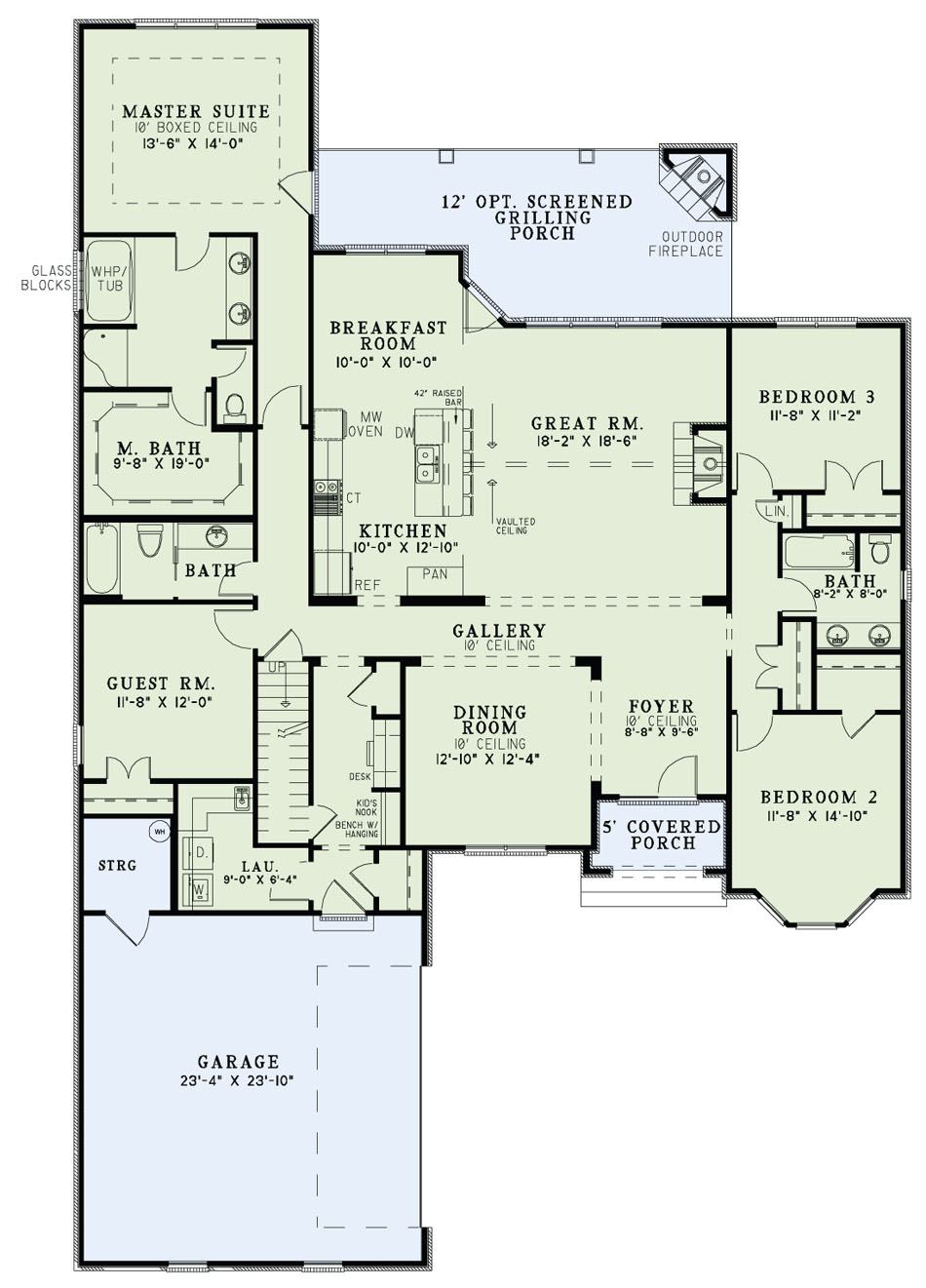

House Plan NDG 1413 Main Floor
House Plan NDG 1413 Upper Floor/Bonus Room
House Plan NDG 1413 Main Floor
House Plan NDG 1413 Upper Floor/Bonus Room

Floor plans

NDG 1413

House Plan 1413 Amber's Place, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1413
  • Total Living Space:2546Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 57
  • Width In.: N/A
  • Depth Ft.: 83
  • Depth In.: 7

Description

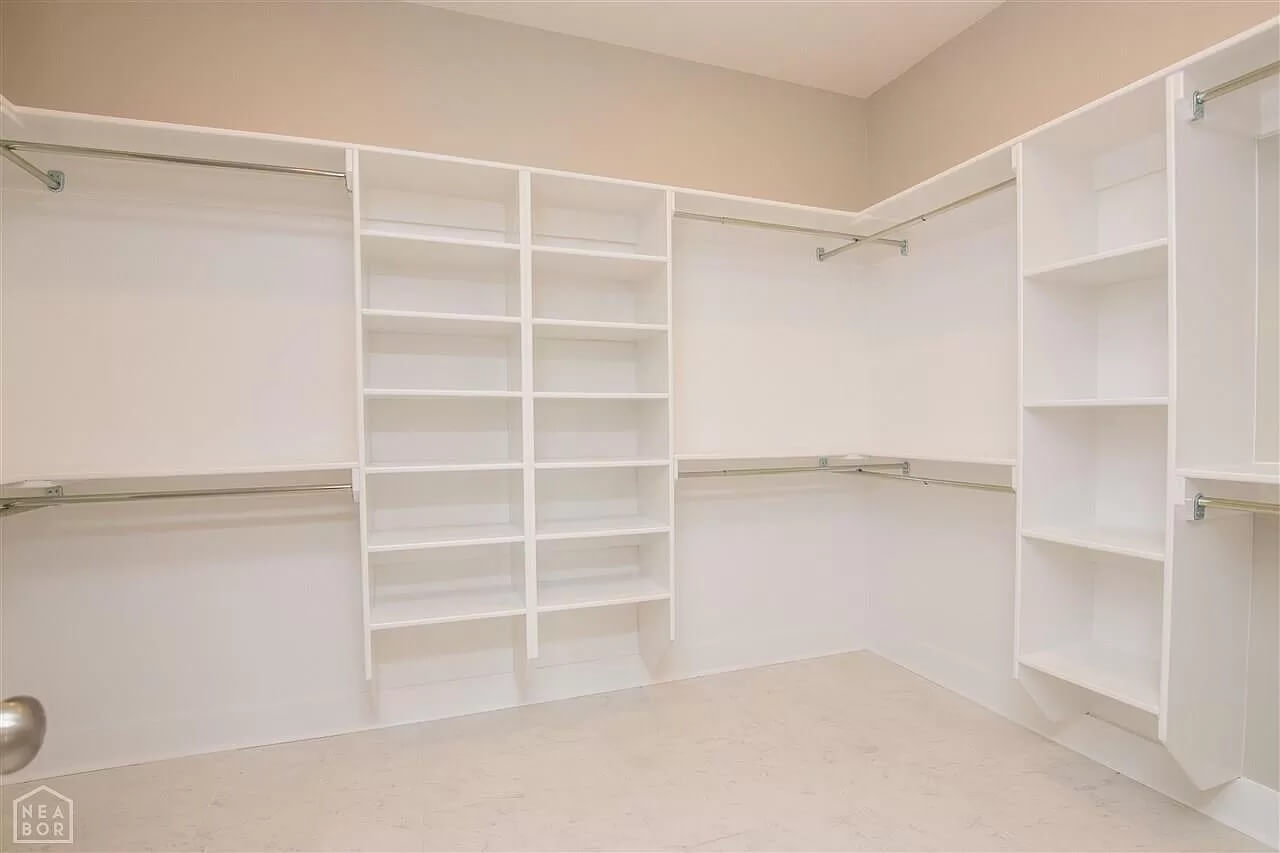

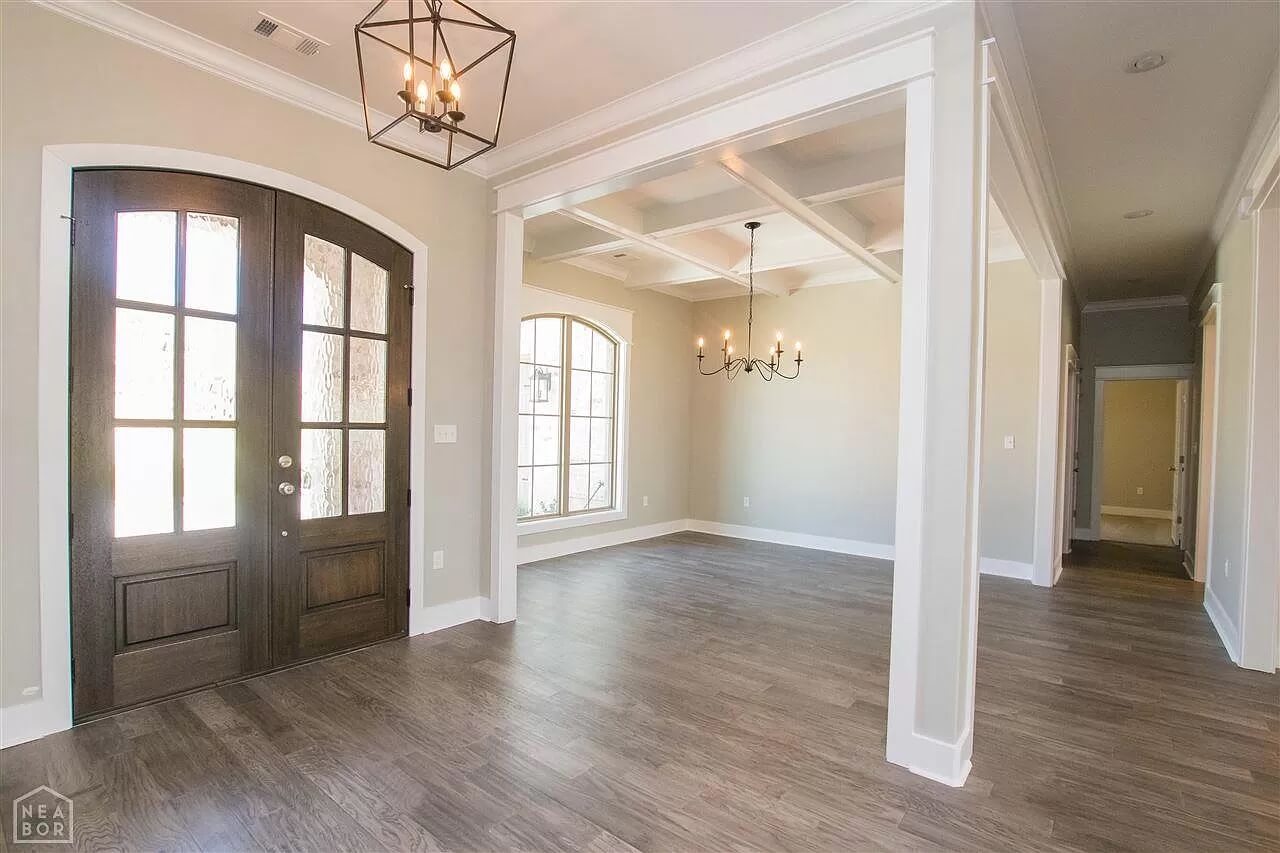

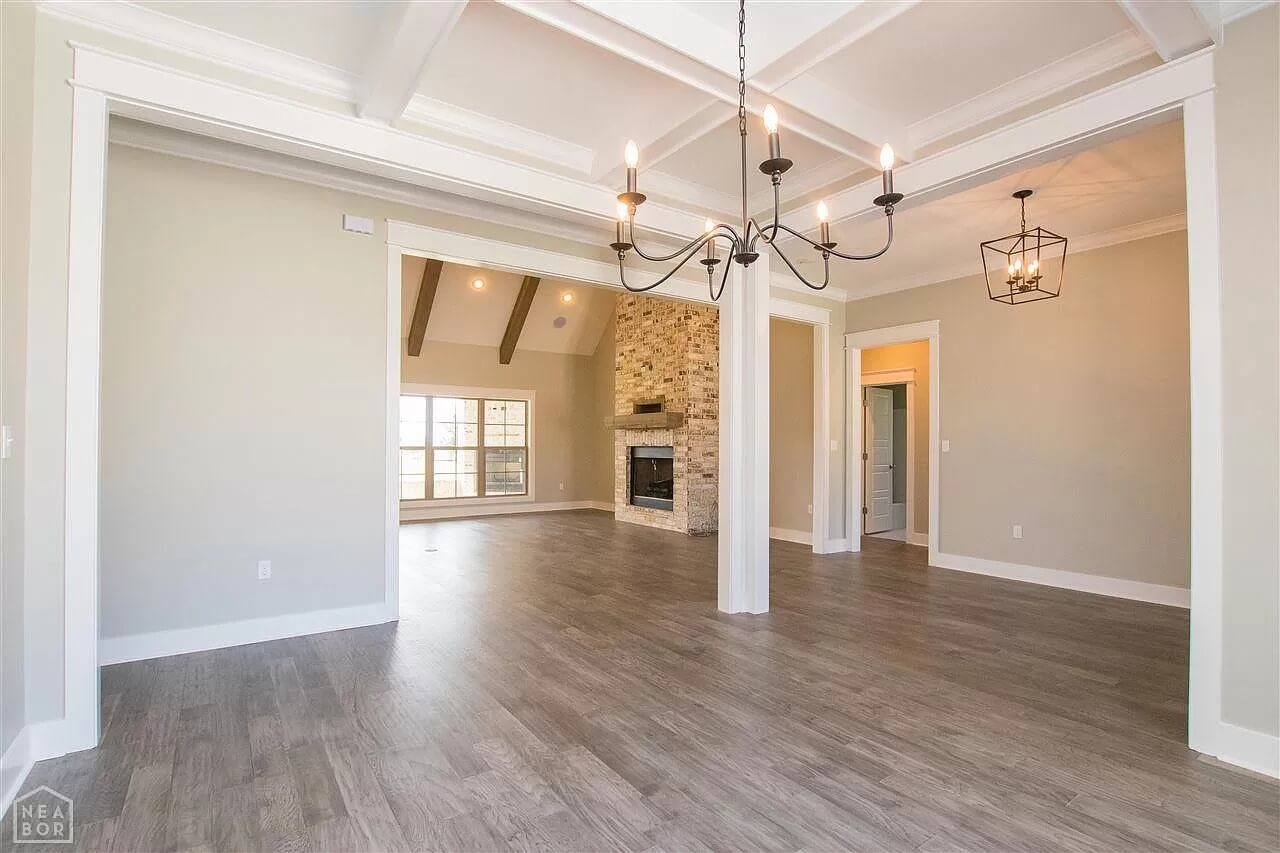

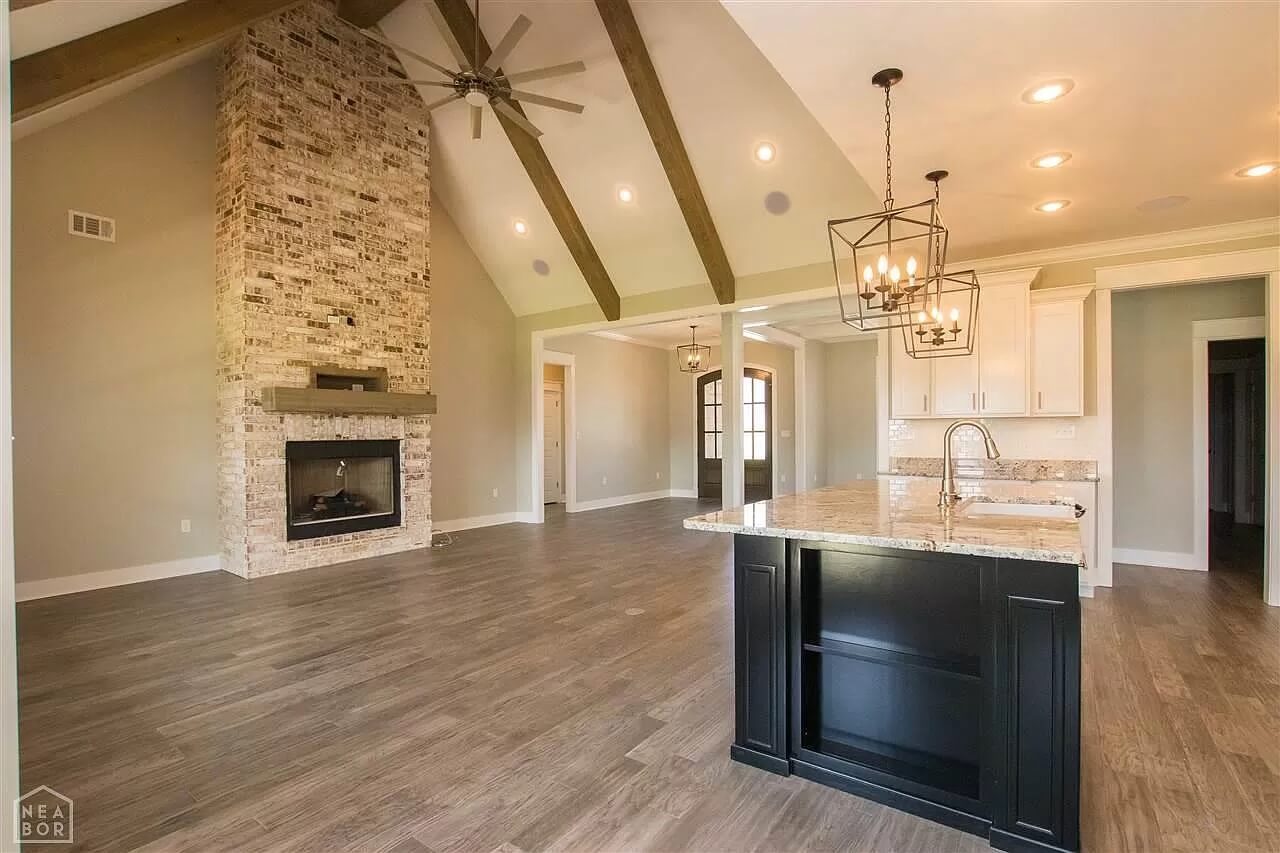

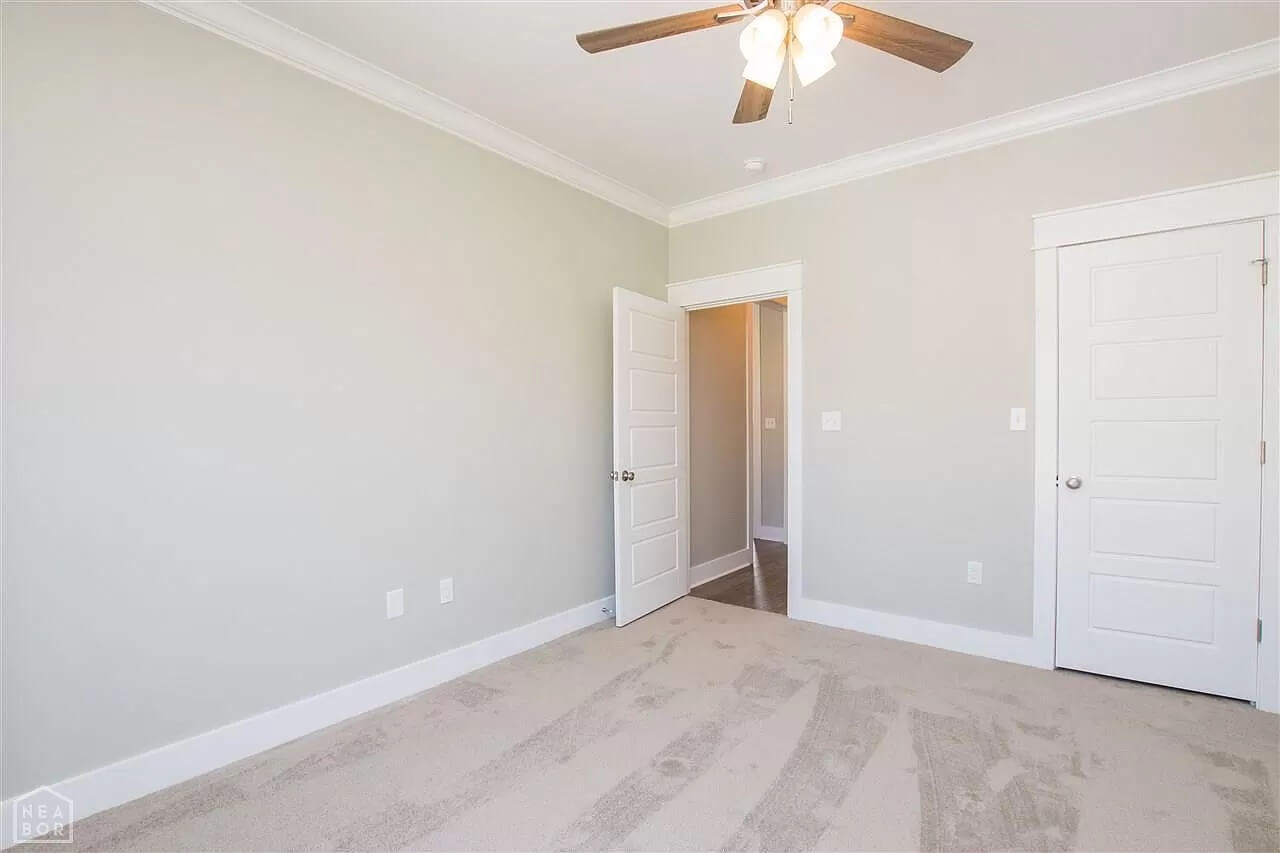

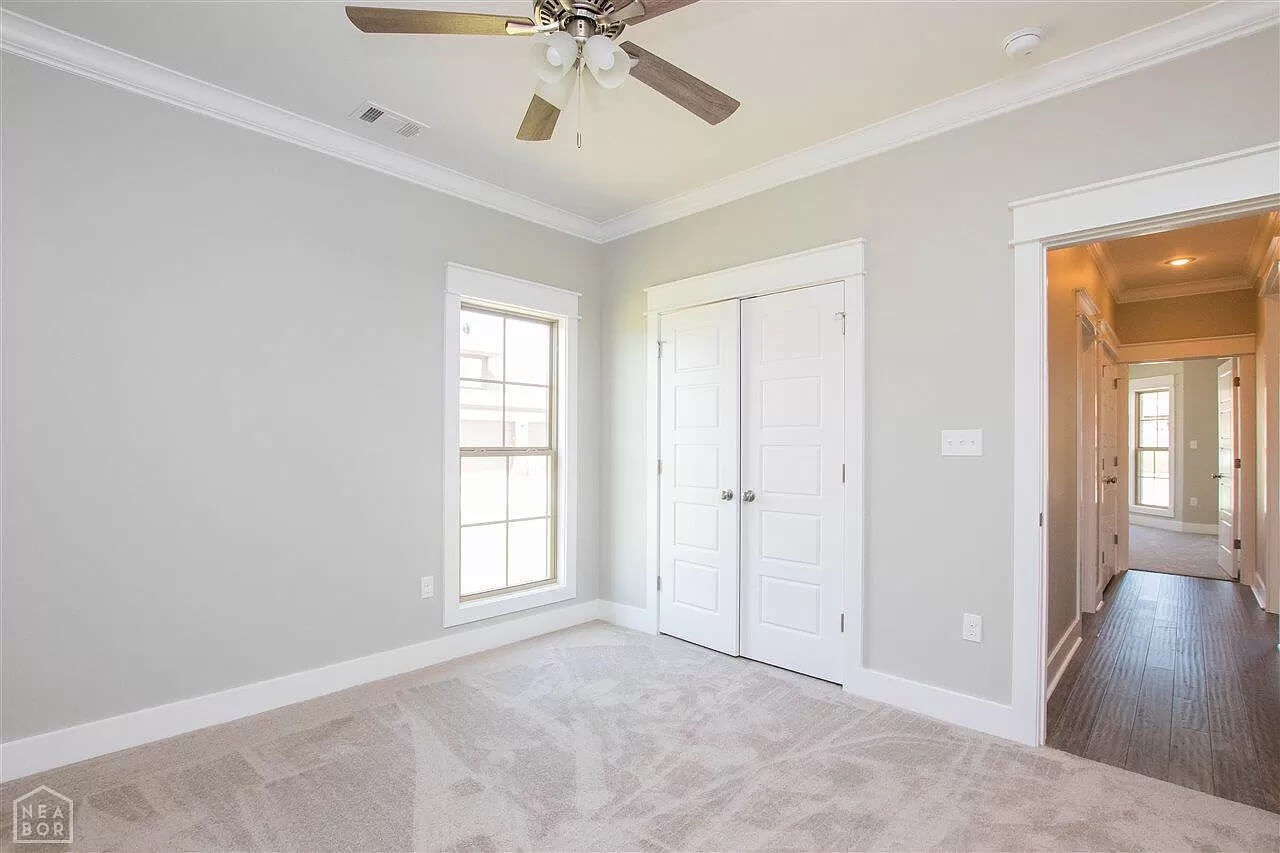

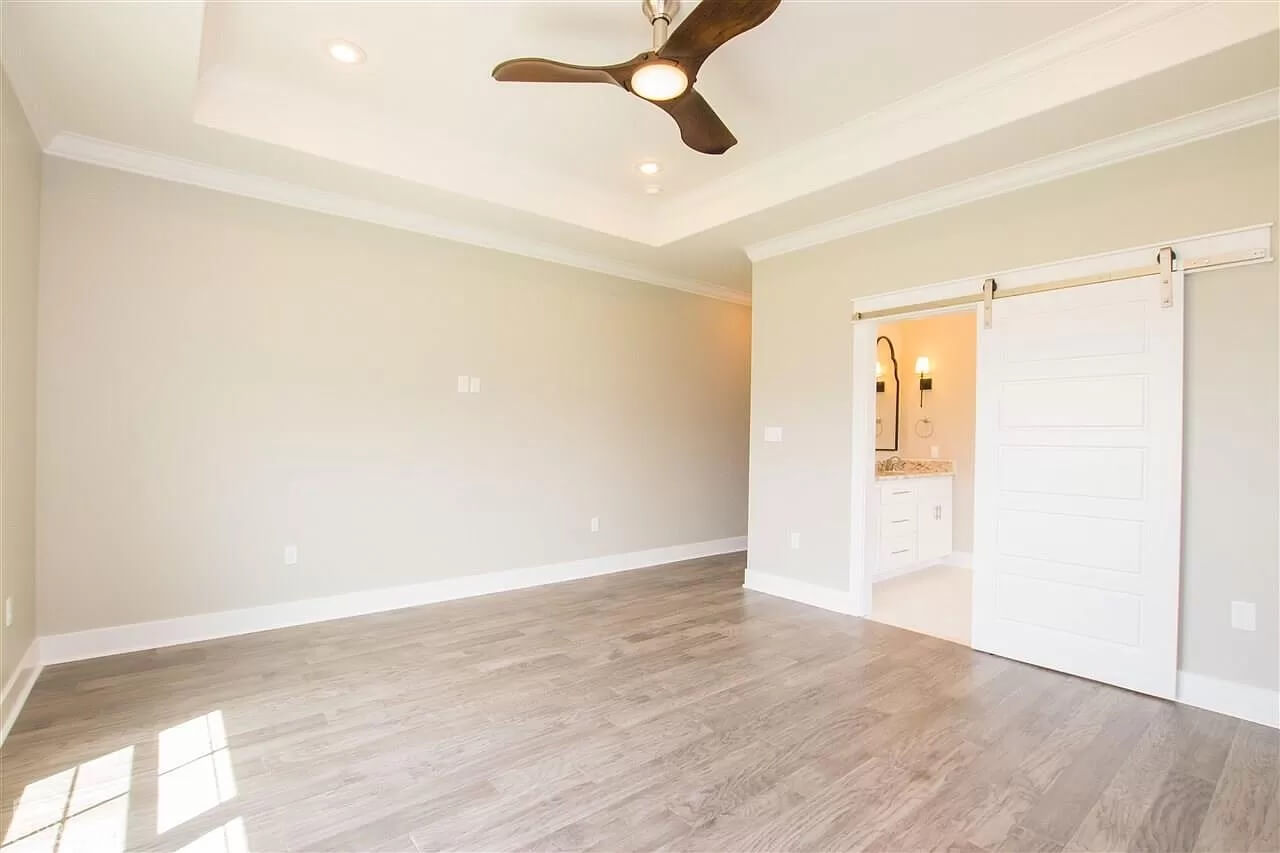

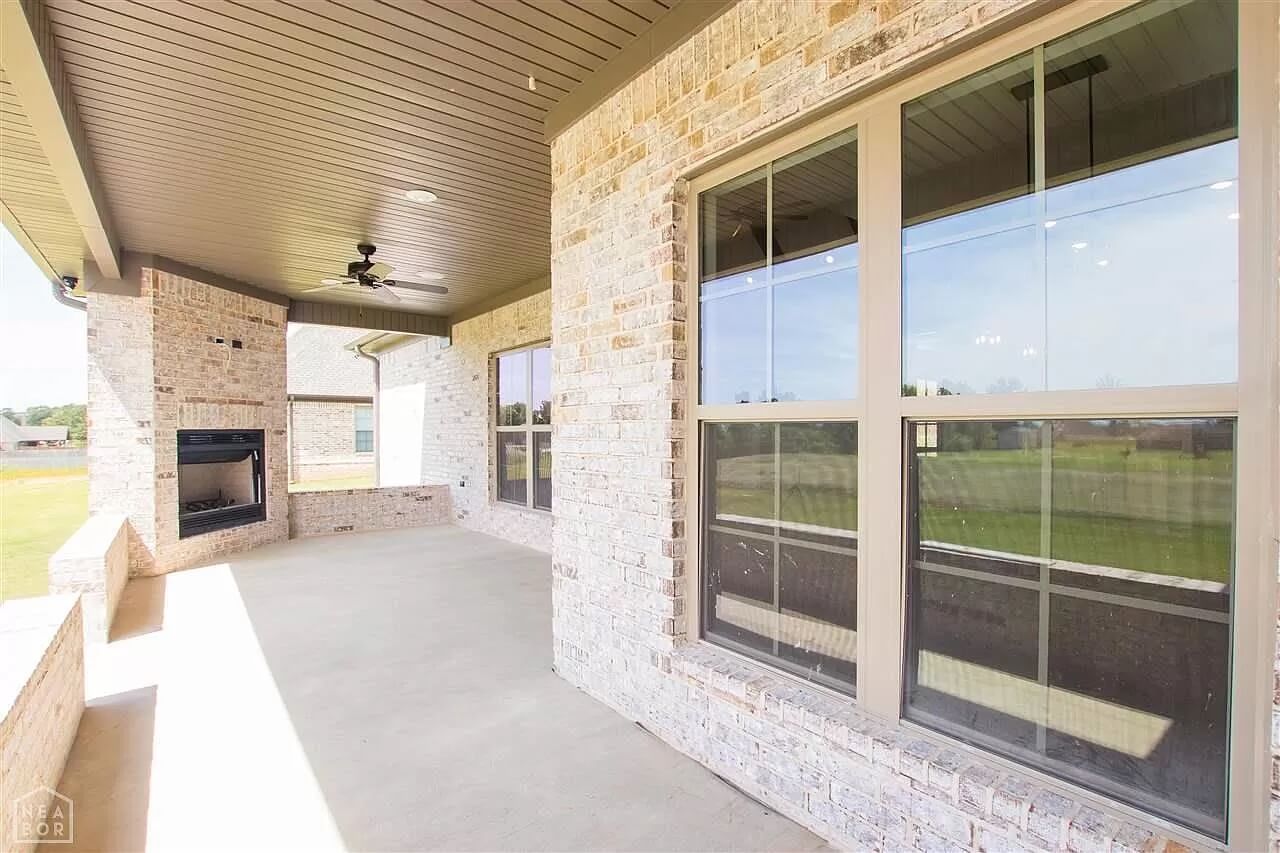

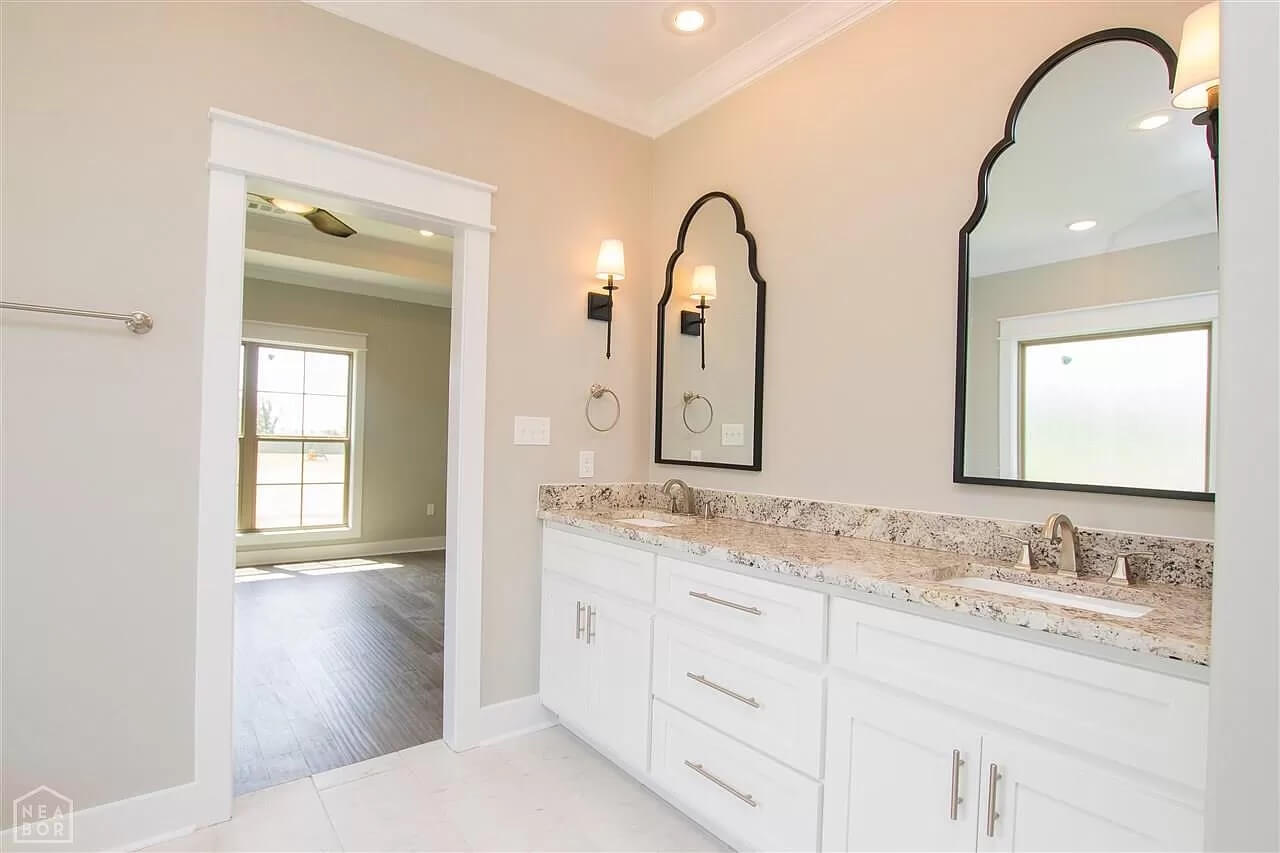

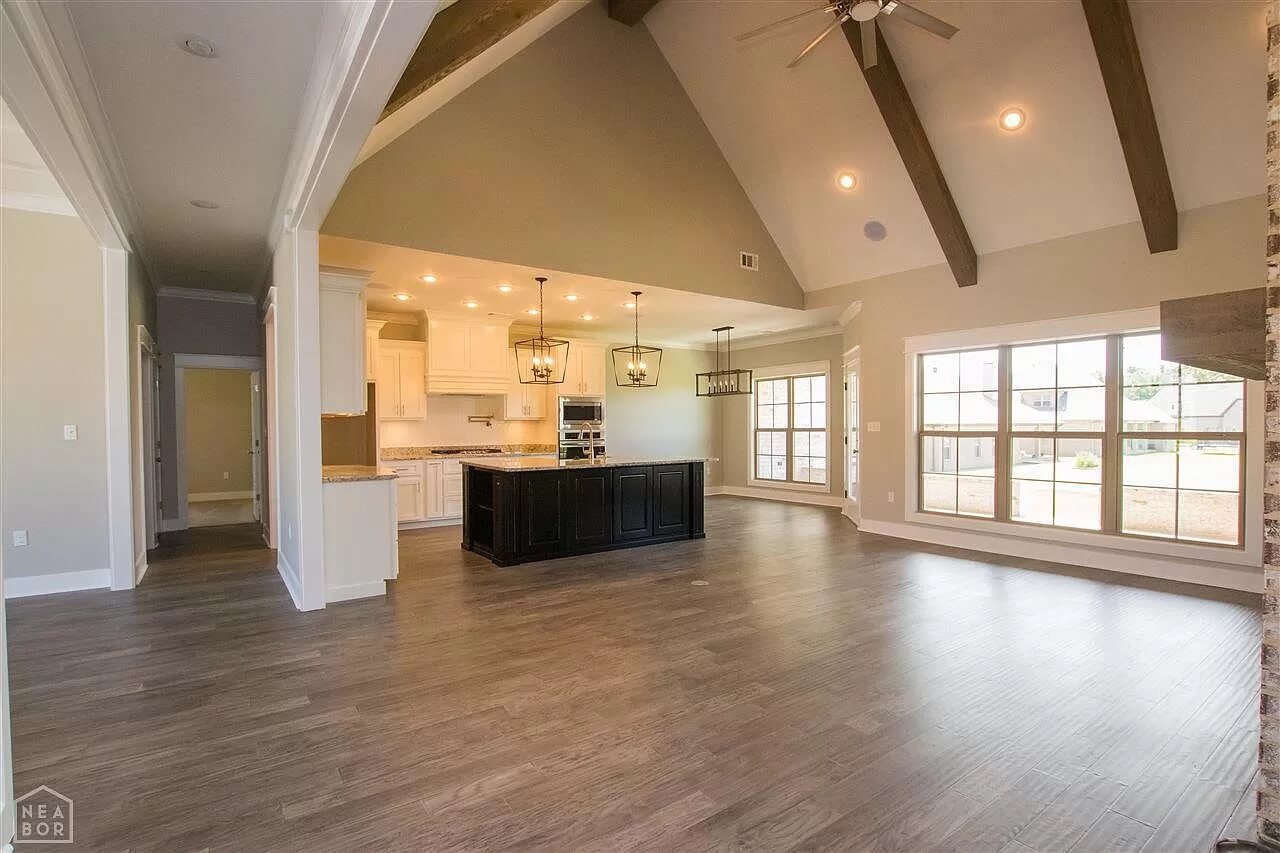

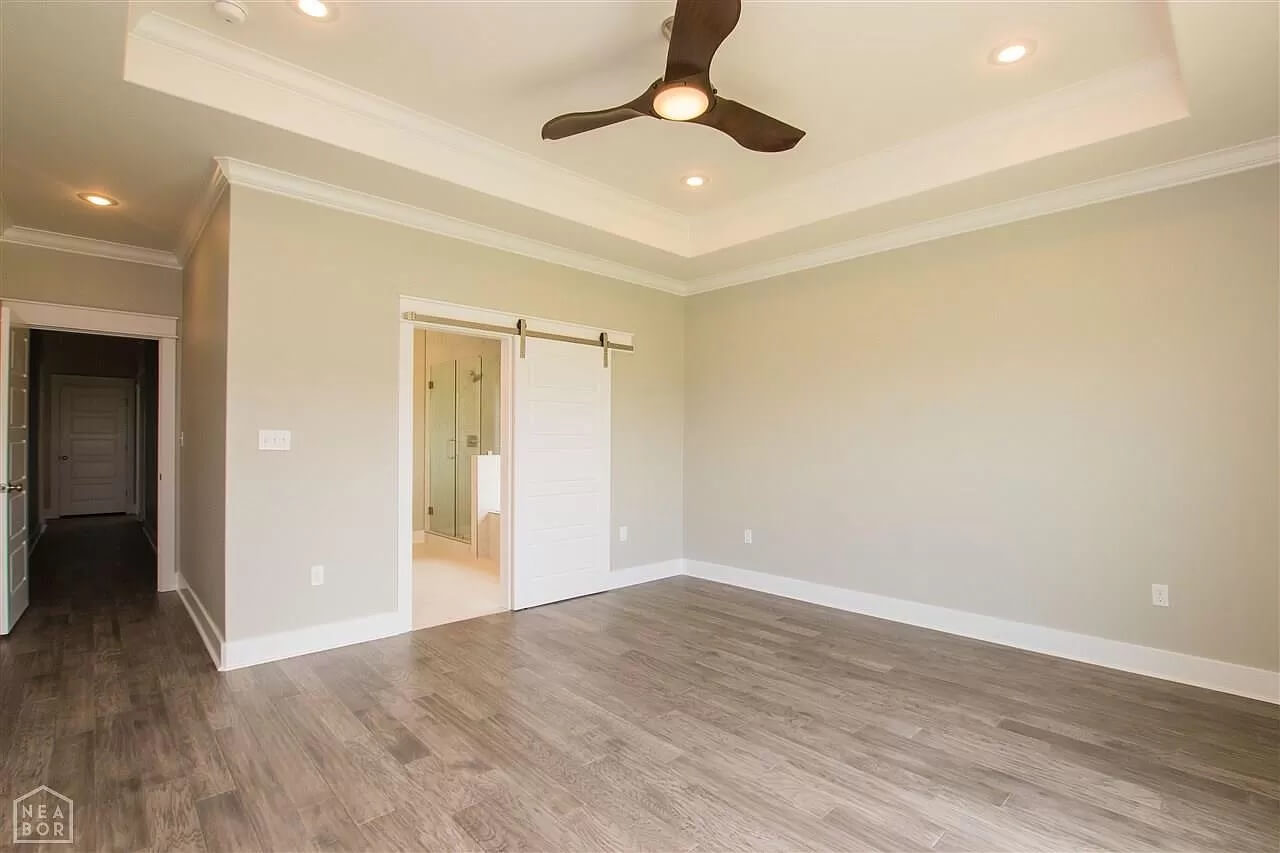

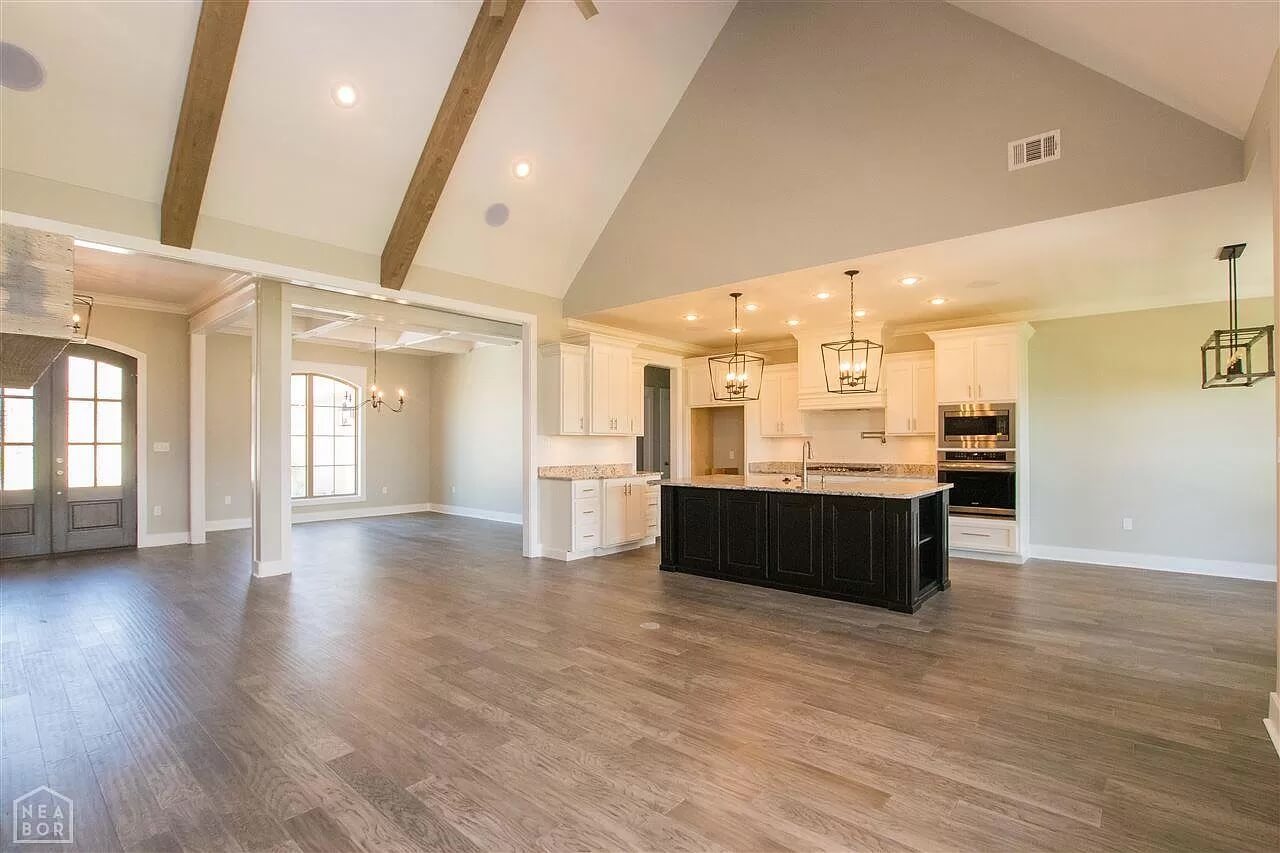

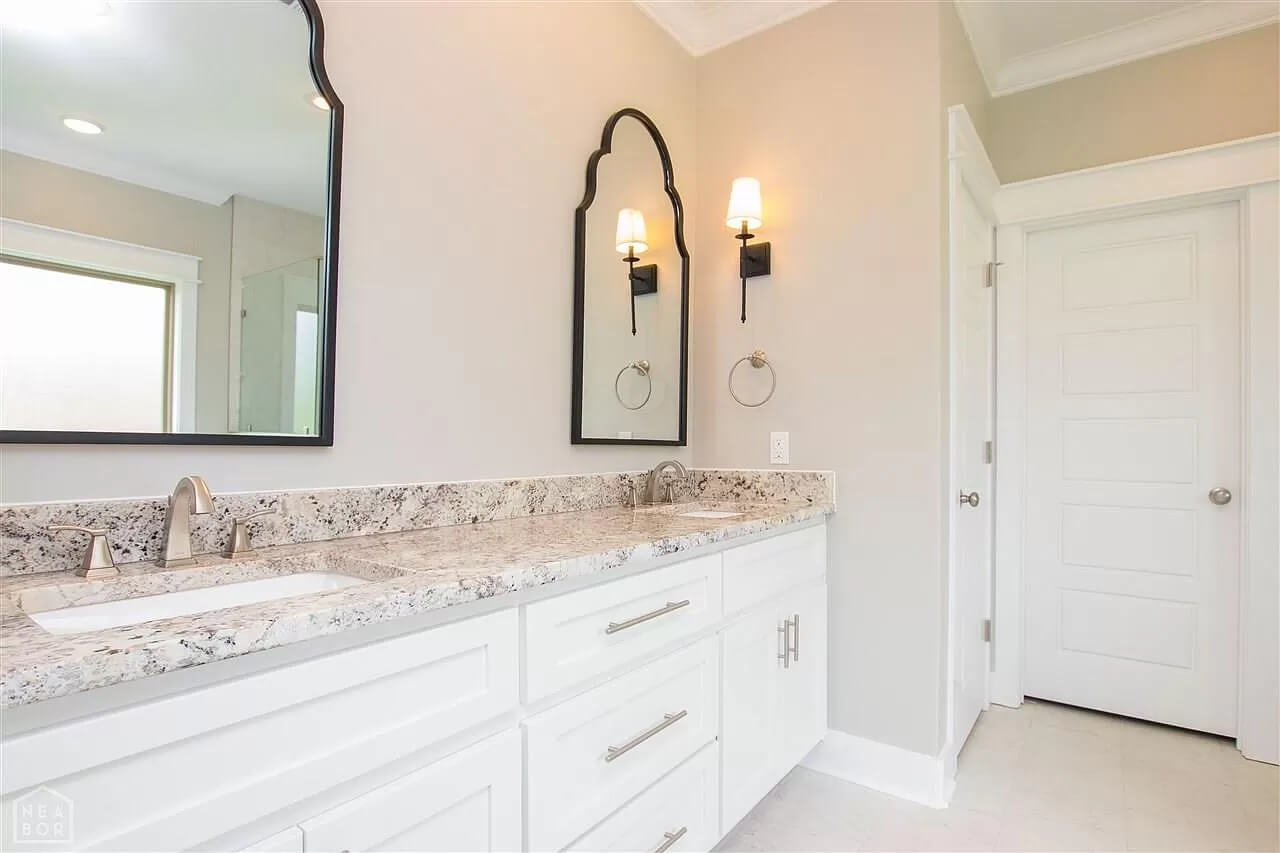

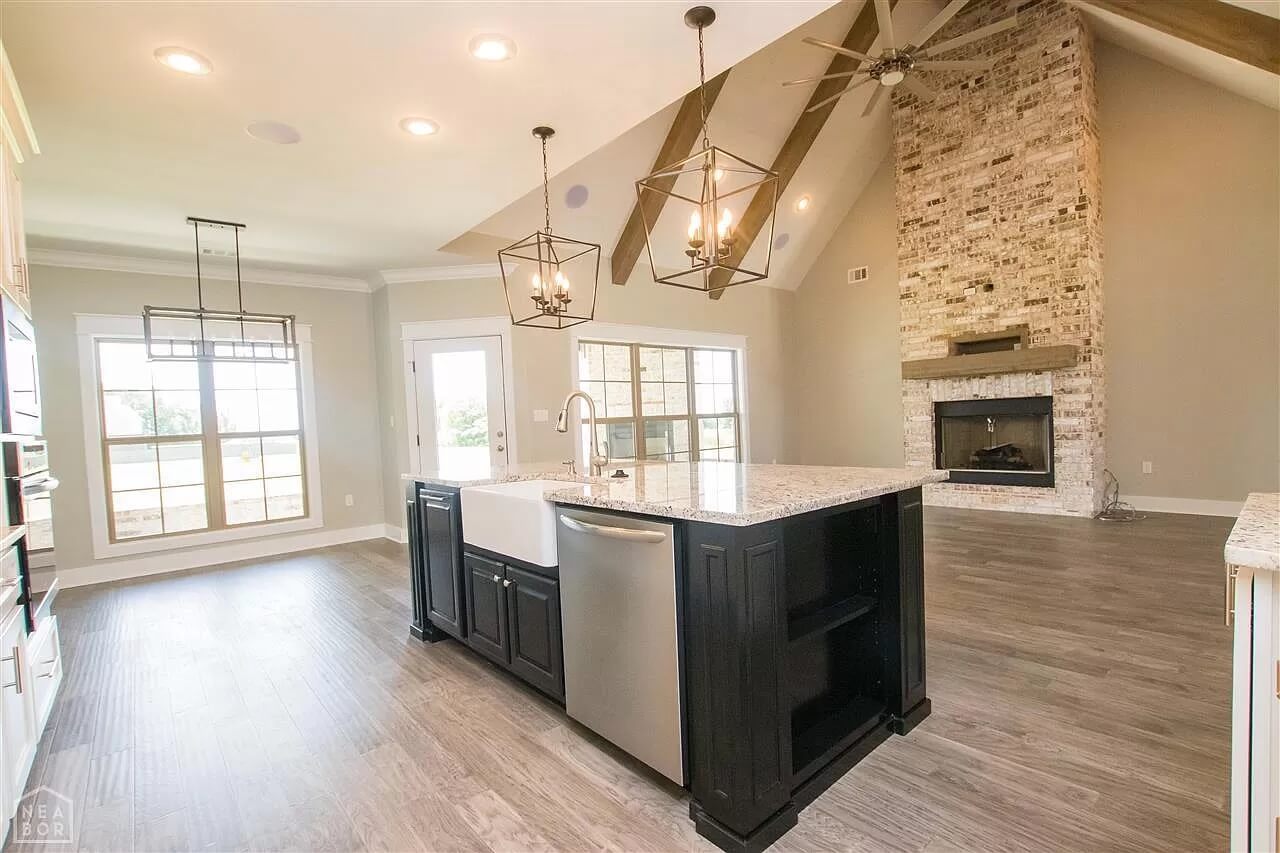

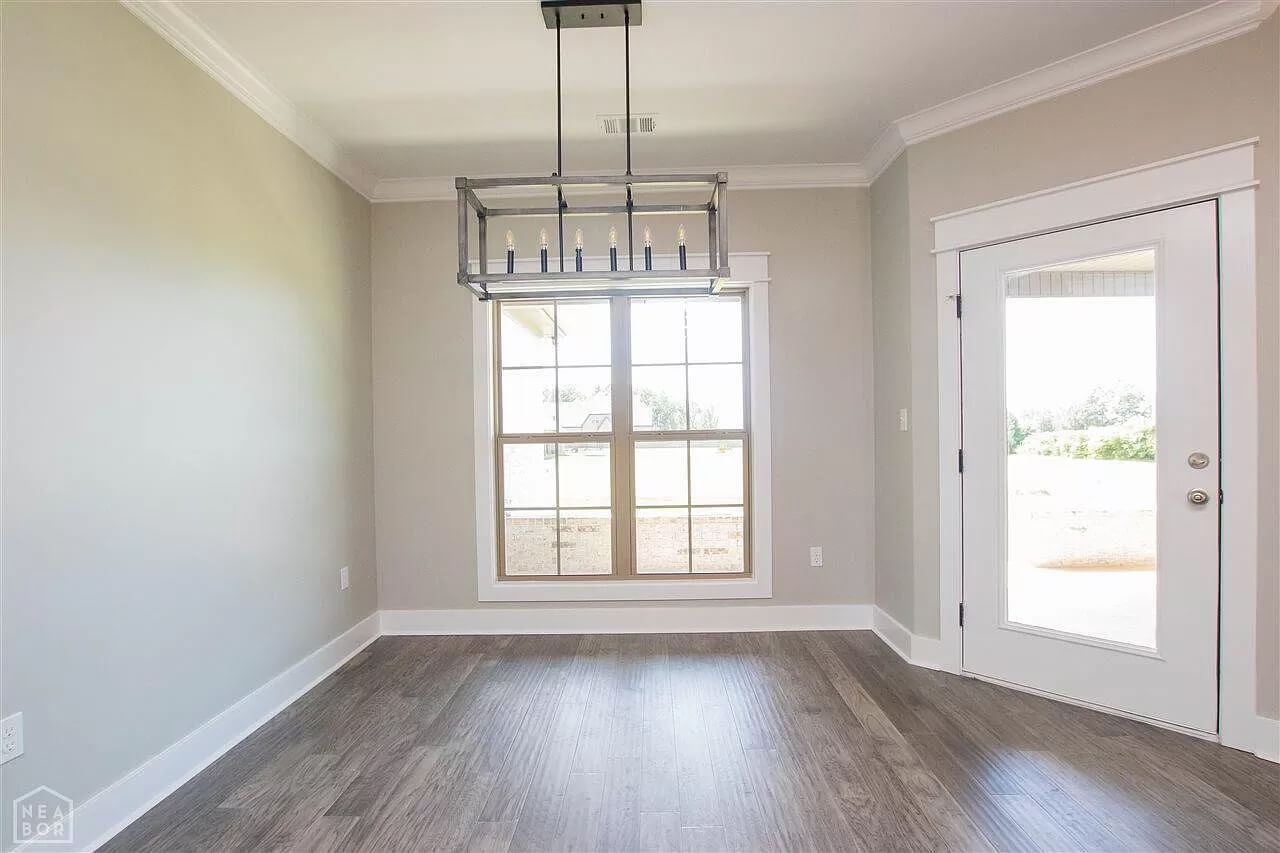

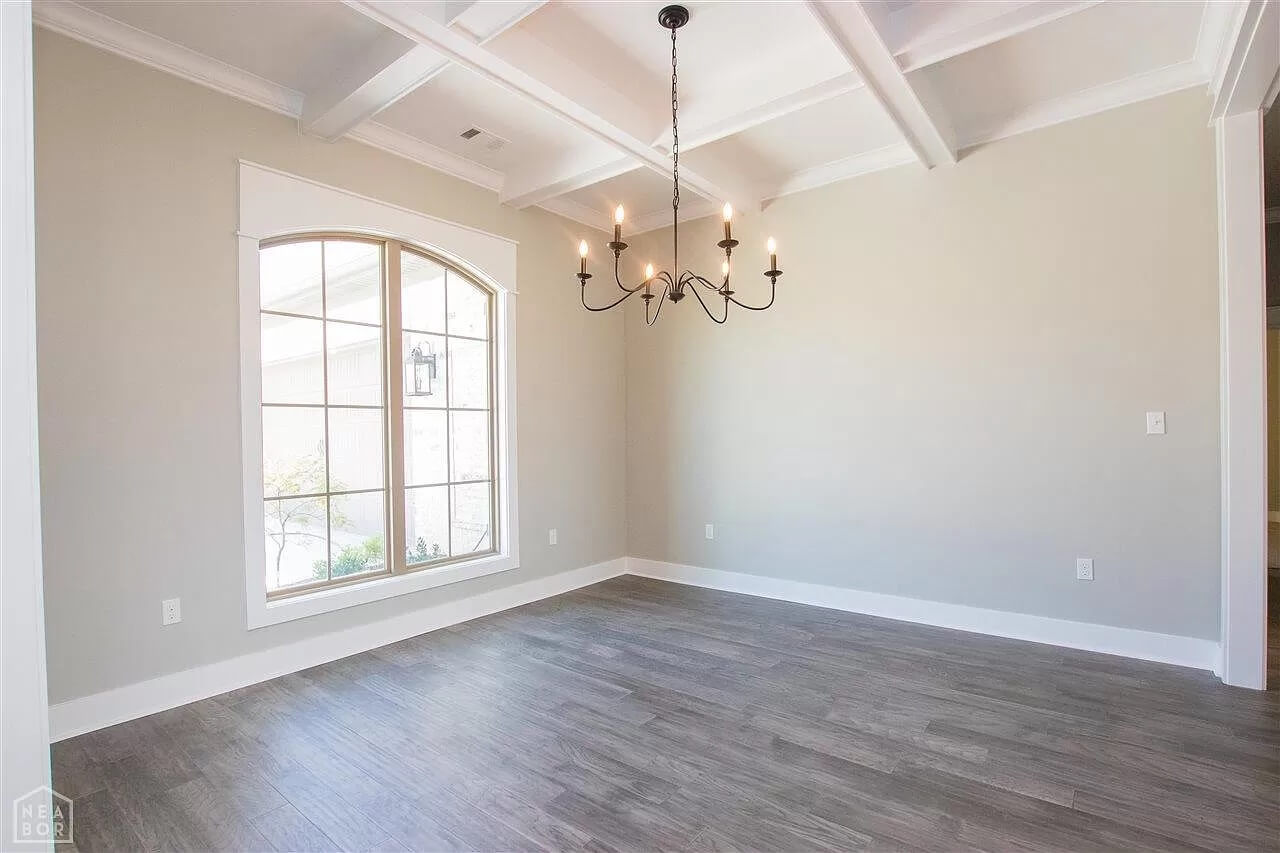

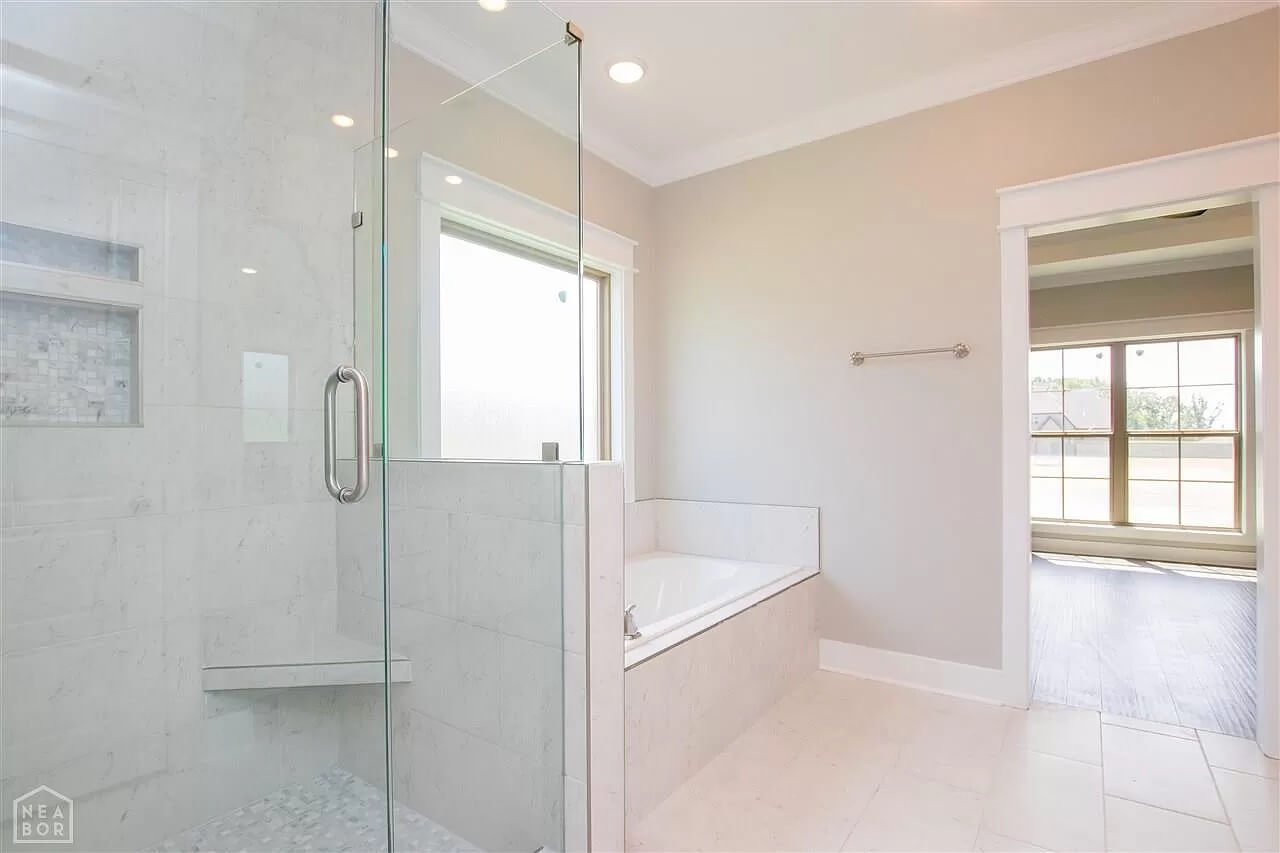

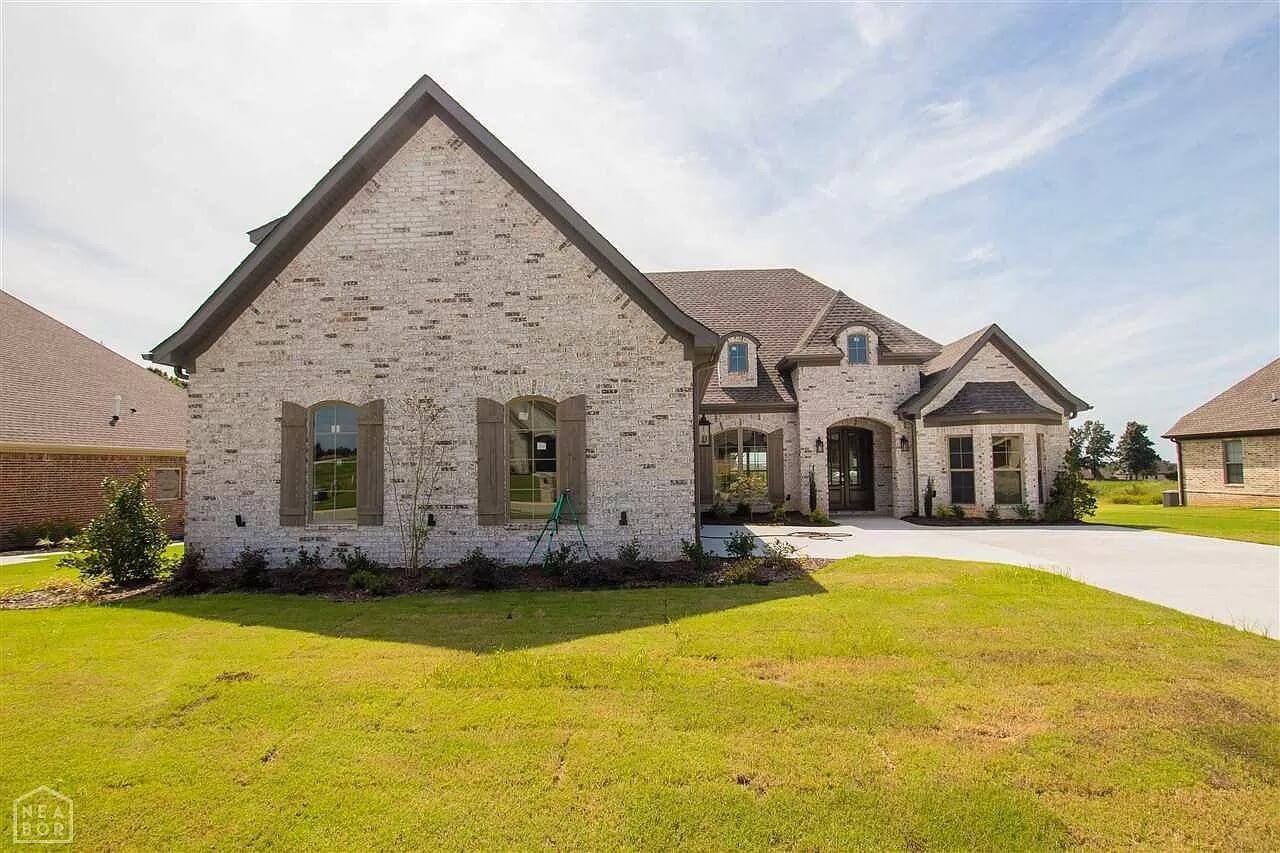

This split bedroom, European style design offers a courtyard Garage and an arched front entry. Inside, the Foyer welcomes you to the adjacent Dining and Great Rooms. The Great Room features a vaulted ceiling, a fireplace and is open to the Kitchen and Breakfast room. Off of the Breakfast Room is an optional screened Grilling Porch with a corner fireplace. The Master Suite offers a 10′ boxed ceiling and access to the Grilling Porch as well as a Master Bath complete with a corner shower, whirlpool tub, and a large walk-in closet. A Guest Bedroom is located at the front of the house and 2 more Bedrooms are on the opposite side. Everyone will enjoy the Bonus Room over the garage, perfect for a home theater or a game room.

Specifications

  • Total Living Space:2546Sq.Ft.
  • Main Floor: 2546 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A

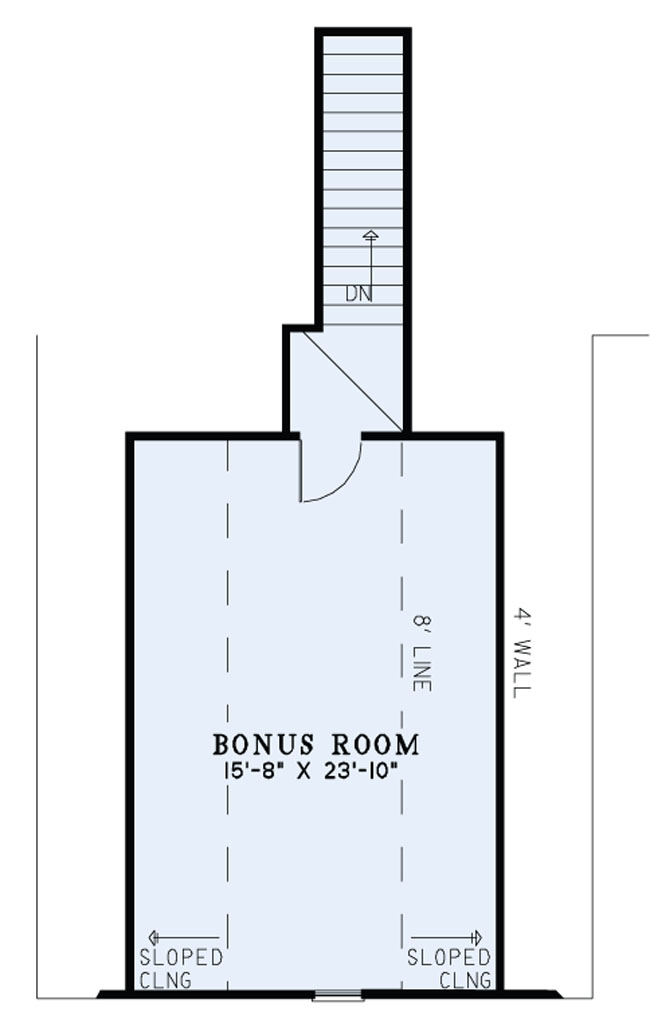

  • Bonus Room (Sq.Ft.): 400 Sq.Ft.
  • Porch (Sq.Ft.): 340 Sq.Ft.
  • Garage (Sq.Ft.): 626 Sq.Ft.
  • Total Square Feet: 3912 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
