House Plan 1410 Cobblestone Drive, European House Plan

House Plan 1410 Cobblestone Drive, European House Plan

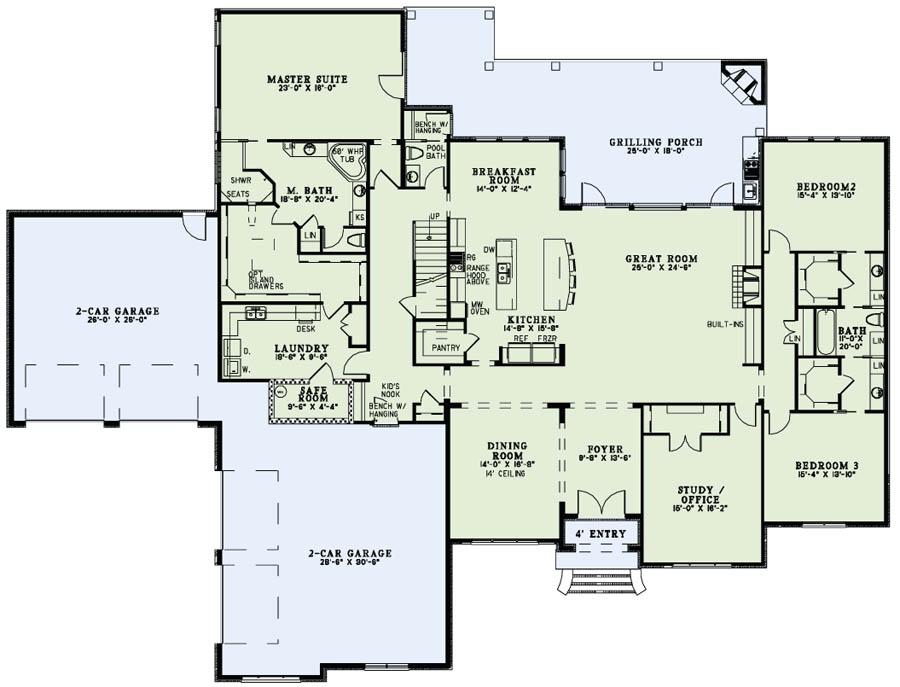

House Plan NDG 1410 Main Floor

Floor plans

NDG 1410

House Plan 1410 Cobblestone Drive, European House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1410
  • Total Living Space:4076Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 4 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 111
  • Width In.: 8
  • Depth Ft.: 85
  • Depth In.: N/A

Description

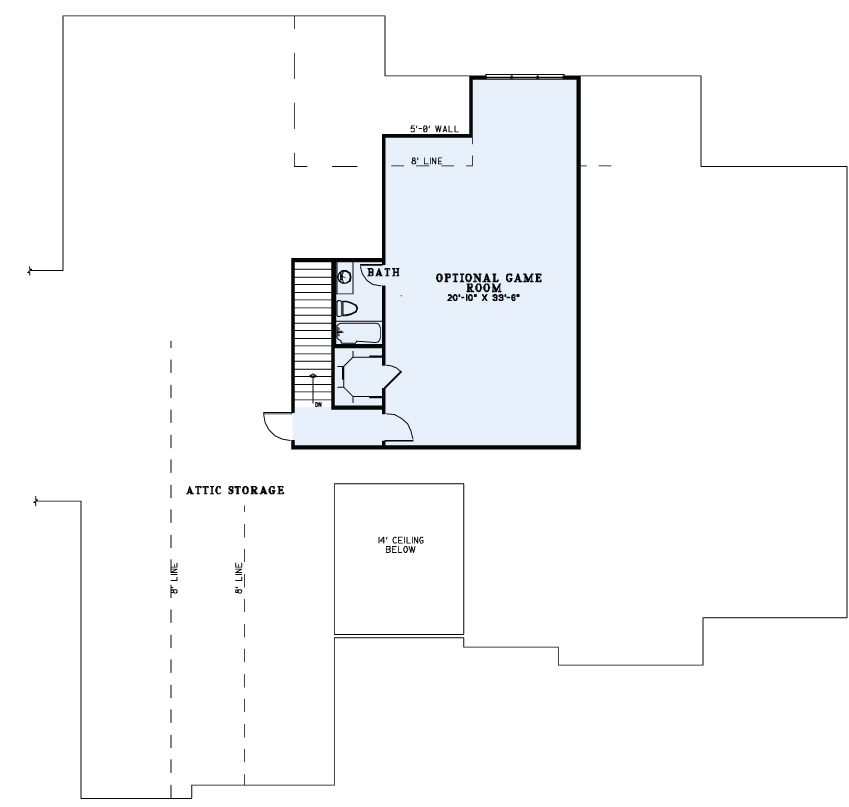

If space is what you want then look no further than this 3 bedroom, 3 and 1/2 bathroom European style home. The split bedroom open floor plan boasts a large Great Room featuring a fireplace flanked by built-in shelves and access to a huge Grilling Porch. The Great Room is also open to the kitchen which has a prep island and an eat-at island bar, perfect for buffet style meals, and a walk-in pantry. The Master Suite has access to the Grilling Porch while the bathroom offers a large corner shower with seats, a corner whirlpool tub and a huge walk-in closet that has convenient access to the very spacious laundry room. You can feel secure with the Safe Room that is located off the laundry room. Bedrooms 2 and 3 are on the opposite side of the home and each have walk-in closets and share a Jack and Jill style bathroom. The study or office is located off of the Great Room and has a nice sized walk-in closet. Last but not least, is the massive optional Game Room upstairs. It contains another full bathroom and a walk-in closet.

Specifications

  • Total Living Space:4076Sq.Ft.
  • Main Floor: 4076 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 947 Sq.Ft.
  • Porch (Sq.Ft.): 743 Sq.Ft.
  • Garage (Sq.Ft.): 1680 Sq.Ft.
  • Total Square Feet: 7446 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 37
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,850.00)
    • CAD ($3,700.00)
    • Five Set ($1,950.00)
    • PDF ($1,850.00)
    • PDF + Unlimited Build ($2,550.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
