House Plan 1399 Pioneer Trail, Rustic House Plan

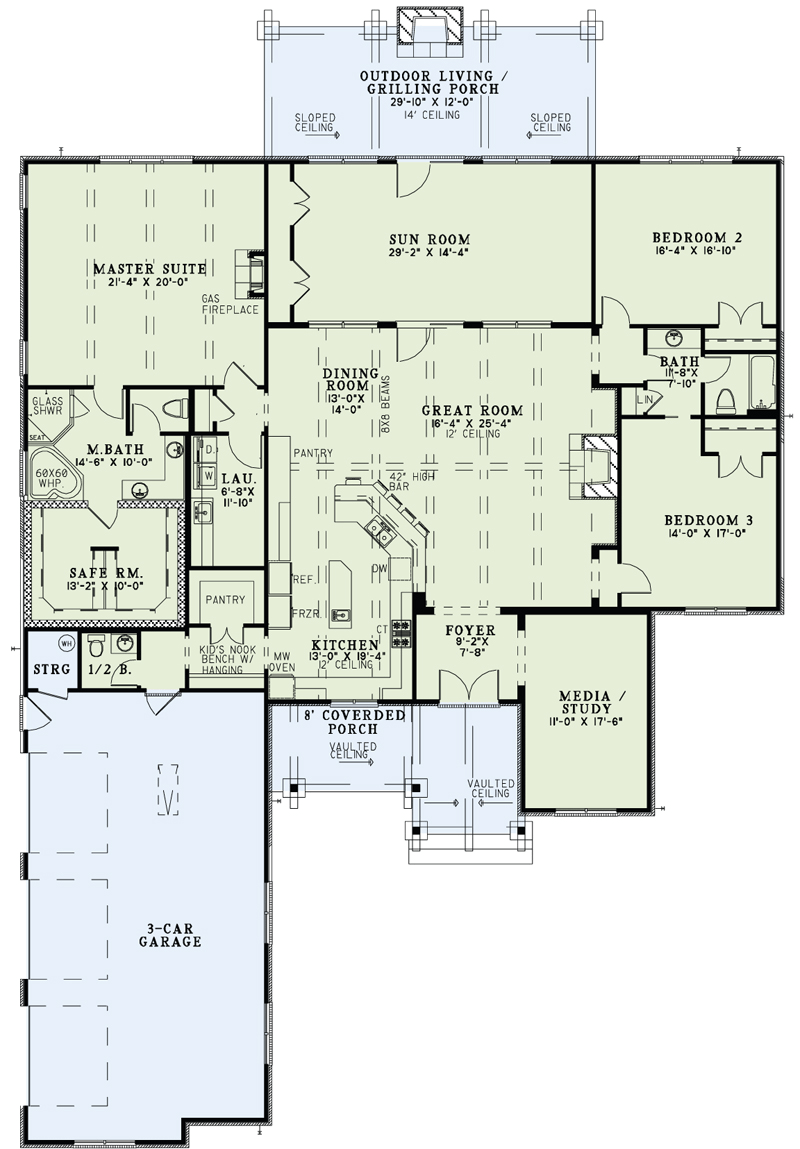

House Plan NDG 1399 Main Floor
House Plan NDG 1399 Main Floor

Floor plans

NDG 1399

House Plan 1399 Pioneer Trail, Rustic House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1399
  • Total Living Space:3307Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 68
  • Width In.: 2
  • Depth Ft.: 100
  • Depth In.: 9

Description

This brick and stone rustic home features an eye-catching timber beam gabled front porch and open floor plan. The Great Room has a 12′ ceiling and is open to the spacious kitchen and dining room and has access to a large Sun Room. The kitchen offers a prep island as well as plenty of counter space and an eat-at peninsula bar. The Master Suite has a gas fireplace and multiple windows for natural lighting while the bath boasts a corner whirlpool tub, a glass shower, dual vanities and a huge walk-in closet that doubles as a Safe Room. 2 more bedrooms share a bathroom on the right side of the house. Off of the Sun Room is an Outdoor Living/Grilling Porch with a fireplace for cool evenings.

Specifications

  • Total Living Space:3307Sq.Ft.
  • Main Floor: 3307 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 579 Sq.Ft.
  • Garage (Sq.Ft.): 912 Sq.Ft.
  • Total Square Feet: 4798 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
