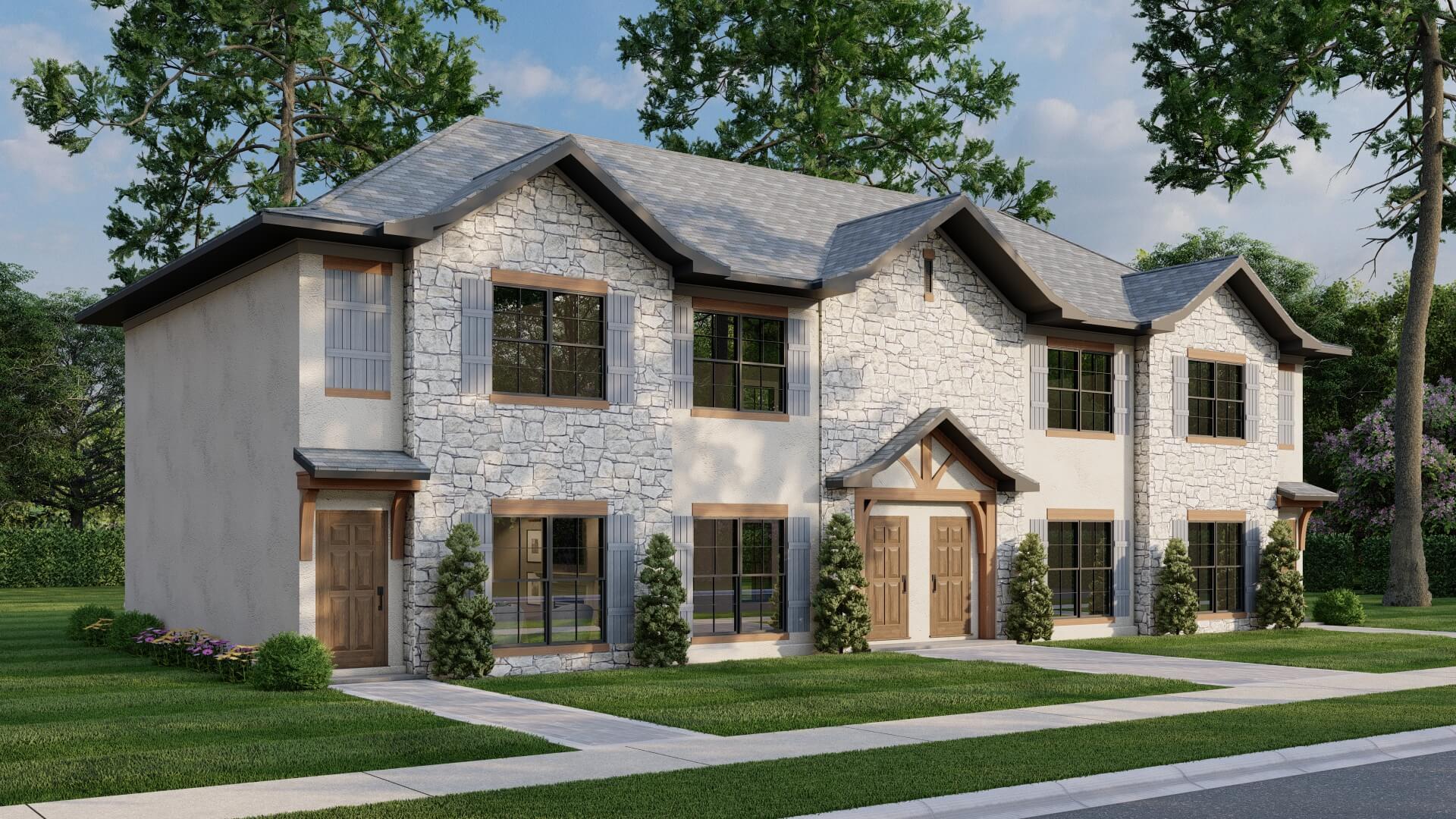

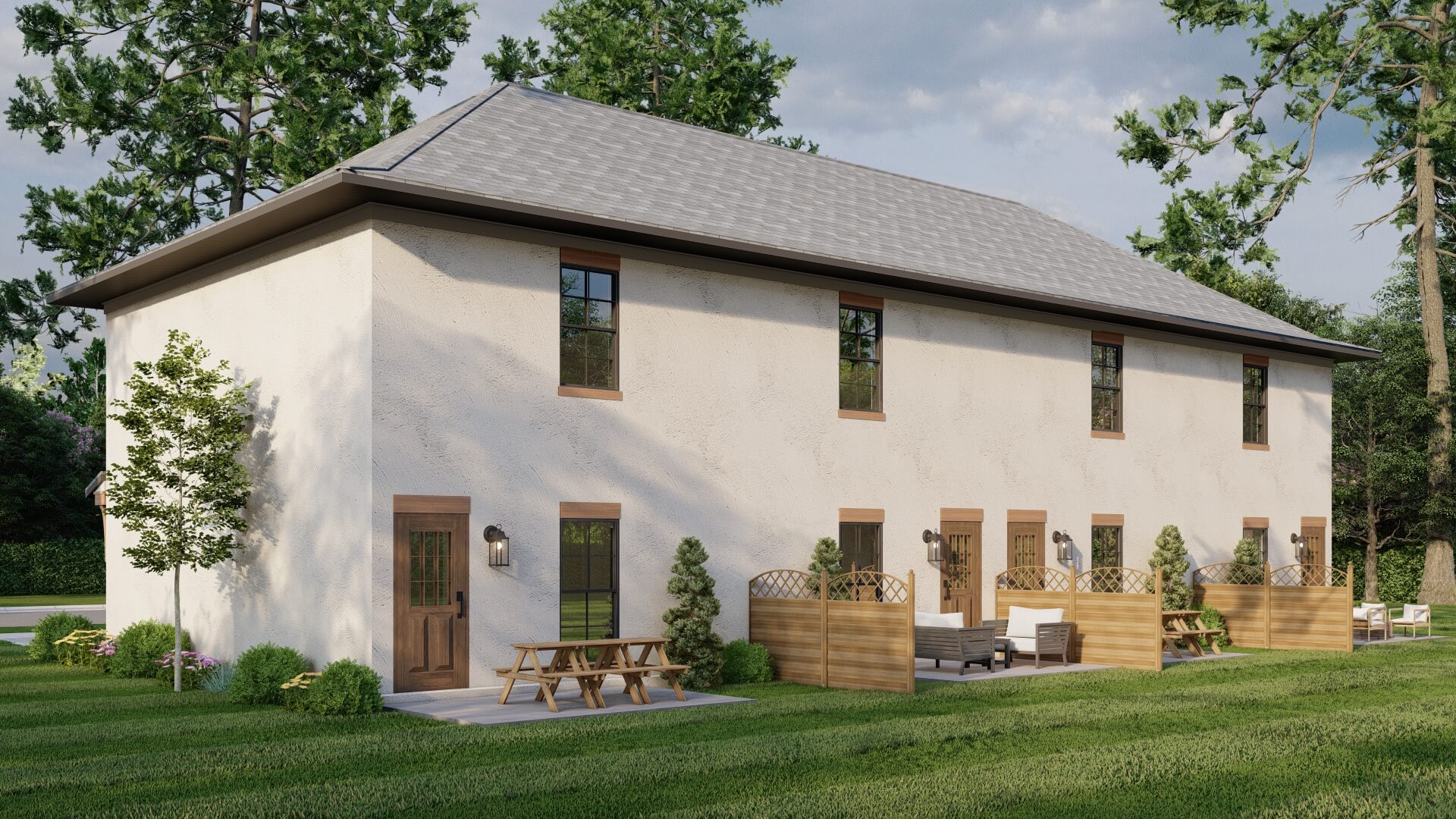

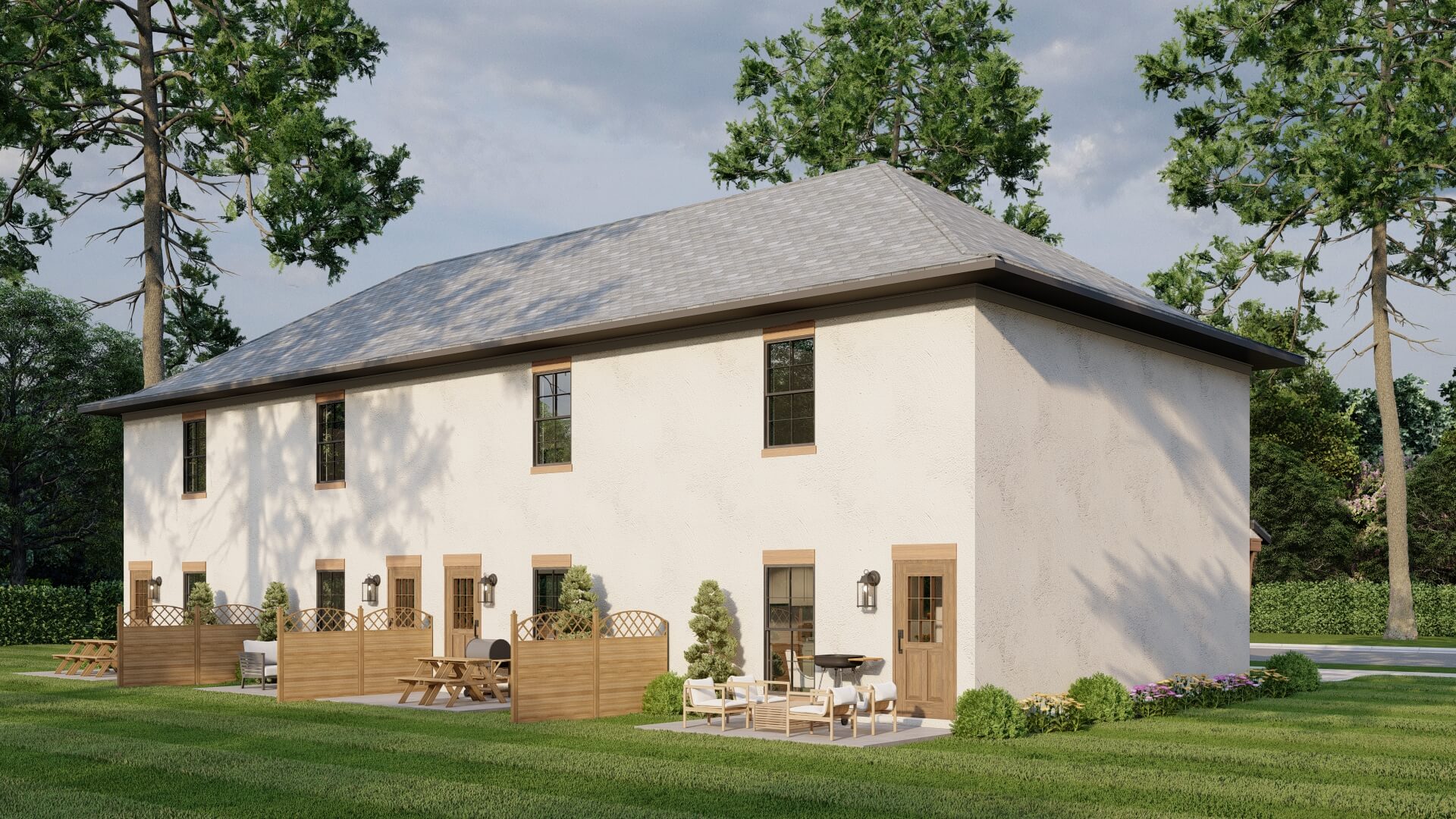

House Plan 1397 Greenbriar Court, Multi-Family House Plan

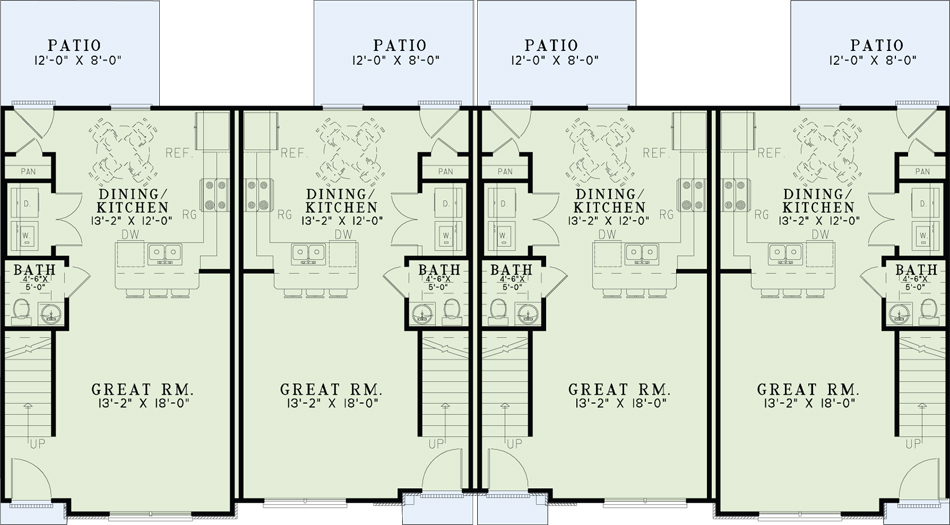

House Plan NDG 1397 Main Floor

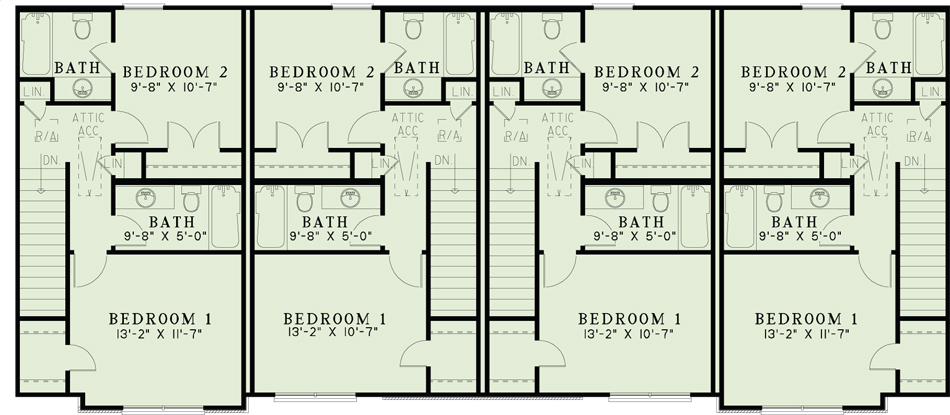

House Plan NDG 1397 Upper Floor
House Plan NDG 1397 Main Floor
House Plan NDG 1397 Upper Floor

Floor plans

NDG 1397

House Plan 1397 Greenbriar Court, Multi-Family House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1397
  • Total Living Space:1040Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 71
  • Width In.: 8
  • Depth Ft.: 30
  • Depth In.: N/A

Description

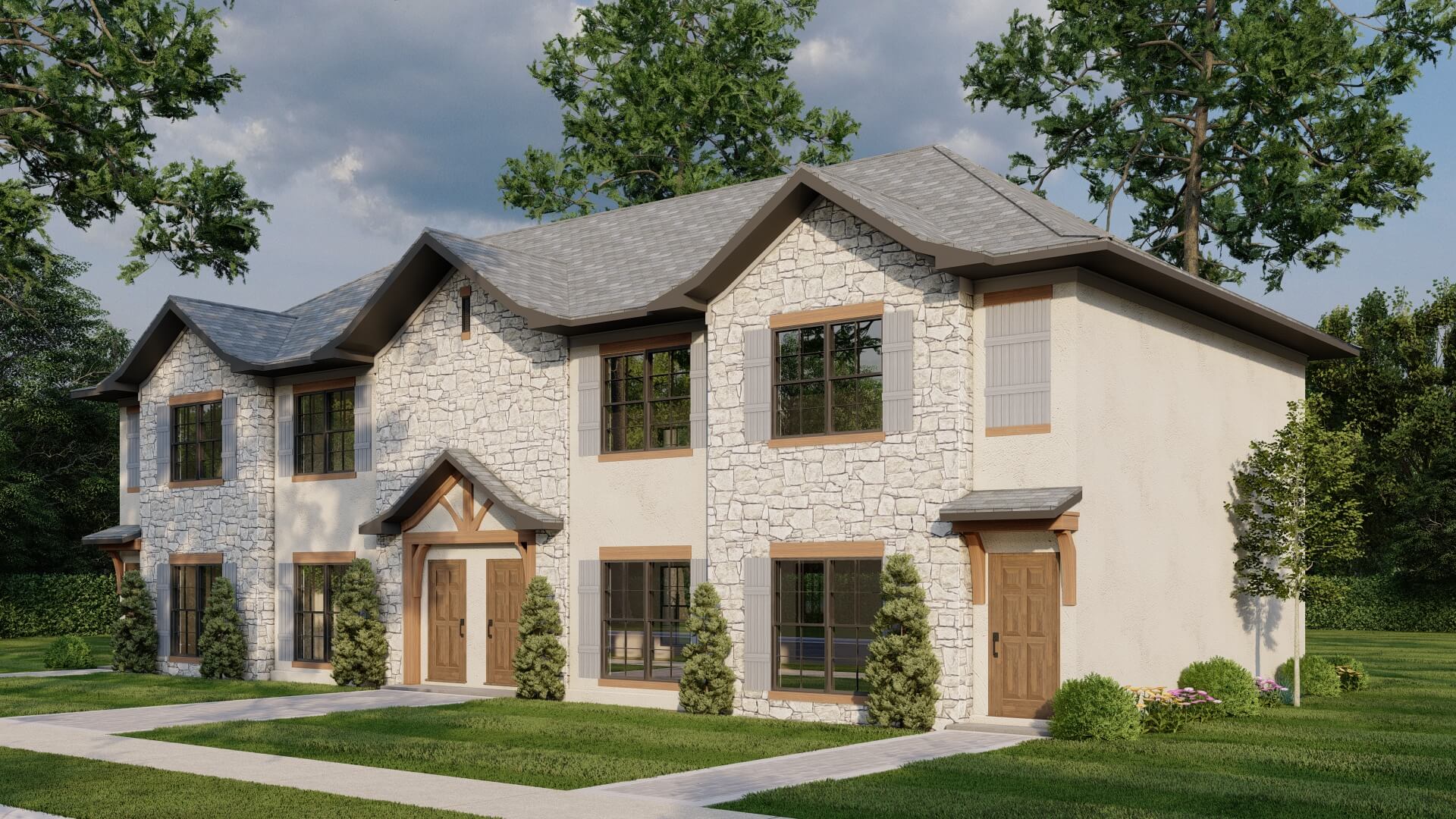

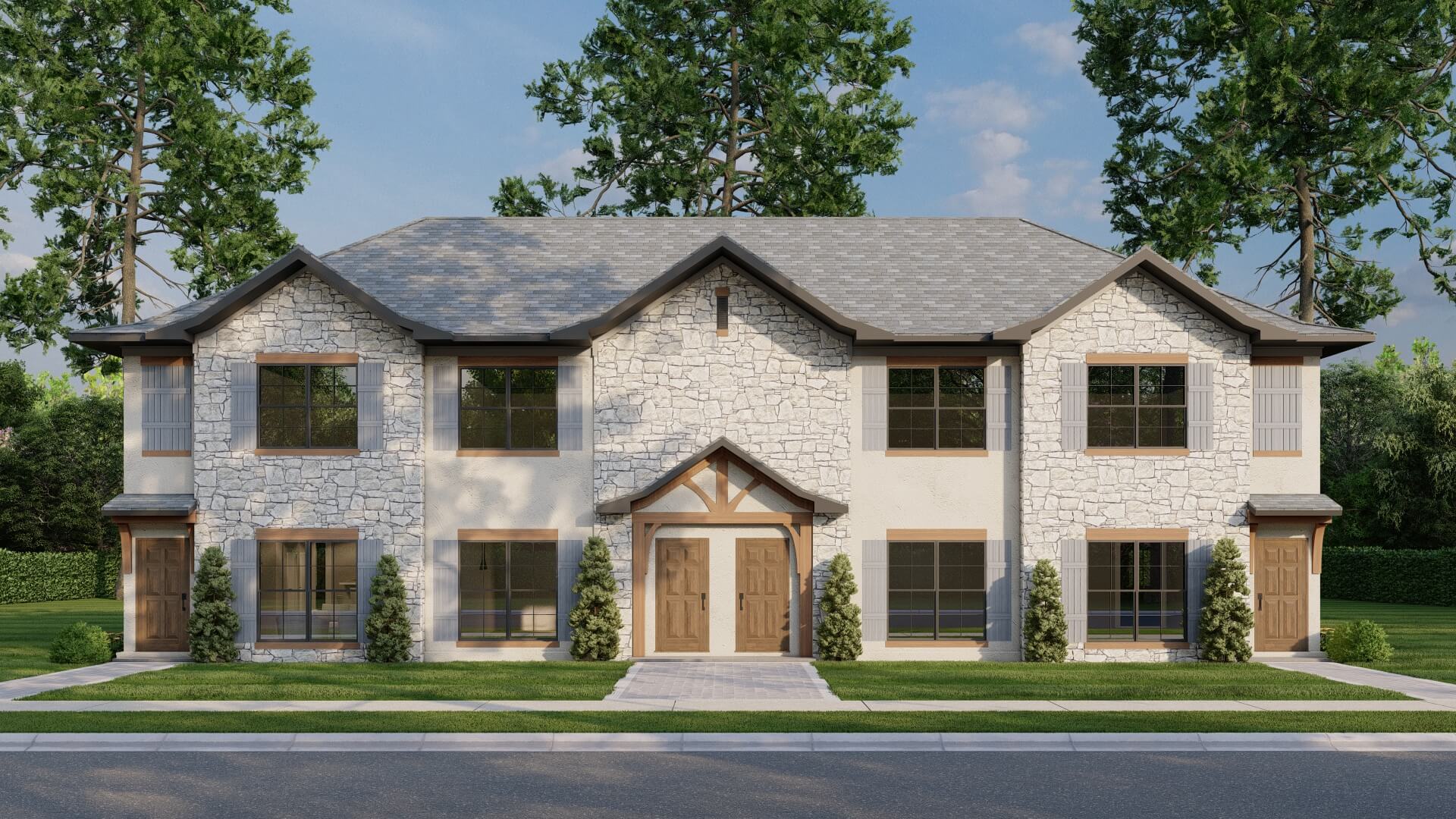

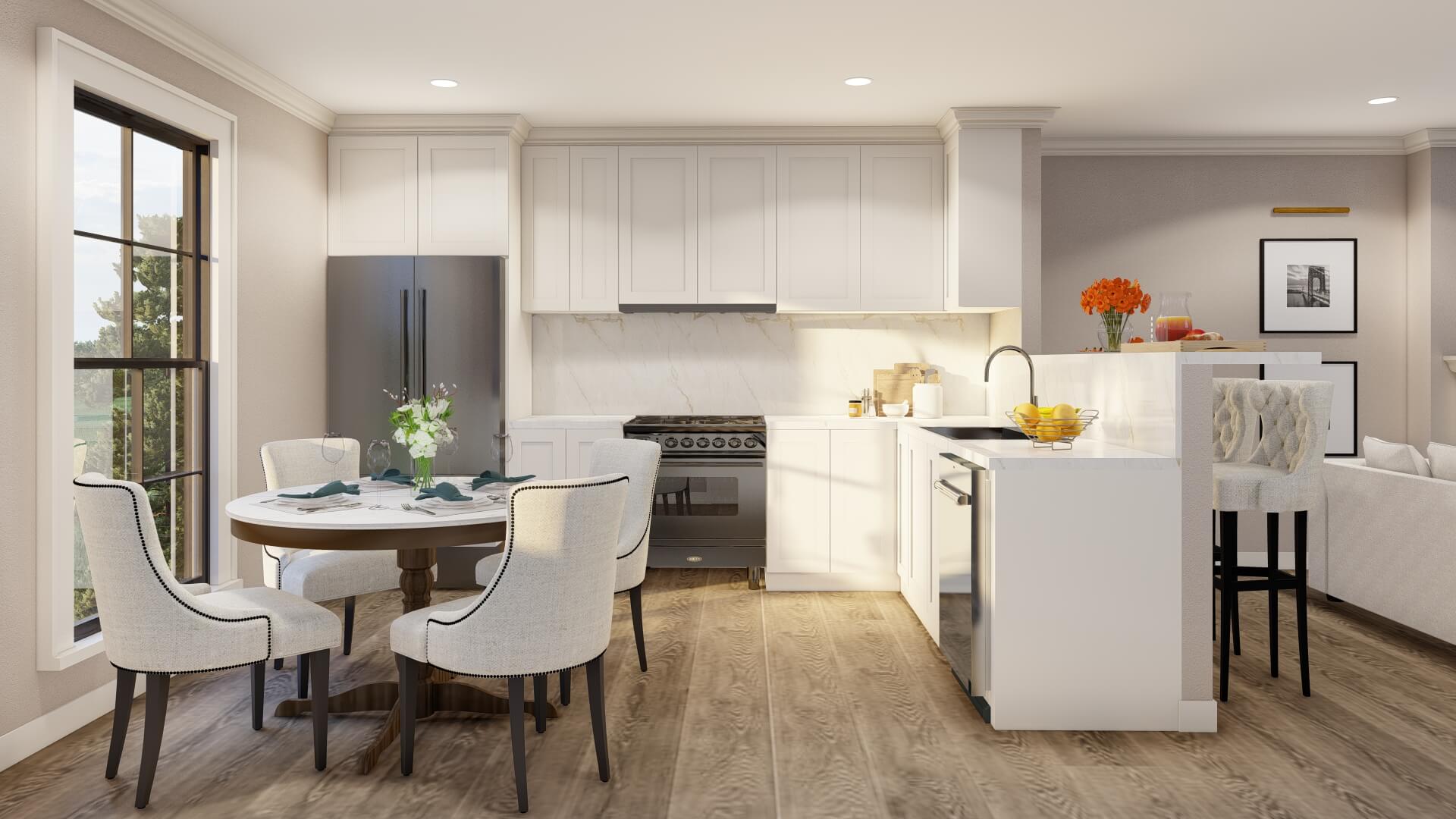

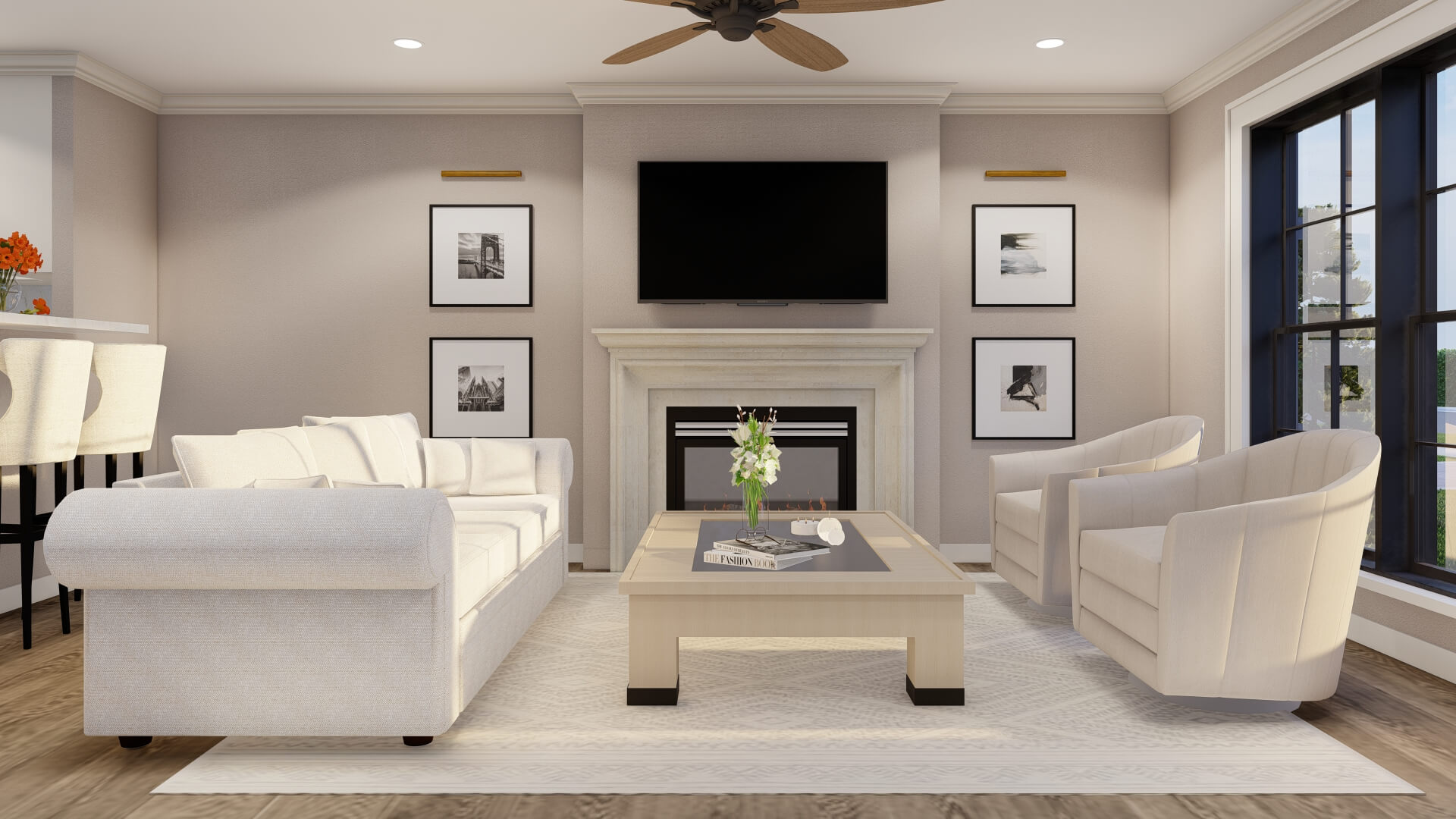

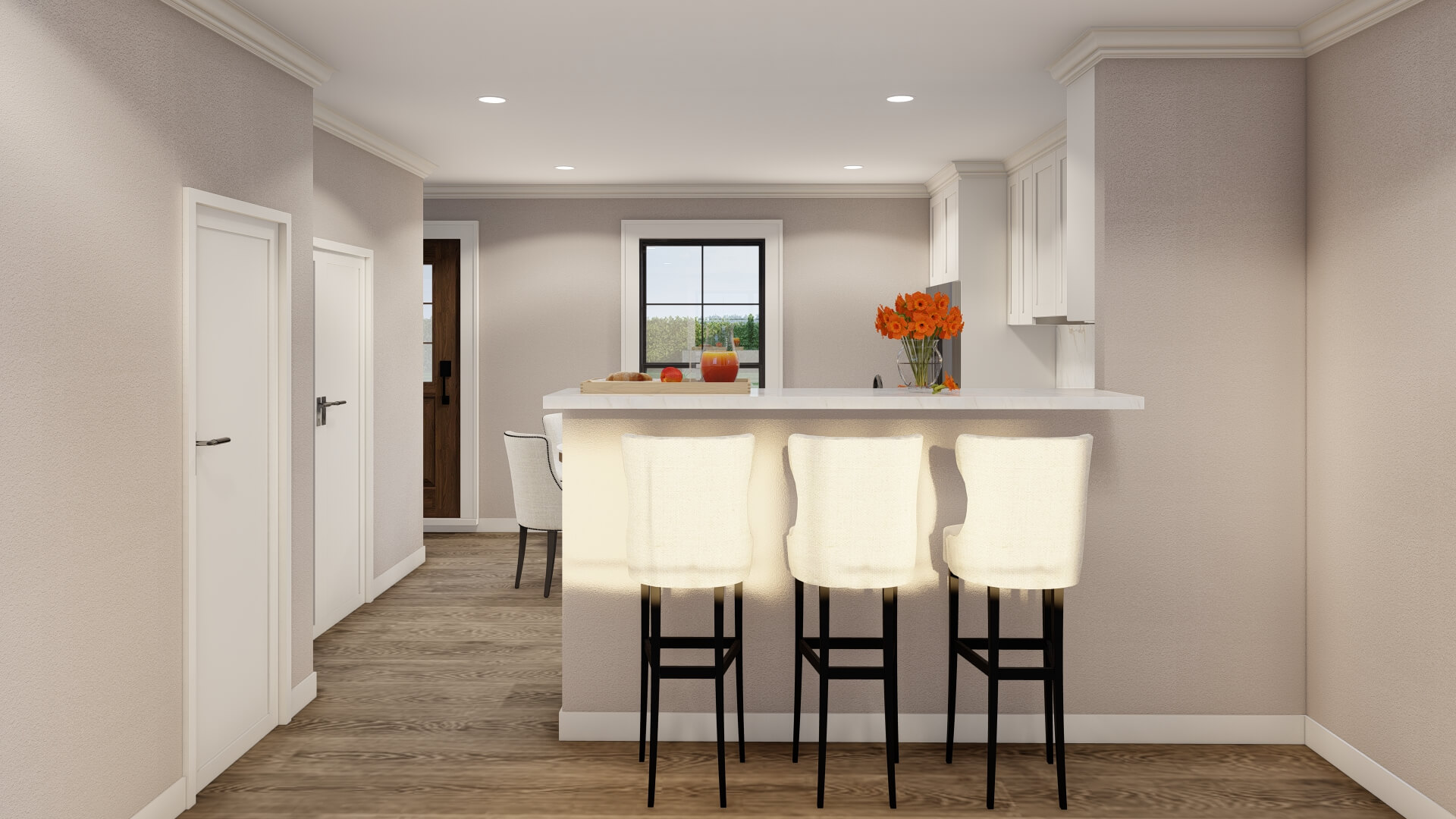

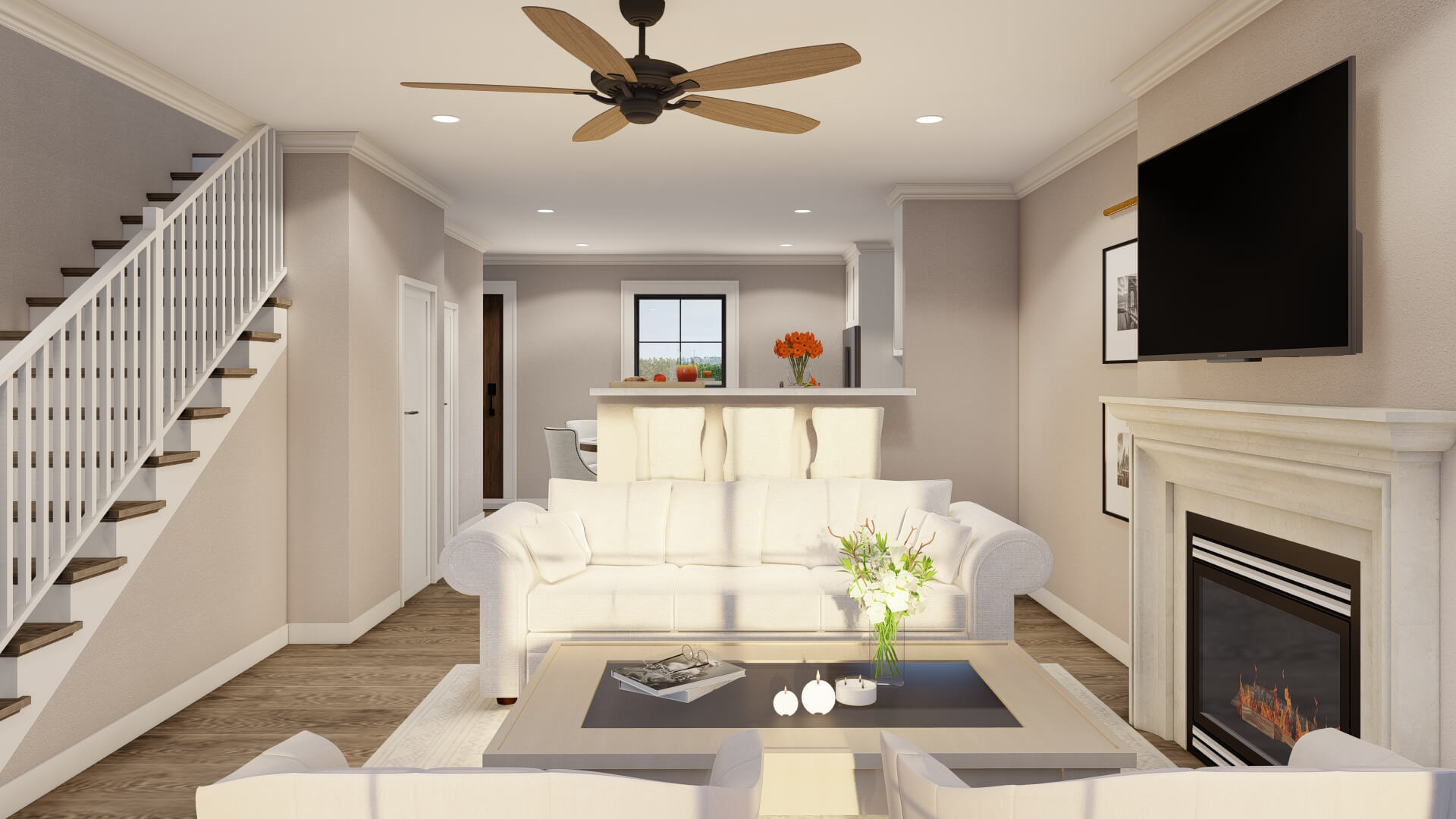

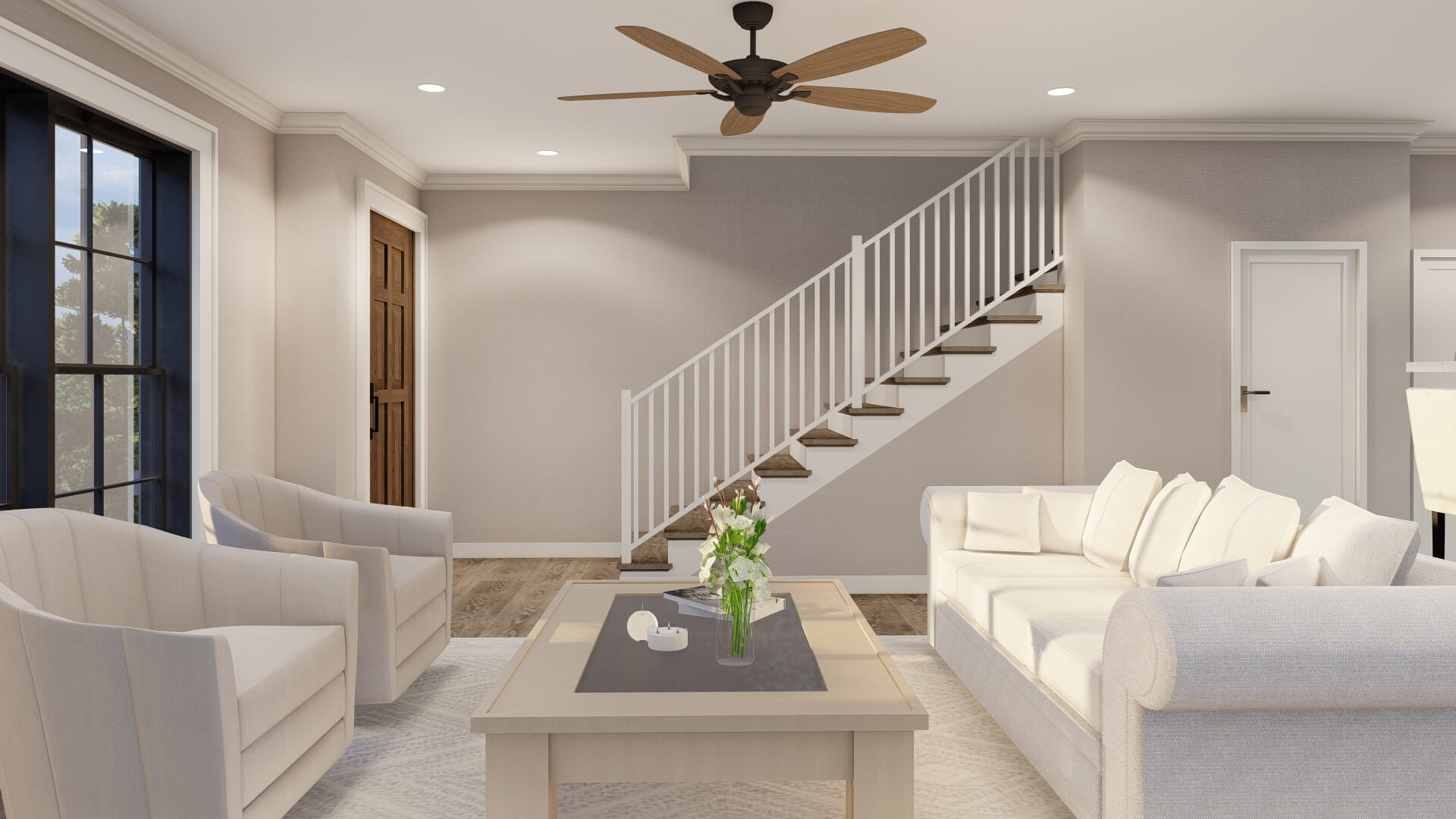

This beautiful 4-plex house plan is the perfect investment property. The open floor plan downstairs allows for a spacious living room and kitchen as well as a convenient half bath and a pantry. Upstairs you'll find 2 bedrooms each with their own bathroom.

Heating/Cooled Main Floor: Units 1 & 4 is 540 Sq.Ft
Heating/Cooled Main Floor: Units 2 & 3 is 526 Sq.Ft

Heating/Cooled Upper Floor: Units 1 & 4 is 500 Sq.Ft
Heating/Cooled Upper Floor: Units 2 & 3 is 490 Sq.Ft

Heating/Cooled Total: Units 1 & 4 is 1040 Sq.Ft
Heating/Cooled Total: Units 2 & 3 is 1016 Sq.Ft

Specifications

  • Total Living Space:1040Sq.Ft.
  • Main Floor: 540 Sq.Ft
  • Upper Floor (Sq.Ft.): 500 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2056 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
