House Plan 1394 Weatherwood Cove, European House Plan

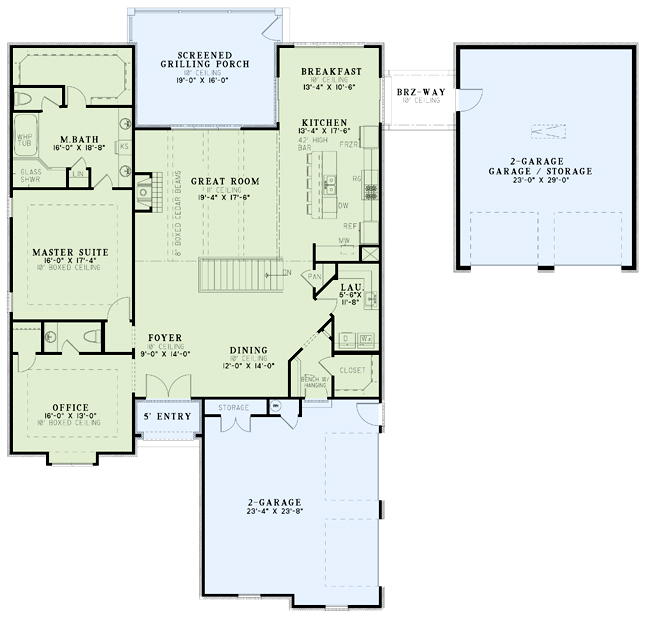

House Plan NDG 1394 Main Floor

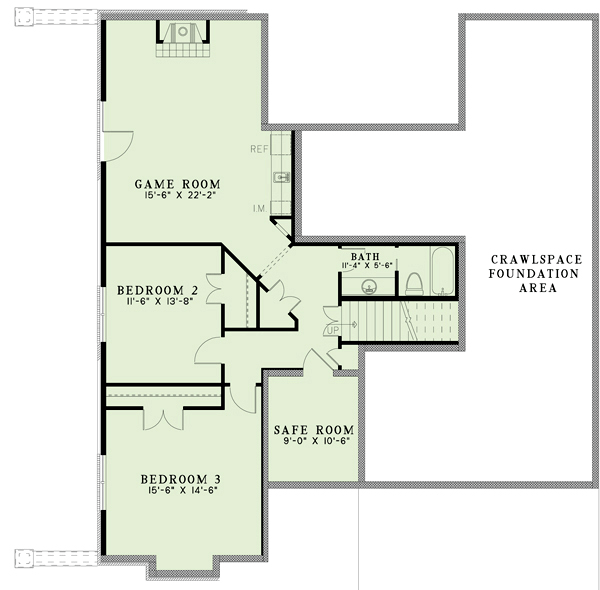

House Plan NDG 1394 Basement
House Plan NDG 1394 Main Floor
House Plan NDG 1394 Basement

Floor plans

NDG 1394

House Plan 1394 Weatherwood Cove, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1394
  • Total Living Space:3509Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 4 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 83
  • Width In.: 8
  • Depth Ft.: 80
  • Depth In.: 2

Description

This European style home offers a family friendly open floor plan with a side loading garage as well as another 2-car garage connected by a breeze-way. Through the covered entry you will find the foyer with a 10′ ceiling that opens into the great room and dining room. A spacious office is located to the left of the foyer with a walk-in closet and a half bath. The great room features a fireplace and boxed cedar beams in the ceiling. This space is open to the kitchen and breakfast room. Off of the dining room is a spacious laundry room and a mud room with a walk-in closet perfect for storage. The master bedroom offers plenty of space and a 10′ boxed ceiling while the bathroom will spoil you with a whirlpool tub, a large corner glass shower and a huge walk-in closet. Downstairs is perfect for the kids with bedrooms 2 and 3, a large safe room, and a game room complete with a fridge, ice maker, and a fireplace.

Specifications

  • Total Living Space:3509Sq.Ft.
  • Main Floor: 2277 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1232 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 437 Sq.Ft.
  • Garage (Sq.Ft.): 648 Sq.Ft.
  • Total Square Feet: 4594 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
