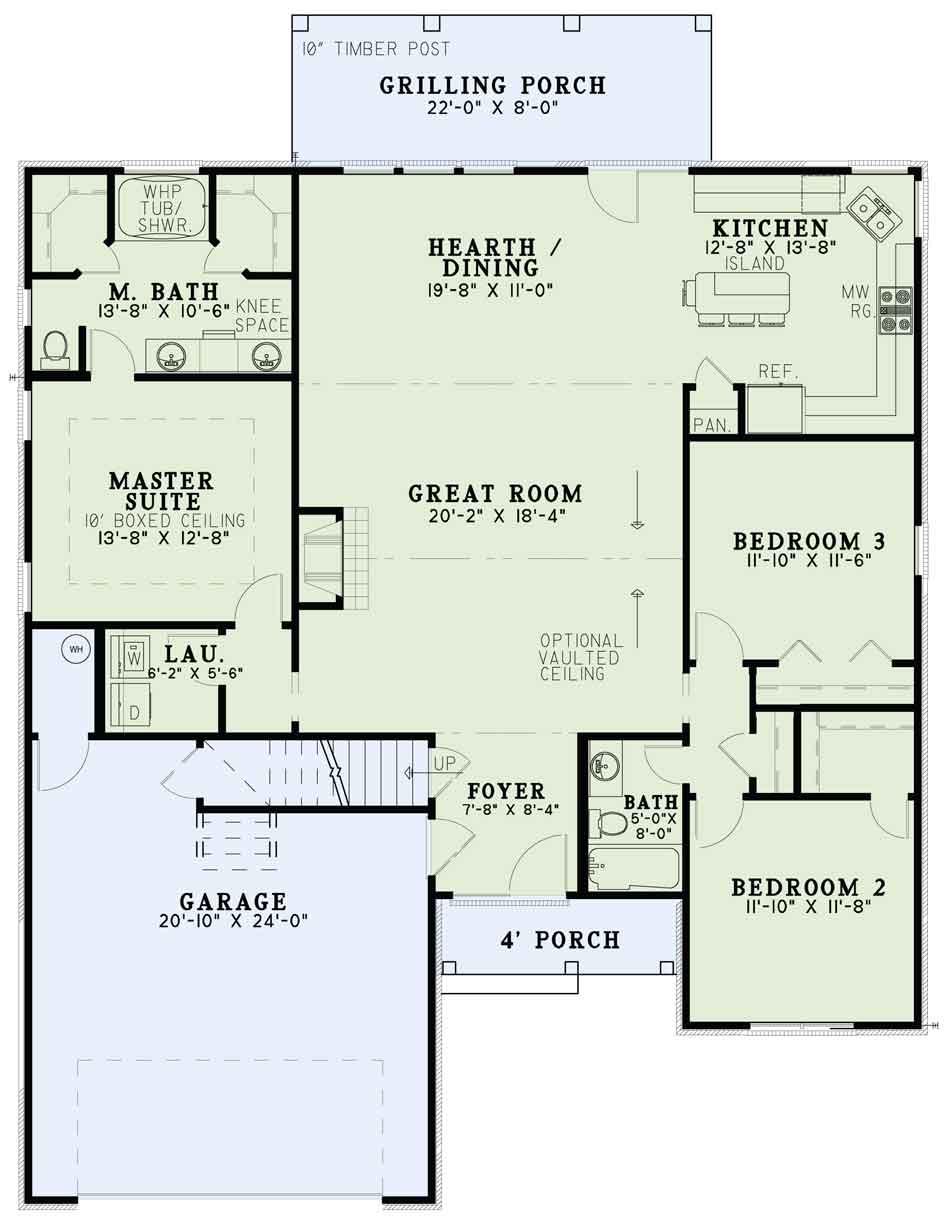

House Plan NDG 1387 Main Floor

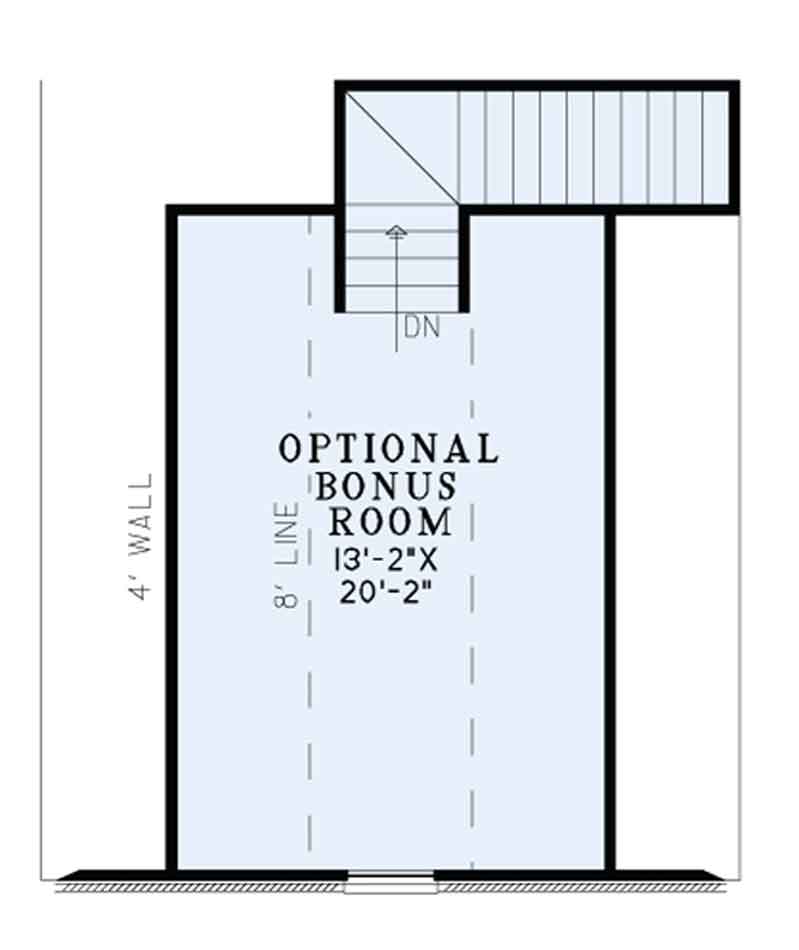

House Plan NDG 1387 Upper Floor/Bonus Room

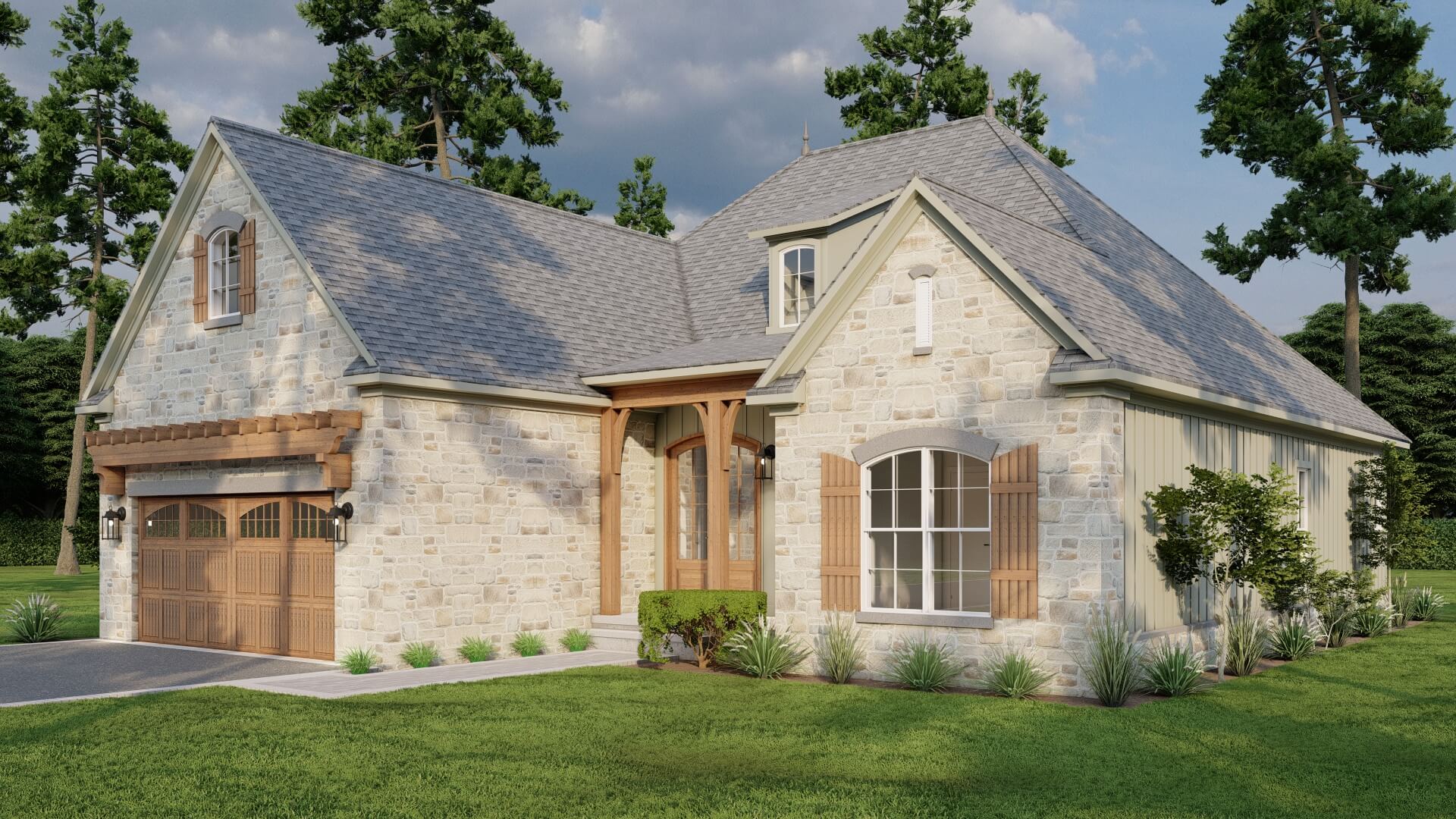

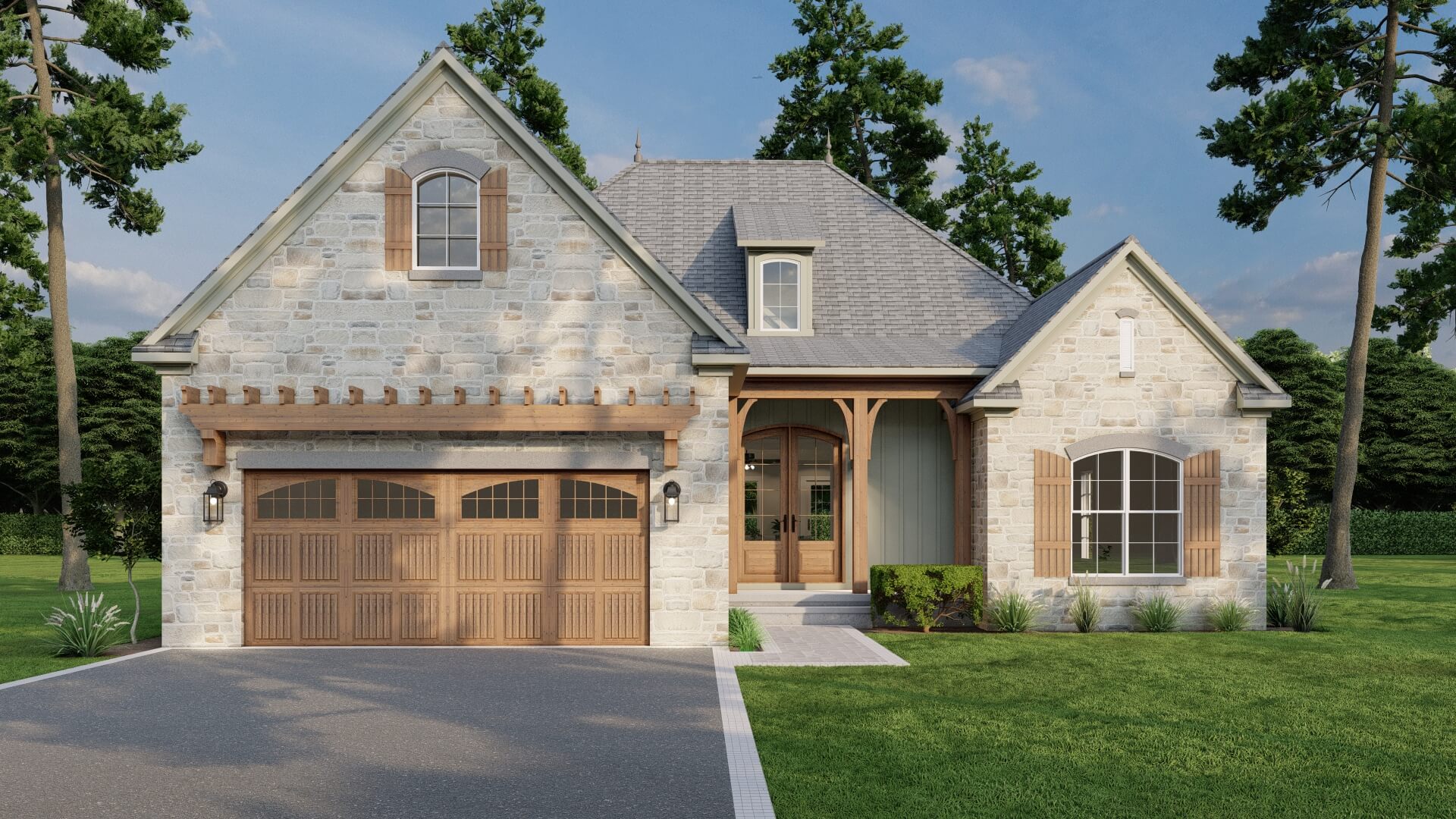

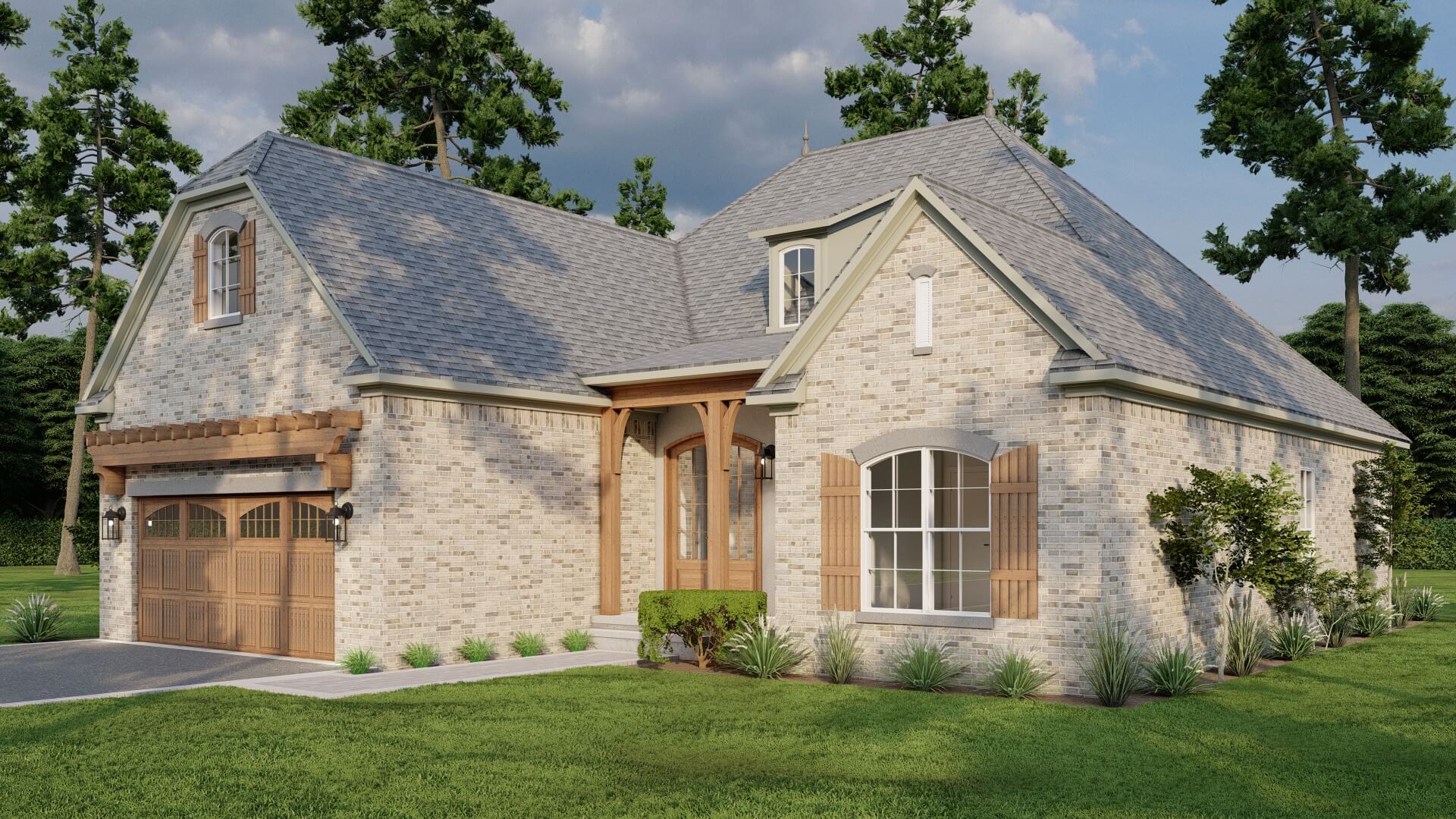

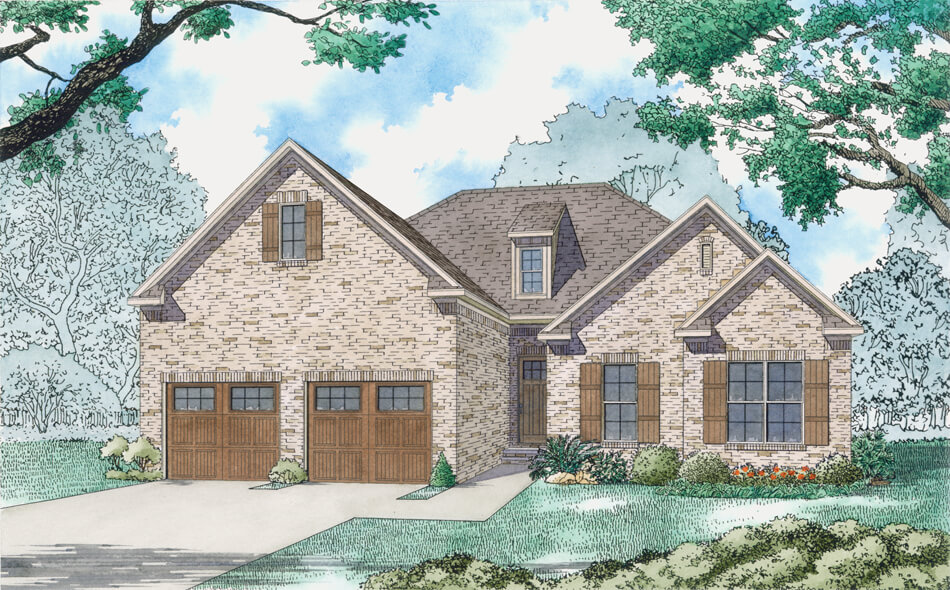

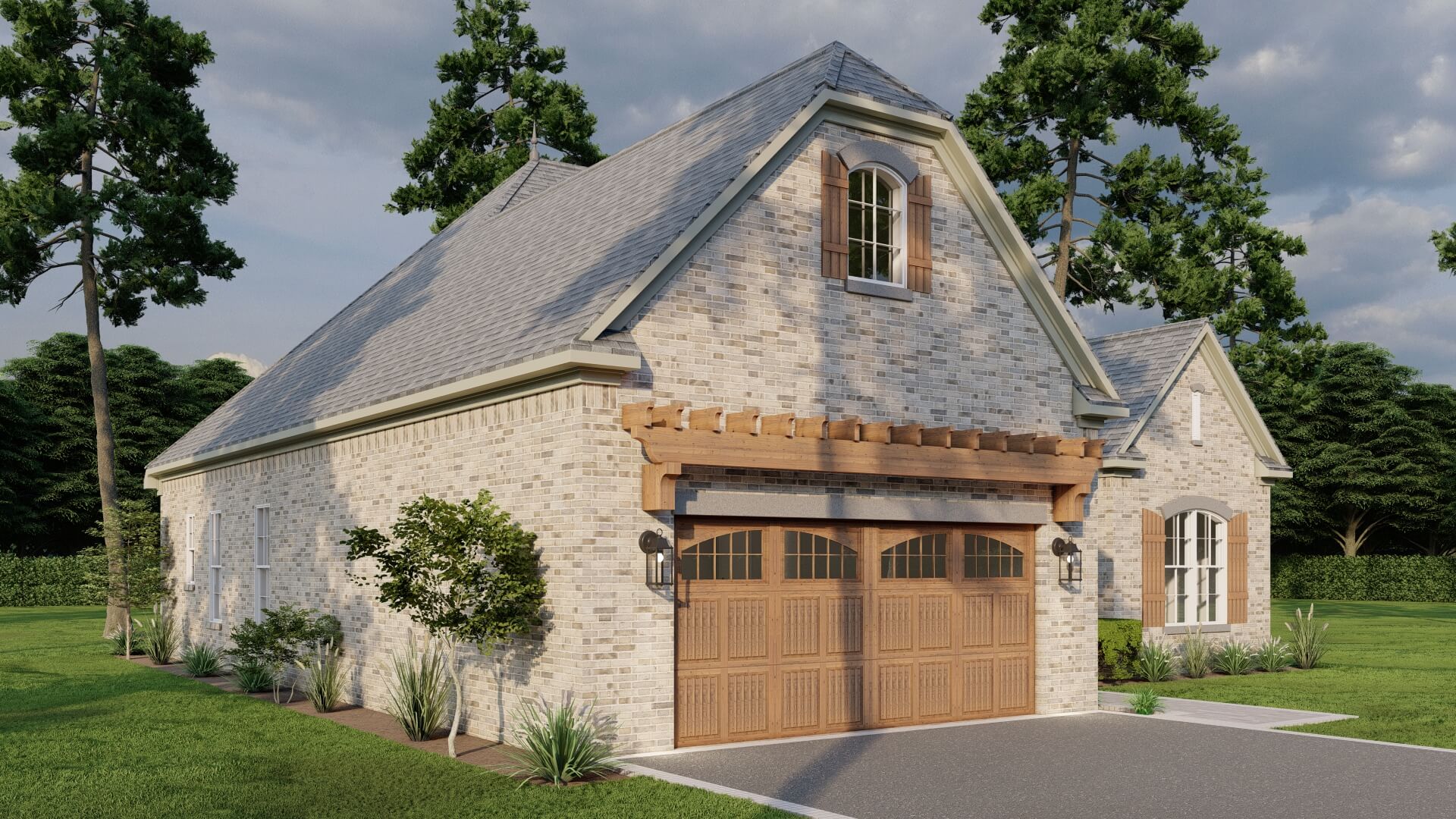

House Plan NDG 1387 Front Exterior
House Plan NDG 1387 Foyer
House Plan NDG 1387 Foyer

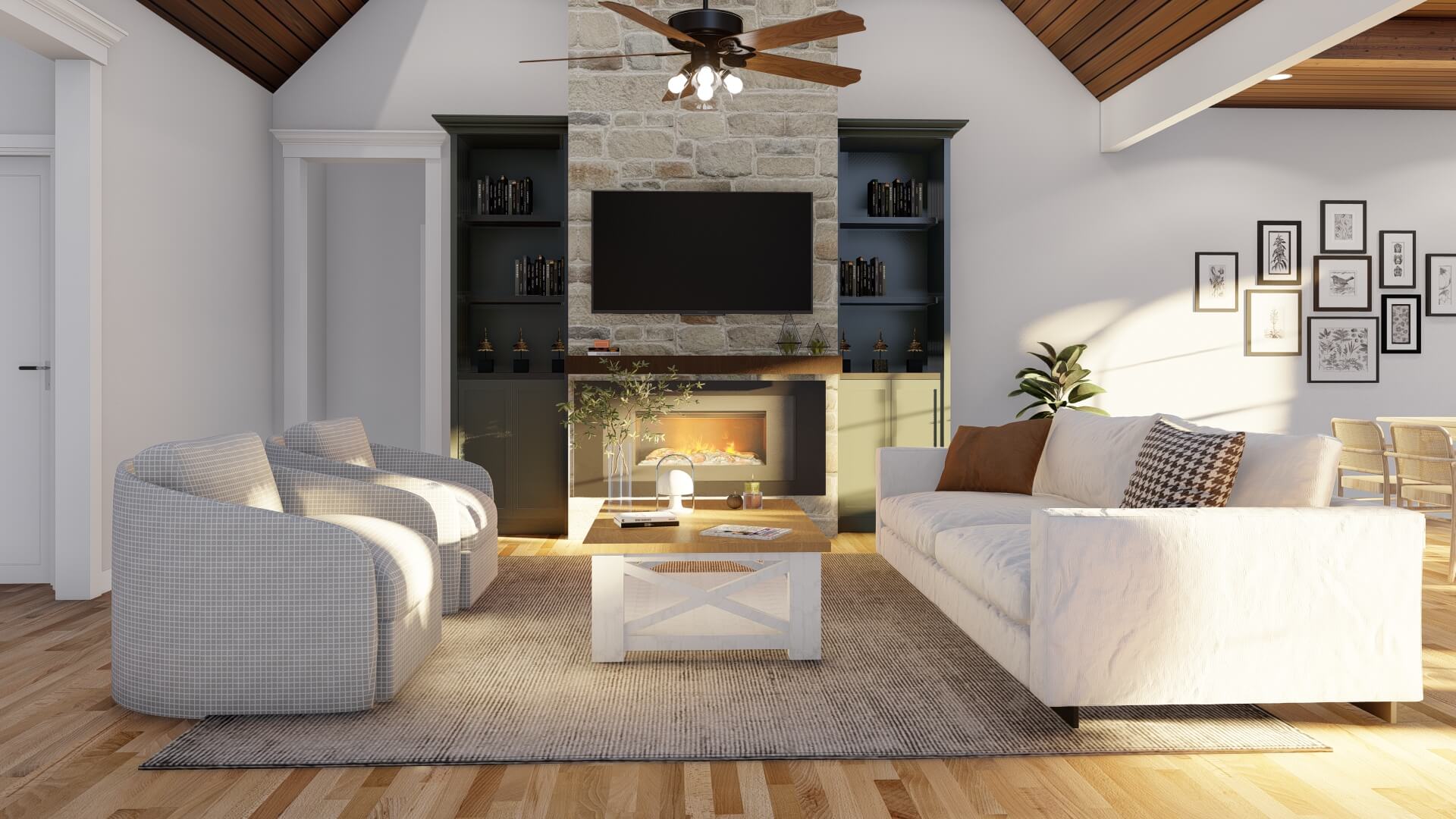

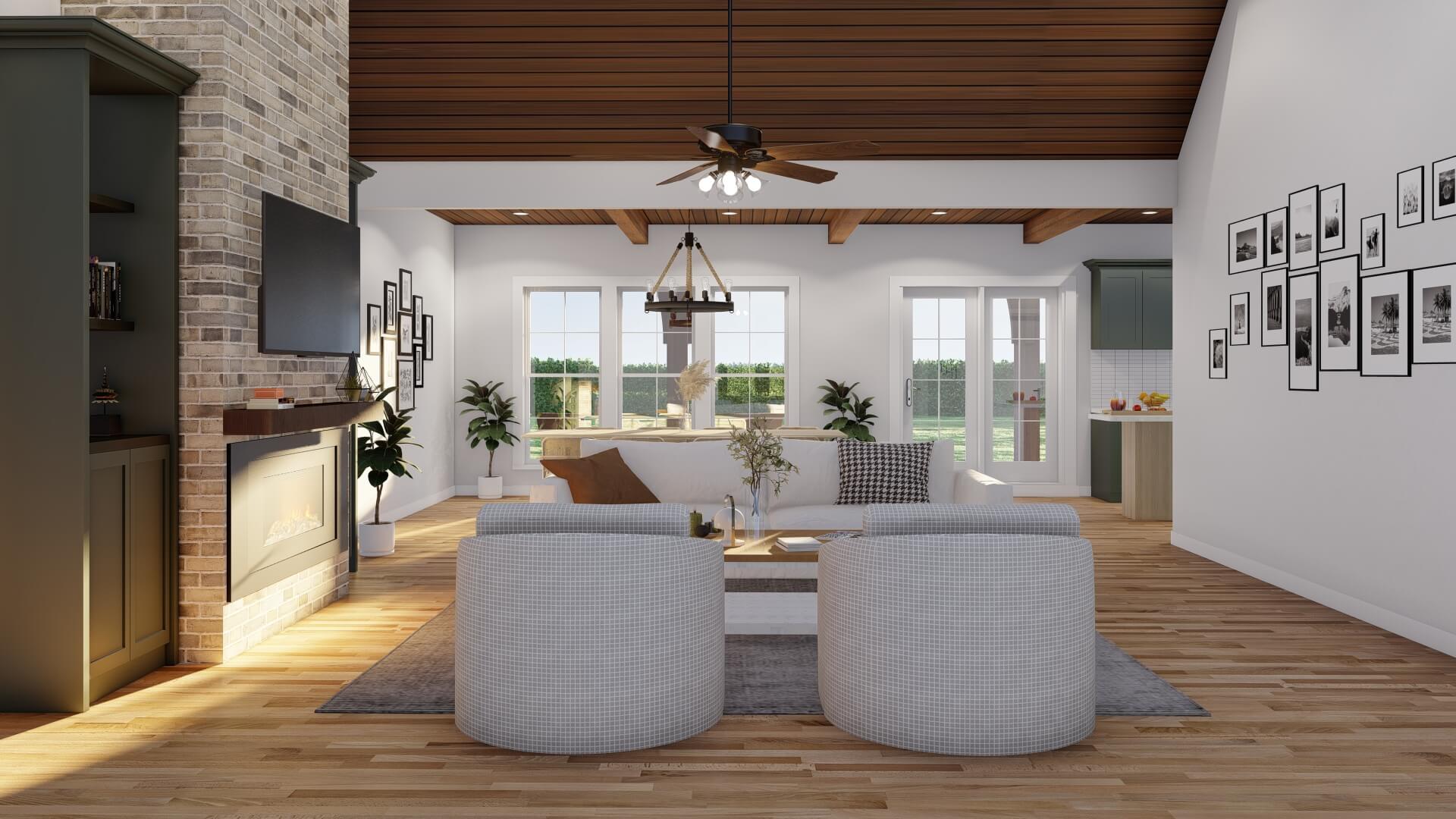

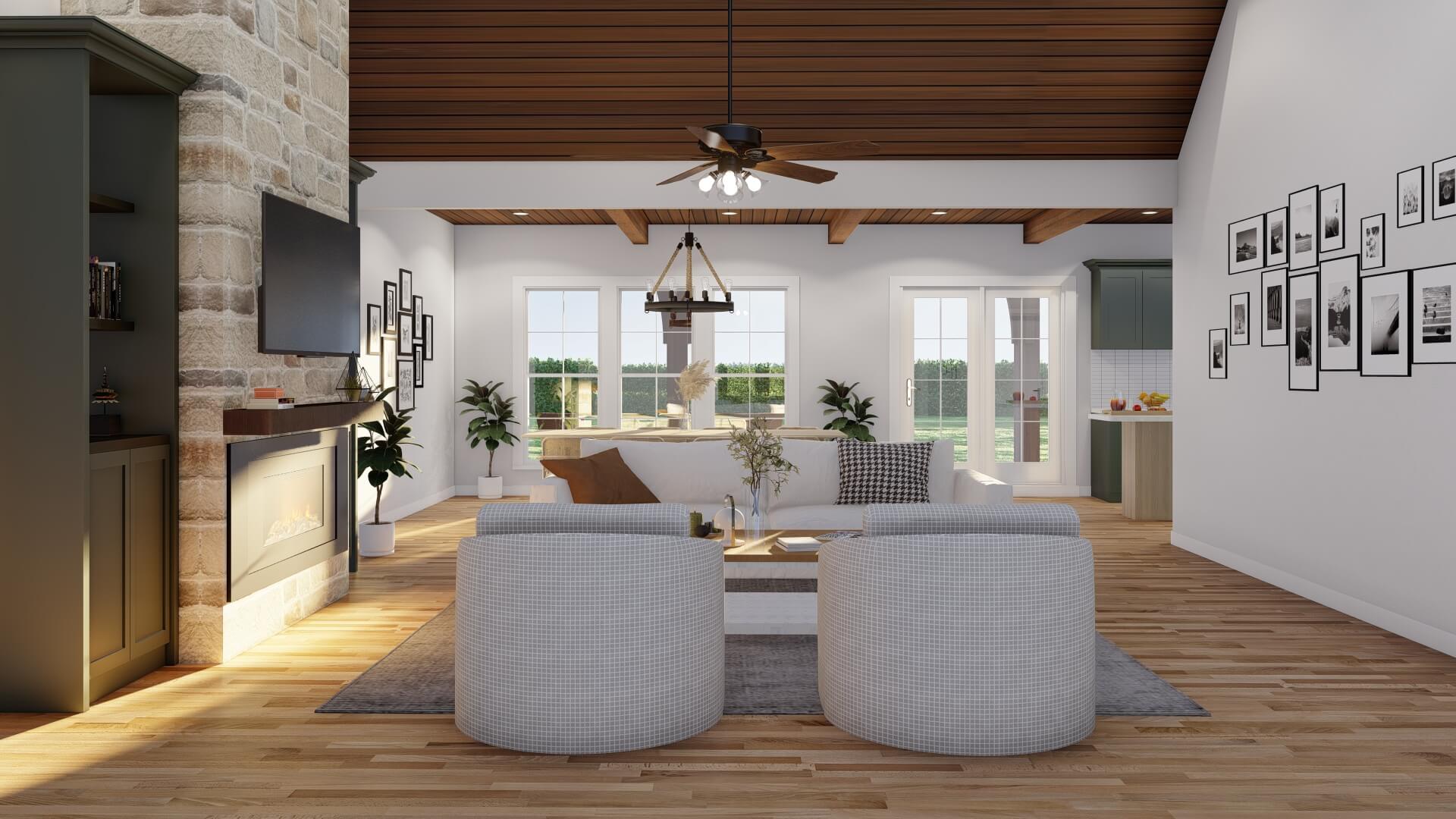

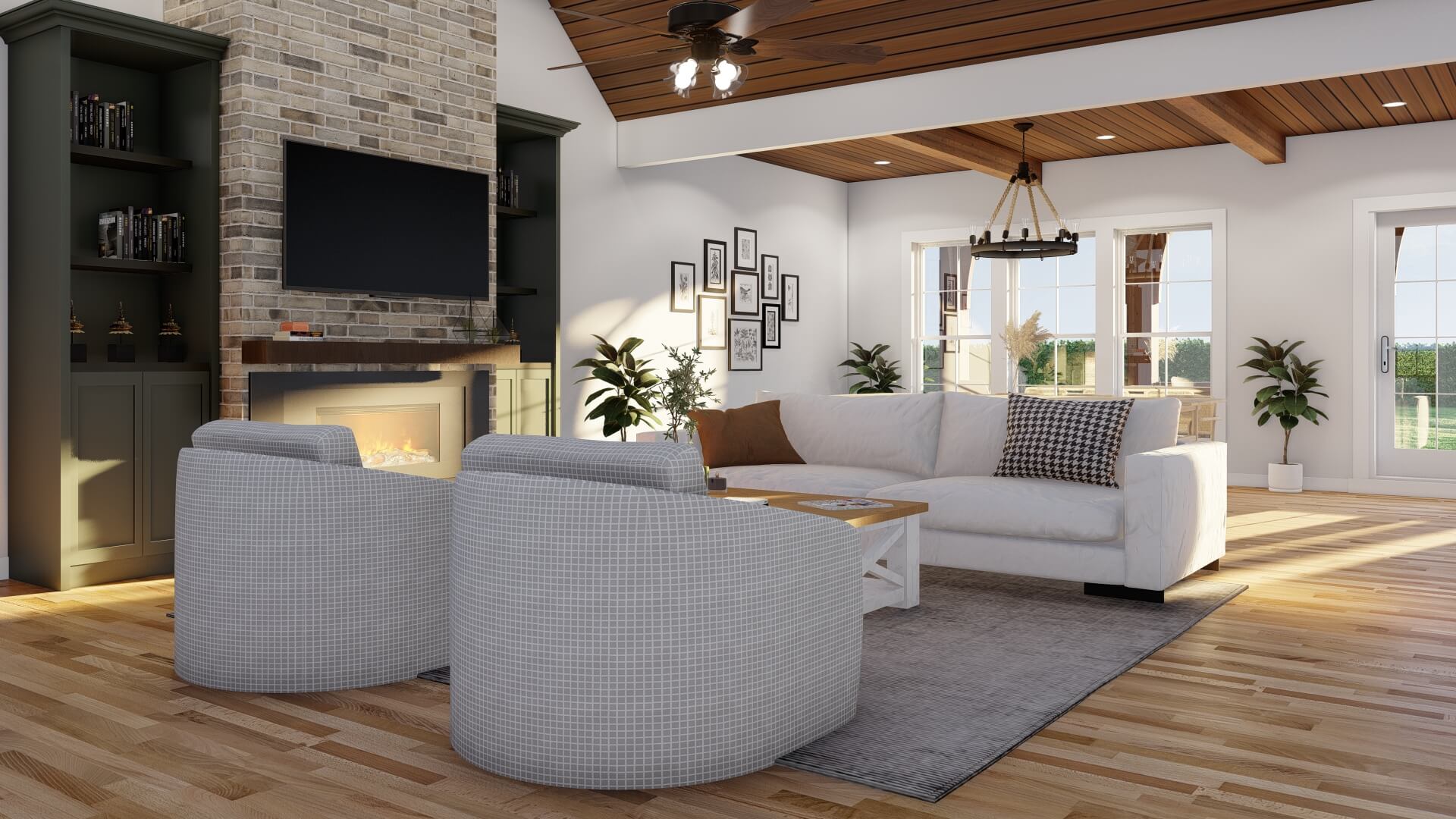

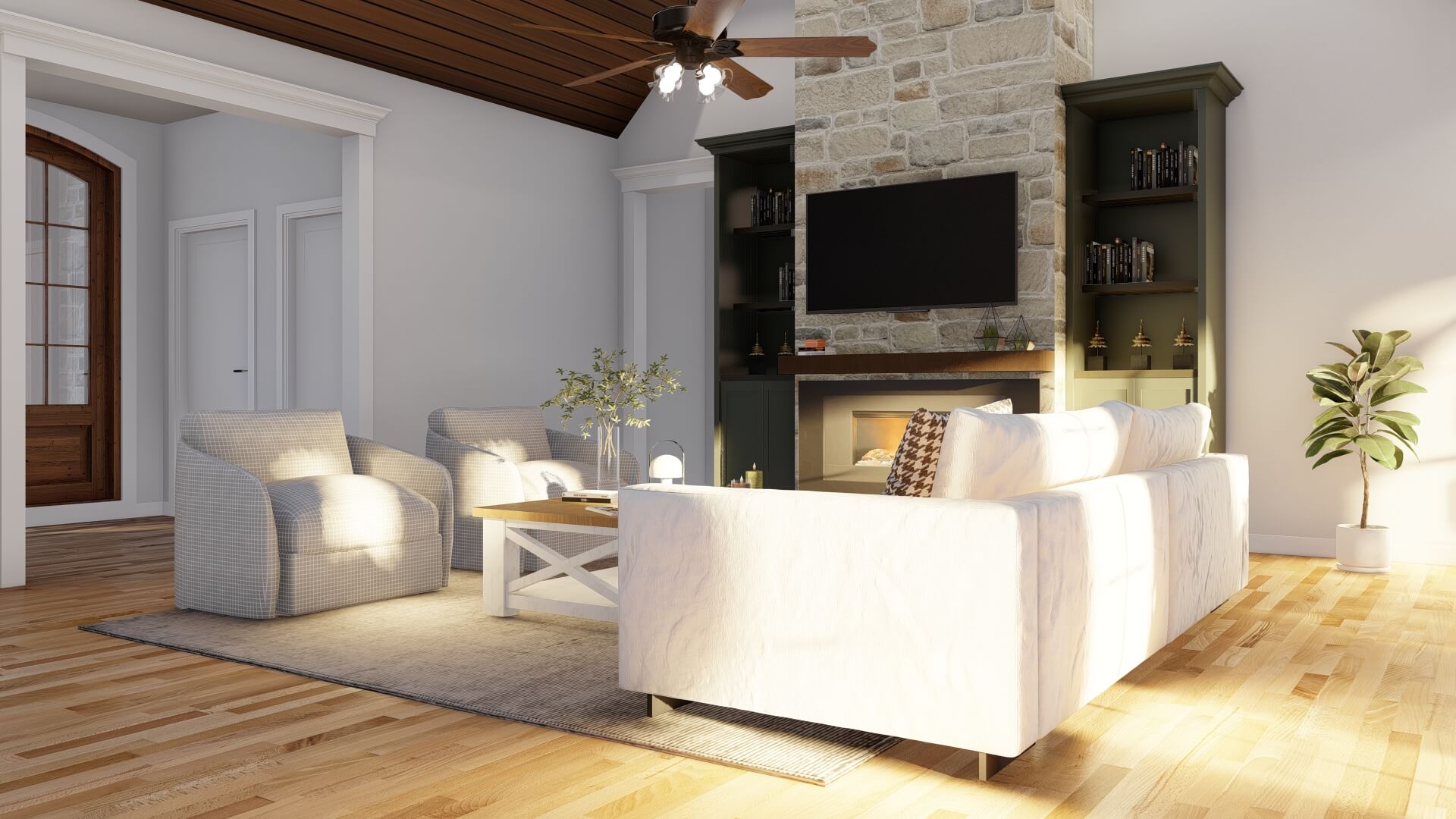

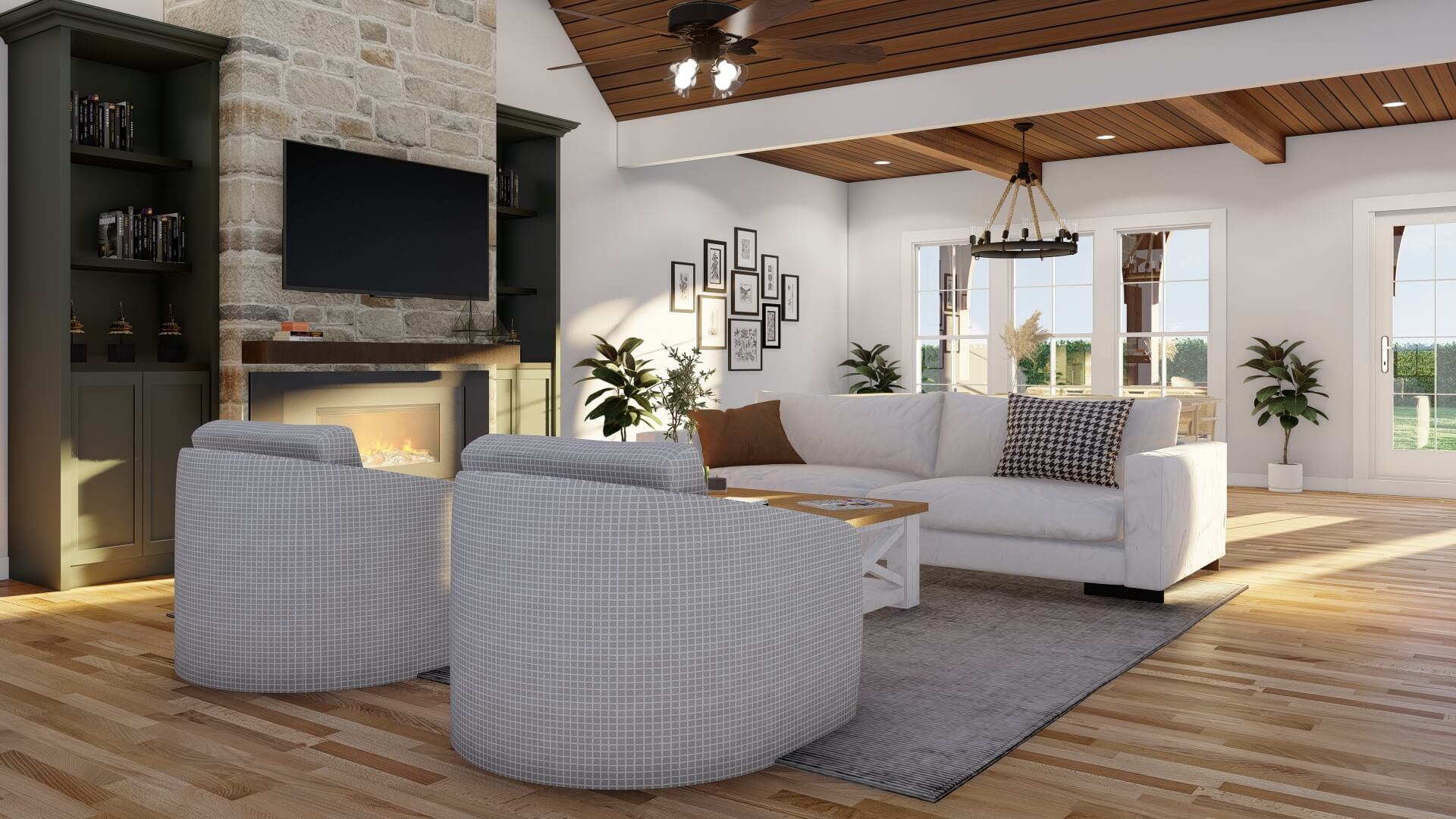

House Plan NDG 1387 Great Room
House Plan NDG 1387 Great Room
House Plan NDG 1387 Great Room

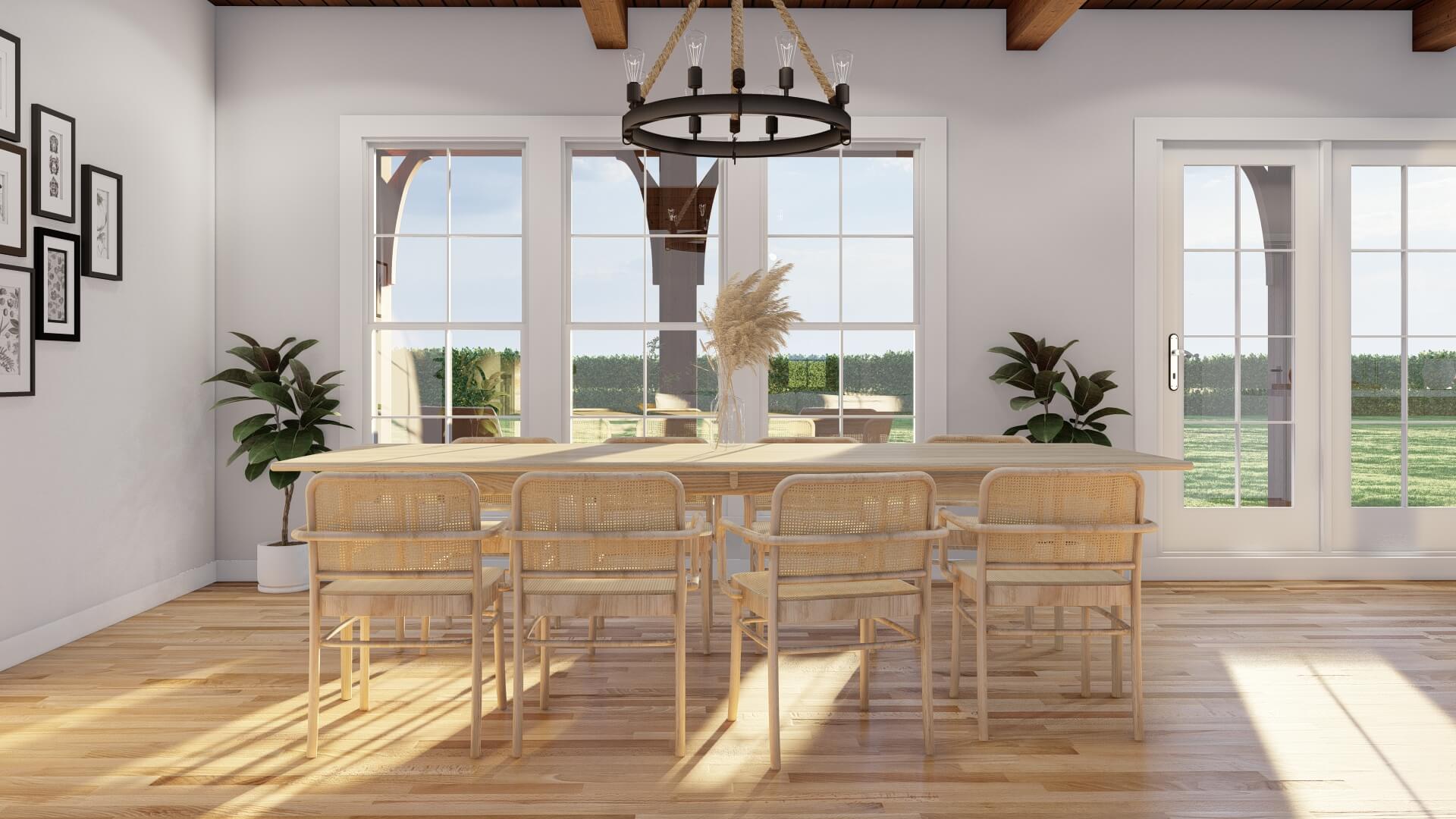

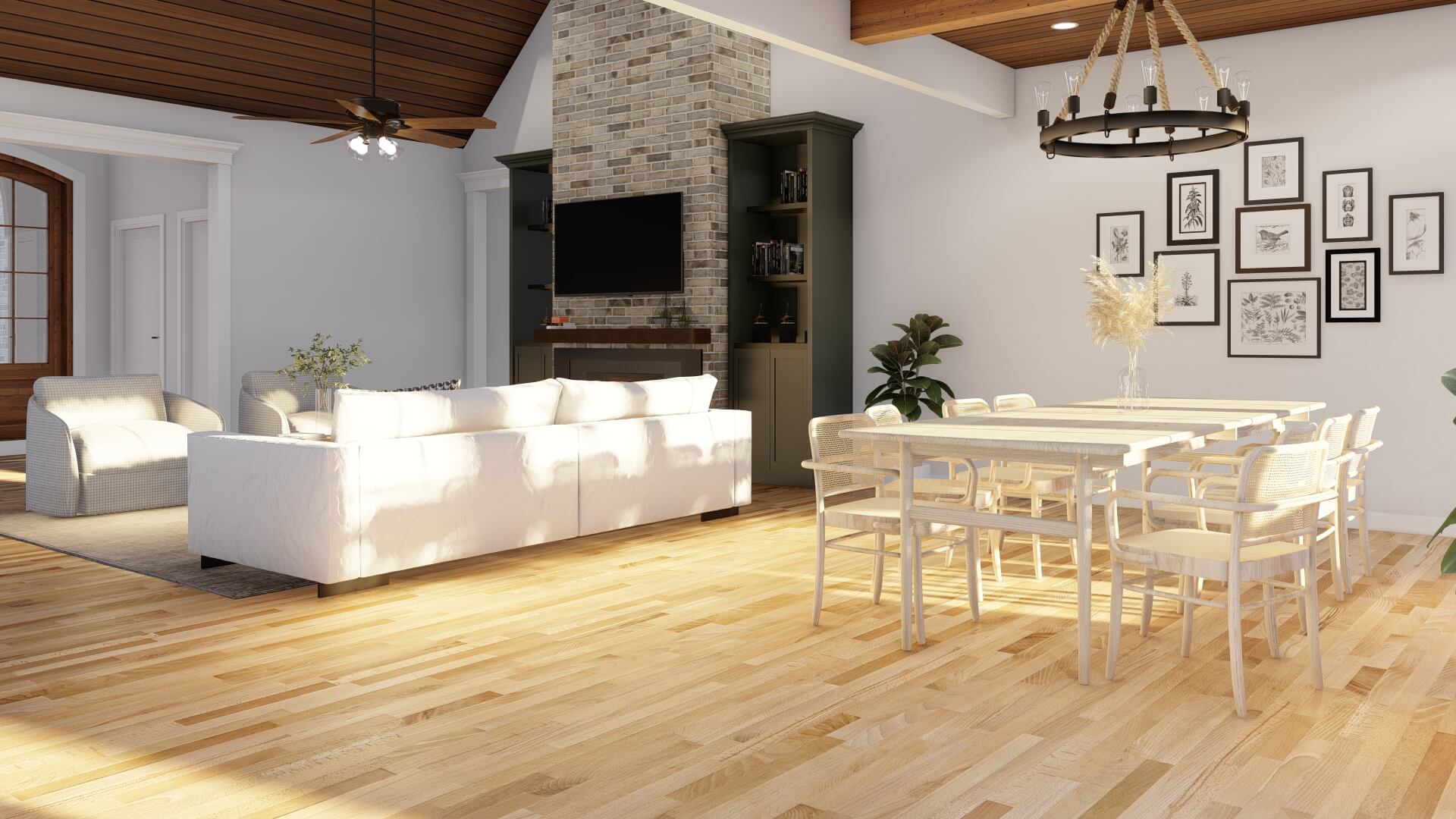

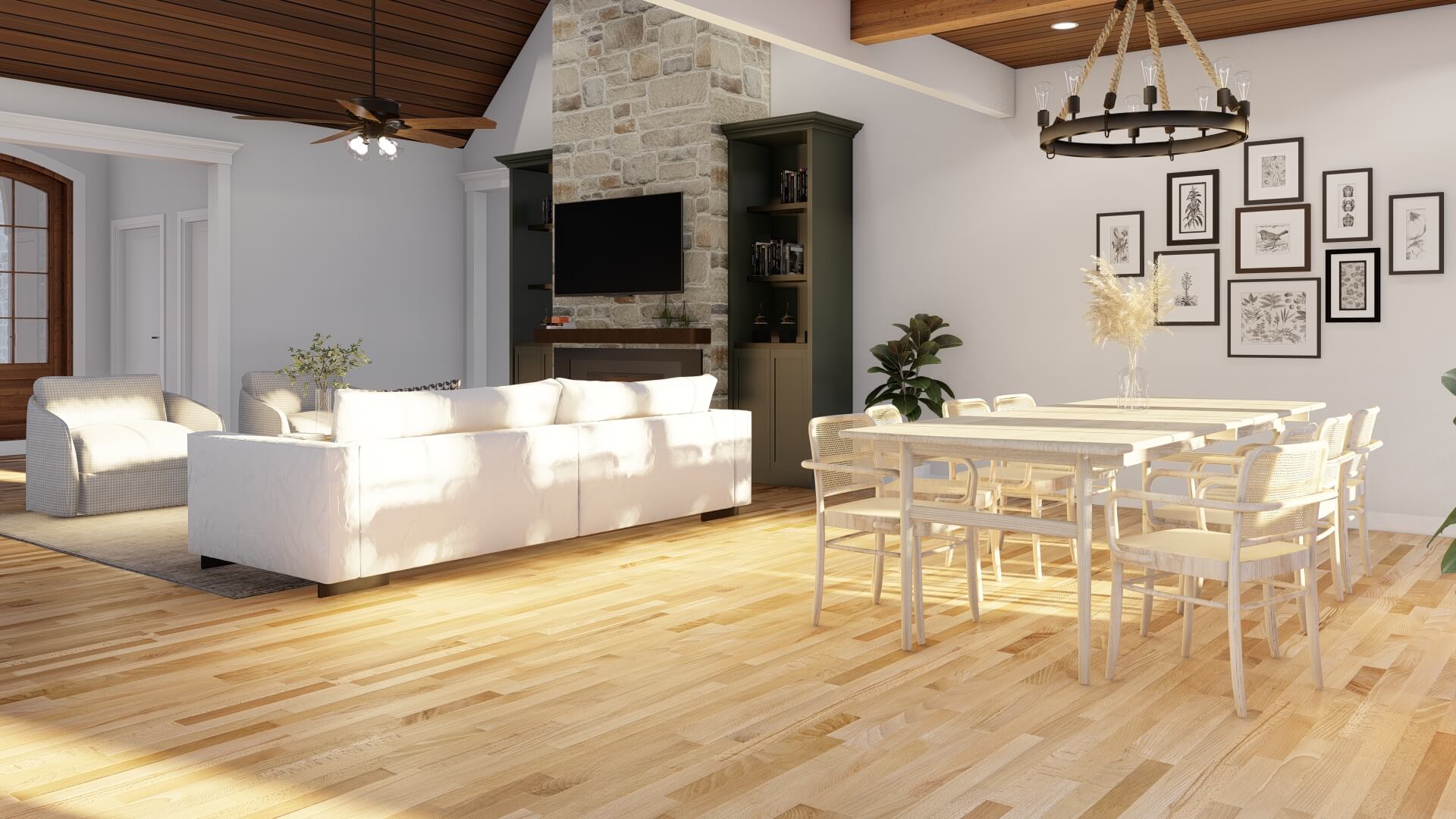

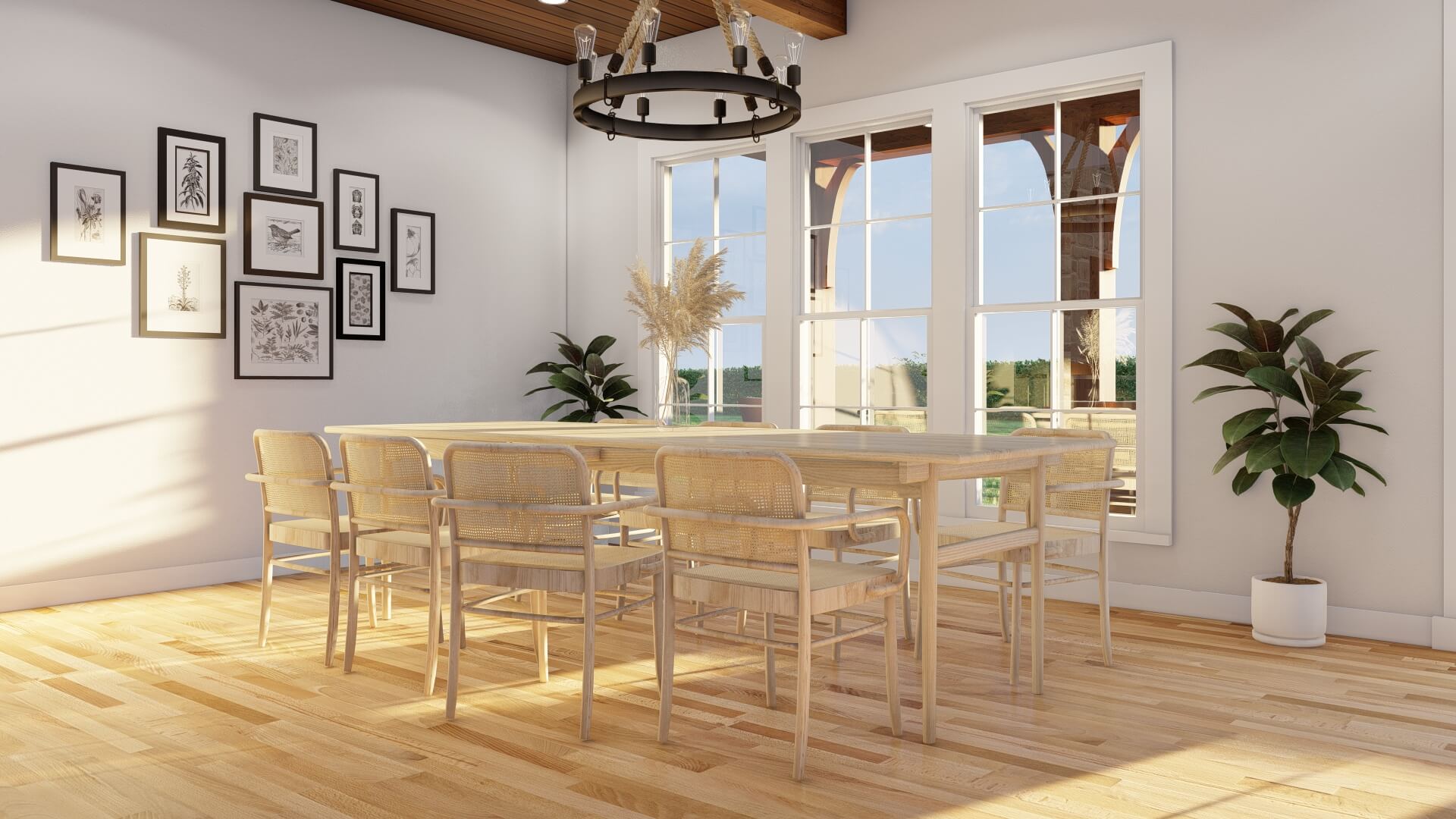

House Plan NDG 1387 Dining Room
House Plan NDG 1387 Dining Room
House Plan NDG 1387 Dining Room

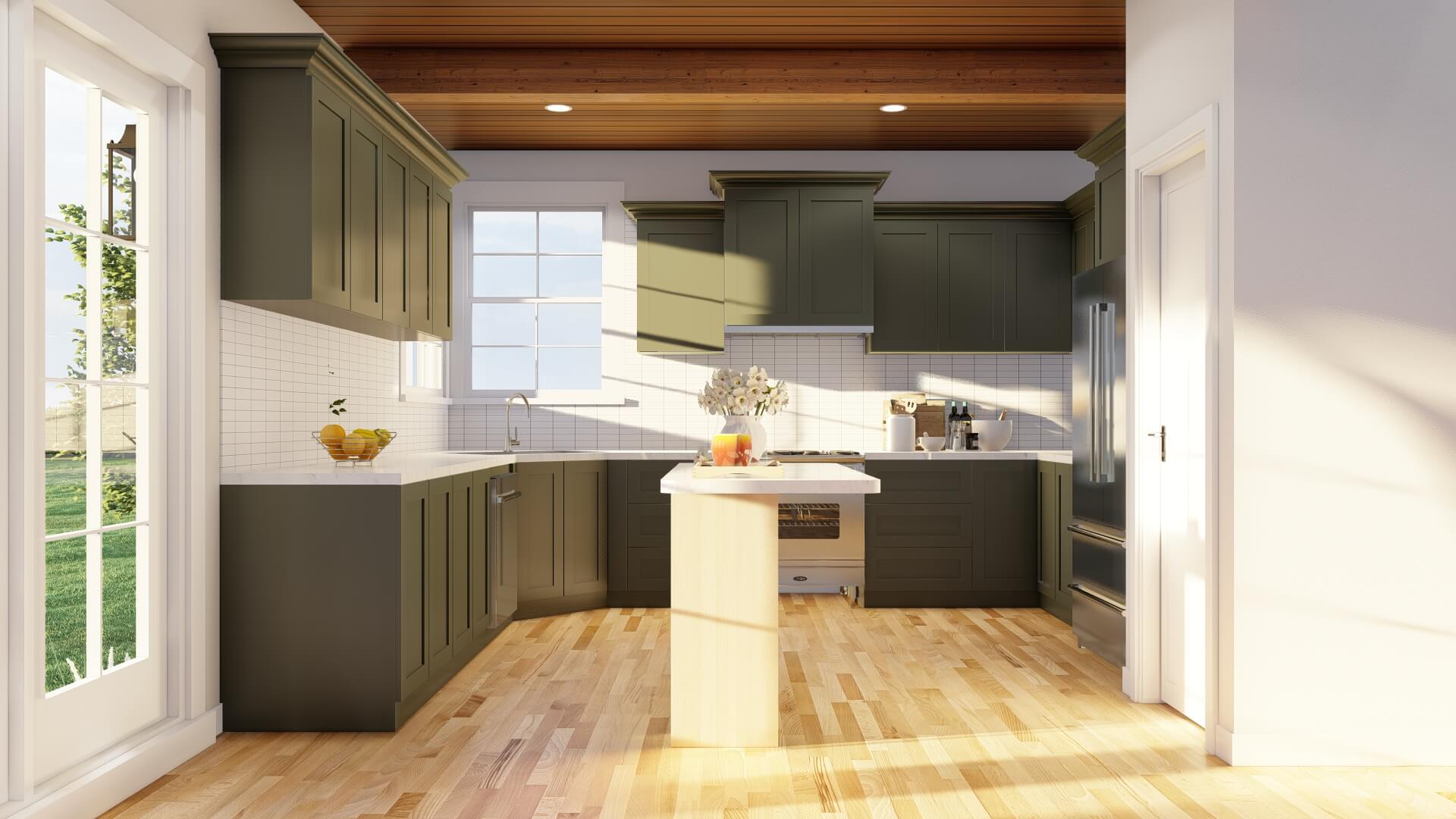

House Plan NDG 1387 Kitchen
House Plan NDG 1387
House Plan NDG 1387 Kitchen
House Plan NDG 1387 Kitchen

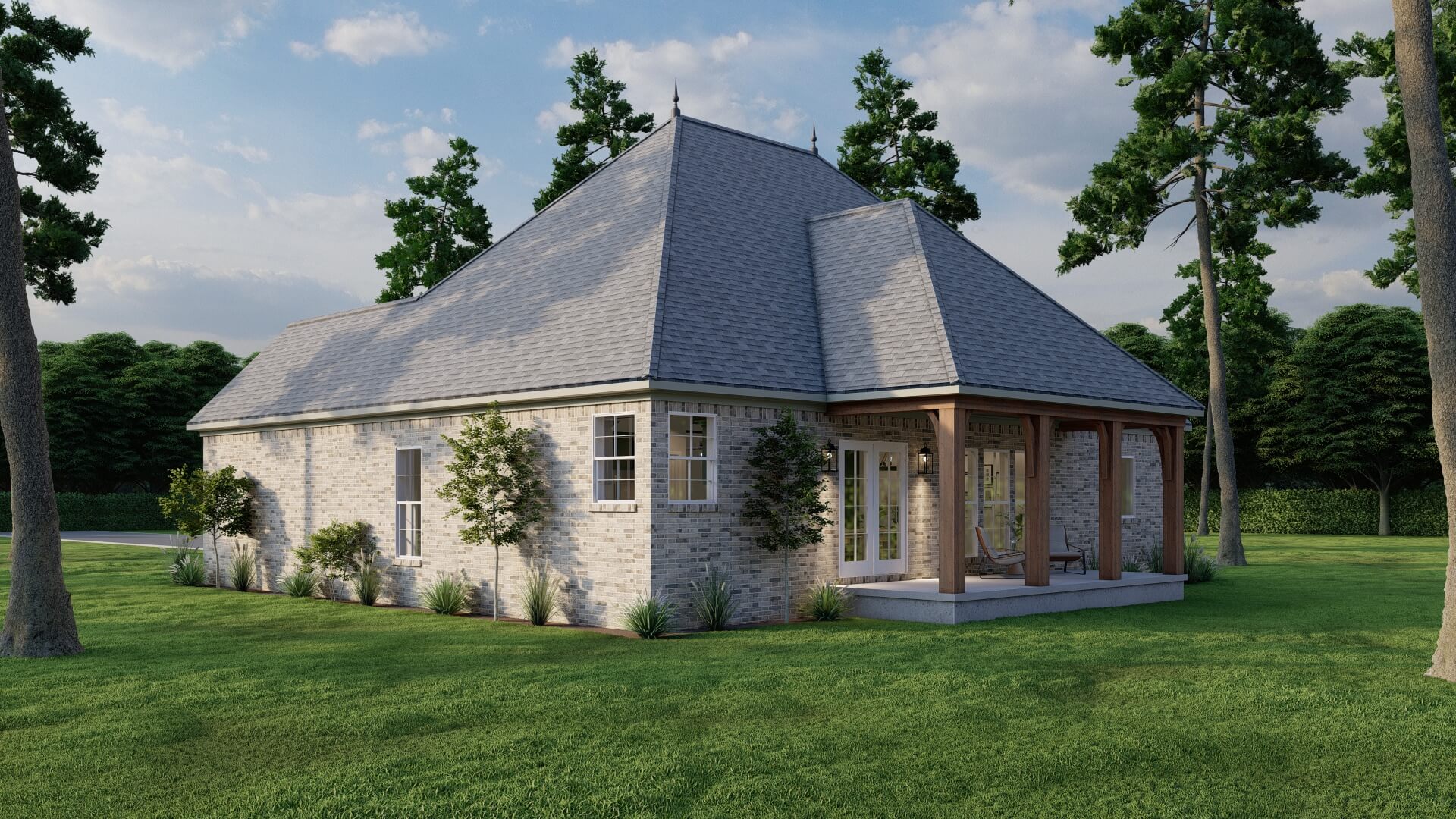

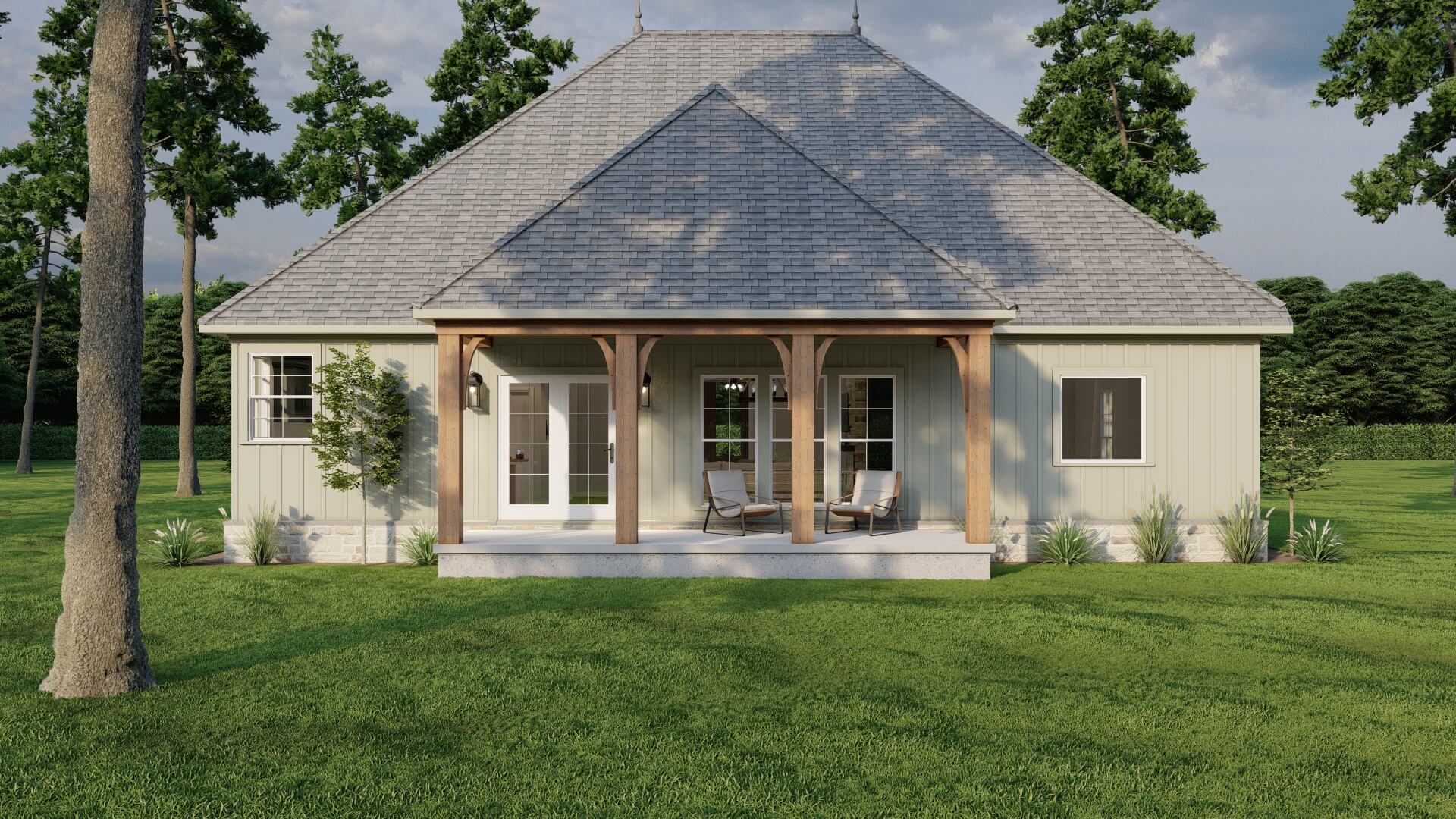

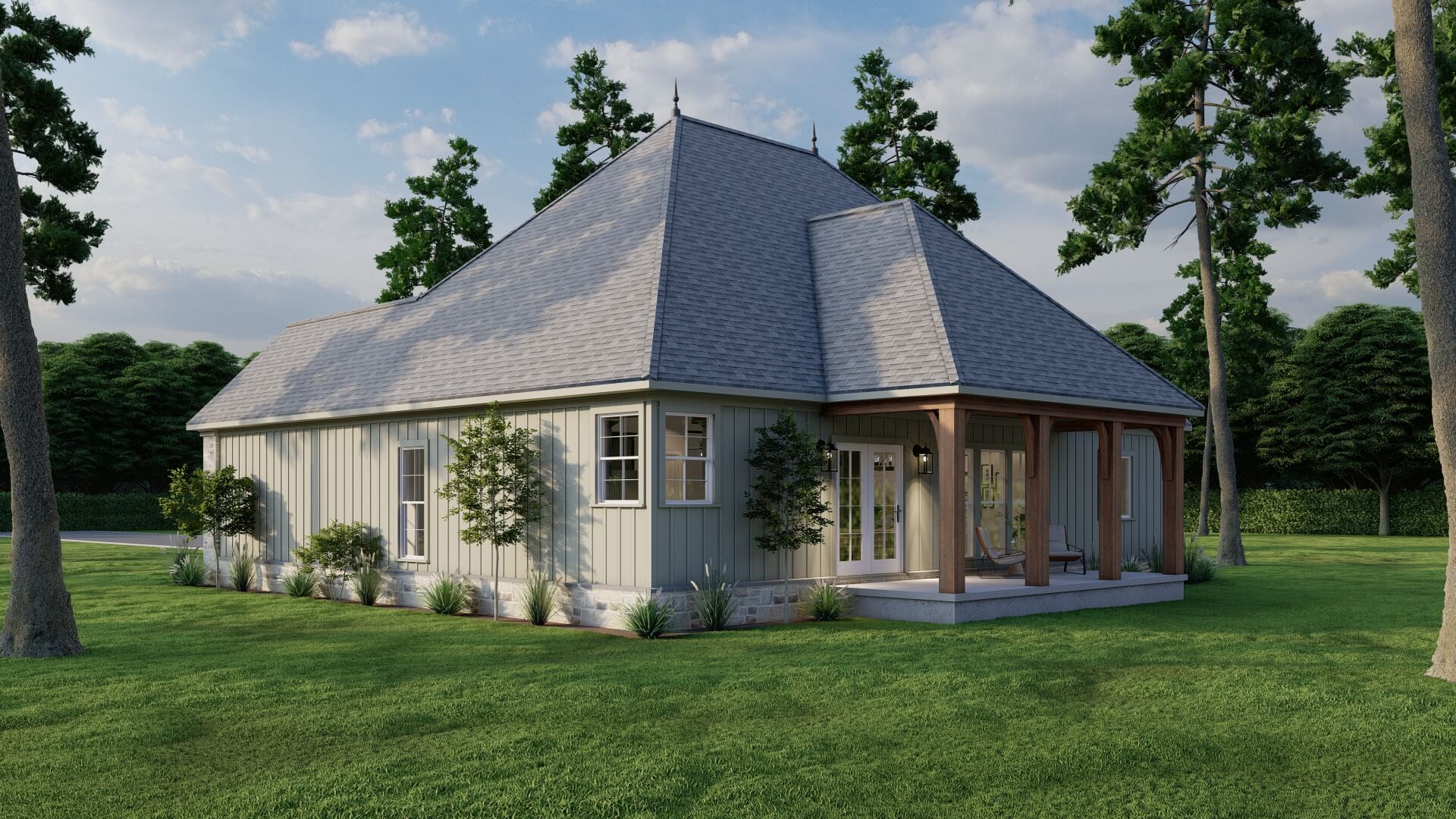

House Plan NDG 1387 Rear Exterior
House Plan NDG 1387 Bedroom 3
House Plan NDG 1387 Bedroom 3
House Plan NDG 1387 Hall Bath
House Plan NDG 1387 Bedroom 2
House Plan NDG 1387 Laundry
House Plan NDG 1387 Master Suite
House Plan NDG 1387 Master Suite
House Plan NDG 1387 Master Bathroom
House Plan NDG 1387 Master Bathroom
House Plan NDG 1387 Master Bathroom
House Plan NDG 1387 Stairs Leading Above
House Plan NDG 1387 Upstairs Bonus Room
House Plan NDG 1387 Upstairs Bonus Room
House Plan NDG 1387 Upstairs Bathroom

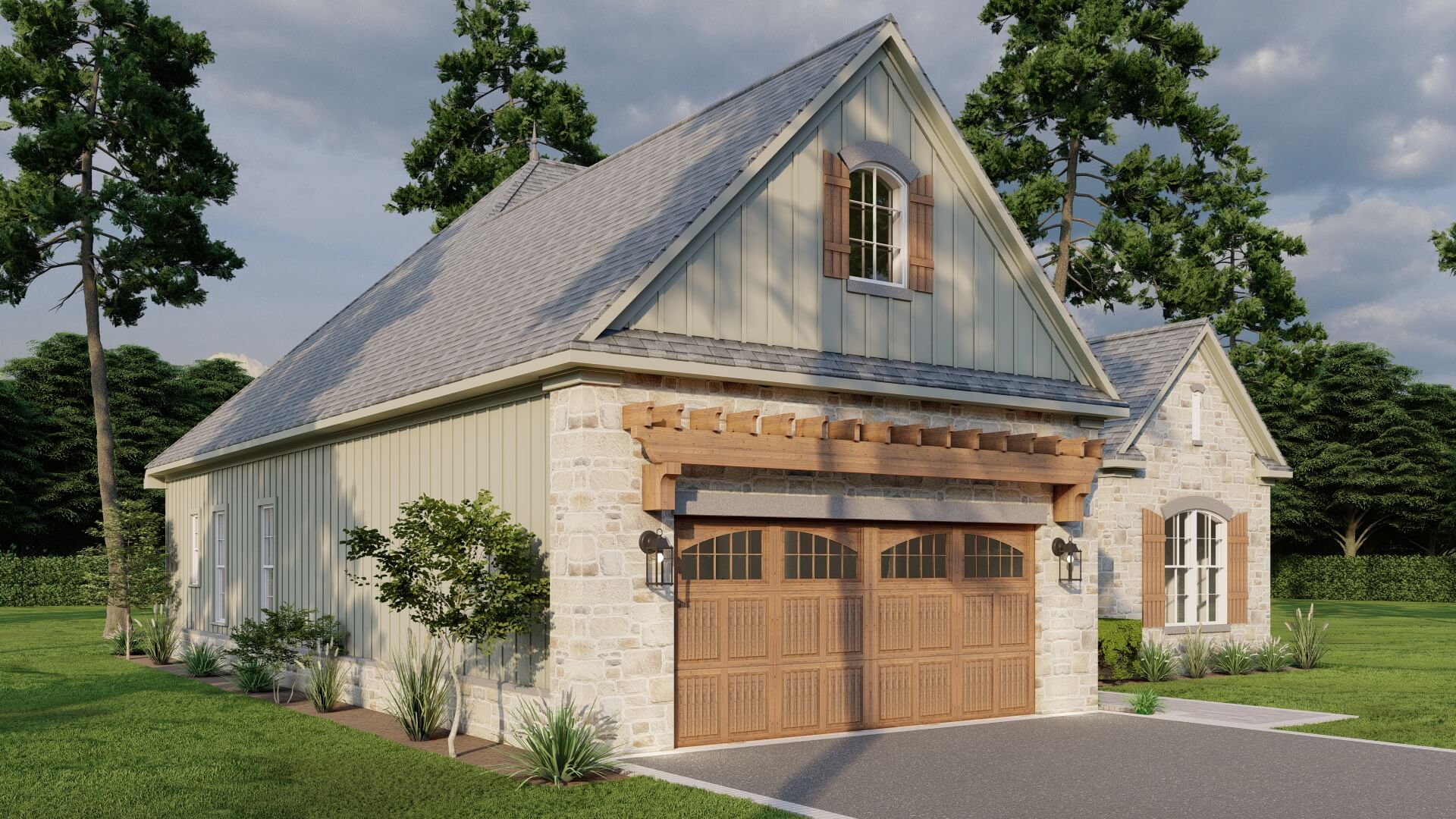

House Plan NDG 1387 Front Exterior
House Plan NDG 1387 Front Exterior
House Plan NDG 1387 Main Floor
House Plan NDG 1387 Upper Floor/Bonus Room
House Plan NDG 1387 Front Exterior
House Plan NDG 1387 Foyer
House Plan NDG 1387 Foyer
House Plan NDG 1387 Great Room
House Plan NDG 1387 Great Room
House Plan NDG 1387 Great Room
House Plan NDG 1387 Dining Room
House Plan NDG 1387 Dining Room
House Plan NDG 1387 Dining Room
House Plan NDG 1387 Kitchen
House Plan NDG 1387
House Plan NDG 1387 Kitchen
House Plan NDG 1387 Kitchen
House Plan NDG 1387 Rear Exterior
House Plan NDG 1387 Bedroom 3
House Plan NDG 1387 Bedroom 3
House Plan NDG 1387 Hall Bath
House Plan NDG 1387 Bedroom 2
House Plan NDG 1387 Laundry
House Plan NDG 1387 Master Suite
House Plan NDG 1387 Master Suite
House Plan NDG 1387 Master Bathroom
House Plan NDG 1387 Master Bathroom
House Plan NDG 1387 Master Bathroom
House Plan NDG 1387 Stairs Leading Above
House Plan NDG 1387 Upstairs Bonus Room
House Plan NDG 1387 Upstairs Bonus Room
House Plan NDG 1387 Upstairs Bathroom
House Plan NDG 1387 Front Exterior
House Plan NDG 1387 Front Exterior

Floor plans

NDG 1387

House Plan 1387 Ashlyn Cove, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1387
  • Total Living Space:1711Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 47
  • Width In.: N/A
  • Depth Ft.: 62
  • Depth In.: 4

Description

This charming European plan maximizes space while providing an open floor plan. The Great Room features a fireplace and is open to the Dining Room and Kitchen. This Kitchen has everything you could want including an eat-at island bar and plenty of counter space. The Master Suite has a boxed a ceiling and Master Bath complete with dual vanities, a whirlpool tub/shower and 2 walk-in closets. Bedrooms 2 and 3 are located on the opposite side of the house with the front bedroom having a walk-in closet. Over the garage is a large optional Bonus Room, perfect for a home theater or game room.

Specifications

  • Total Living Space:1711Sq.Ft.
  • Main Floor: 1711 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 277 Sq.Ft.
  • Porch (Sq.Ft.): 227 Sq.Ft.
  • Garage (Sq.Ft.): 523 Sq.Ft.
  • Total Square Feet: 2738 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
