House Plan 1384 Four Winds, Riverbend House Plan

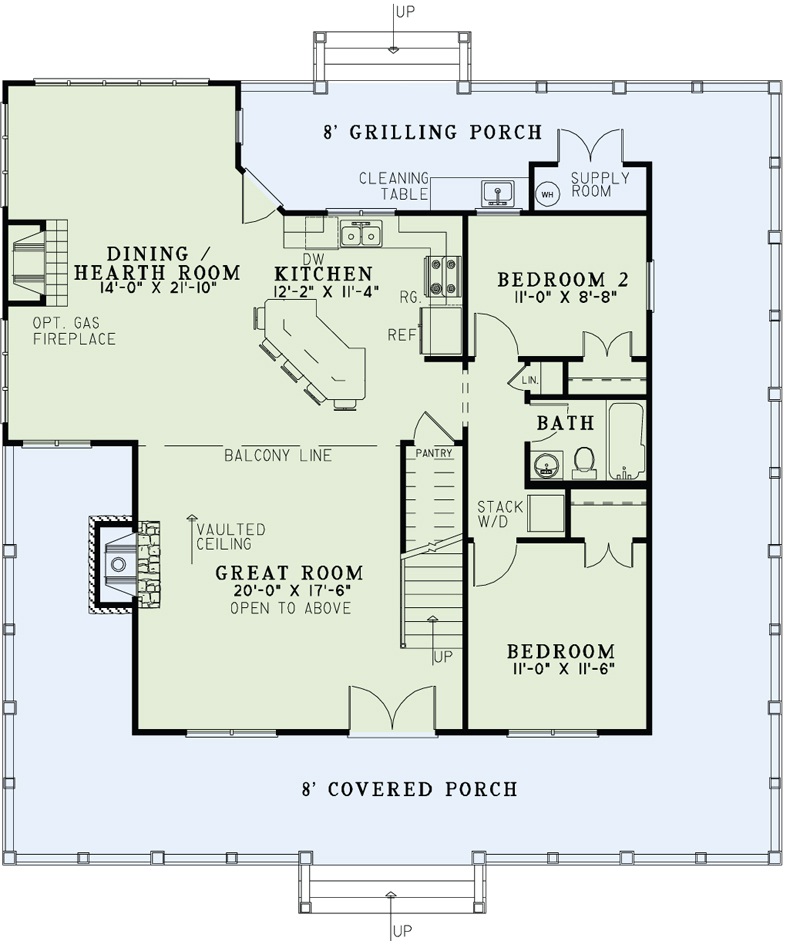

House Plan NDG 1384 Main Floor

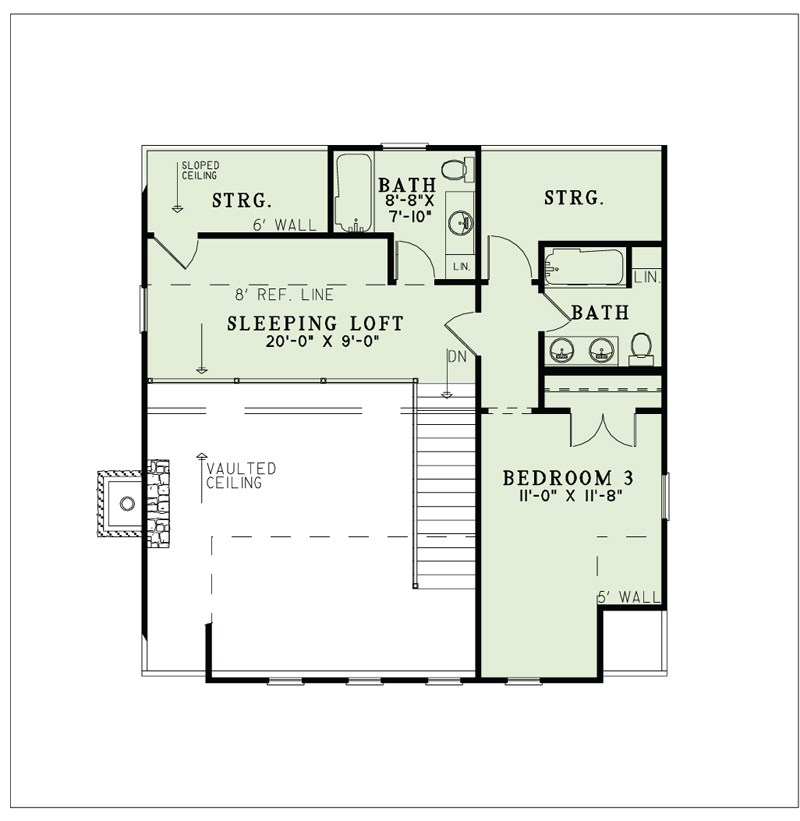

House Plan NDG 1384 Upper Floor
>
House Plan NDG 1384 Main Floor
House Plan NDG 1384 Upper Floor

Floor plans

NDG 1384

House Plan 1384 Four Winds, Riverbend House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1384
  • Total Living Space:1792Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: No
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 48
  • Width In.: N/A
  • Depth Ft.: 48
  • Depth In.: 4

Description

You’re sure to enjoy the wrap around porch that nearly circles this entire home. The Great Room invites you in with a warm fireplace and plenty of room that opens to the Dining Room and Kitchen. Entertaining is made easy with the kitchen’s eat-at island prep bar. There are also 2 bedrooms on the first floor that share a bathroom. Upstairs you’ll find a sleeping loft that overlooks the Great Room. And guests will find comfort with a another bedroom and its private bathroom. And there’s also ample storage space.

Specifications

  • Total Living Space:1792Sq.Ft.
  • Main Floor: 1271 Sq.Ft
  • Upper Floor (Sq.Ft.): 521 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1048 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2840 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
