House Plan 1367 Mulberry, Country House Home Plan

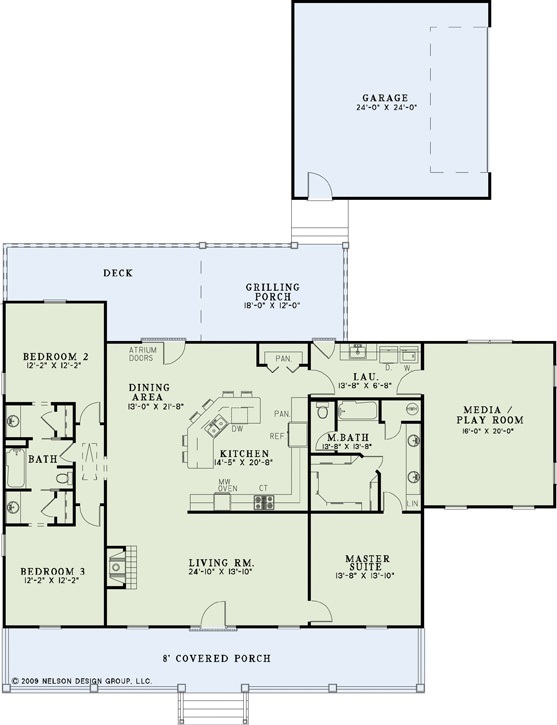

House Plan NDG 1367 Main Floor
House Plan NDG 1367 Main Floor

Floor plans

NDG 1367

House Plan 1367 Mulberry, Country House Home Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1367
  • Total Living Space:2247Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Detached
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 68
  • Width In.: 4
  • Depth Ft.: 85
  • Depth In.: 8

Description

This country home is very inviting with its large front covered porch. The living room has a fireplace and at almost 25′ x 14′, is open to your creative arrangement. The large kitchen is open to the dining area and features a wrap around island bar. The master suite features a large walk-in closet and double vanities. This plan also has a large 16′ x 20′ media/play room and a deck and grilling porch.

Specifications

  • Total Living Space:2247Sq.Ft.
  • Main Floor: 2247 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 671 Sq.Ft.
  • Garage (Sq.Ft.): 608 Sq.Ft.
  • Total Square Feet: 3526 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
