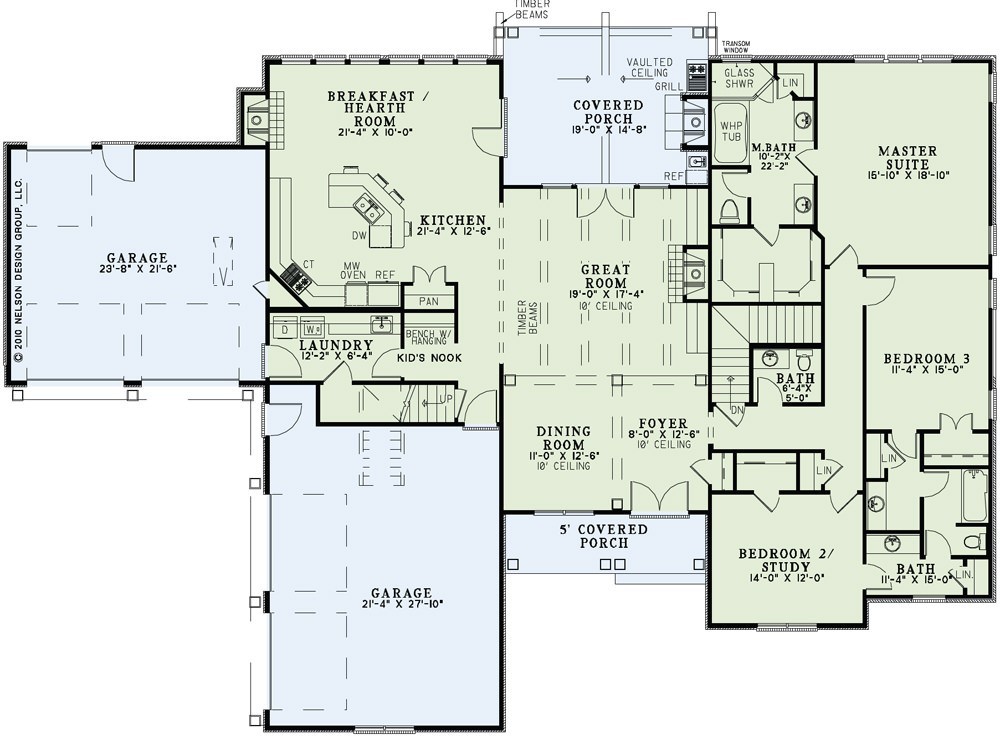

House Plan NDG 1347 Main Floor

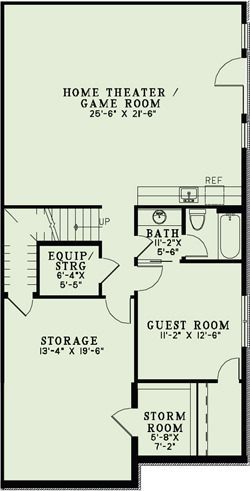

House Plan NDG 1347 Basement

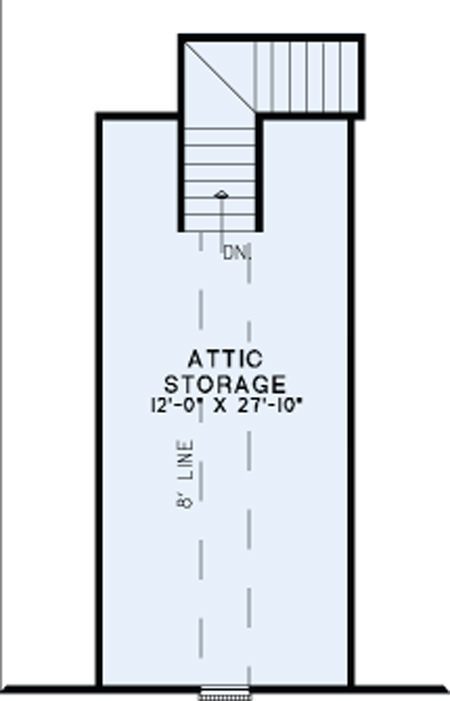

House Plan NDG 1347 Upper Floor/Bonus Room
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan - NDG 1347>
House Plan NDG 1347 Main Floor
House Plan NDG 1347 Basement
House Plan NDG 1347 Upper Floor/Bonus Room
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347
House Plan - NDG 1347

Floor plans

NDG 1347

House Plan 1347 Montague, European House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1347
  • Total Living Space:3869Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 4 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 91
  • Width In.: 4
  • Depth Ft.: 65
  • Depth In.: 2

Description

Step into the foyer of this home, to the left is the dining room with columns flanking the entrance. Continue into the large great room to enjoy the cozy fireplace and beautiful open timber beam ceiling. This room flows in the kitchen that is complete with a spacious pantry, plenty of counter space and a curved eat-at-bar as well as an attached hearth room with a fireplace. Take the party outside to the covered porch to enjoy the outdoor kitchen and fireplace. On the right side of the home is the master suite with a large master bath and walk-in closet. You'll also find bedrooms 2 and 3 with a shared bath. On the opposite side of the home are both 2 car garages, the laundry room and a convenient kid's nook. Head upstairs to enjoy family time in the home theater or game room. Also located upstairs is the private guest room, an equipment storage closet, a large storage room and a storm room.

Specifications

  • Total Living Space:3869Sq.Ft.
  • Main Floor: 2618 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1251 Sq.Ft.
  • Bonus Room (Sq.Ft.): 339 Sq.Ft.
  • Porch (Sq.Ft.): 387 Sq.Ft.
  • Garage (Sq.Ft.): 1196 Sq.Ft.
  • Total Square Feet: 5791 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
