House Plan 1345 Angelique, European House Plan

House Plan NDG 1345 Main Floor

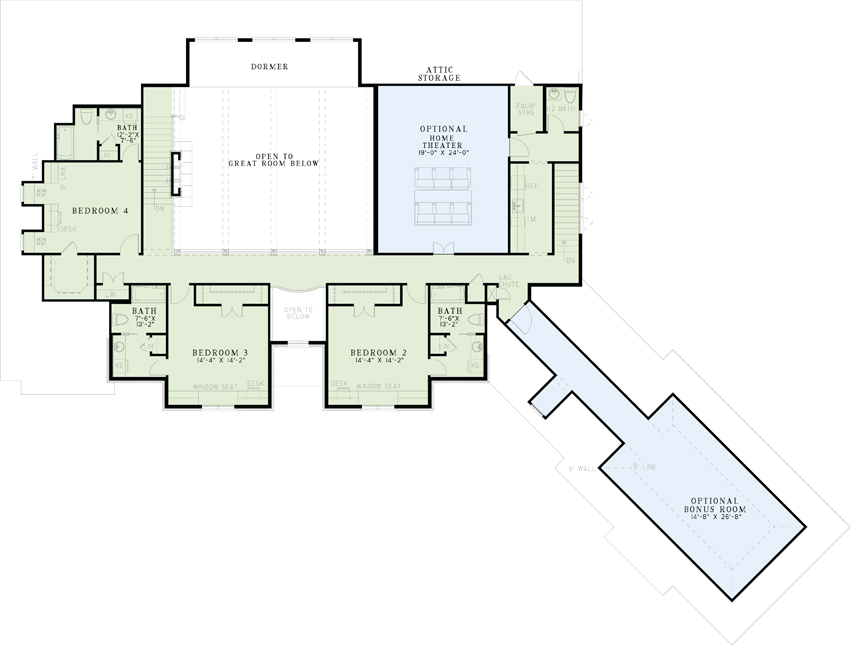

House Plan NDG 1345 Upper Floor
House Plan NDG 1345 Main Floor
House Plan NDG 1345 Upper Floor

Floor plans

NDG 1345

House Plan 1345 Angelique, European House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1345
  • Total Living Space:5100Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 5
  • Half Baths: 2
  • Garage: 3 Bay Yes
  • Garage Type: Angled Garage
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 2
  • Width Ft.: 121
  • Width In.: 11
  • Depth Ft.: 92
  • Depth In.: 8


Embrace the beauty as you drive through the porte cochere of this stately European home. The grand hall is lined with 10′ timber posts and welcomes you into the great room. Open to the kitchen and breakfast room, the great room has a fireplace and 3 sets of French doors leading to the massive covered porch. The kitchen has a huge prep island and island bar with a sink. It also boasts lots of counter top space, a walk-in pantry, and a nearby full bathroom. Step inside from the porte cochere to find a kid’s nook with a bench, storage bins, and hanging space perfect for a mudroom. The bedroom of the master suite is enormous, offering plenty of design and decorating options, and has a bay window sitting area as well as access to the covered porch. The master bath is designed with a picturesque raised whirlpool tub beneath a window and a huge corner glass shower with a bench. It also features double vanities, a huge walk-in closet with a window and a second walk-in closet that double as a storm closet. Upstairs are 3 more bedrooms, all with walk-in closets and full bathrooms. The family and friends will love the huge optional home theater with a nearby kitchen and half bathroom. And there’s also a large optional bonus room over the garage.


  • Total Living Space:5100Sq.Ft.
  • Main Floor: 3647 Sq.Ft
  • Upper Floor (Sq.Ft.): 1453 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1379 Sq.Ft.
  • Porch (Sq.Ft.): 954 Sq.Ft.
  • Garage (Sq.Ft.): 1207 Sq.Ft.
  • Total Square Feet: 8640 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 44
  • Ridge Height (In.): 10
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
