House Plan 1343 Maple Street, Affordable House Plan

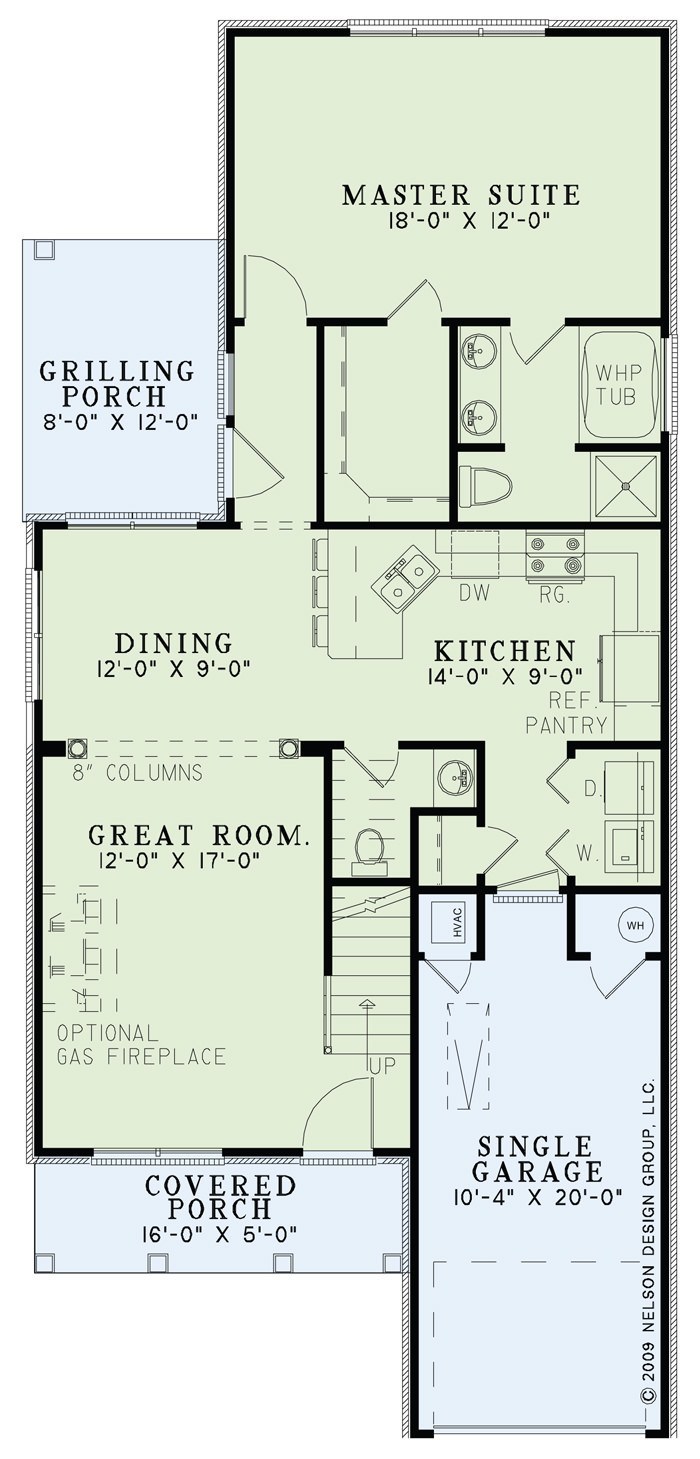

House Plan NDG 1343 Main Floor

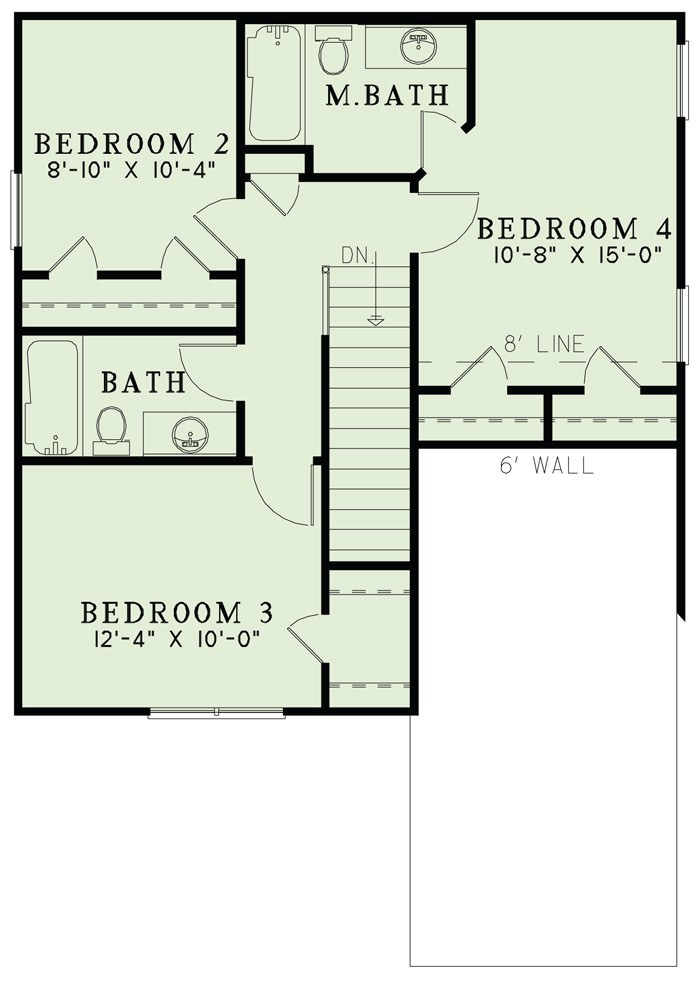

House Plan NDG 1343 Upper Floor
House Plan NDG 1343 Main Floor
House Plan NDG 1343 Upper Floor

Floor plans

NDG 1343

House Plan 1343 Maple Street, Affordable House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 1343
  • Total Living Space:1646Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 27
  • Width In.: N/A
  • Depth Ft.: 60
  • Depth In.: N/A

Description

This is just one narrow lot plan from hundreds available here at Nelson Design Group. The covered front porch welcomes you into the great room with an optional gas fireplace. The kitchen has a bar at the wrap around counter space for quick meals and is open to the dining room. The master suite is located in the rear of the house with a walk-in closet and a whirlpool tub underneath a window. Bedrooms 2, 3, and 4 are located upstairs along with 2 full bathrooms.

Specifications

  • Total Living Space:1646Sq.Ft.
  • Main Floor: 1004 Sq.Ft
  • Upper Floor (Sq.Ft.): 642 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 178 Sq.Ft.
  • Garage (Sq.Ft.): 251 Sq.Ft.
  • Total Square Feet: 2075 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
