House Plan 1339 MacArthur Boulevard, Heritage House Plan

House Plan NDG 1339 Main Floor

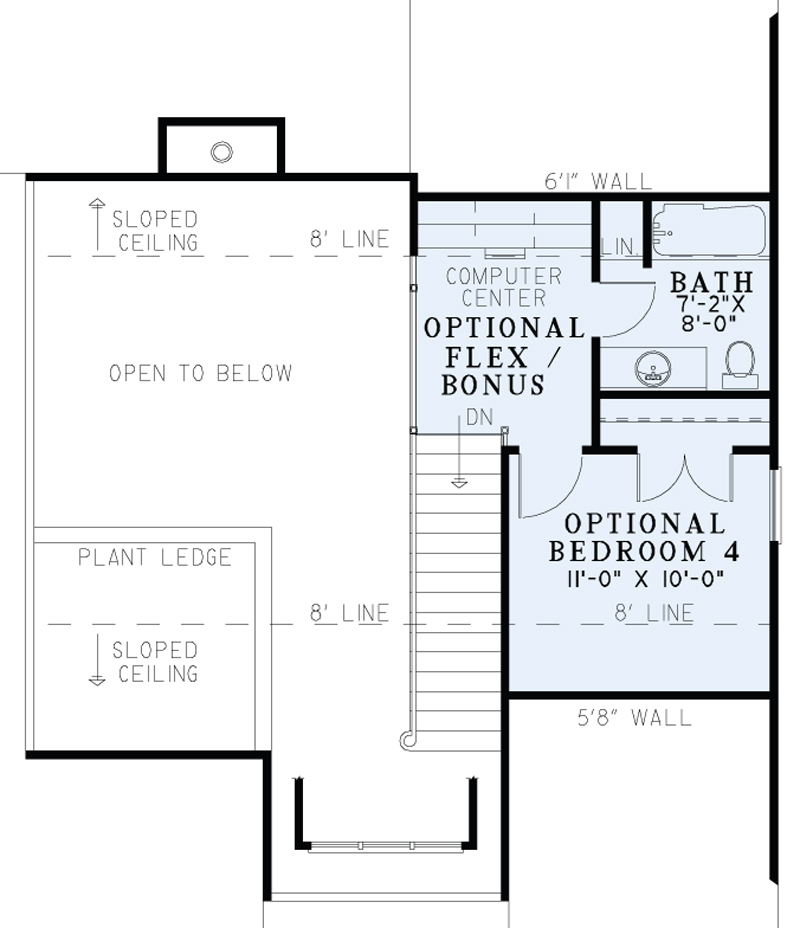

House Plan NDG 1339 Upper Floor/Bonus Room
>
House Plan NDG 1339 Main Floor
House Plan NDG 1339 Upper Floor/Bonus Room

Floor plans

NDG 1339

House Plan 1339 MacArthur Boulevard, Heritage House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1339
  • Total Living Space:1588Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 42
  • Width In.: N/A
  • Depth Ft.: 68
  • Depth In.: 6

Description

This one and a half story stone and siding home is full of Southern charm. The great room is open to the kitchen, breakfast room, and dining room and has a fireplace and a door to the covered porch. In the master suite, you’ll enjoy the whirlpool tub, corner glass shower, and 2 walk-in closets. And there’s an optional 4th bedroom upstairs and another full bathroom.

Specifications

  • Total Living Space:1588Sq.Ft.
  • Main Floor: 1588 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 287 Sq.Ft.
  • Porch (Sq.Ft.): 280 Sq.Ft.
  • Garage (Sq.Ft.): 480 Sq.Ft.
  • Total Square Feet: 2635 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
