House Plan 1337-1 White River Retreat, Riverbend House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1337-1
  • Total Living Space:2792Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2.5
  • Width Ft.: 36
  • Width In.: 8
  • Depth Ft.: 61
  • Depth In.: 8

Description

NDG 1337-1

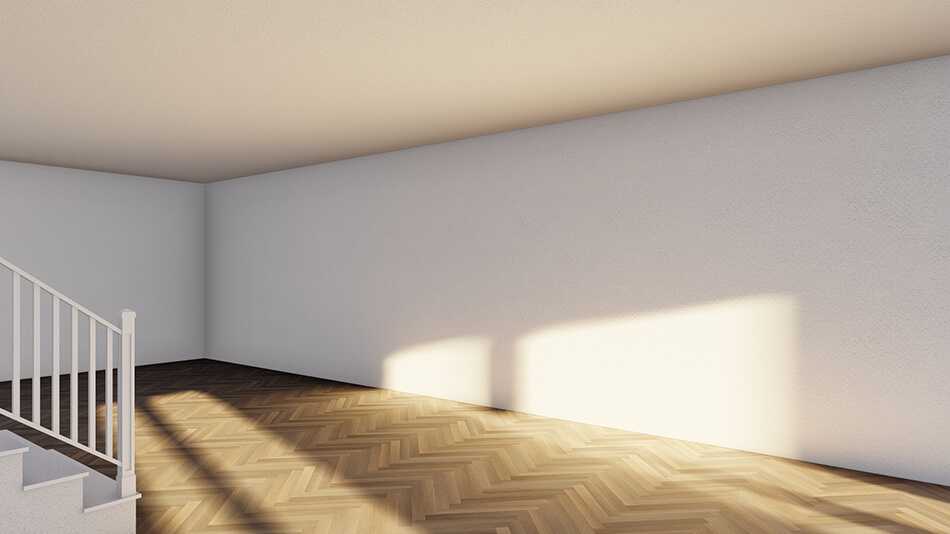

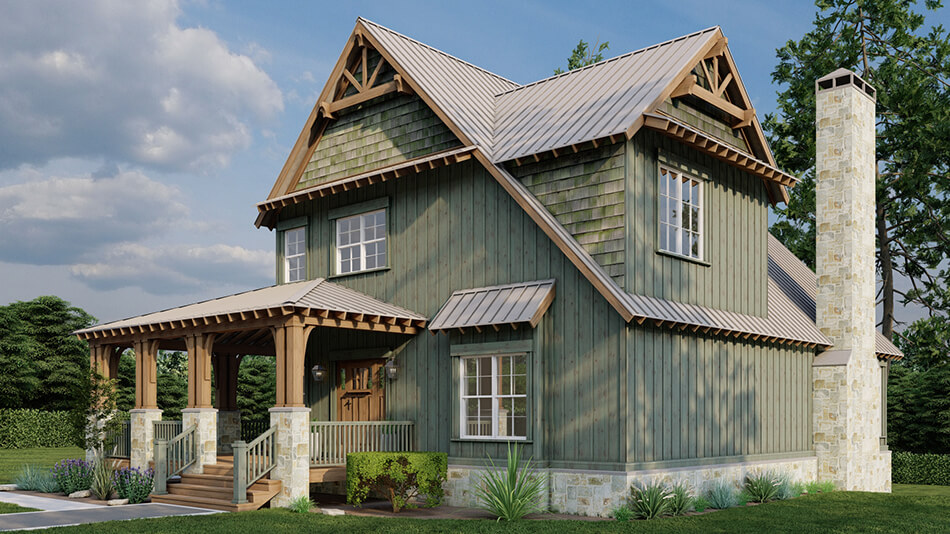

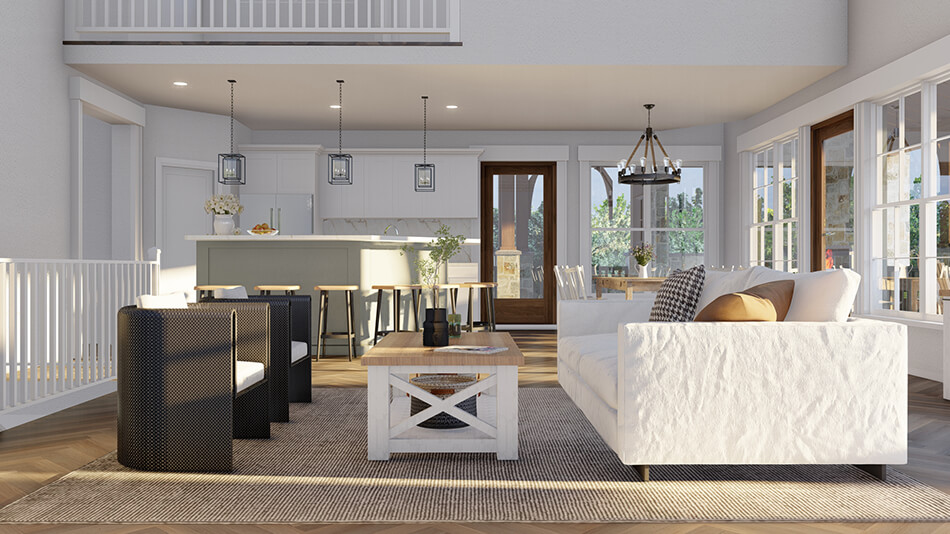

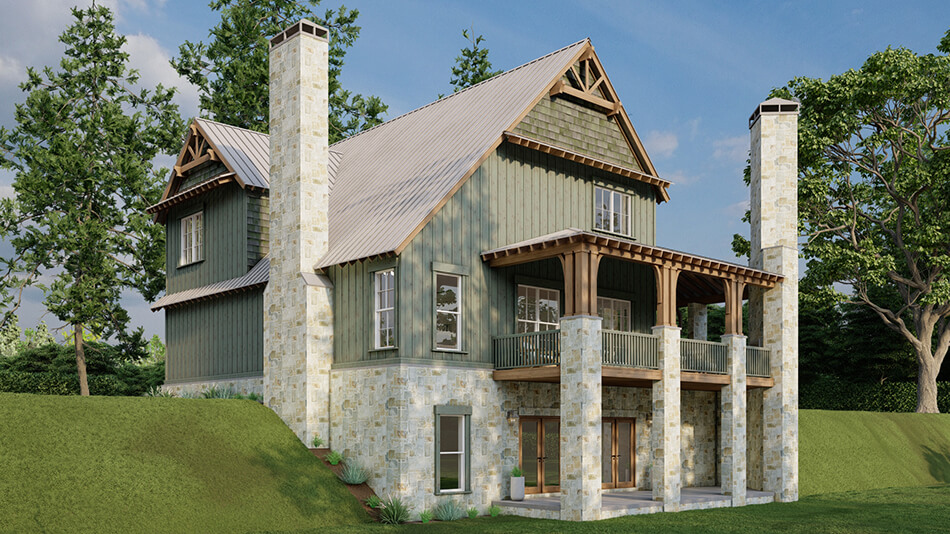

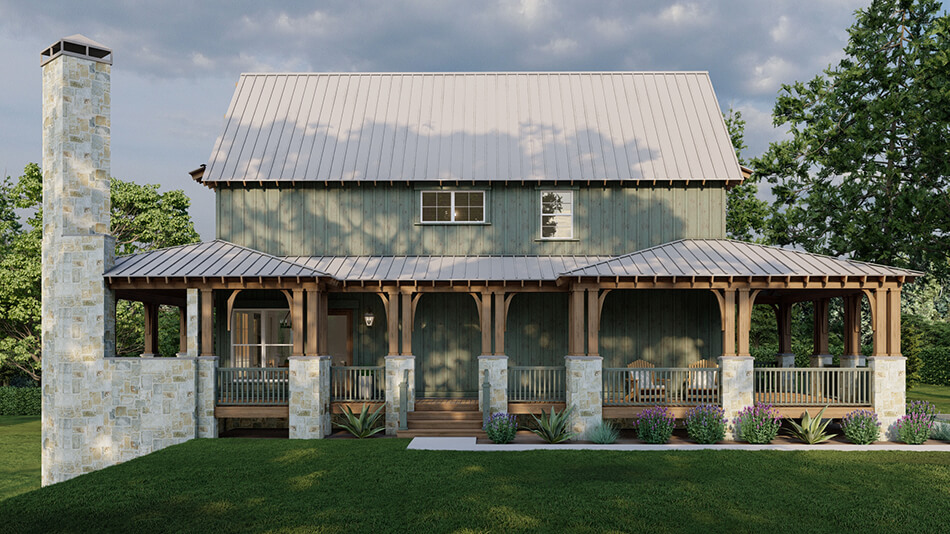

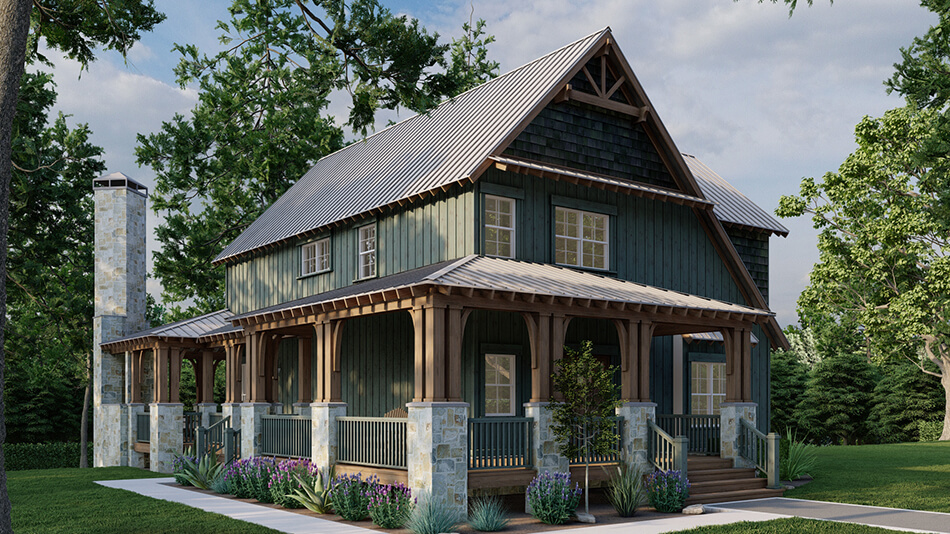

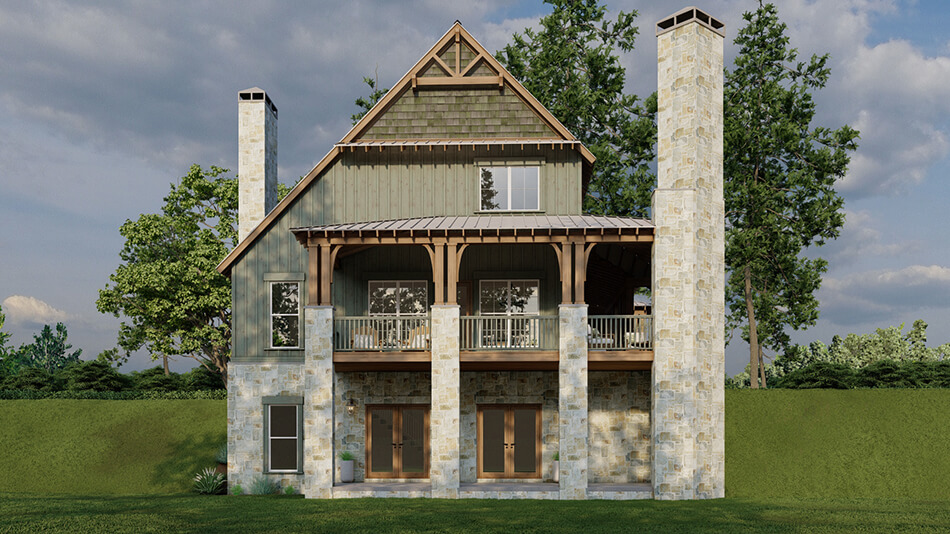

A stunning addition to our Riverbend House Collection, White River Retreat puts a rustic take on the classic mountain home with craftsman style elements to create a peaceful curb appeal. Family and friends will create many wonderful memories in this Riverbend retreat. The huge wrap-around porch is sure to entertain and features a corner fireplace and a grilling area. The great room is open to the kitchen and dining area and has a stone fireplace. The kitchen boasts of a wrap-around island bar and a walk-in pantry. Upstairs are bedrooms 2 and 3 with walk-in closets, a sleeping loft, and a full bathroom. A stunning balcony is open to the foyer below, and another opens to the great room below. Downstairs holds bedrooms 4 and 5, another full bathroom, and a huge game room. You can continue to entertain out back on the large covered patio. How would you customize this amazing house plan?

Customizing This House Plan

Make this house plan into your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.

Specifications

  • Total Living Space:2792Sq.Ft.
  • Main Floor: 1086 Sq.Ft
  • Upper Floor (Sq.Ft.): 620 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 919 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3711 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Metal
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
