House Plan 1334 The Woodbridge, Stone-And-Brick House Plan

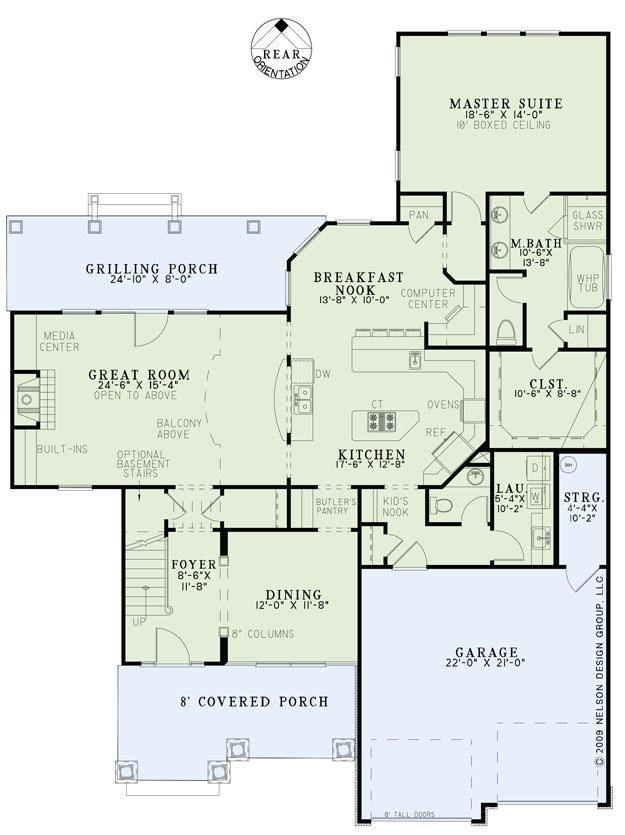

House Plan NDG 1334 Main Floor

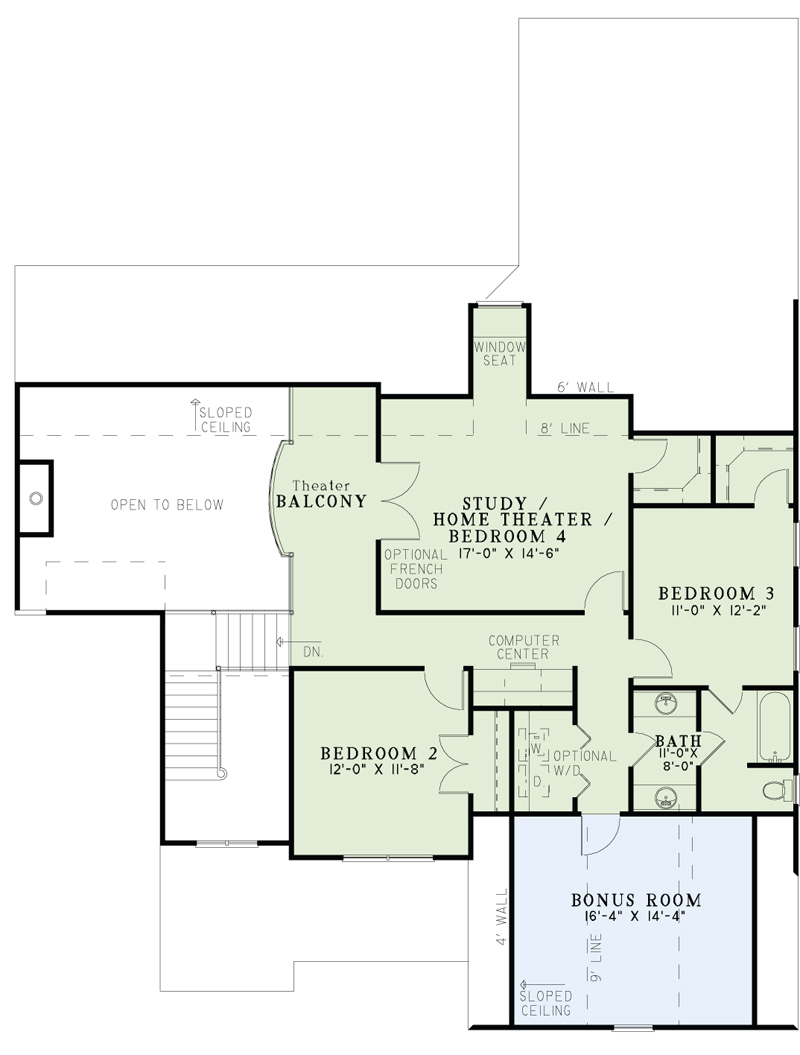

House Plan NDG 1334 Upper Floor
House Plan NDG 1334 Main Floor
House Plan NDG 1334 Upper Floor

Floor plans

NDG 1334

House Plan 1334 The Woodbridge, Stone-And-Brick House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1334
  • Total Living Space:2930Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 53
  • Width In.: 10
  • Depth Ft.: 71
  • Depth In.: N/A

Description

Sip lemonade on the covered front porch of this charming Nelson Design Group home. Through the foyer, enter the great room. With its fireplace and open layout, this room is sure to be a haven for you and yours. Mealtime is simplified with so many dining options including a large grilling porch at the rear. In this design, your private master suite is truly just that. Relax in your whirlpool tub or retire for the night in this spacious suite on the main level. The kids will enjoy their privacy as well with the two remaining bedrooms located upstairs. Enjoy the view from the theater balcony before heading into your personal home theater. A bonus room is also included for future plans.

Specifications

  • Total Living Space:2930Sq.Ft.
  • Main Floor: 1865 Sq.Ft
  • Upper Floor (Sq.Ft.): 1065 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 249 Sq.Ft.
  • Porch (Sq.Ft.): 399 Sq.Ft.
  • Garage (Sq.Ft.): 544 Sq.Ft.
  • Total Square Feet: 4122 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
