House Plan 1333 The Meadowbrook, Arts and Crafts House Plan

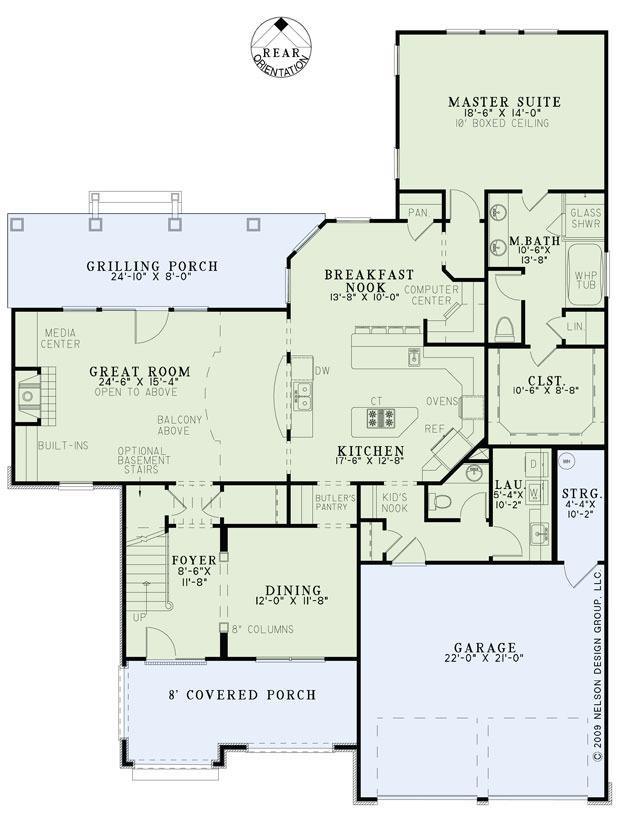

House Plan NDG 1333 Main Floor
House Plan NDG 1333 Main Floor

Floor plans

NDG 1333

House Plan 1333 The Meadowbrook, Arts and Crafts House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1333
  • Total Living Space:2931Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 53
  • Width In.: 10
  • Depth Ft.: 69
  • Depth In.: 6

Description

Sip lemonade on the covered front porch of this charming Nelson Design Group home. Through the foyer, enter the great room. With its fireplace and open layout, this room is sure to be a haven for you and yours. Mealtime is simplified with so many dining options including a large grilling porch at the rear. In this design, your private master suite is truly just that. Relax in your whirlpool tub or retire for the night in this spacious suite on the main level. The kids will enjoy their privacy as well with the two remaining bedrooms located upstairs. Enjoy the view from the theater balcony before heading into your personal home theater. A bonus room is also included for future plans.

Specifications

  • Total Living Space:2931Sq.Ft.
  • Main Floor: 1866 Sq.Ft

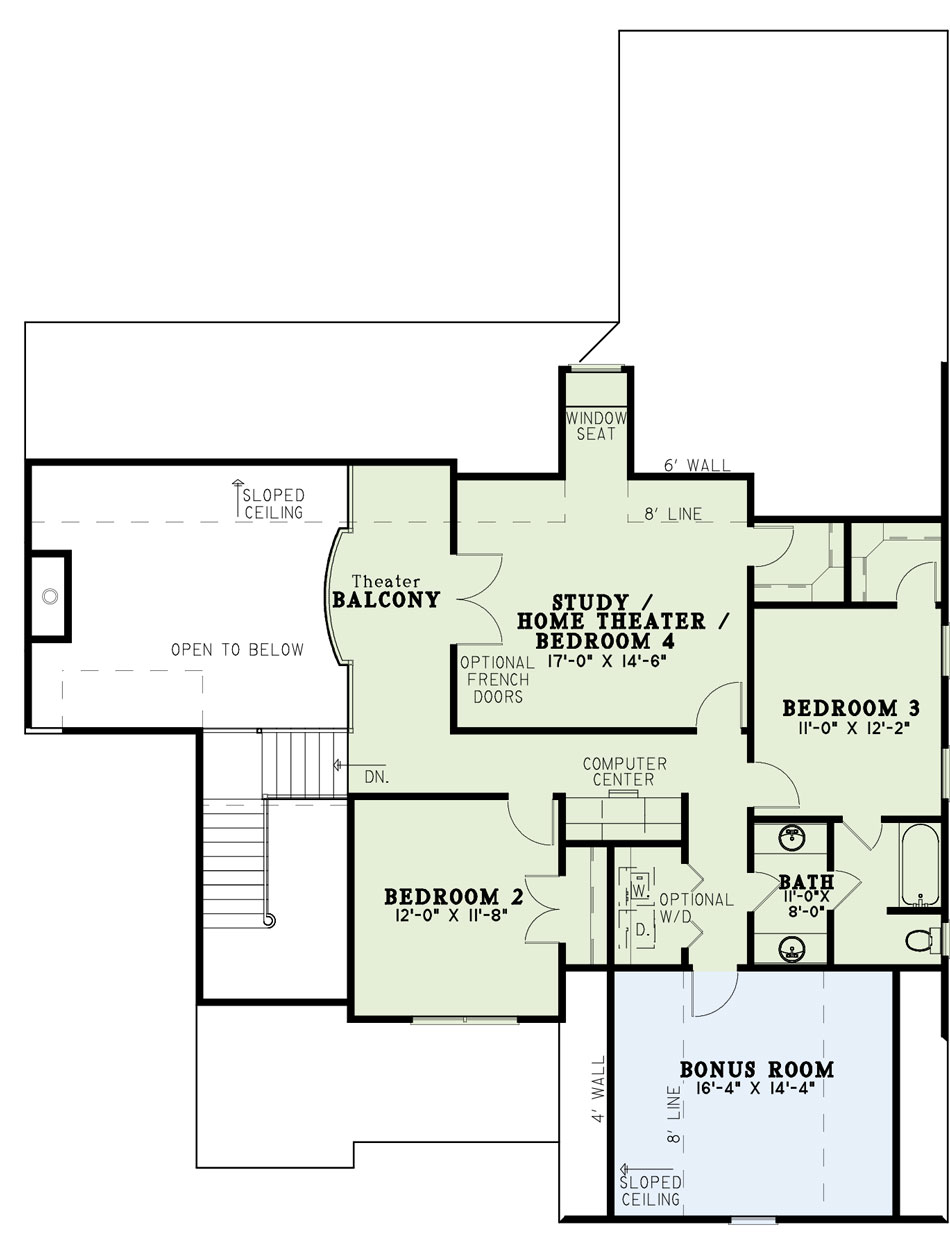

  • Upper Floor (Sq.Ft.): 1065 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 249 Sq.Ft.
  • Porch (Sq.Ft.): 387 Sq.Ft.
  • Garage (Sq.Ft.): 528 Sq.Ft.
  • Total Square Feet: 4095 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
