House Plan 1326 The Wilkins, Arts and Crafts House Plan

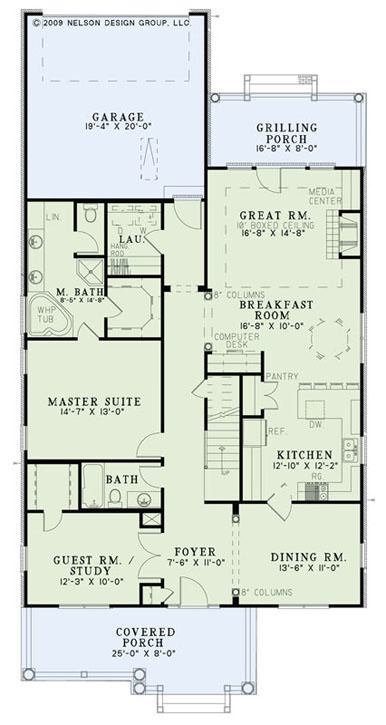

House Plan NDG 1326 Main Floor

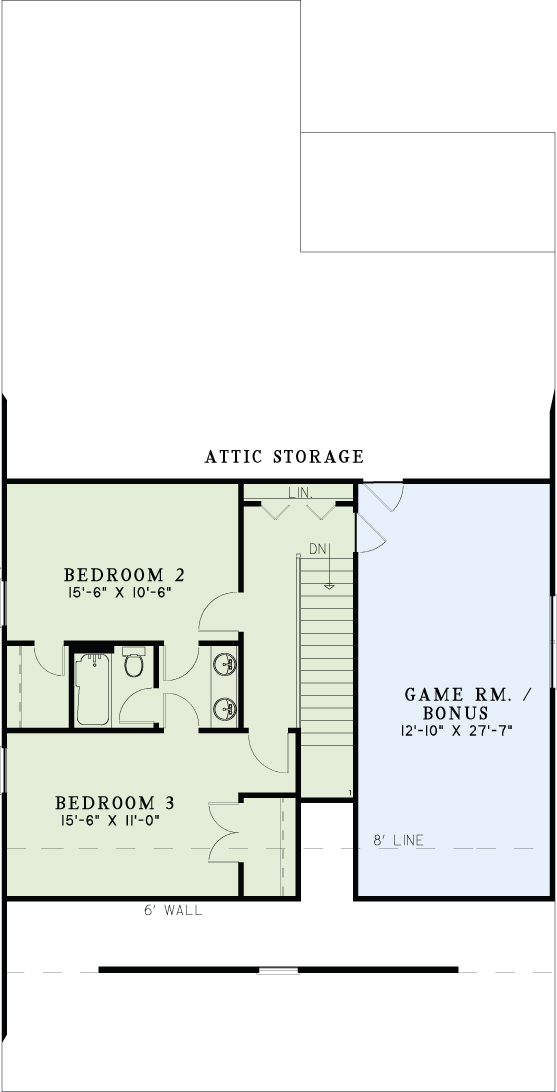

House Plan NDG 1326 Upper Floor
House Plan NDG 1326 Main Floor
House Plan NDG 1326 Upper Floor

Floor plans

NDG 1326

House Plan 1326 The Wilkins, Arts and Crafts House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1326
  • Total Living Space:2296Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 37
  • Width In.: N/A
  • Depth Ft.: 73
  • Depth In.: N/A

Description

This home is full of all the amenities of true southern style. Lazy summer afternoons slip by as you sit and visit with friends and family on the traditional eight-foot covered entry porch. A formal foyer with eight-inch wood columns lead you through to an elegant dining area. A master suite will pamper you as you enjoy the luxury of a corner whirlpool tub with privacy glass block windows, large walk-in closet, corner glass shower and double ‘his and hers’ vanities with linen cabinet. The rear grilling porch with atrium doors leads to the great room – perfect for entertaining any time of year. The upper floor creates a wonderful area for kids of all ages with two spacious bedrooms with walk-through bath and a large game room.

Specifications

  • Total Living Space:2296Sq.Ft.
  • Main Floor: 1713 Sq.Ft
  • Upper Floor (Sq.Ft.): 583 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 397 Sq.Ft.
  • Porch (Sq.Ft.): 356 Sq.Ft.
  • Garage (Sq.Ft.): 405 Sq.Ft.
  • Total Square Feet: 3454 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
