House Plan 1319A Needham Drive-A, Multi-Family House Plan

House Plan 1319A Needham Drive-A, Multi-Family House Plan

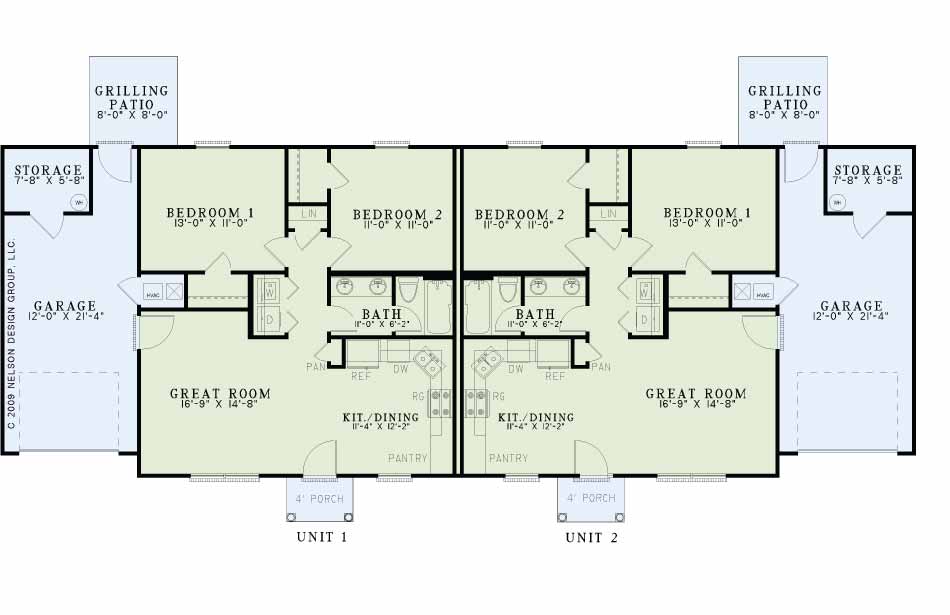

House Plan NDG 1319 Main Floor

Floor plans

NDG 1319A

House Plan 1319A Needham Drive-A, Multi-Family House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1319A
  • Total Living Space:852Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: 1 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 82
  • Width In.: 8
  • Depth Ft.: 34
  • Depth In.: N/A

Description

Floor Plan Specifications:
Heat/Cooled Each Unit: 852 SQ. FT
Garage, Storage Each Unit: 358 SQ. FT
Porches: Each Unit: 24 SQ. FT
Total Each Unit: 1234 SQ. FT

Specifications

  • Total Living Space:852Sq.Ft.
  • Main Floor: 852 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 24 Sq.Ft.
  • Garage (Sq.Ft.): 358 Sq.Ft.
  • Total Square Feet: 1234 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
