House Plan 1316 Blaylock, Affordable House Plan

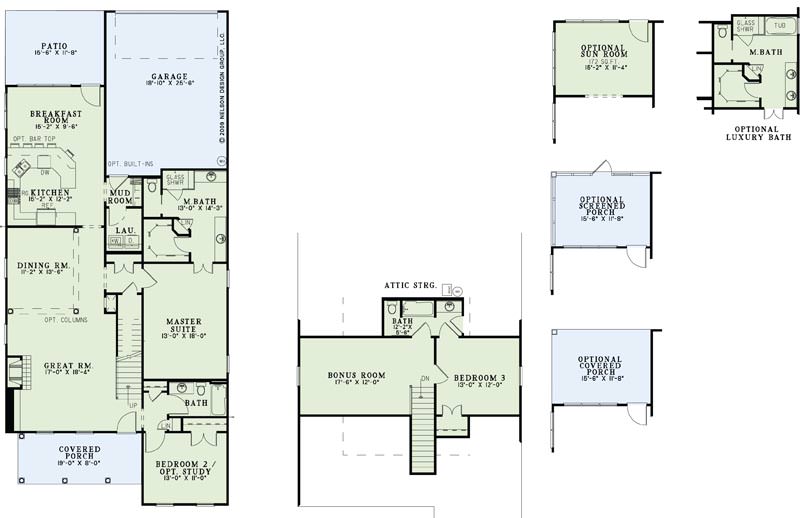

House Plan NDG 1316 Main Floor
House Plan NDG 1316 Main Floor

Floor plans

NDG 1316

House Plan 1316 Blaylock, Affordable House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1316
  • Total Living Space:2173Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 35
  • Width In.: N/A
  • Depth Ft.: 77
  • Depth In.: 6

Description

This plan, in the Affordable Collection, includes a package of these three elevations as well as these floor plan options.

Specifications

  • Total Living Space:2173Sq.Ft.
  • Main Floor: 1802 Sq.Ft
  • Upper Floor (Sq.Ft.): 371 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 168 Sq.Ft.
  • Porch (Sq.Ft.): 336 Sq.Ft.
  • Garage (Sq.Ft.): 487 Sq.Ft.
  • Total Square Feet: 3164 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 1:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
