House Plan 1305 Barrington Place, Heritage House Plan

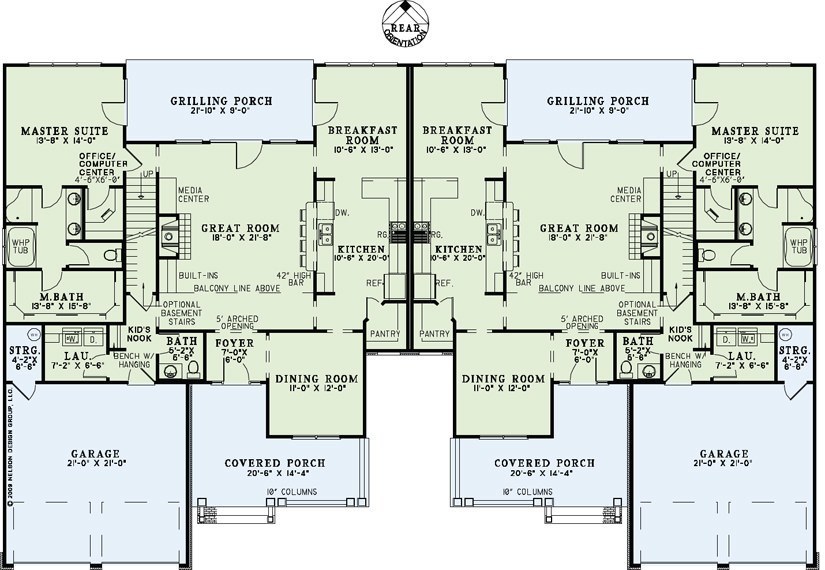

House Plan NDG 1305 Main Floor

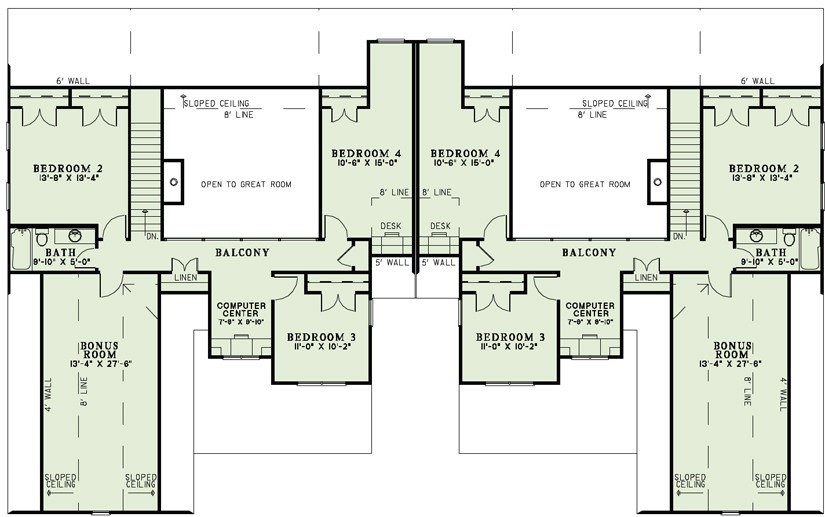

House Plan NDG 1305 Upper Floor
House Plan NDG 1305 Main Floor
House Plan NDG 1305 Upper Floor

Floor plans

NDG 1305

House Plan 1305 Barrington Place, Heritage House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1305
  • Total Living Space:2470Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 94
  • Width In.: 10
  • Depth Ft.: 58
  • Depth In.: 8

Description

From the covered porch entryway to the grilling porch at the rear, this Nelson Design Group multi-family home exudes tradition. After preparing fresh meals in the cleverly designed kitchen, enjoy family feasts in the dining room. A magnificent balcony lends breathtaking views of the great room, complete with fireplace and built-in shelving. Secluded and comfortable can be used to describe this master suite. With its private location on the main level, your relaxation time will never be jeopardized. Three bedrooms and a bonus room on the upper floor will accommodate any sleepover situations that may arise. Floor Plans Specifications: Heat/Cooled Main Floor Unit 1: 1595 SQ.FT Heat/Cooled Upper Floor Unit 1: 875 SQ. FT Heat/Cooled Total Unit 1: 2470 SQ. FT Garage, Storage Unit 1: 492 SQ. FT Porches Unit 1: 420 SQ. FT Total Unit 1: 3382 SQ. FT Bonus Room Unit 1: 389 SQ. FT Heat/Cooled Main Floor Unit 2: 1595 SQ.FT Heat/Cooled Upper Floor Unit 2: 875 SQ. FT Heat/Cooled Total Unit 2: 2470 SQ. FT Garage, Storage Unit 2: 492 SQ. FT Porches Unit 2: 420 SQ. FT Total Unit 2: 3382 SQ. FT Bonus Room Unit 2: 389 SQ. FT

Specifications

  • Total Living Space:2470Sq.Ft.
  • Main Floor: 1595 Sq.Ft
  • Upper Floor (Sq.Ft.): 875 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 389 Sq.Ft.
  • Porch (Sq.Ft.): 420 Sq.Ft.
  • Garage (Sq.Ft.): 492 Sq.Ft.
  • Total Square Feet: 3382 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
