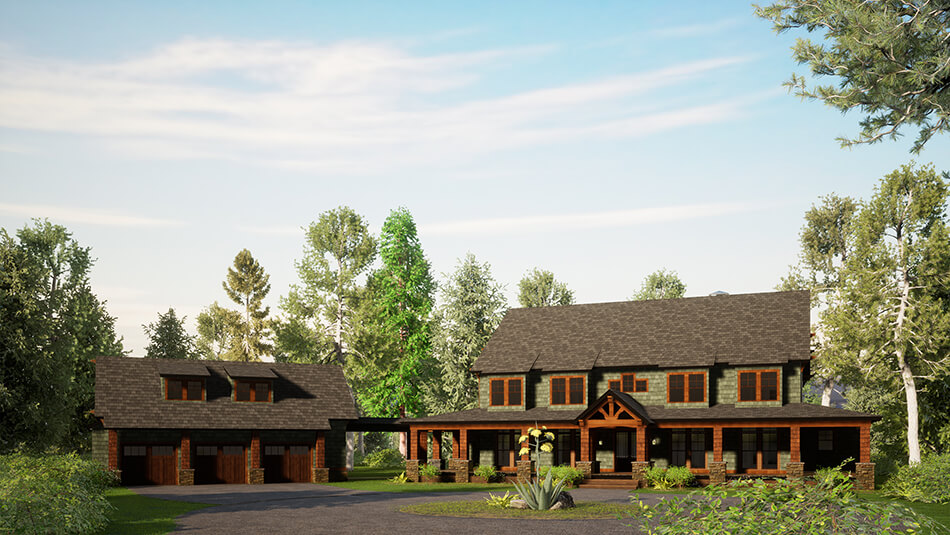

House Plan 1276 Summer Place, Rustic House Plan

House Plan NDG 1276 Main Floor
House Plan NDG 1276 Upper Floor

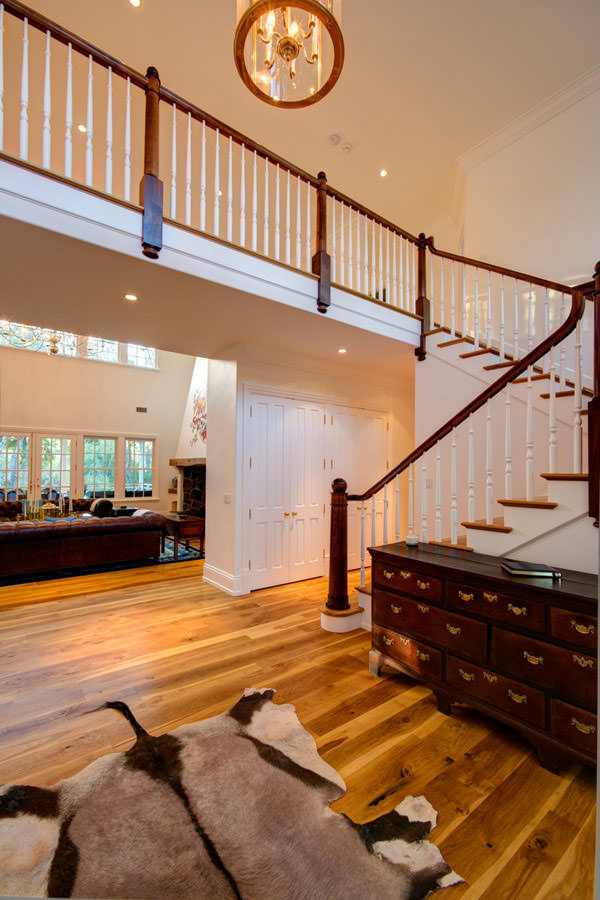

House Plan - NDG1276 Staircase 1276 Staircase
House Plan - NDG1276 Great Room 1276 Great Room
House Plan - NDG1276 Kitchen 1276 Kitchen

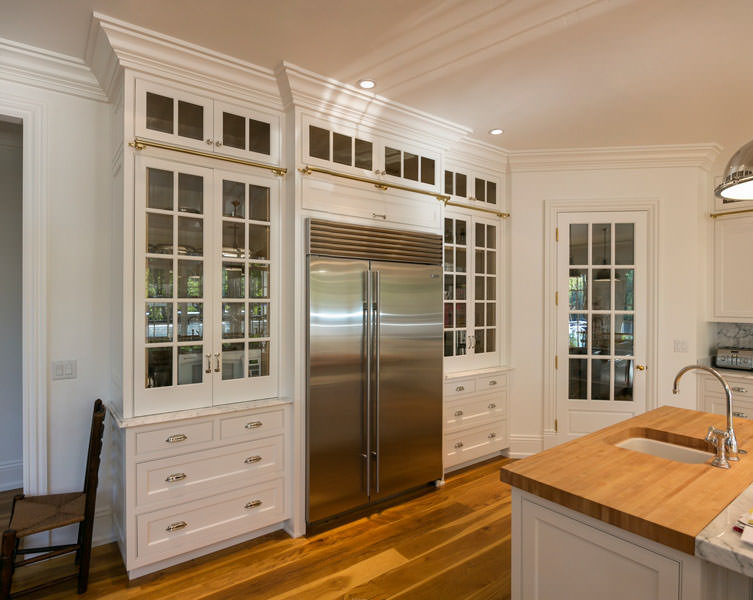

House Plan - NDG1276 Kitchen 2 1276 Kitchen 2
House Plan - NDG1276 Bathroom 1276 Bathroom

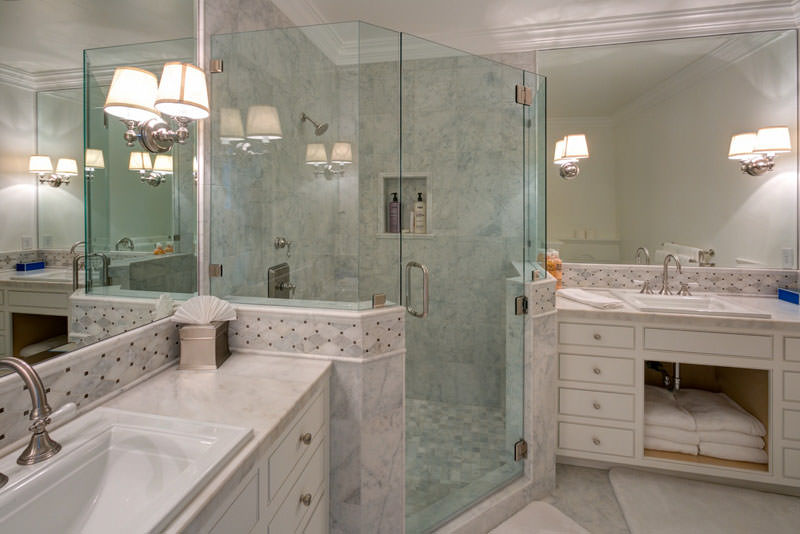

House Plan - NDG1276 Bathroom 2 1276 Bathroom 2
House Plan - NDG1276 Rear Covered Porch 1276 Rear Covered Porch
House Plan NDG 1276 Main Floor
House Plan NDG 1276 Upper Floor
House Plan - NDG1276 Staircase 1276 Staircase

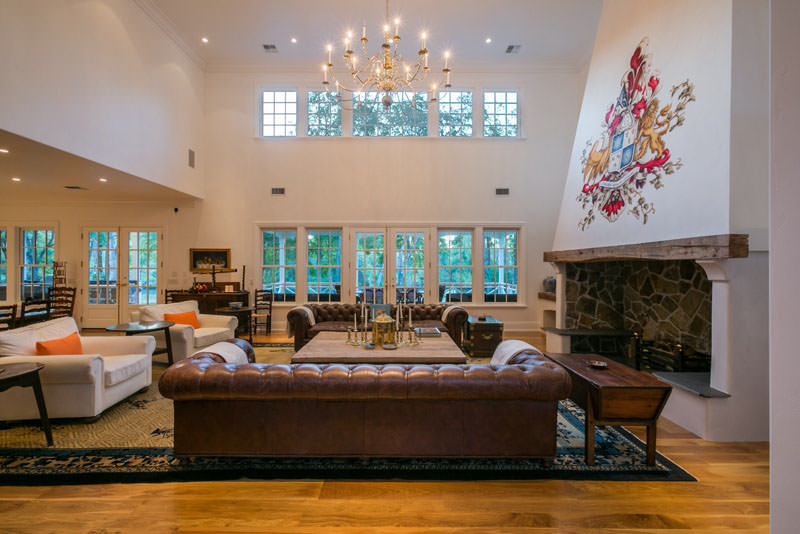

House Plan - NDG1276 Great Room 1276 Great Room

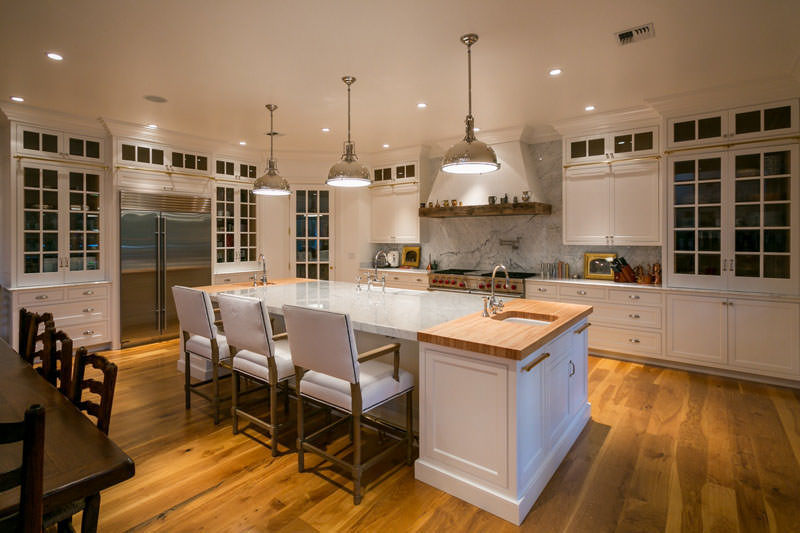

House Plan - NDG1276 Kitchen 1276 Kitchen
House Plan - NDG1276 Kitchen 2 1276 Kitchen 2

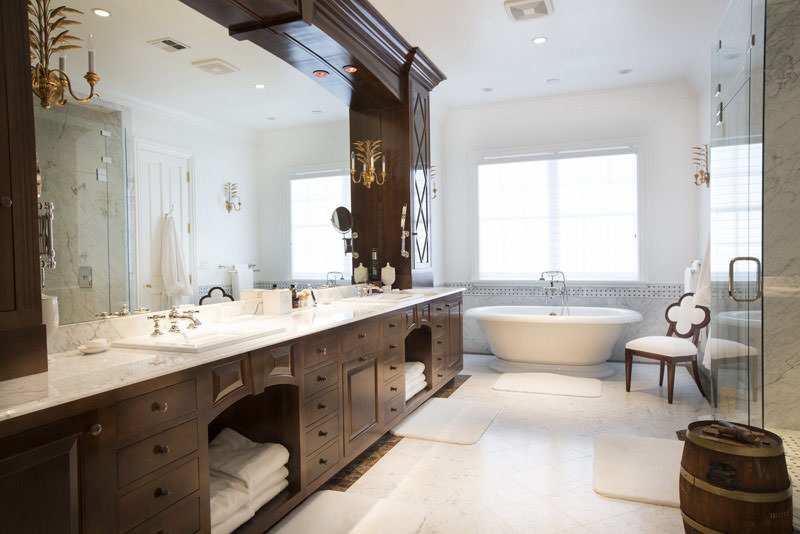

House Plan - NDG1276 Bathroom 1276 Bathroom
House Plan - NDG1276 Bathroom 2 1276 Bathroom 2
House Plan - NDG1276 Rear Covered Porch 1276 Rear Covered Porch

Floor plans

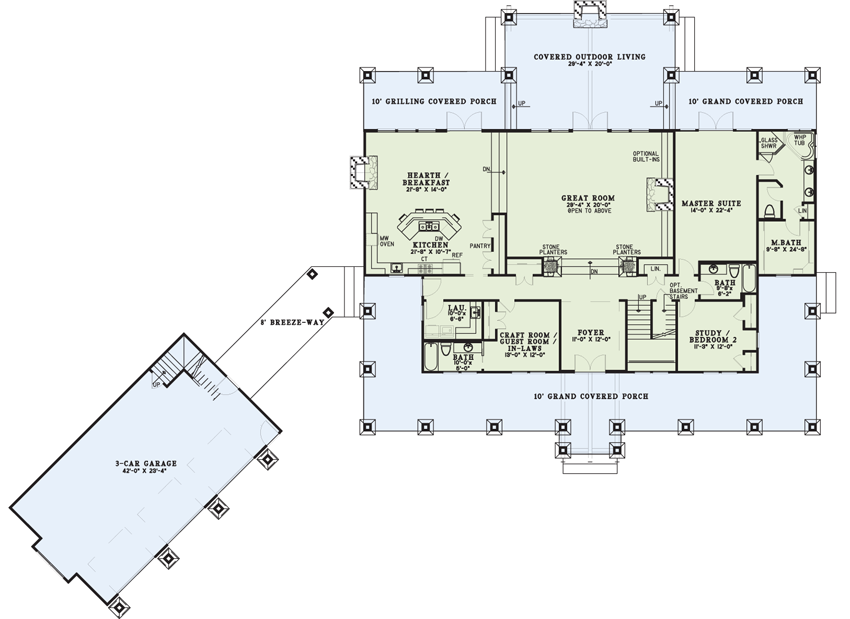

House Plan NDG 1276 Main Floor

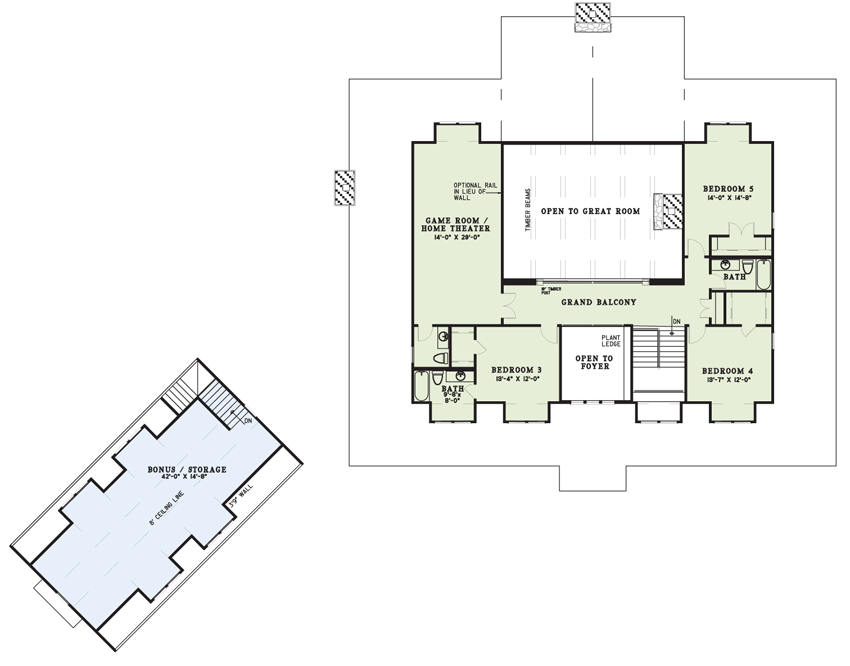

House Plan NDG 1276 Upper Floor

NDG 1276

House Plan 1276 Summer Place, Rustic House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1276
  • Total Living Space:4623 Sq.Ft.
  • Bedrooms: 6
  • Full Baths: 5
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Detached
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 139
  • Width In.: 2
  • Depth Ft.: 102
  • Depth In.: 2

Description

This rustic plan offers plenty for the family and for entertaining loved ones throughout the year. The massive wrap-around covered porch is lined with stone based columns. Once inside the foyer, stone planters flank a couple of stairs that lead down to the great room. The great room has a fireplace and optional built-ins and French doors that open to a huge covered outdoor living area that features a fireplace. The kitchen has a large angled island bar, pantry, and is open to the hearth room that also has a fireplace and access to a covered grilling porch. The master suite has plenty of room and French doors opening to another covered grilling porch. And the master bath features a corner glass shower and a corner whirlpool tub and a large walk-in closet. There’s also a study/bedroom with an adjacent full bathroom and a craft room/guest room with a full bathroom on the first floor. Upstairs the grand balcony overlooks the great room. Bedrooms 3, 4, and 5 each have walk-in closets and bedroom bedroom 3 has a private full bathroom. The large game room/home theater is sure to entertain and has a convenient half bathroom.

Specifications

  • Total Living Space:4623 Sq.Ft.
  • Main Floor: 2942 Sq.Ft
  • Upper Floor (Sq.Ft.): 1681 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 705 Sq.Ft.
  • Porch (Sq.Ft.): 2513 Sq.Ft.
  • Garage (Sq.Ft.): 1042 Sq.Ft.
  • Total Square Feet: 8883 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 34
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
