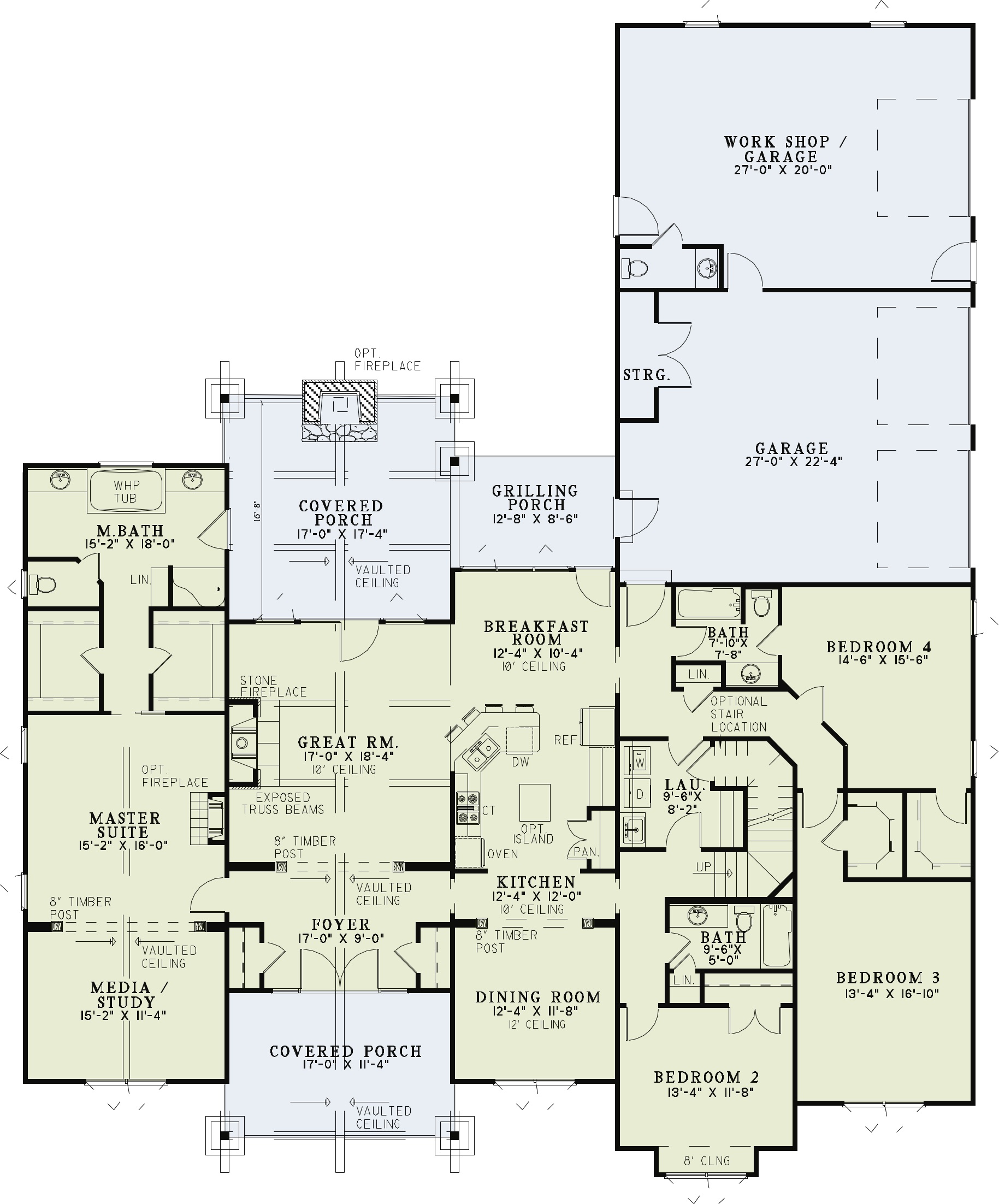

Floor plans

NDG 1267

House Plan 1267 Mountain View, Rustic House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1267
  • Total Living Space:3206Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 73
  • Width In.: 2
  • Depth Ft.: 88
  • Depth In.: 8

Description

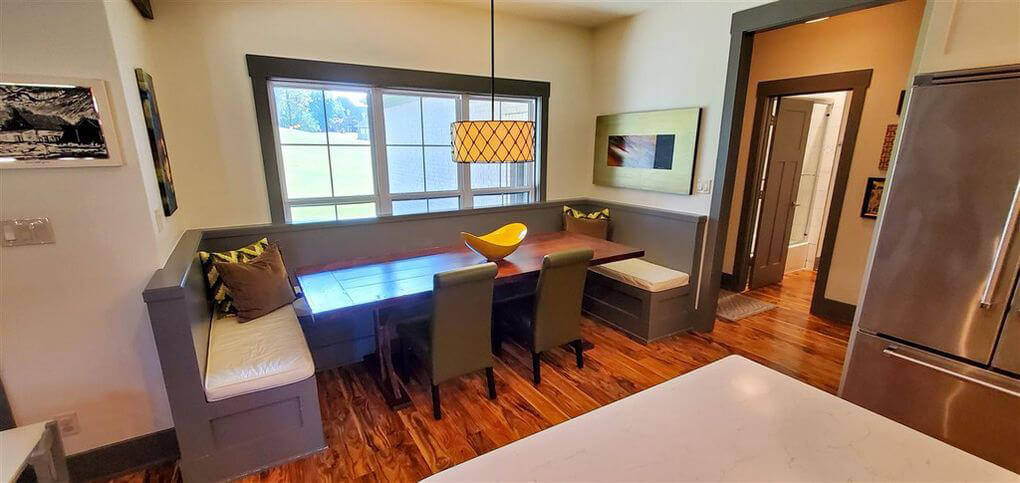

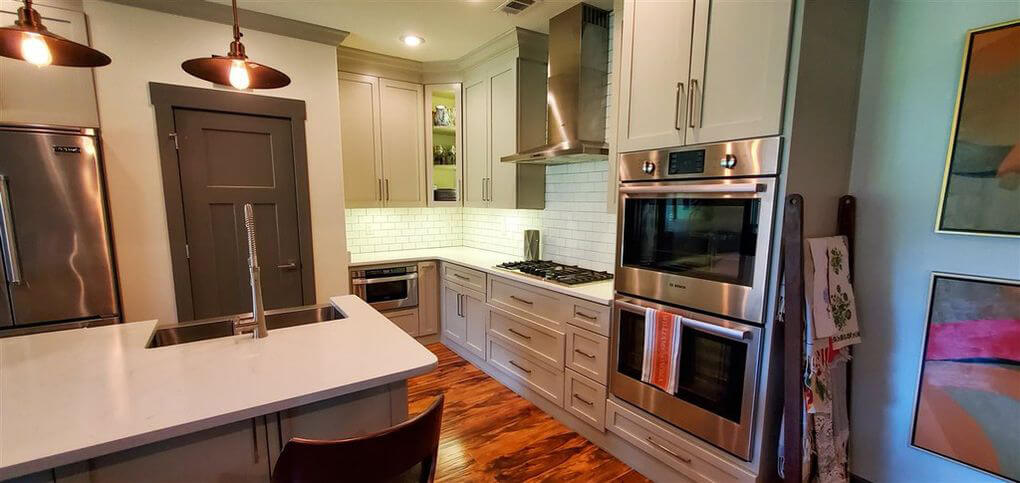

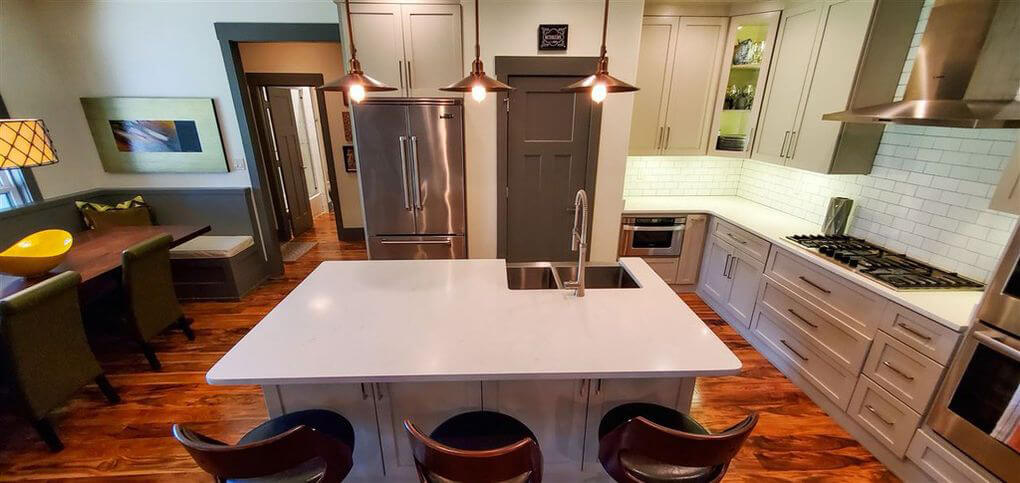

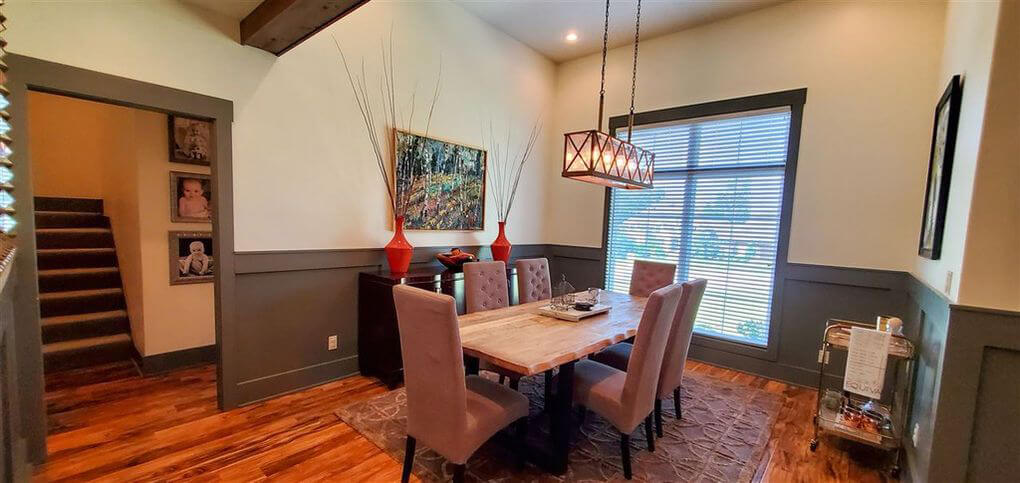

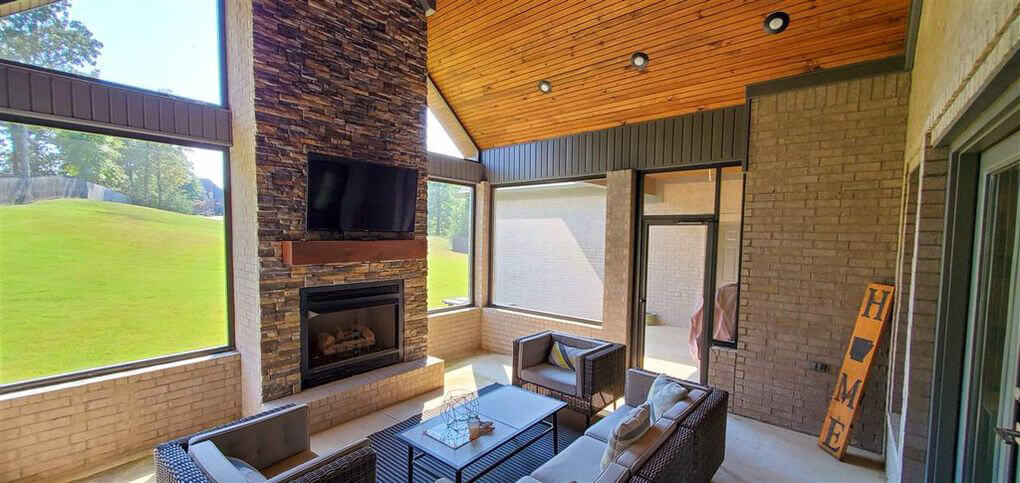

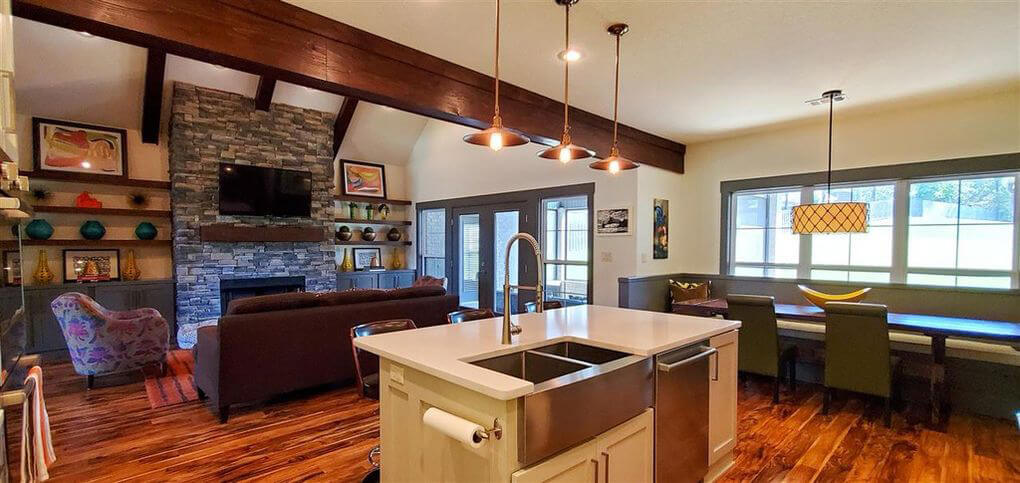

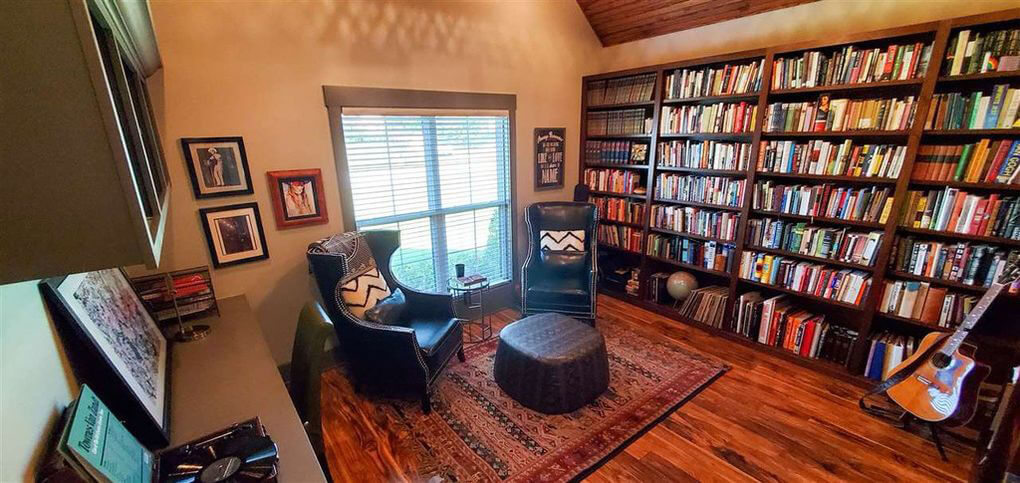

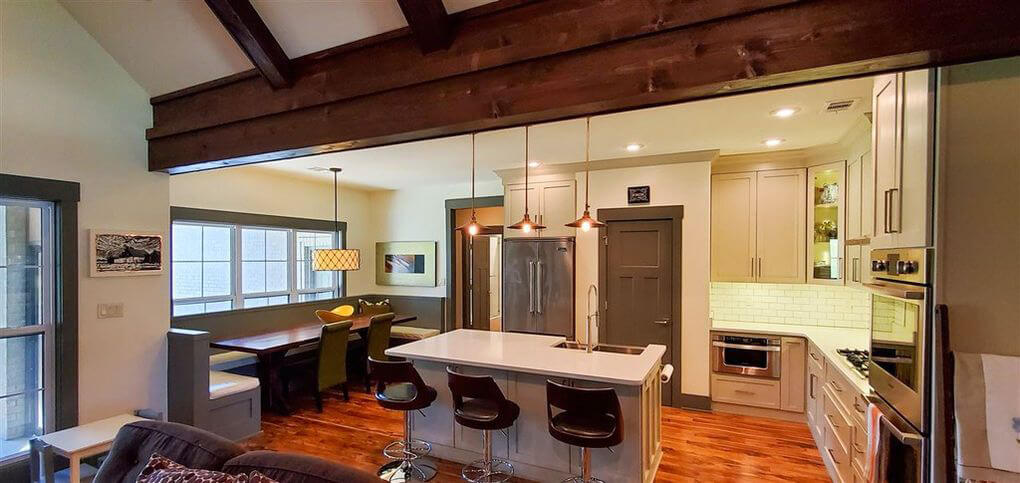

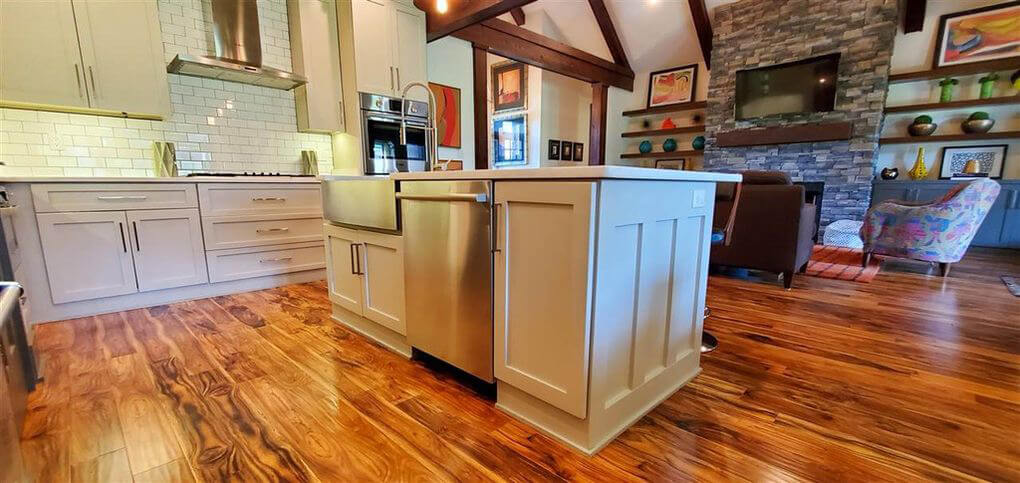

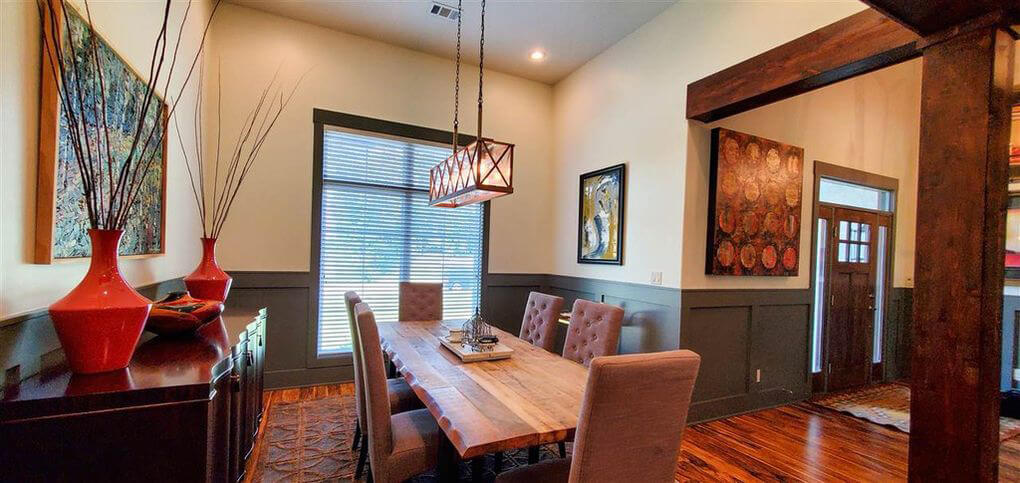

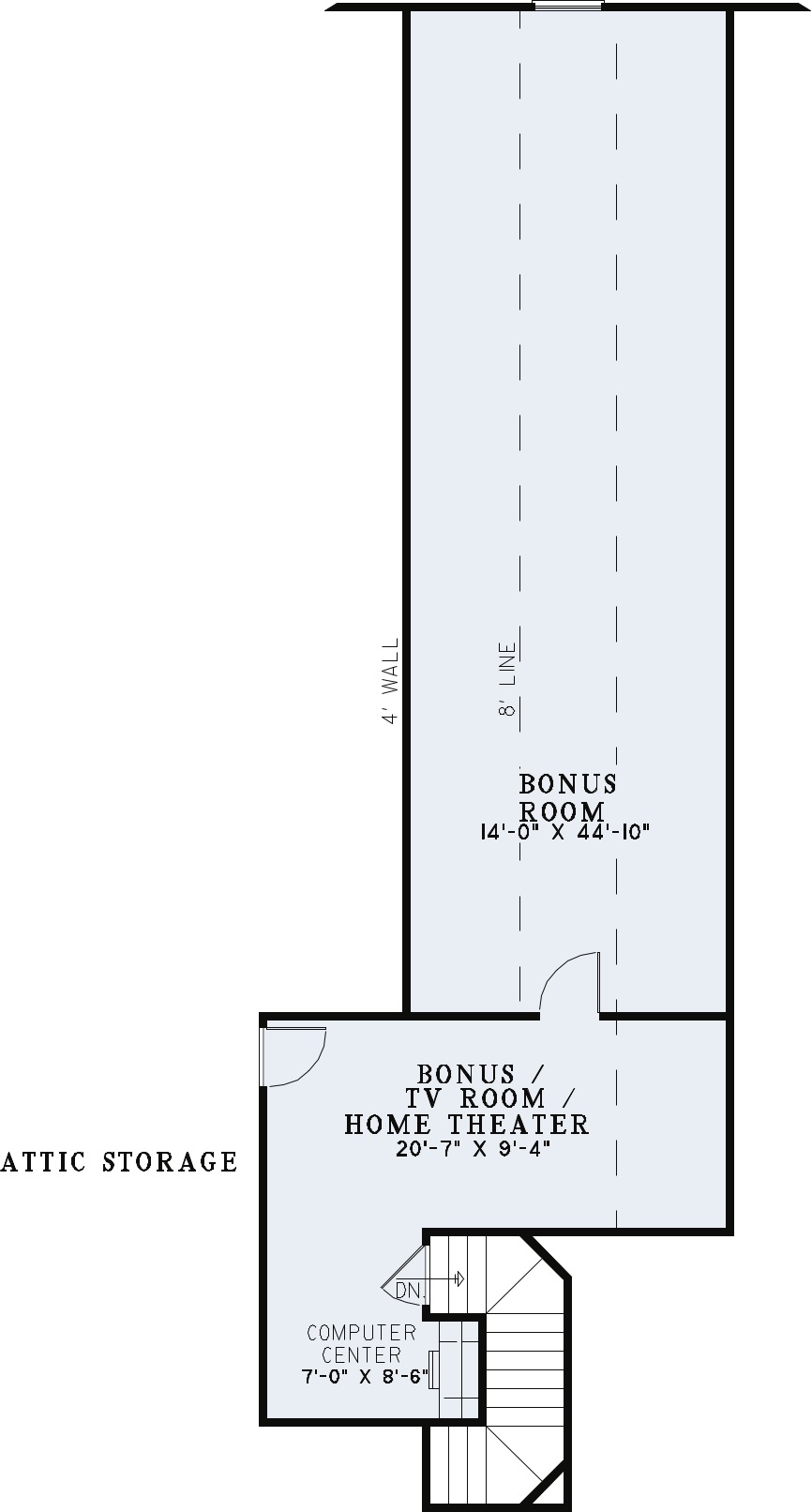

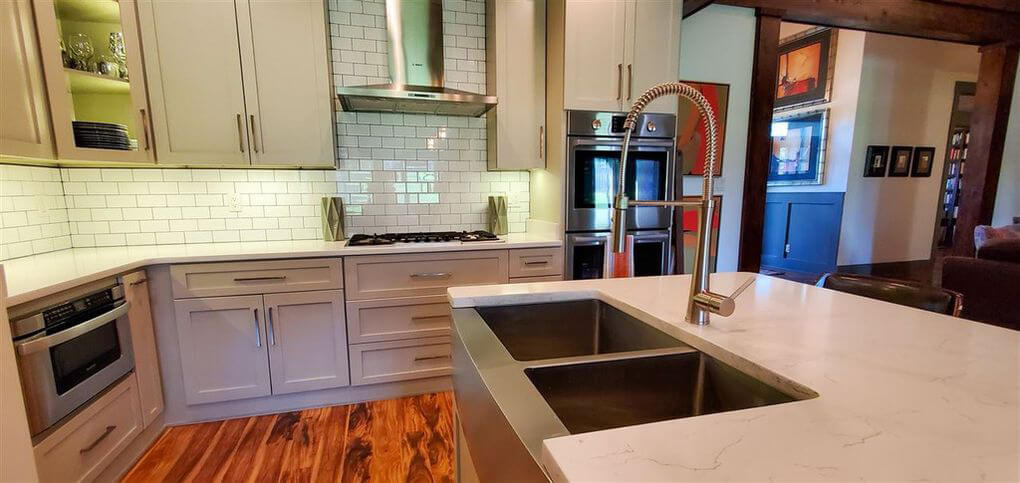

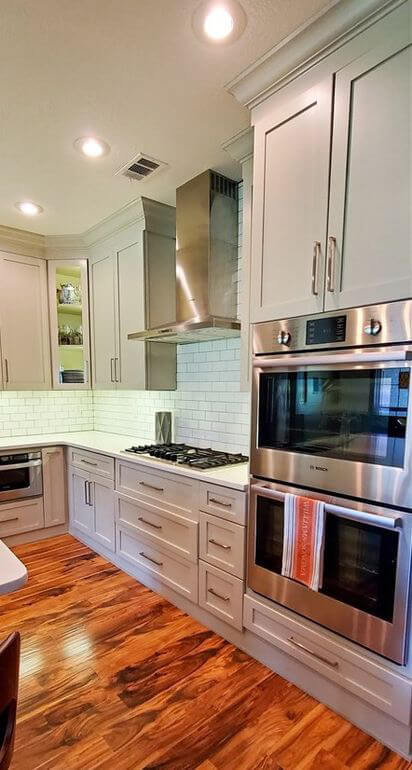

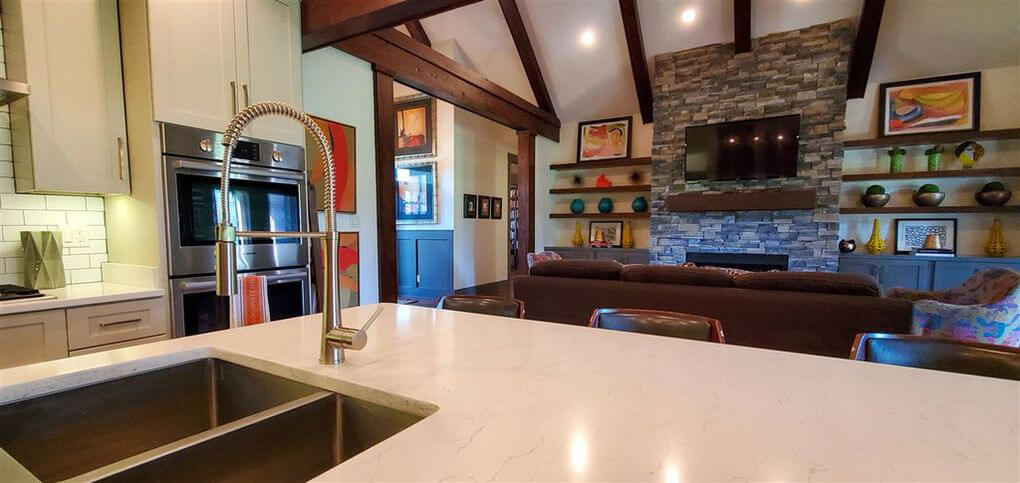

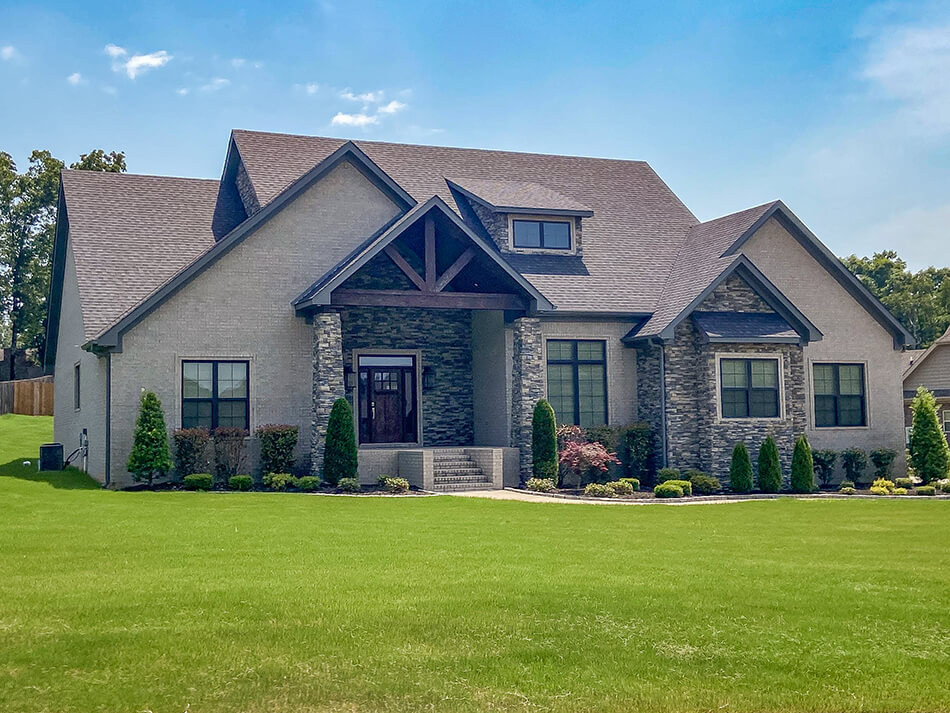

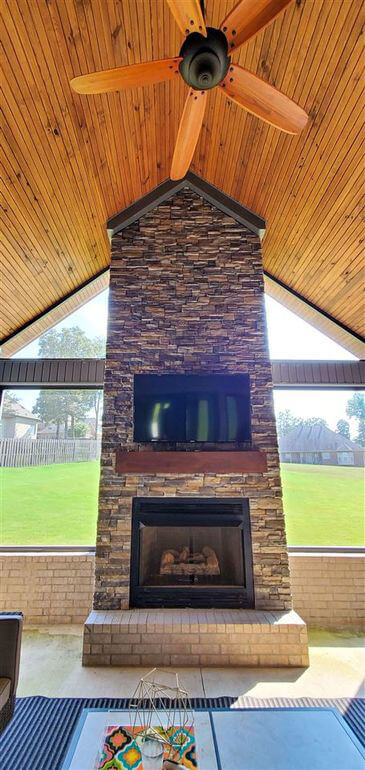

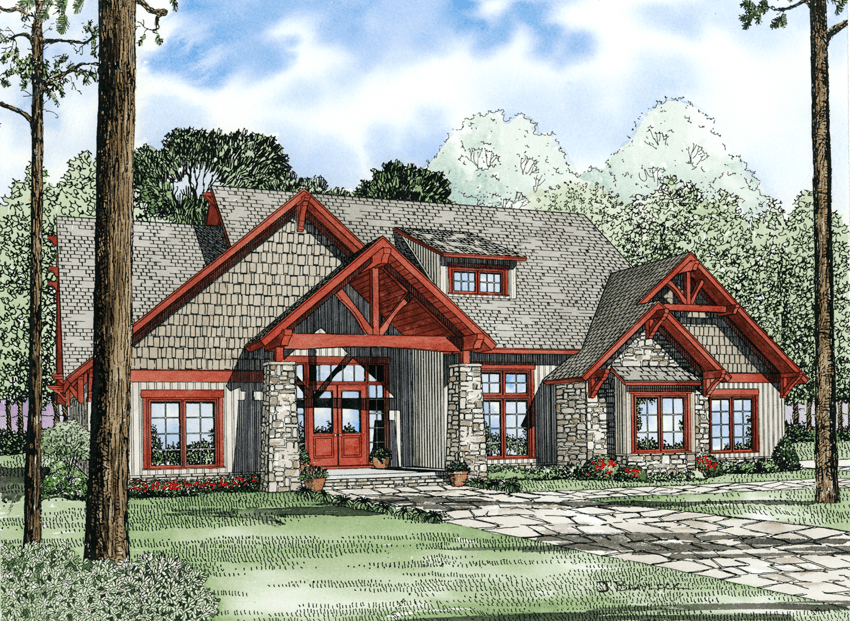

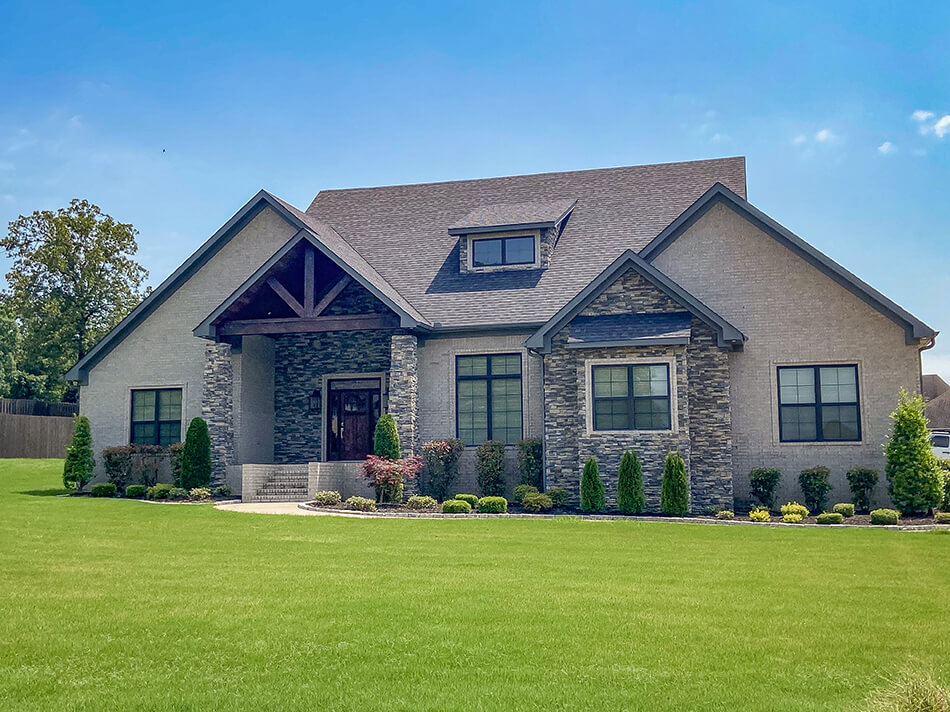

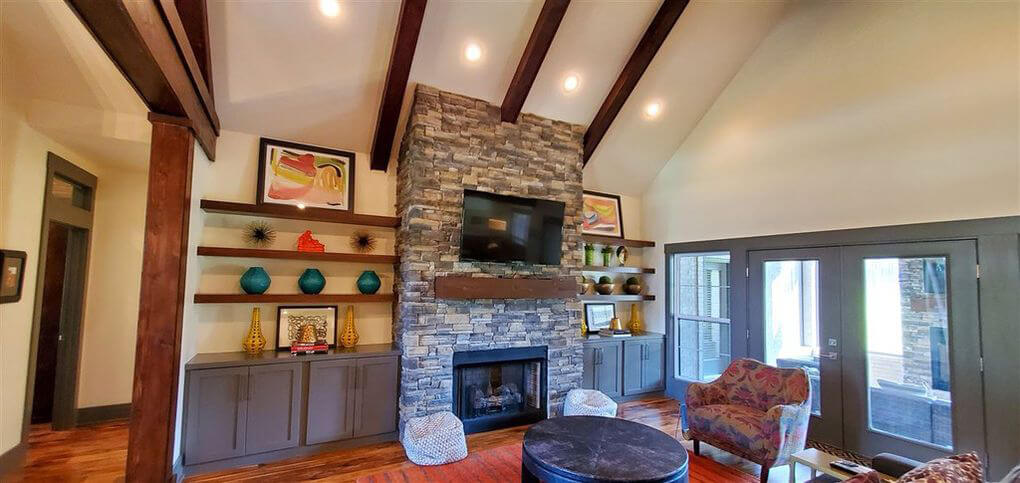

This is one of Michael E. Nelson’s favorites! He created a rich, yet rustic home design and combined elements such as stone, board ‘n batten siding and cedar shake. The front entry features tall stone pillars supporting rustic timber trusses which form a vaulted ceiling on the front porch. Double entry doors with full-length sidelights lead you into a great room which showcases a stone fireplace, exposed truss beams and rustic timber posts. A 12-foot ceiling gives the formal dining room a much larger appearance while the kitchen and breakfast room feature a 10-foot ceiling. This split plan has three large bedrooms and an over-sized Master Suite displaying a fireplace, vaulted ceiling and private Study. An upper level houses a home theater with computer center connect to an additional shotgun style bonus room – perfect for several single beds. A large rear covered porch with vaulted ceiling has a cozy stone fireplace and grilling porch with access to the garage with attached workshop and convenient half bath.

Specifications

  • Total Living Space:3206Sq.Ft.
  • Main Floor: 2920 Sq.Ft
  • Upper Floor (Sq.Ft.): 286 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 669 Sq.Ft.
  • Porch (Sq.Ft.): 598 Sq.Ft.
  • Garage (Sq.Ft.): 1189 Sq.Ft.
  • Total Square Feet: 5662 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
