House Plan 1218 Martha Lane, Traditional House Plan

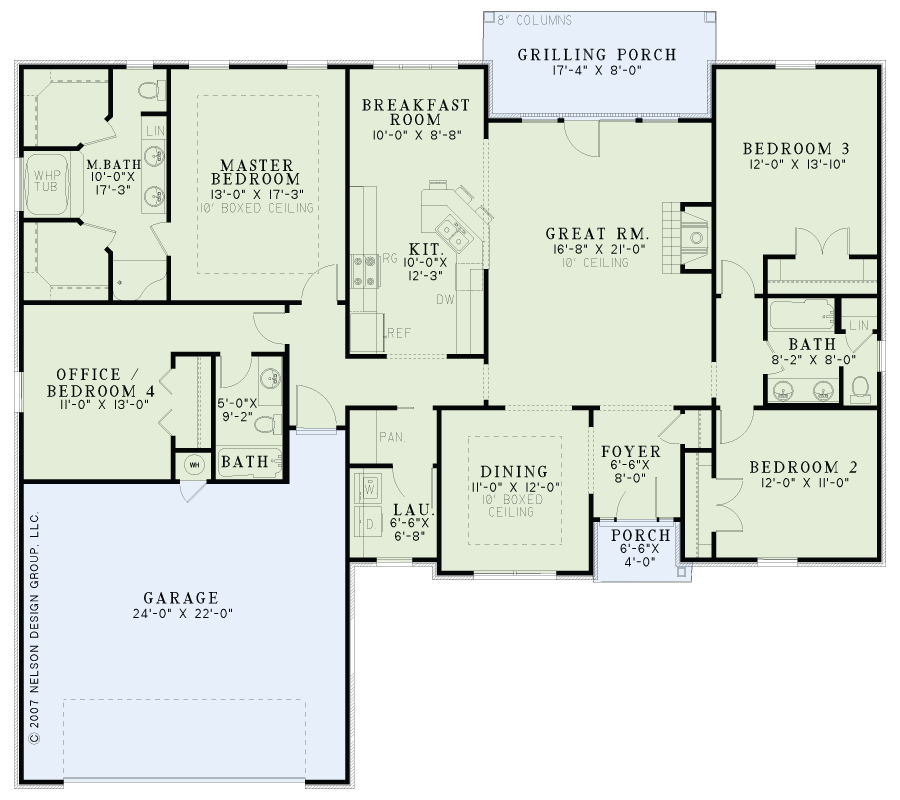

House Plan NDG 1218 Main Floor

Floor plans

NDG 1218

House Plan 1218 Martha Lane, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1218
  • Total Living Space:2146Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 64
  • Width In.: 4
  • Depth Ft.: 57
  • Depth In.: 8

Description

This beautiful brick home offers a great floor plan with a spacious Great Room and 4 bedrooms. Once you step into the foyer, you’ll notice the dining room on the left with its 10′ boxed ceiling and natural lighting. Straight ahead is the Great Room with a fireplace and access to the rear covered grilling porch. The Great Room is open to the kitchen, featuring an eat-at peninsula bar, and the breakfast room. 2 bedrooms and a full bath are located on the right side of the home. The Master Bedroom is tucked in the back left corner and also features a 10′ boxed ceiling, while the master bath provides a raised whirlpool tub, a separate shower, and 2 walk-in closets. There’s also a 4th bedroom or office with a full bath adjacent to the master bedroom.

Specifications

  • Total Living Space:2146Sq.Ft.
  • Main Floor: 2146 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 165 Sq.Ft.
  • Garage (Sq.Ft.): 573 Sq.Ft.
  • Total Square Feet: 2884 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,000.00)
    • CAD ($2,000.00)
    • Five Set ($1,100.00)
    • PDF ($1,000.00)
    • PDF + Unlimited Build ($1,700.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
