House Plan 1216 River Falls, Riverbend House Plan

House Plan NDG 1216 Main Floor
>
House Plan NDG 1216 Main Floor

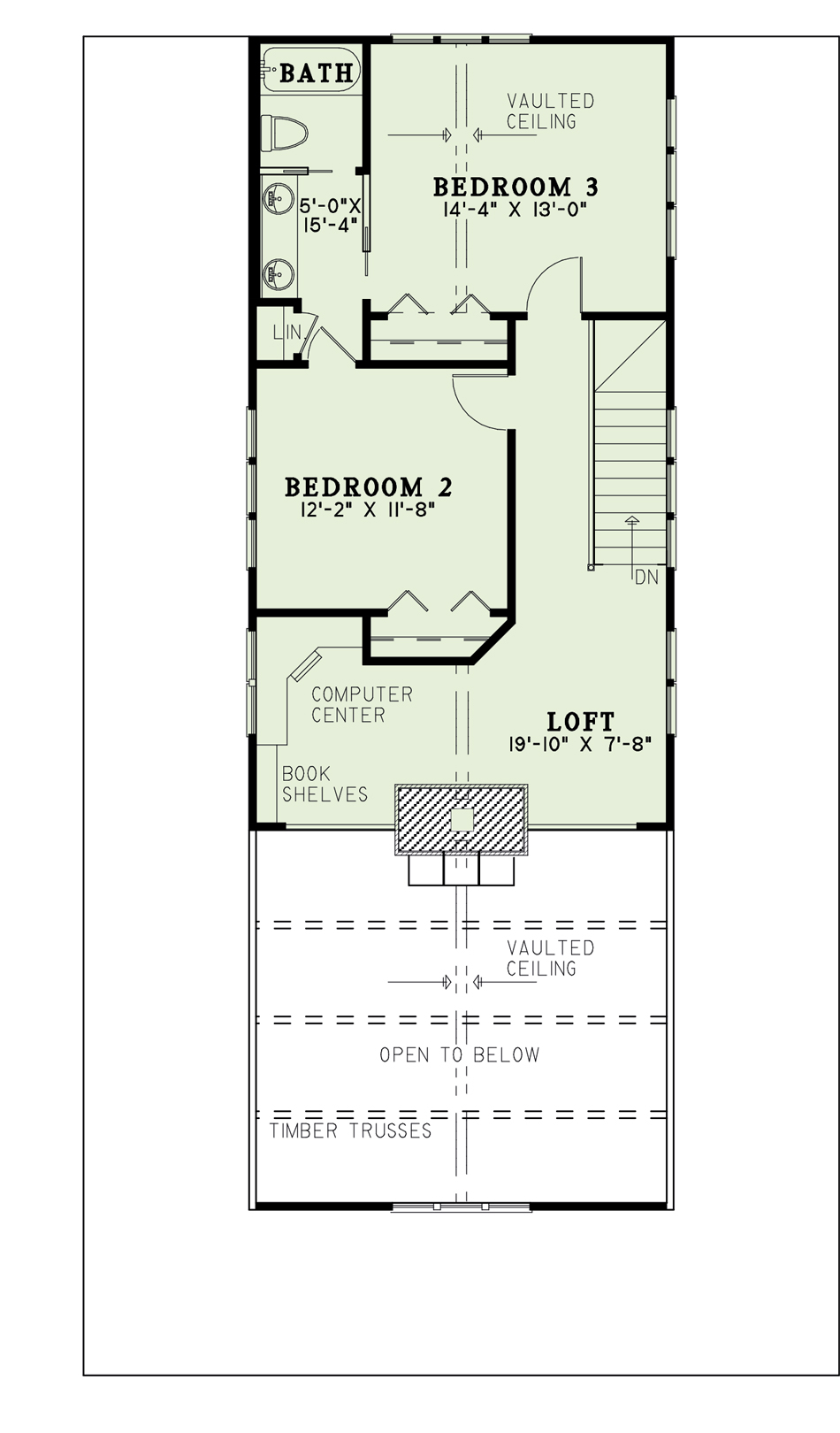

Floor plans

NDG 1216

House Plan 1216 River Falls, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1216
  • Total Living Space:2207Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 36
  • Width In.: 6
  • Depth Ft.: 76
  • Depth In.: 8

Description

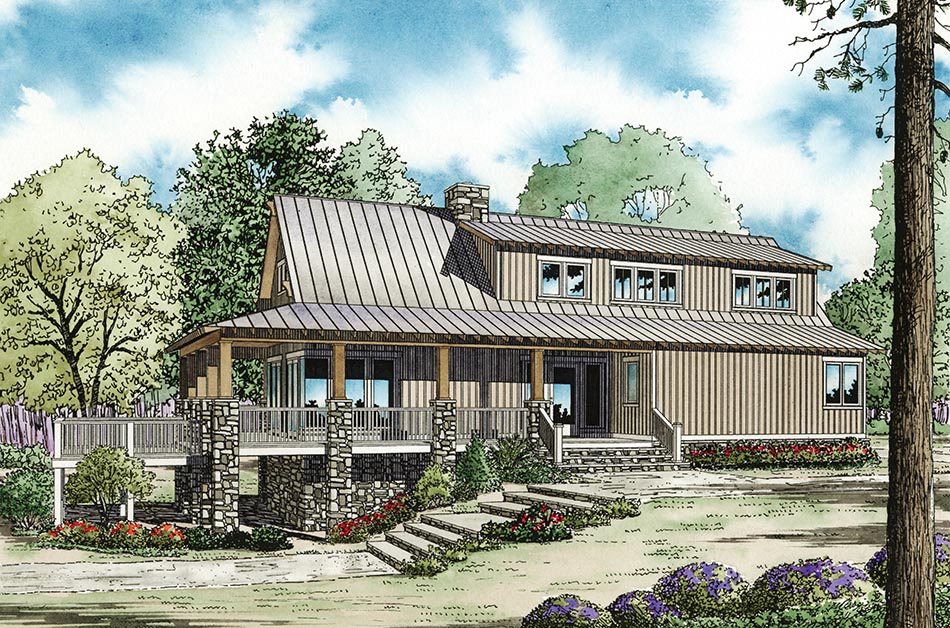

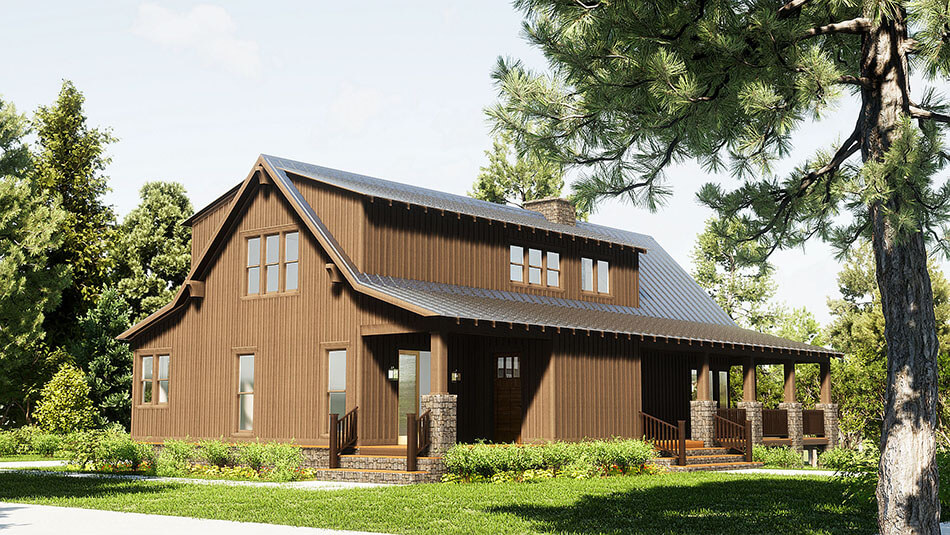

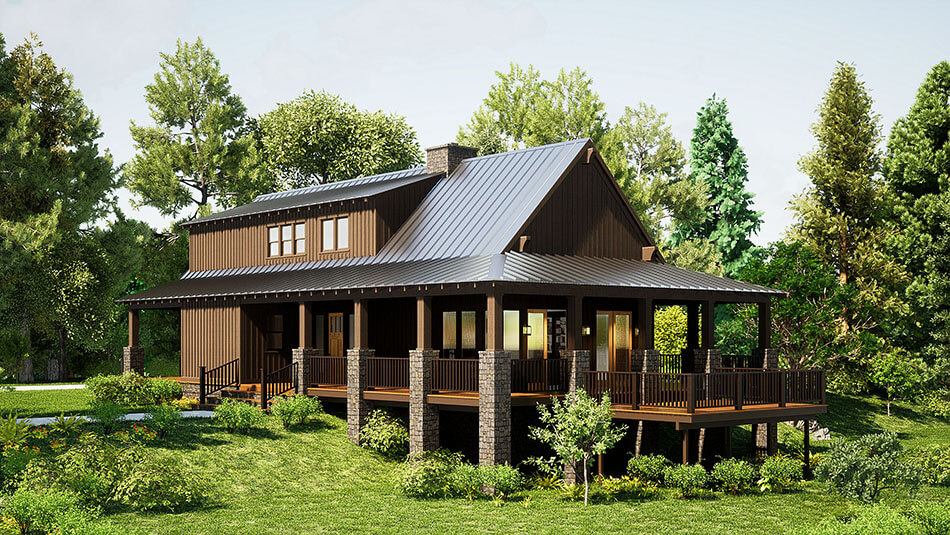

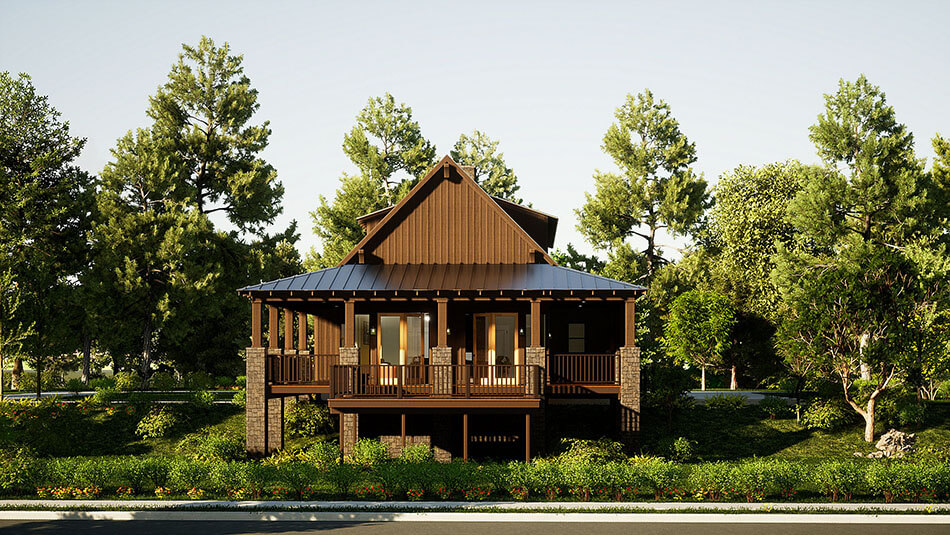

Enjoy the view from the covered porch and deck featured on this rustic Nelson Design Group home. Entry from either side of the covered porch will take you and your guests into the stunning, open dining room. Only the pass through fireplace separates the dining room from the generous great room. Your private master suite is also located on the main floor of this home. Once upstairs, you’ll be able to appreciate the view from the loft on your way to the built-in computer center. Two additional bedrooms and a full bath occupy the rest of the upper floor; perfect for overnight guests or the kids.

Please note: Choosing the basement option will remove the half bath.

Specifications

  • Total Living Space:2207Sq.Ft.
  • Main Floor: 1463 Sq.Ft
  • Upper Floor (Sq.Ft.): 744 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 891 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3098 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • House Plan Options
