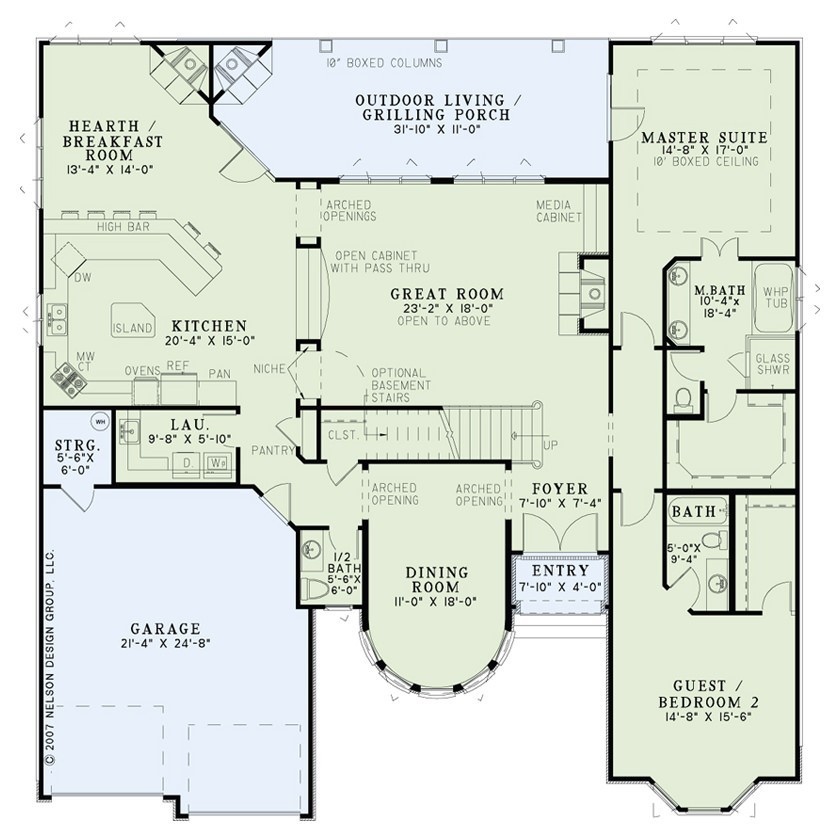

House Plan NDG 1214 Main Floor
House Plan NDG 1214 Upper Floor
House Plan NDG 1214 Front Exterior>
House Plan NDG 1214 Front Exterior>
House Plan NDG 1214 Kitchen>
House Plan NDG 1214 Kitchen>
House Plan NDG 1214 Master Bathroom>
House Plan NDG 1214 Master Bath>
House Plan NDG 1214 Master Bath>
House Plan NDG 1214 Foyer>
House Plan NDG 1214 Dining Room>

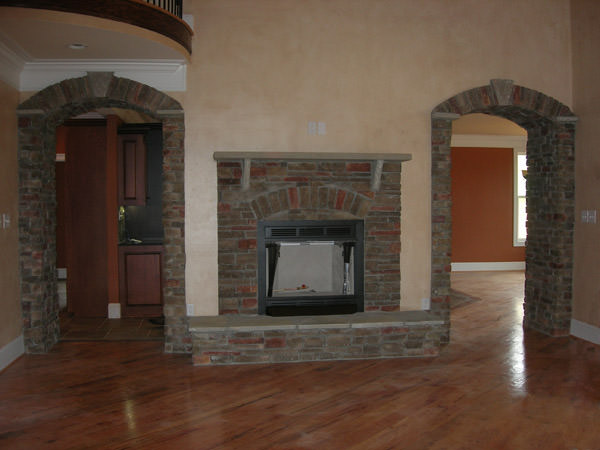

House Plan NDG 1214 Great Room>
House Plan NDG 1214 Bonus Room>
House Plan NDG 1214 Main Floor

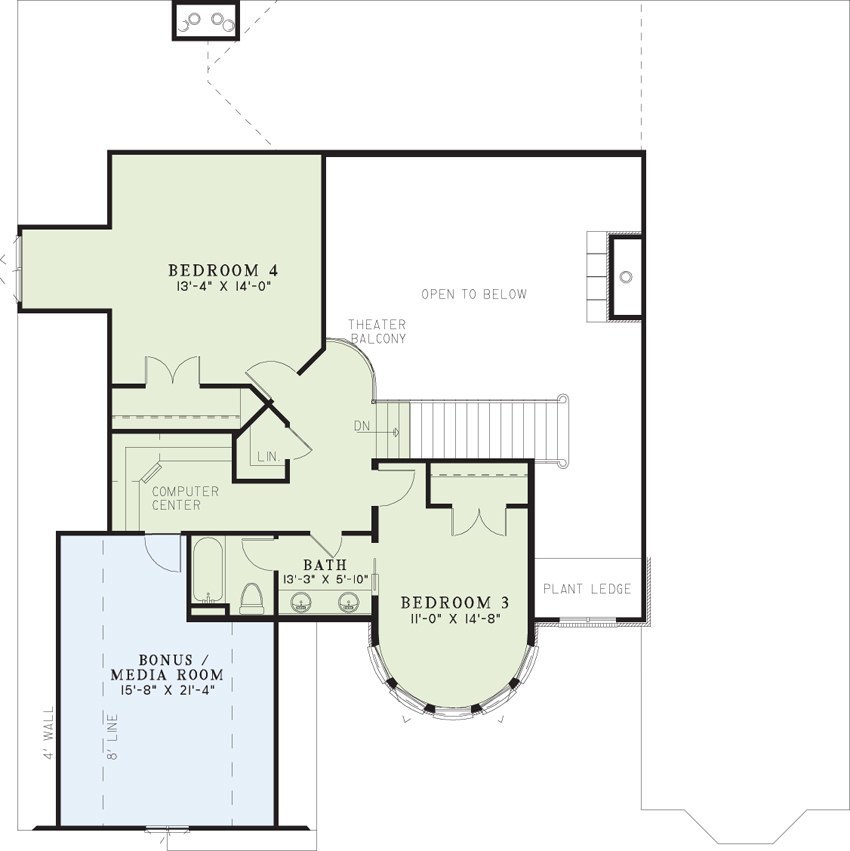

House Plan NDG 1214 Upper Floor

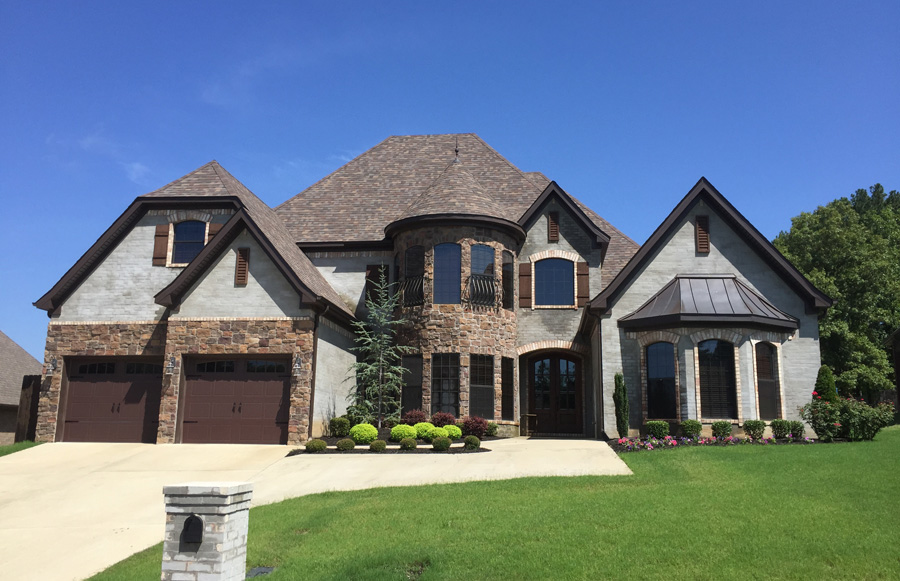

House Plan NDG 1214 Front Exterior

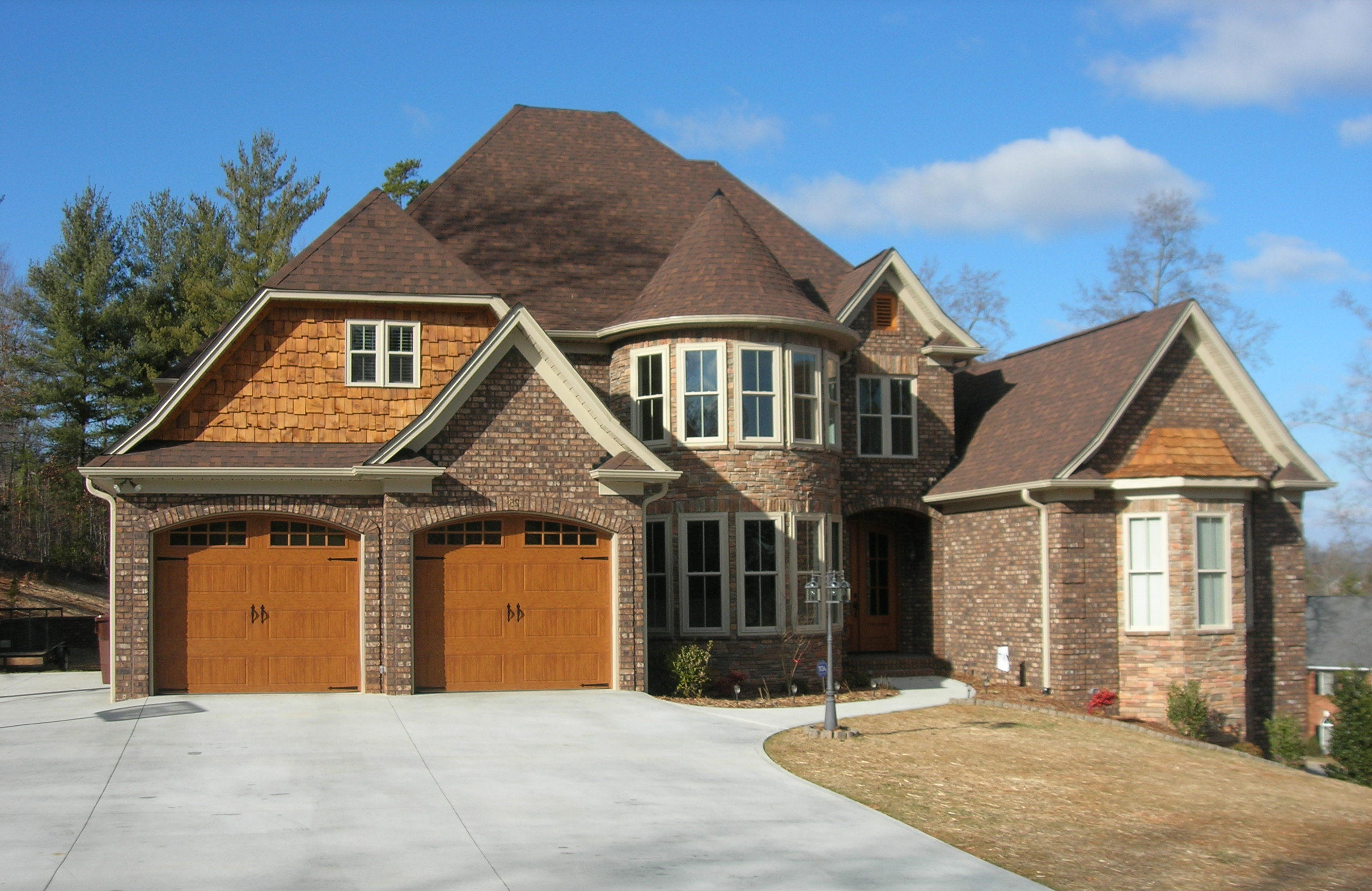

House Plan NDG 1214 Front Exterior
House Plan NDG 1214 Kitchen
House Plan NDG 1214 Kitchen
House Plan NDG 1214 Master Bathroom

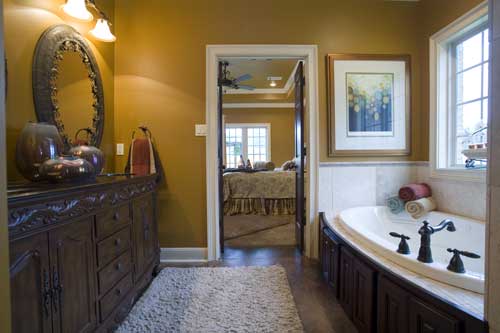

House Plan NDG 1214 Master Bath
House Plan NDG 1214 Master Bath

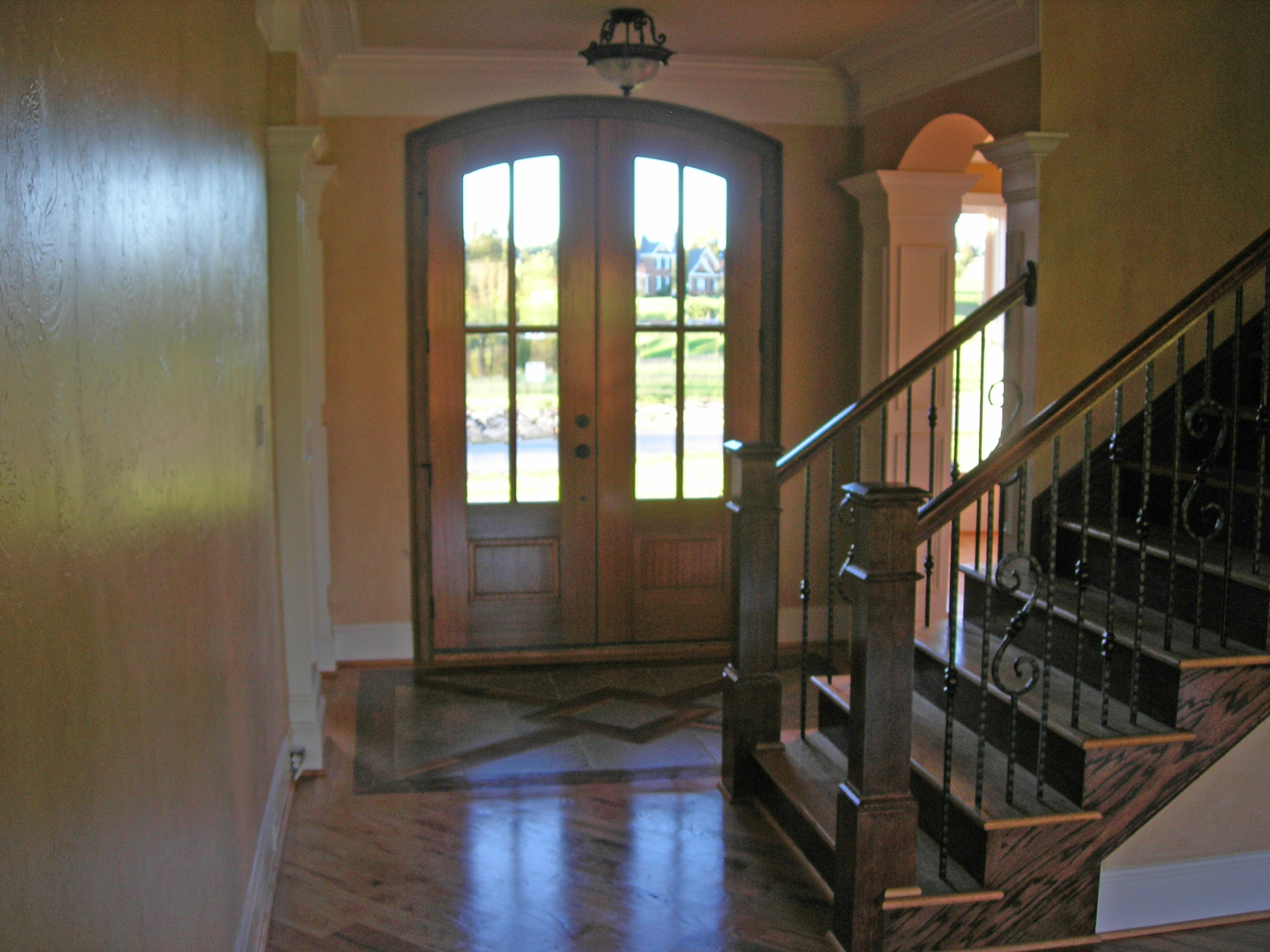

House Plan NDG 1214 Foyer

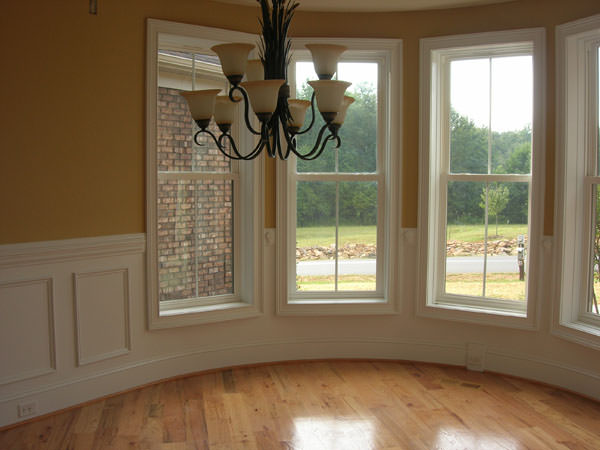

House Plan NDG 1214 Dining Room
House Plan NDG 1214 Great Room

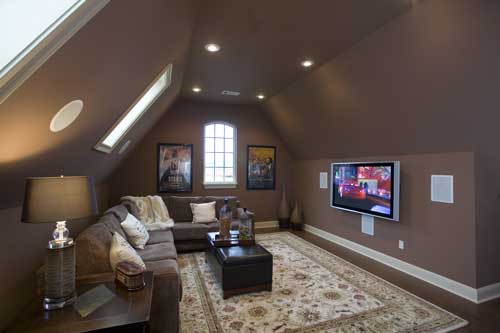

House Plan NDG 1214 Bonus Room

Floor plans

NDG 1214

House Plan 1214 Stone Castle, European House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1214
  • Total Living Space:3328Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 61
  • Width In.: 2
  • Depth Ft.: 62
  • Depth In.: 6

Description

Beautiful stone takes the center stage in this timeless “castle-inspired” design. Step into the Foyer and you'll find the stunning Dining Room with it's curved wall of windows to your left. Continue straight into the Great Room to enjoy the cozy fireplace. The Great room is open to the Kitchen through two arched entry ways flanking a pass through making conversation easy between these rooms. The spacious Kitchen features a huge high bar, an island, plenty of counter space, and a connected Hearth/Breakfast Room. You also have access to the Outdoor Living/Grilling Porch. Around the corner from the kitchen is a second pantry, the Laundry Room and the entrance to the 2-car Garage. On the other side of the home is the Master Suite with a spacious Master Bath, and the Guest Room with its own private bathroom. Upstairs you'll find a beautiful theater balcony over looking the Great Room, as well as Bedrooms 3 and 4, a Computer Center, a Full Bath and the Bonus Room.

Specifications

  • Total Living Space:3328Sq.Ft.
  • Main Floor: 2485 Sq.Ft
  • Upper Floor (Sq.Ft.): 843 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 312 Sq.Ft.
  • Porch (Sq.Ft.): 374 Sq.Ft.
  • Garage (Sq.Ft.): 584 Sq.Ft.
  • Total Square Feet: 4598 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 42
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
