House Plan 1213 The Summit, Rustic House Plan

House Plan 1213 The Summit, Rustic House Plan

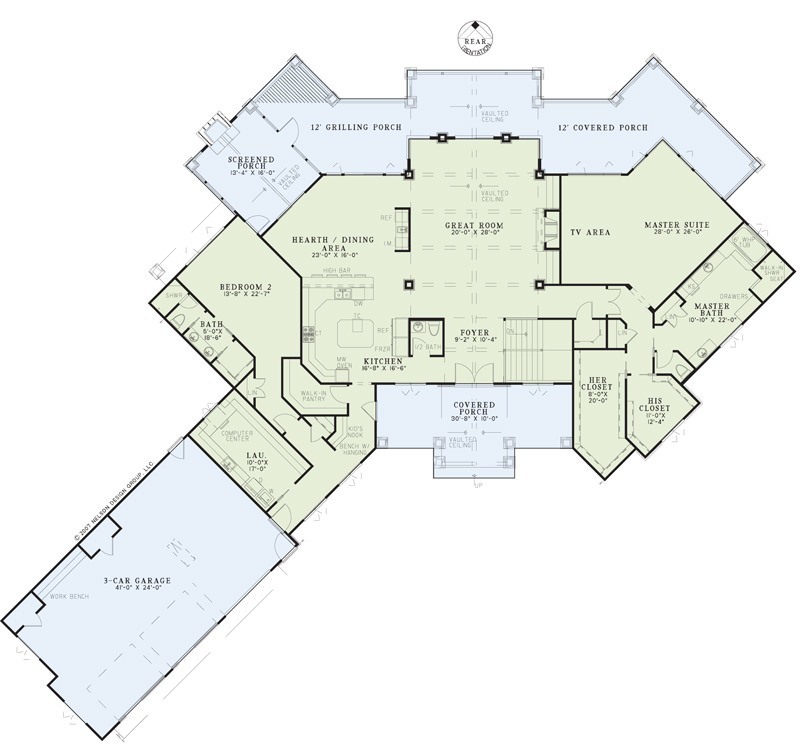

House Plan NDG 1213 Main Floor

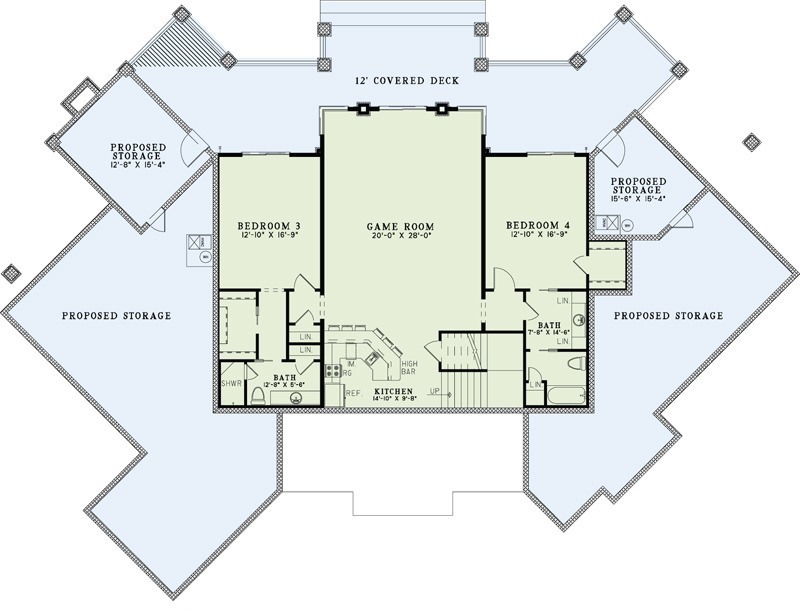

House Plan NDG 1213 Basement

Floor plans

NDG 1213

House Plan 1213 The Summit, Rustic House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1213
  • Total Living Space:5145Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 125
  • Width In.: N/A
  • Depth Ft.: 107
  • Depth In.: 4

Description

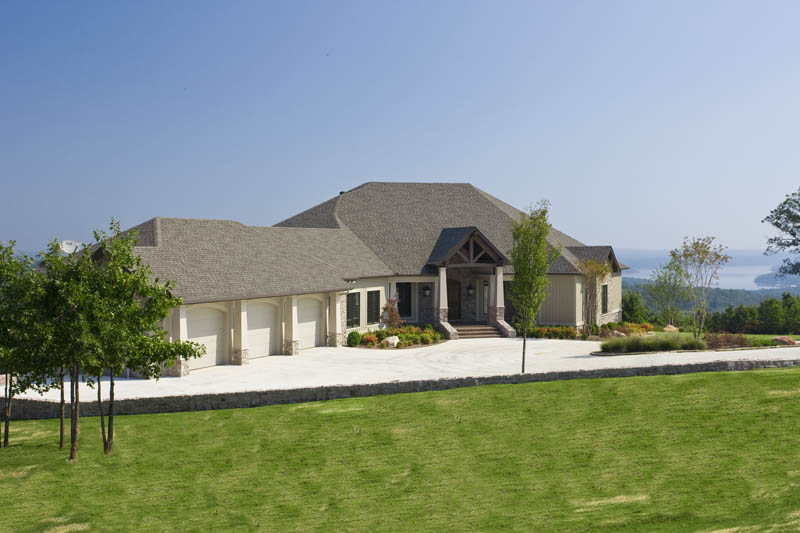

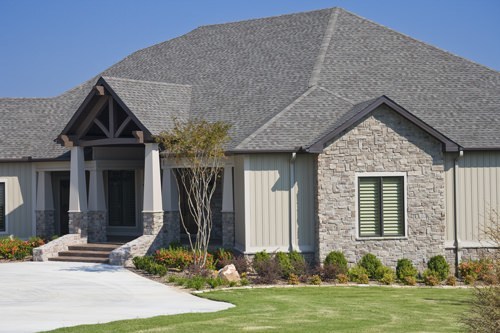

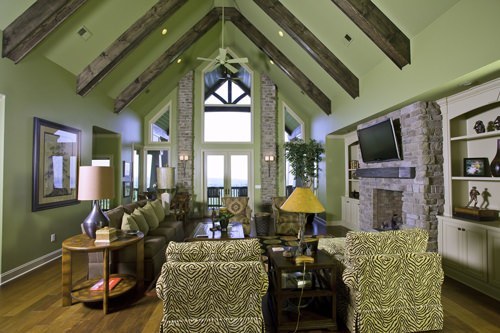

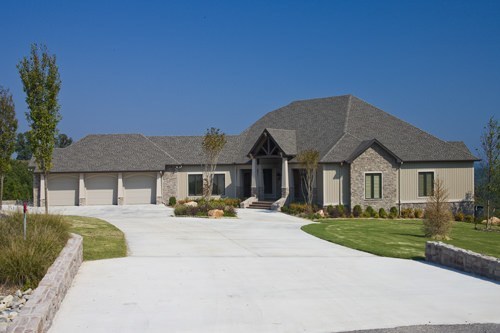

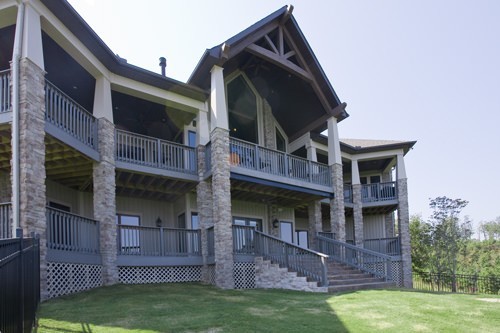

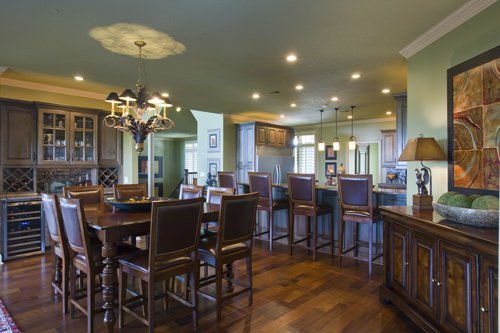

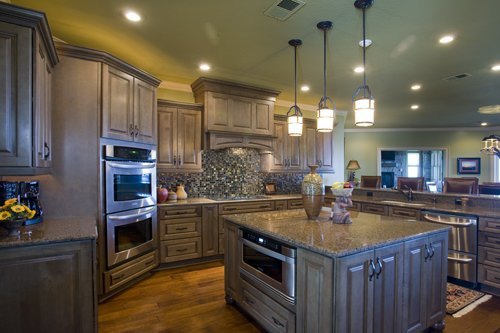

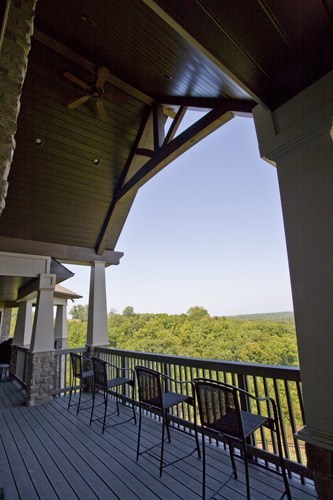

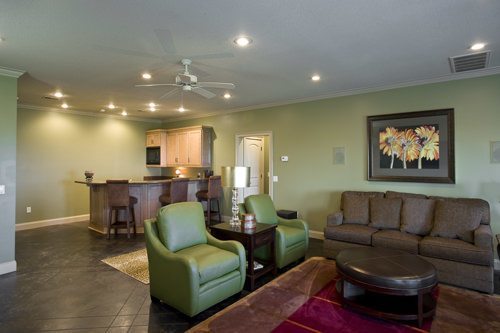

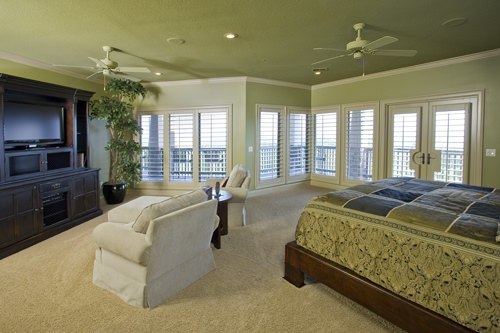

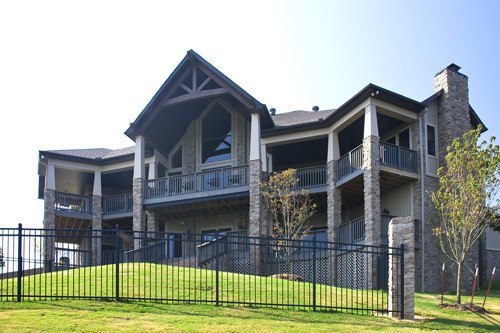

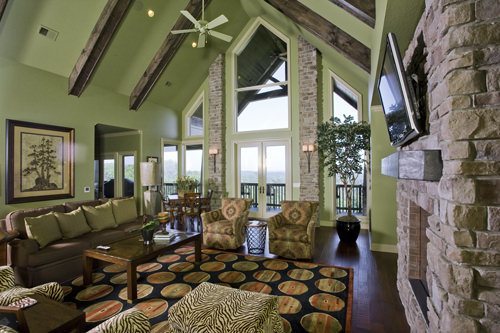

This work of art by Michael E. Nelson provides a spectacular view from the entire rear of this home – perfect for a mountain and lakeview. Rustic columns and cedar trusses are used on the front and rear porches adding the perfect natural element for any setting. Upon entry, the foyer leads into an open great room with vaulted ceiling allowing a magnificent rear view. A nearby kitchen and hearth/dining area open into a large screened porch creating a huge space for entertaining. The luxurious master suite and a secondary suite can also be found on the main level of this home. The lower floor includes an enormous game room as well as two more suites with private baths

Specifications

  • Total Living Space:5145Sq.Ft.
  • Main Floor: 3460 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): 1685 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1970 Sq.Ft.
  • Garage (Sq.Ft.): 1045 Sq.Ft.
  • Total Square Feet: 8160 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
