House Plan 1202 River View II, Riverbend House Plan
Floor plans
NDG 1202
House Plan 1202 River View II, Riverbend House Plan
Plan Details
- Plan Number: NDG 1202
- Total Living Space:1178Sq.Ft.
- Bedrooms: 2
- Full Baths: 2
- Half Baths: N/A
- Garage: No
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 30
- Width In.: 4
- Depth Ft.: 44
- Depth In.: 6
Description

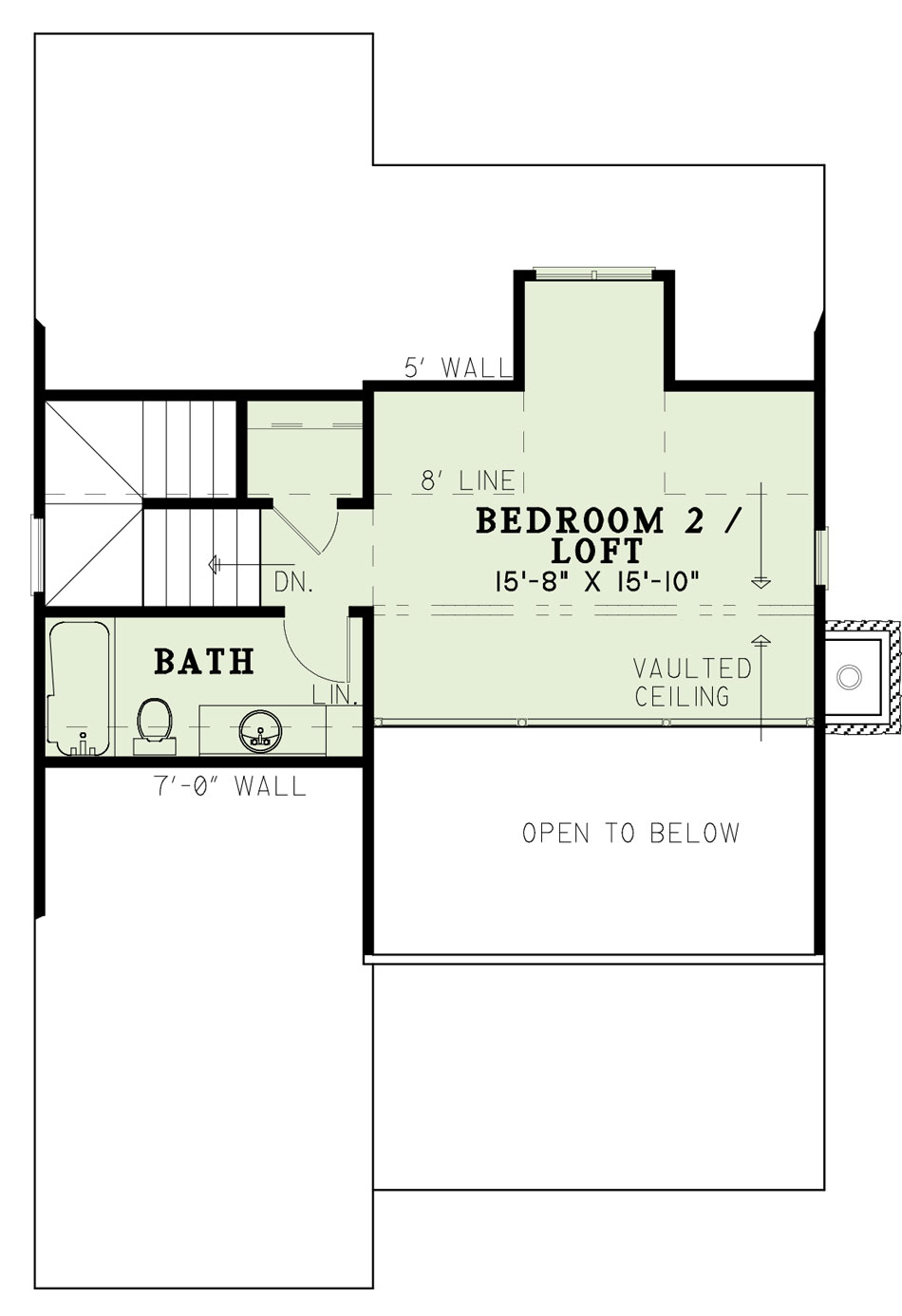

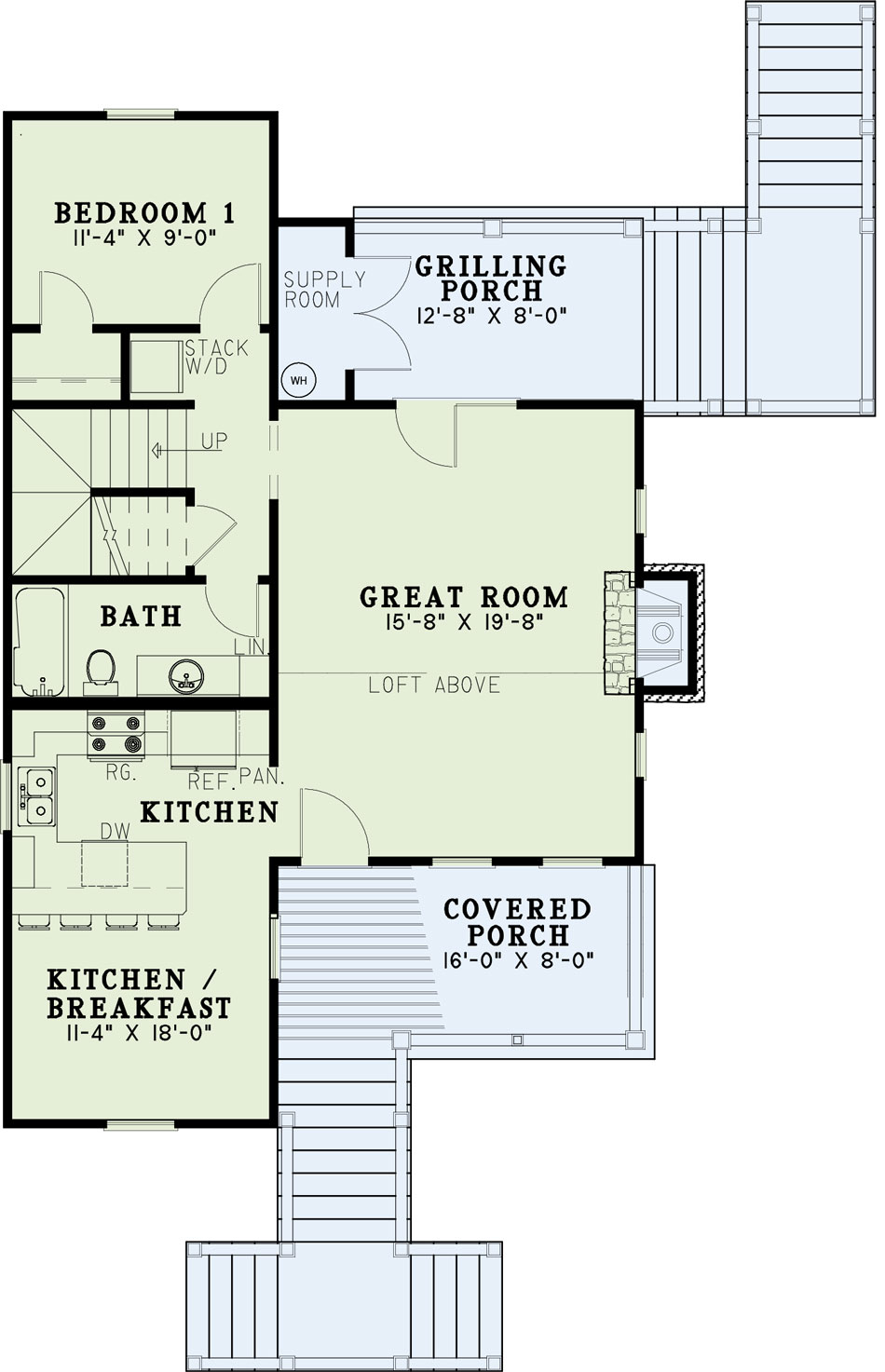

This quaint and charming home is perfect for a water front property or weekend getaway. Featuring a large front covered porch, The large Great Room within has a fireplace and access to the rear grilling porch. Off of the great room is the kitchen with an eat-at peninsula bar and a breakfast area. Bedroom 1 is located in the back left corner of the home with a closet and nearby stack-able washer and dryer and a full bathroom. Upstairs you’ll find the loft that could be a second bedroom and overlooks the great room with a full bathroom.
*For optional foundations such as Slab, BSMT, and WOB, see plan NDG421
Specifications
- Total Living Space:1178Sq.Ft.
- Main Floor: 859 Sq.Ft
- Upper Floor (Sq.Ft.): 319 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 256 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 1434 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Metal
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 22
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
