House Plan 1191 Bluff's Edge II, Riverbend House Plan

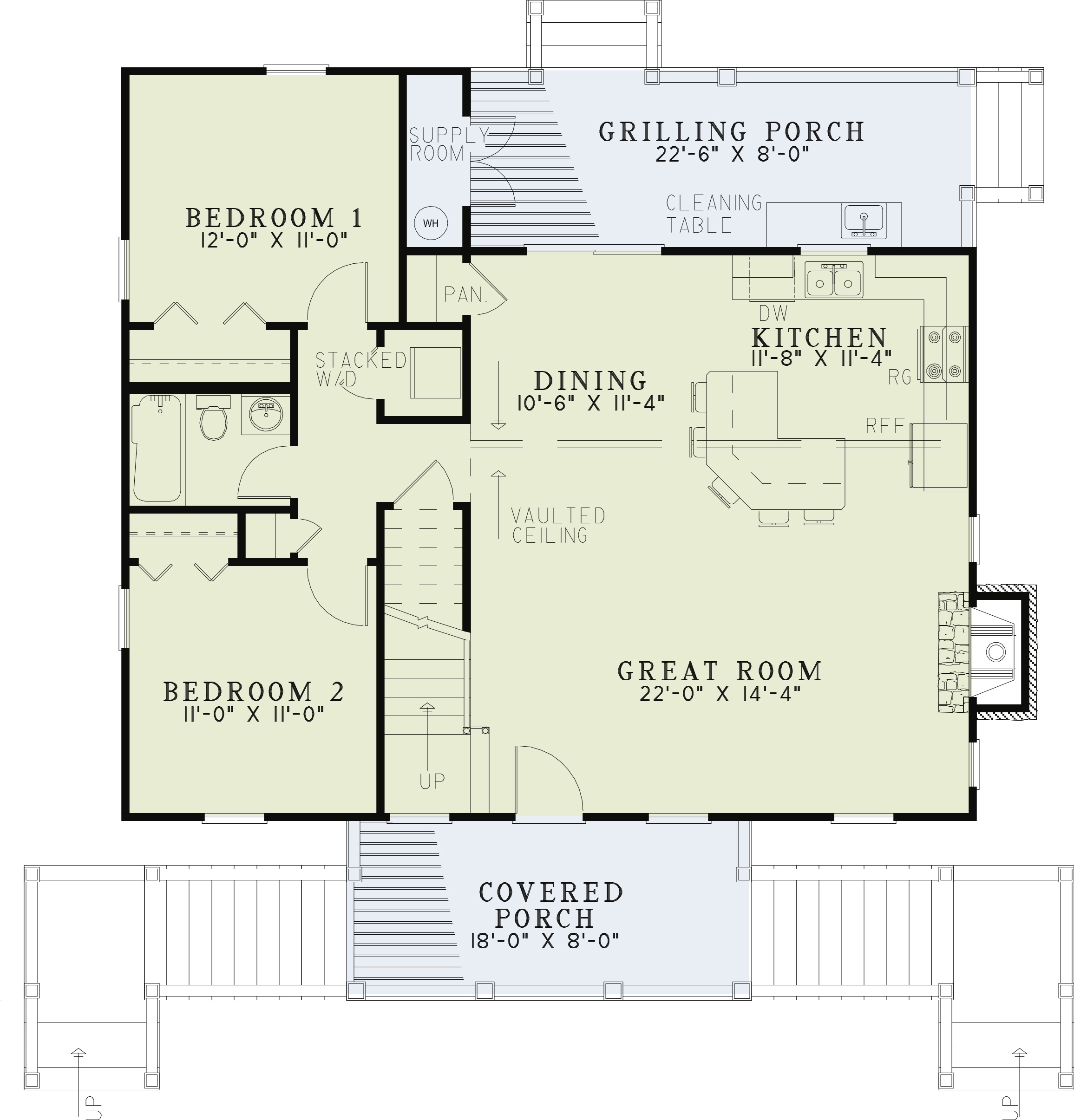

House Plan NDG 1191 Main Floor

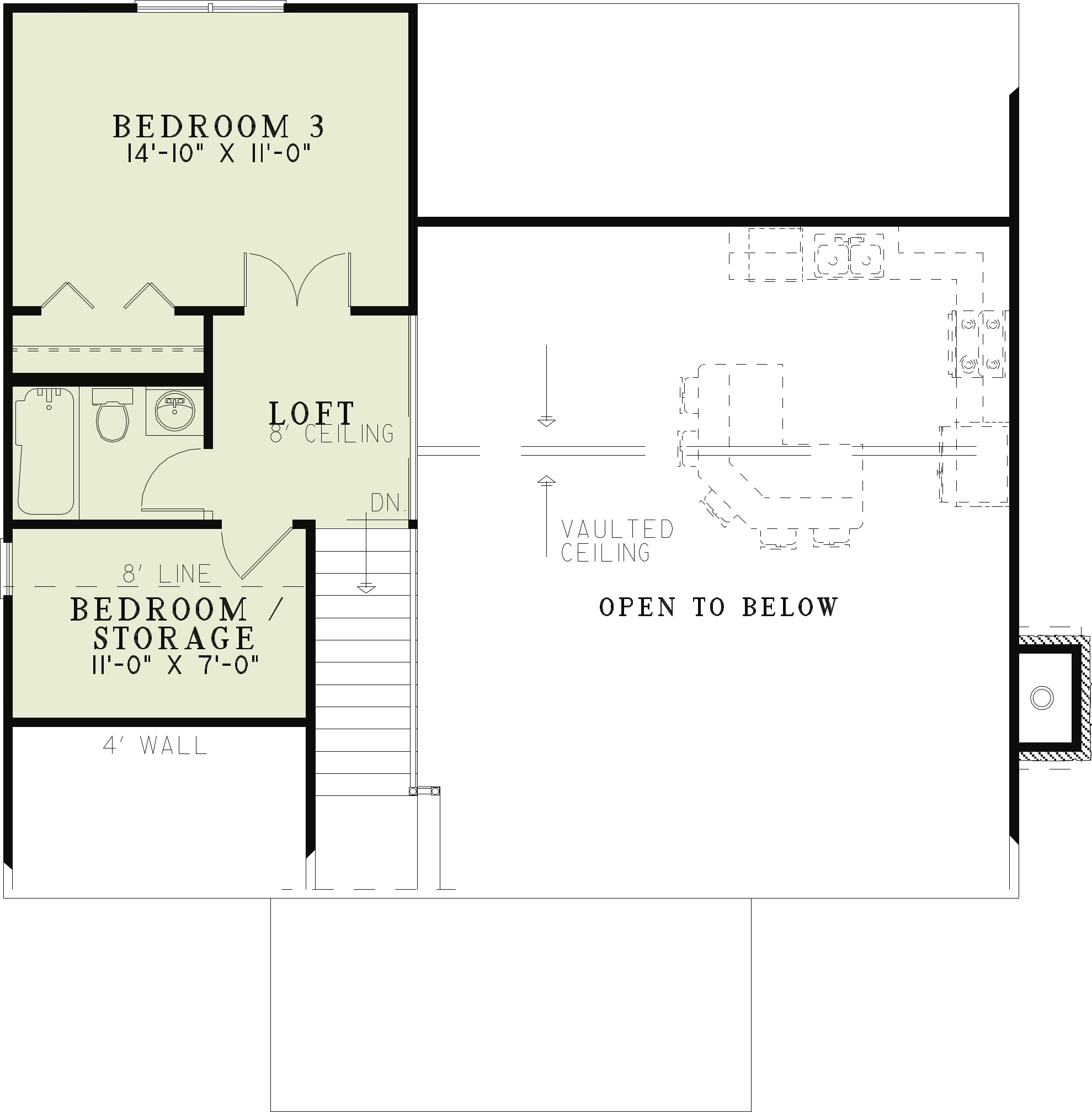

House Plan NDG 1191 Upper Floor
House Plan NDG 1191 Main Floor
House Plan NDG 1191 Upper Floor

Floor plans

NDG 1191

House Plan 1191 Bluff's Edge II, Riverbend House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1191
  • Total Living Space:1374Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 40
  • Width In.: 4
  • Depth Ft.: 41
  • Depth In.: 6

Description

They reveled in the beauty of the forests’ foliage as they hiked from the top of the mountain. Evergreens extended their arms to be touched by the sun’s rays. Animals scampered about the ground and the trees. The family hiked from the cabin many times, but the view ceased to take their breath away. The cabin sat on the edge of a bluff overlooking River Bend. The family vacations at Bluff’s Edge were always a much anticipated time for family and friends.

*For Slab, BSMT, or WOB options for this design, see plan NDG419

Specifications

  • Total Living Space:1374Sq.Ft.
  • Main Floor: 1070 Sq.Ft
  • Upper Floor (Sq.Ft.): 304 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 347 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1721 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Metal
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
