House Plan 1185 Beethoven Boulevard, Traditional House Plan

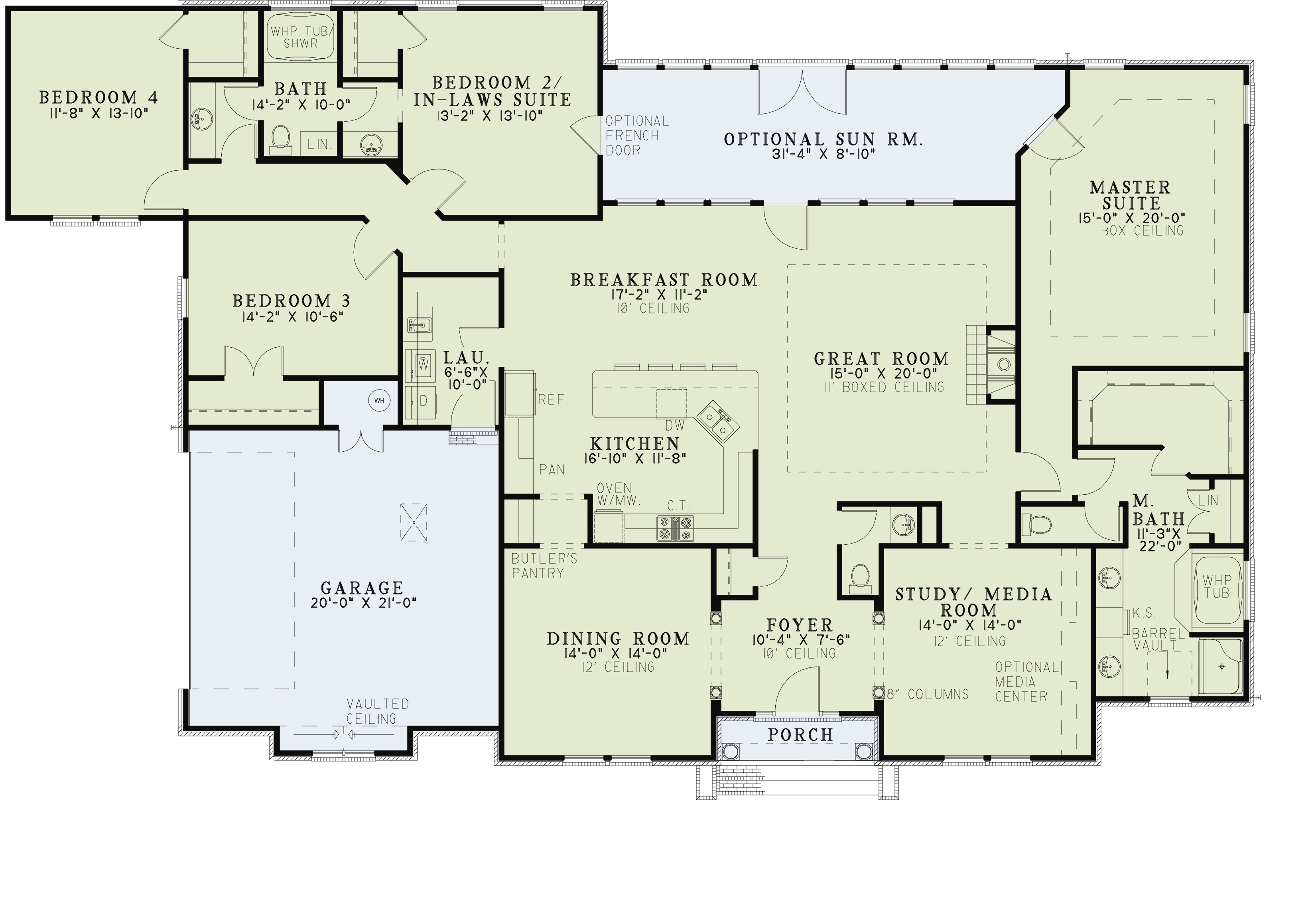

House Plan NDG 1185 Main Floor
>
House Plan NDG 1185 Main Floor

Floor plans

NDG 1185

House Plan 1185 Beethoven Boulevard, Traditional House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 1185
  • Total Living Space:2833Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 84
  • Width In.: N/A
  • Depth Ft.: 51
  • Depth In.: N/A

Description

This absolutely exquisite design by Nelson Design Group has two master suites giving the homeowner a world of options. A large foyer separates the formal dining room from the Study/optional media room, for the music enthusiast. The centrally located great room has a wall of windows giving view to the rear grilling porch or optional sun room. The well-planned kitchen and expansive breakfast room is divided by a breakfast bar with seating. Eleven and twelve-foot ceilings are used throughout creating a grand appearance while boxed ceilings enhance the great room and primary master suite.

Specifications

  • Total Living Space:2833Sq.Ft.
  • Main Floor: 2833 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 32 Sq.Ft.
  • Garage (Sq.Ft.): 434 Sq.Ft.
  • Total Square Feet: 3299 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
