House Plan 1179 Pettigrew Cove, Heritage House Plan

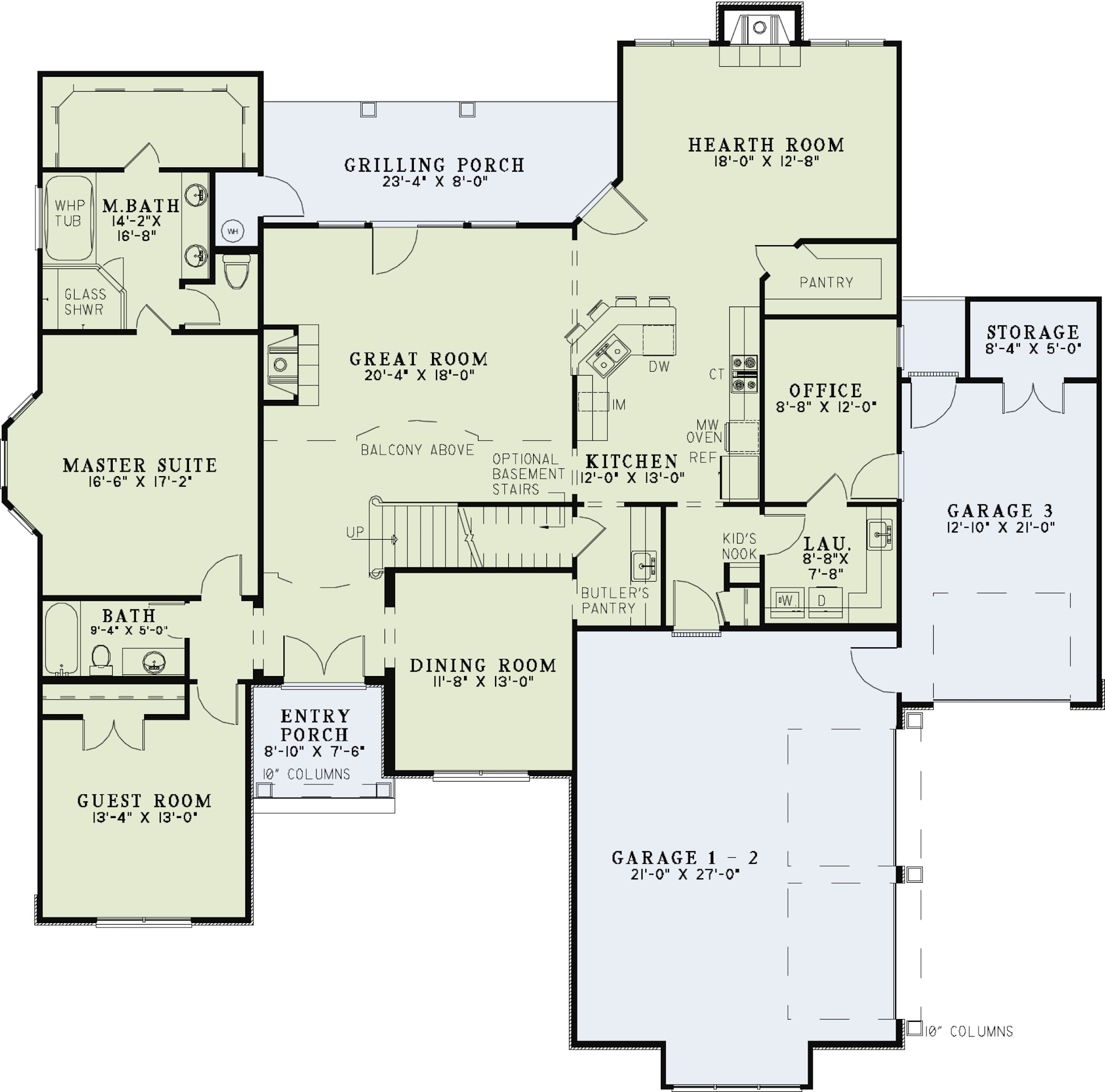

House Plan NDG 1179 Main Floor

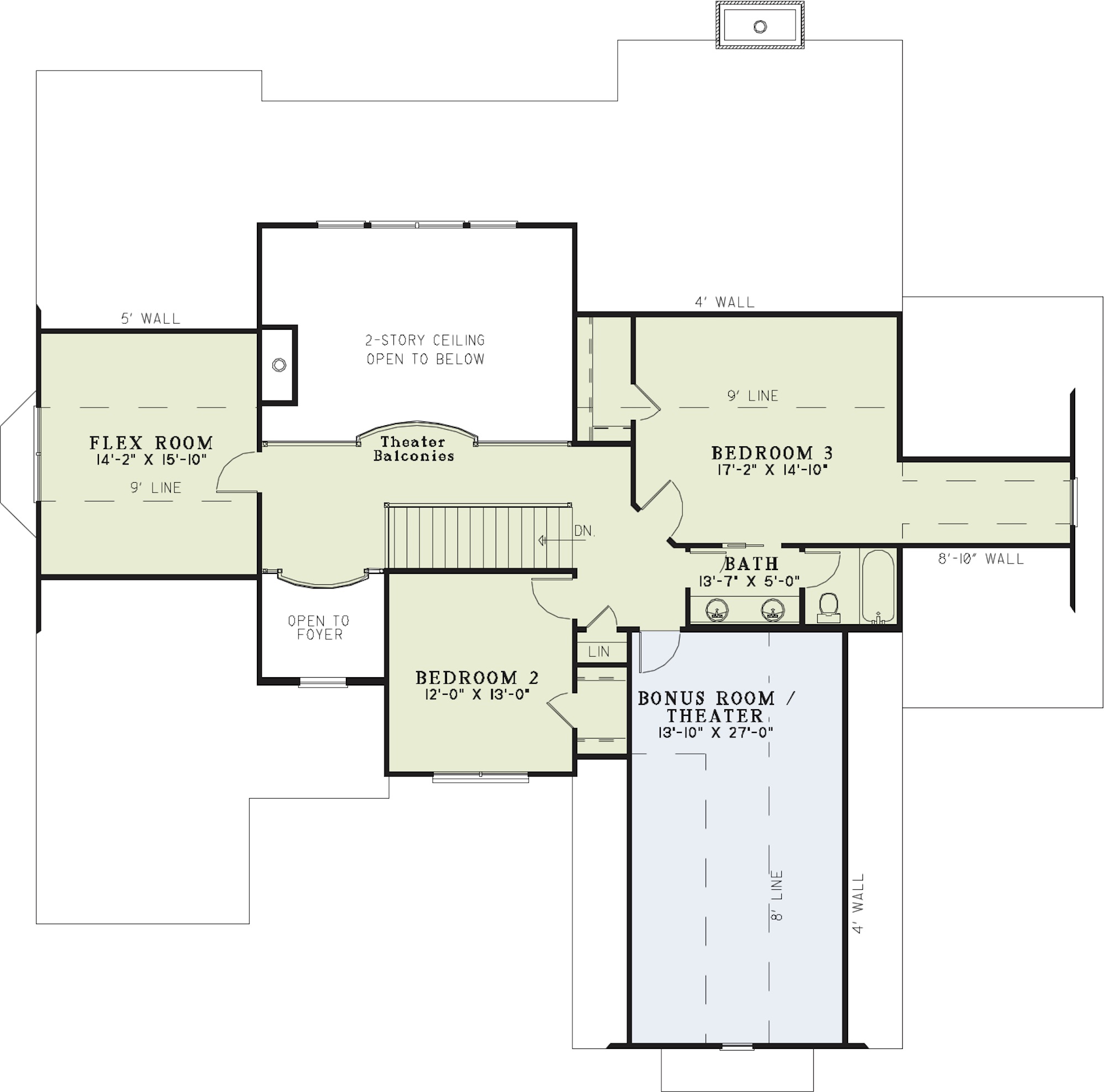

House Plan NDG 1179 Upper Floor
House Plan NDG 1179 Main Floor
House Plan NDG 1179 Upper Floor

Floor plans

NDG 1179

House Plan 1179 Pettigrew Cove, Heritage House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1179
  • Total Living Space:3425Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 72
  • Width In.: 4
  • Depth Ft.: 71
  • Depth In.: 4

Description

This well designed Traditional plan is part of our Heritage Collection. The front porch welcomes you into the great room with a fireplace and is open to the kitchen and hearth room. The kitchen features a wrap around island bar with an ice maker. And also features a walk-in pantry. The well designed laundry room connects from the kid's nook to an office. The master suite sets the mood with a bay window and the master bathroom completes the mood with a corner glass shower and whirlpool tub under a window. It also has a large walk-in closet. Upstairs continues with 2 theater balconies on the bridge that connects a flex room to the bedrooms 2 and 3, a full bathroom, and a bonus room/home theater.

Specifications

  • Total Living Space:3425Sq.Ft.
  • Main Floor: 2338 Sq.Ft
  • Upper Floor (Sq.Ft.): 1087 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 394 Sq.Ft.
  • Porch (Sq.Ft.): 248 Sq.Ft.
  • Garage (Sq.Ft.): 950 Sq.Ft.
  • Total Square Feet: 5017 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
