House Plan 1146 Delta Court, Multi-Family House Plan
Floor plans
NDG 1146
House Plan 1146 Delta Court, Multi-Family House Plan
PDF: $1,550.00
Plan Details
- Plan Number: NDG 1146
- Total Living Space:1687Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: Yes 1 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 78
- Width In.: 8
- Depth Ft.: 54
- Depth In.: 1
Description

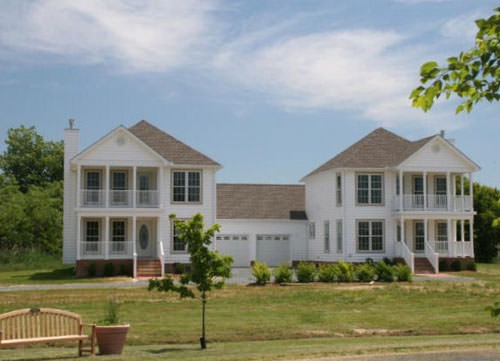

This design from Nelson Design Group breathes new life into the term “duplex”. Each home includes a two-story covered porch with columns to provide the perfect shade for sunny days. A large living area with fireplace is adjacent to the dining room with columns at the entry. You’ll find a bar with additional seating dividing the kitchen from the dining room. A private, amenity-filled master suite completes the main level of each home. The upper floor houses two secondary bedrooms with porch access and a built-in computer desk. Each home also includes a one-car garage, the connecting point for this duplex design.
Specifications
- Total Living Space:1687Sq.Ft.

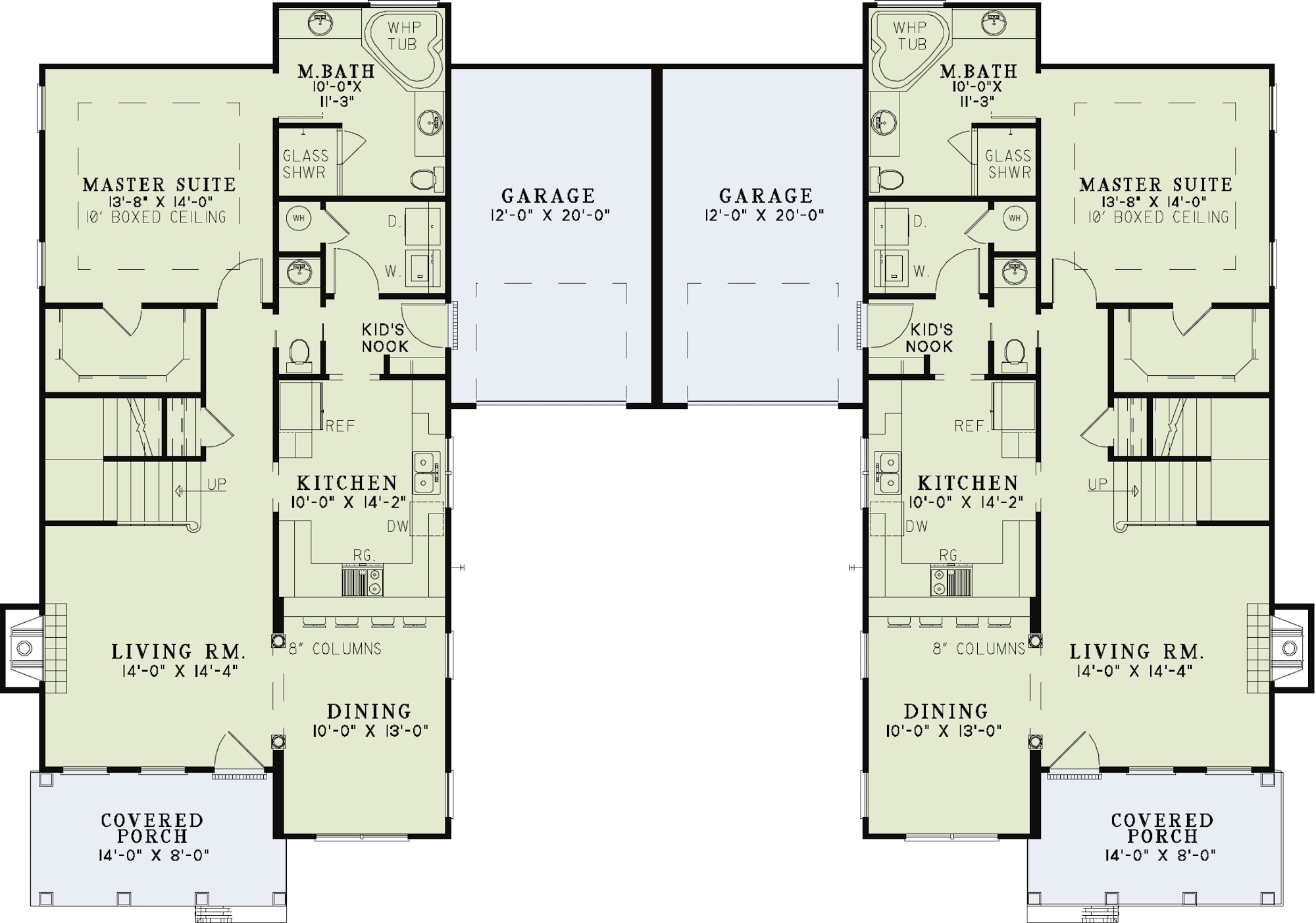

- Main Floor: 1140 Sq.Ft

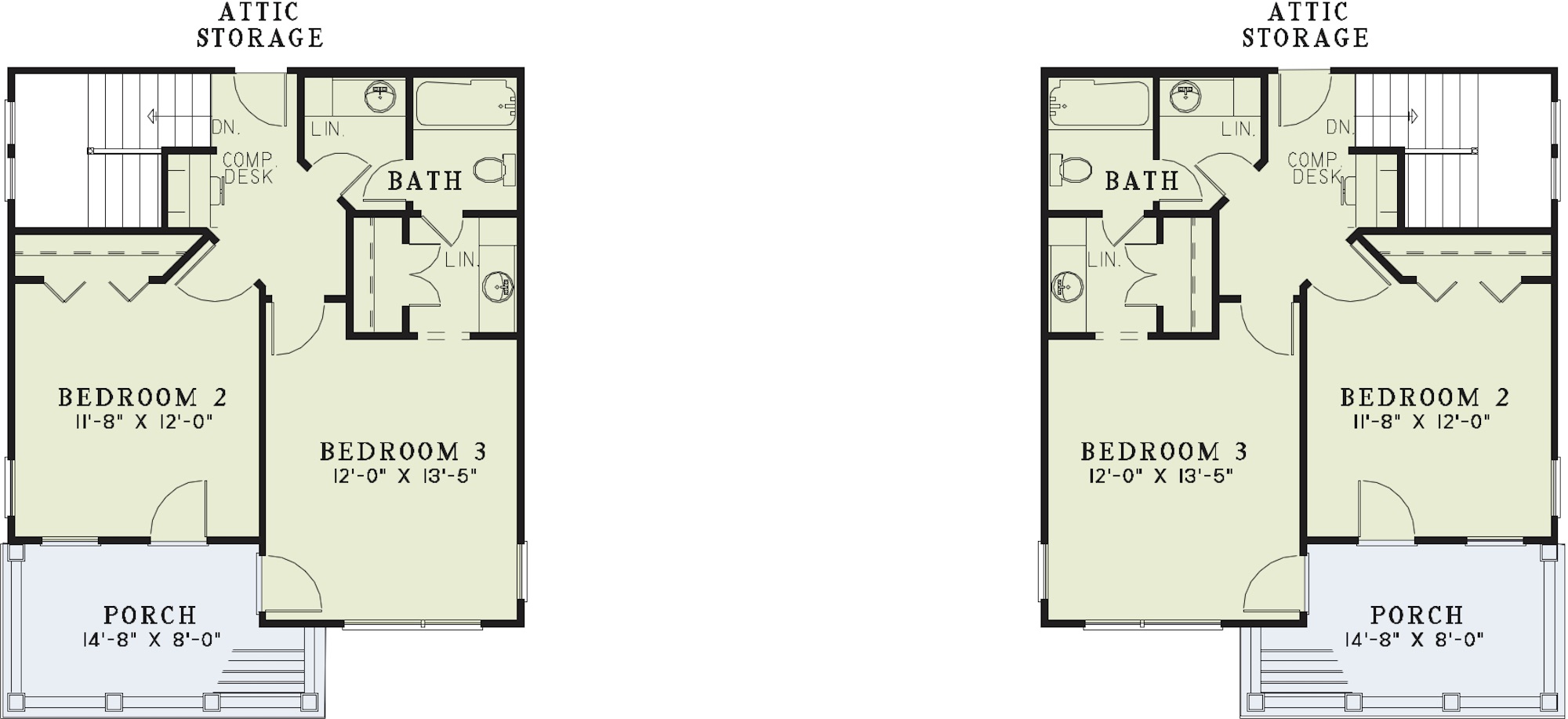

- Upper Floor (Sq.Ft.): 547 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 238 Sq.Ft.
- Garage (Sq.Ft.): 255 Sq.Ft.
- Total Square Feet: 2180 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 9:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 28
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
