House Plan 1137 Antigua, Tuscany Village House Plan

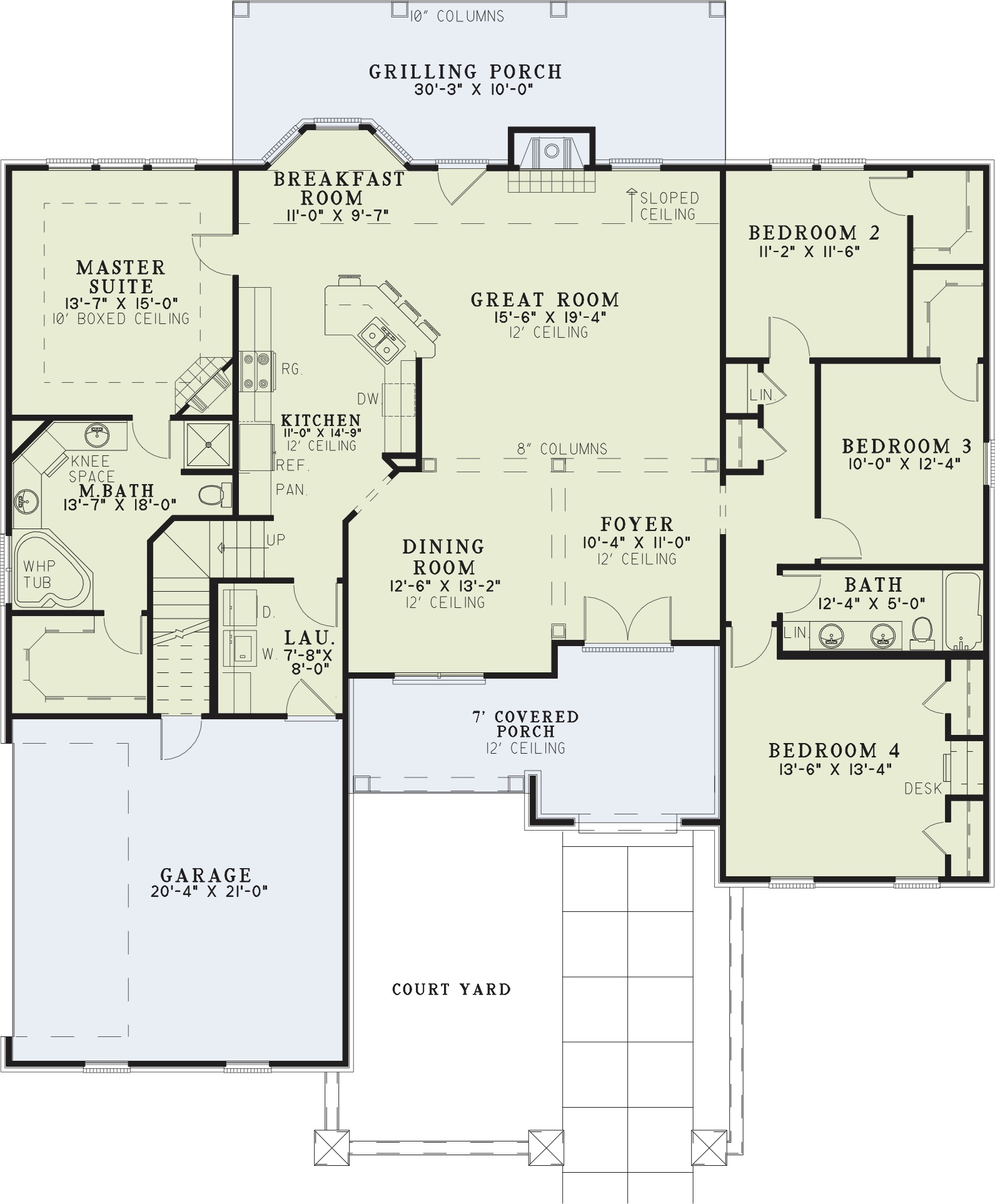

Floor plans
NDG 1137
House Plan 1137 Antigua, Tuscany Village House Plan
Plan Details
- Plan Number: NDG 1137
- Total Living Space:2135Sq.Ft.
- Bedrooms: 4
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 60
- Width In.: 4
- Depth Ft.: 70
- Depth In.: 8
Description
Just after we were married we spent a week in Toscana Italy. The bed and breakfast where we stayed was a very old, quaint villa on the outskirts of town. We spent our days touring the small villages in the area and our evenings dining in spectacular restaurants. We chose the Antigua design because of the charming Tuscan influence. Now we wake up each morning in our very own charming villa.
Specifications
- Total Living Space:2135Sq.Ft.
- Main Floor: 2135 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A

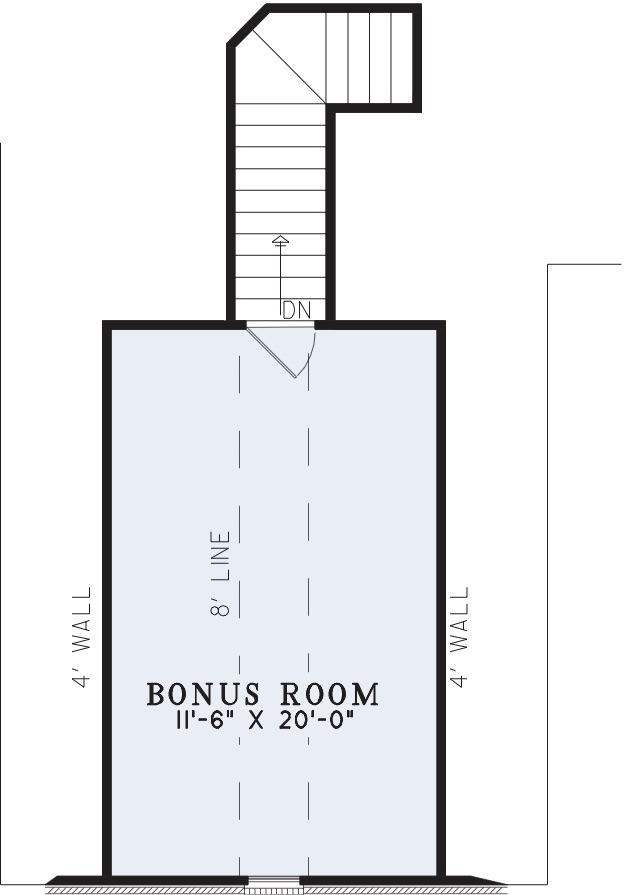

- Bonus Room (Sq.Ft.): 285 Sq.Ft.
- Porch (Sq.Ft.): 488 Sq.Ft.
- Garage (Sq.Ft.): 478 Sq.Ft.
- Total Square Feet: 3386 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Tile
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 28
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
