House Plan 1120 Elaine, Traditional House Plan

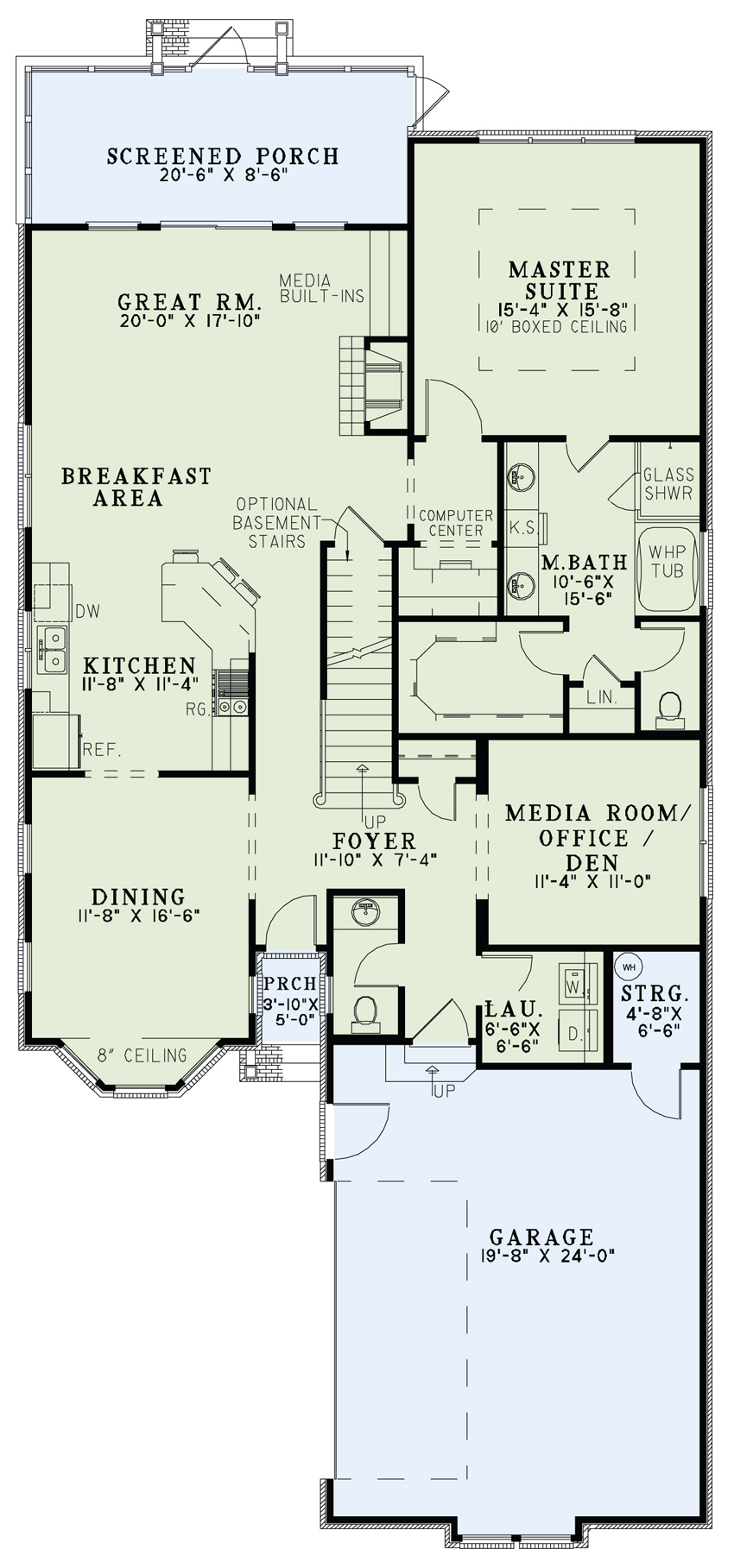

House Plan NDG 1120 Main Floor

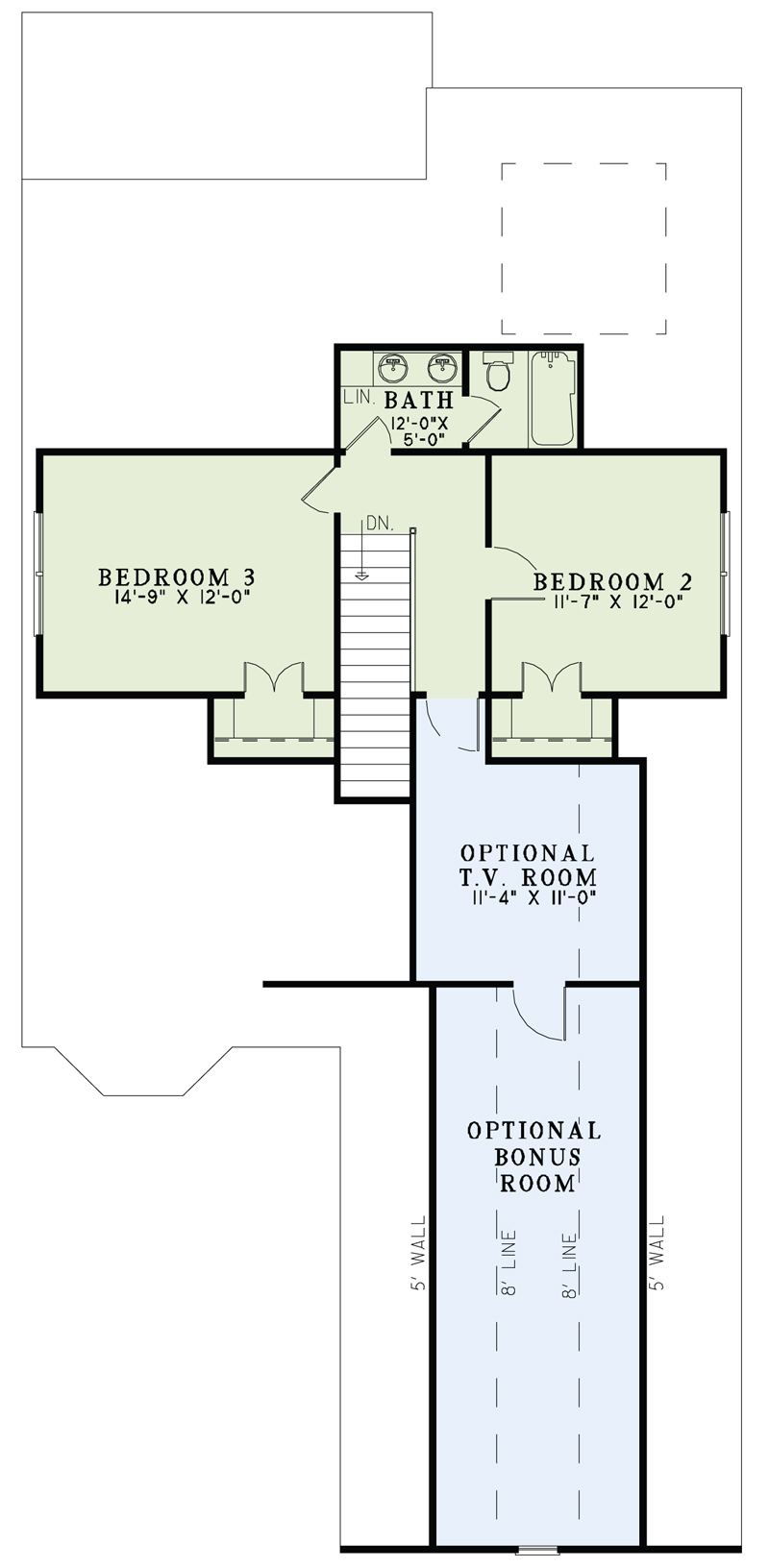

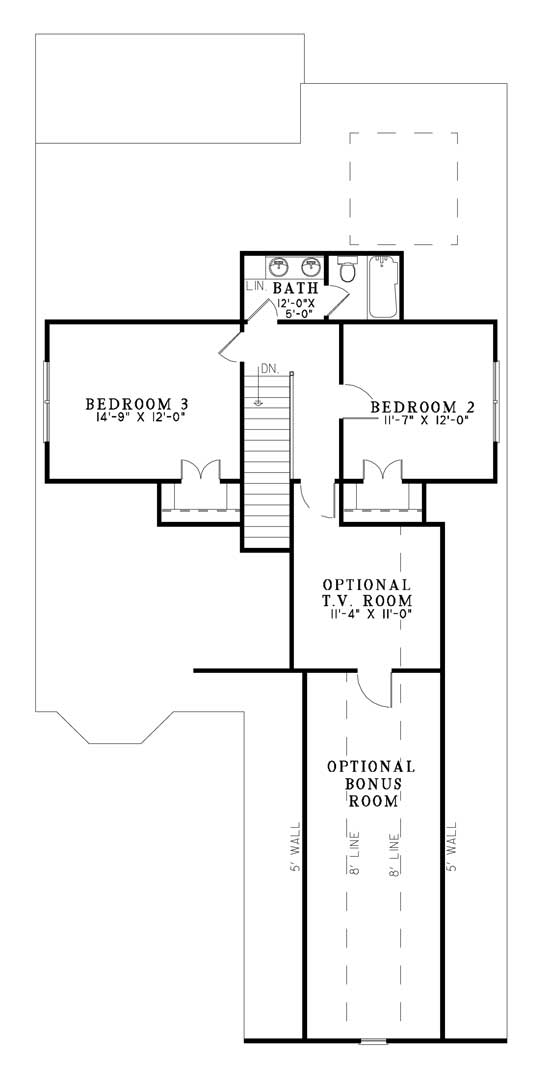

House Plan NDG 1120 Upper Floor
House Plan NDG 1120 Main Floor
House Plan NDG 1120 Upper Floor

Floor plans

NDG 1120

House Plan 1120 Elaine, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 1120
  • Total Living Space:2188Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 36
  • Width In.: 6
  • Depth Ft.: 79
  • Depth In.: 8

Description

Welcome your guests into your dream home everyday with this Nelson Design Group home. Entertain in the generous great room with fireplace and built-in media shelving. Prepare meals in your well-equipped kitchen and serve them in the nearby dining room with bay window. This master suite will be your favorite place to relax. The bedroom is accented by a ten-foot boxed ceiling while the bathroom features a huge walk-in closet, whirlpool tub, and glass shower. Upstairs, find two additional bedrooms, a full bath, and an optional TV and bonus room.

Specifications

  • Total Living Space:2188Sq.Ft.
  • Main Floor: 1663 Sq.Ft
  • Upper Floor (Sq.Ft.): 525 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 465 Sq.Ft.
  • Porch (Sq.Ft.): 195 Sq.Ft.
  • Garage (Sq.Ft.): 544 Sq.Ft.
  • Total Square Feet: 3392 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
