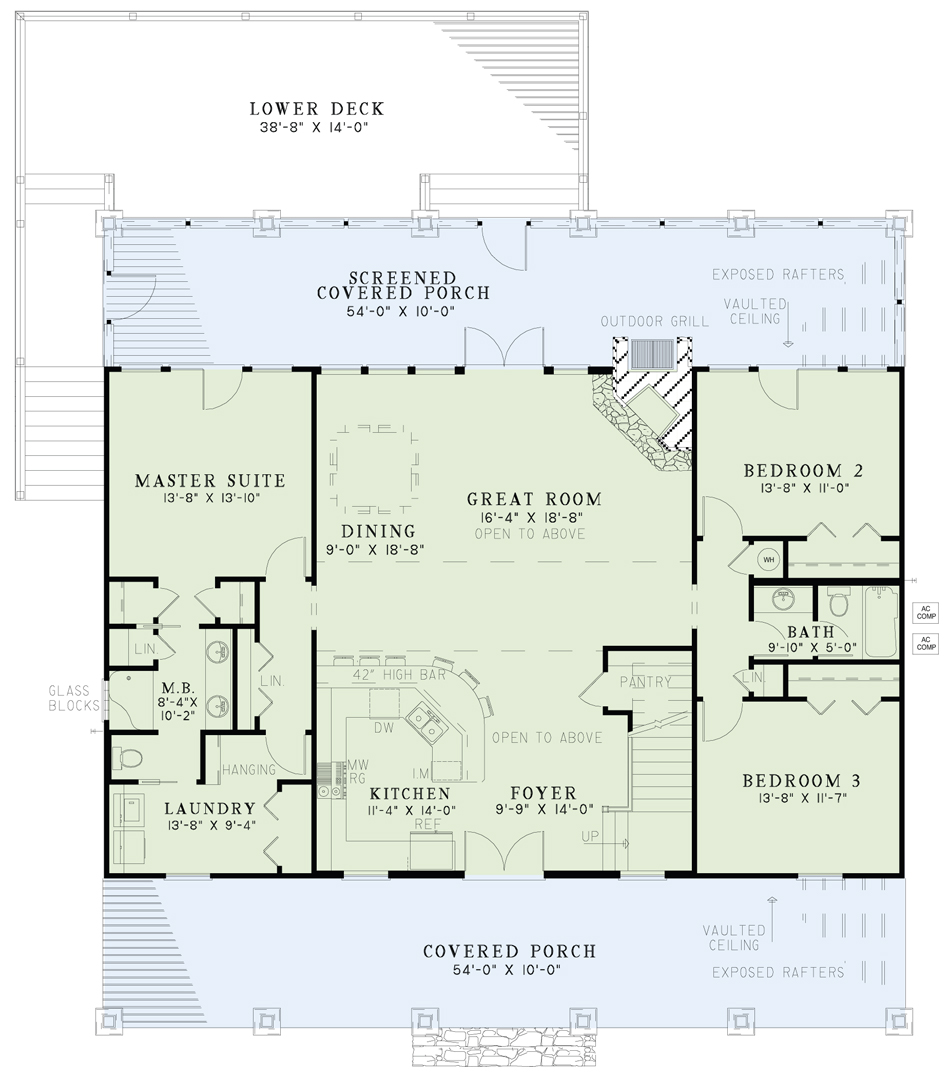

House Plan NDG 1114 Main Floor
House Plan NDG 1114 Upper Floor

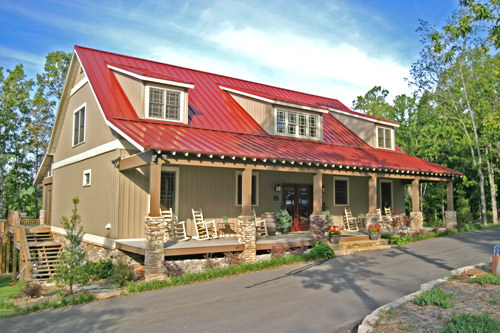

House Plan - 1114frontp Front View

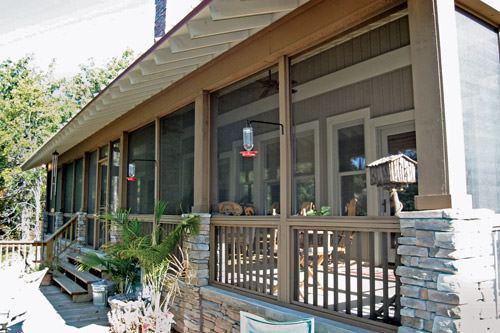

House Plan - 1114rearp Rear Porch

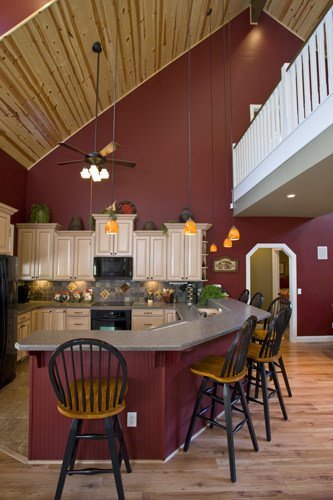

House Plan - 1114Kitchenp Kitchen

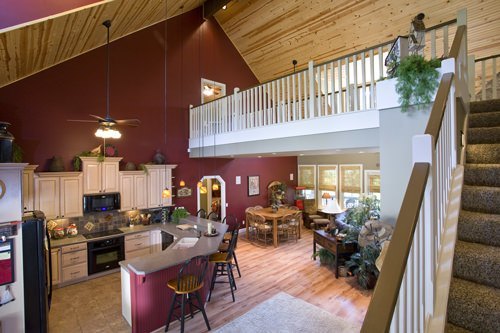

House Plan - 1114KitDiningp Kitchen and Dinning Room

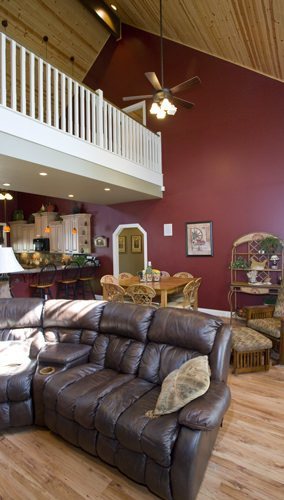

House Plan - 1114LivingRm2 Great Room

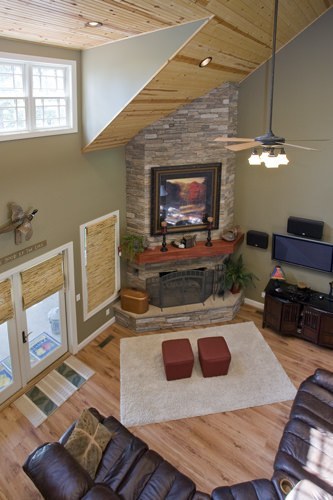

House Plan - 1114LivingRm3p Great Room

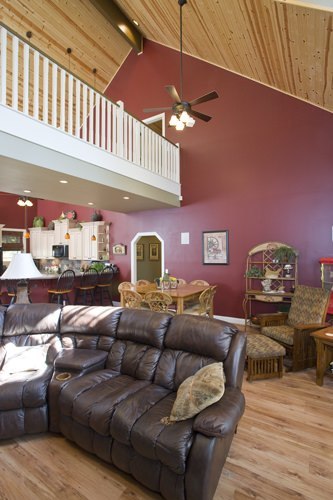

House Plan - 1114LivingRm4p Great Room and Dinning Area

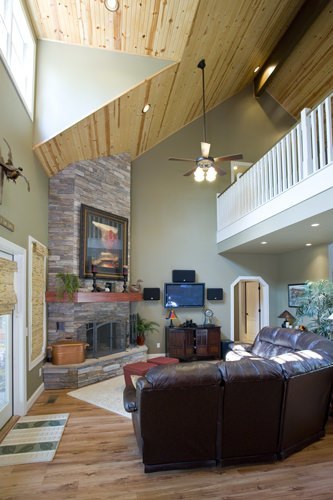

House Plan - 1114LivingRmp Great Room

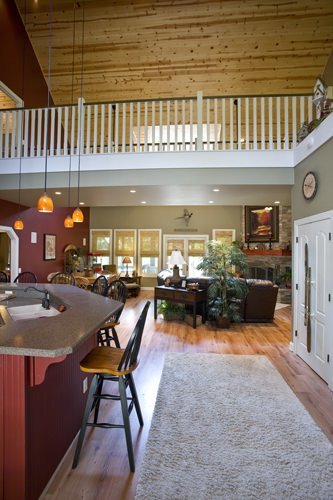

House Plan - 1114BigView2p Dinning Room to Great Room

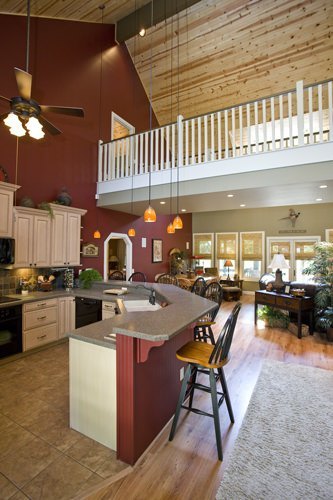

House Plan - 1114BigView3p Dinning Room
House Plan NDG 1114 Main Floor
House Plan NDG 1114 Upper Floor
House Plan - 1114frontp Front View
House Plan - 1114rearp Rear Porch
House Plan - 1114Kitchenp Kitchen
House Plan - 1114KitDiningp Kitchen and Dinning Room
House Plan - 1114LivingRm2 Great Room
House Plan - 1114LivingRm3p Great Room
House Plan - 1114LivingRm4p Great Room and Dinning Area
House Plan - 1114LivingRmp Great Room
House Plan - 1114BigView2p Dinning Room to Great Room
House Plan - 1114BigView3p Dinning Room

Floor plans

House Plan NDG 1114 Main Floor

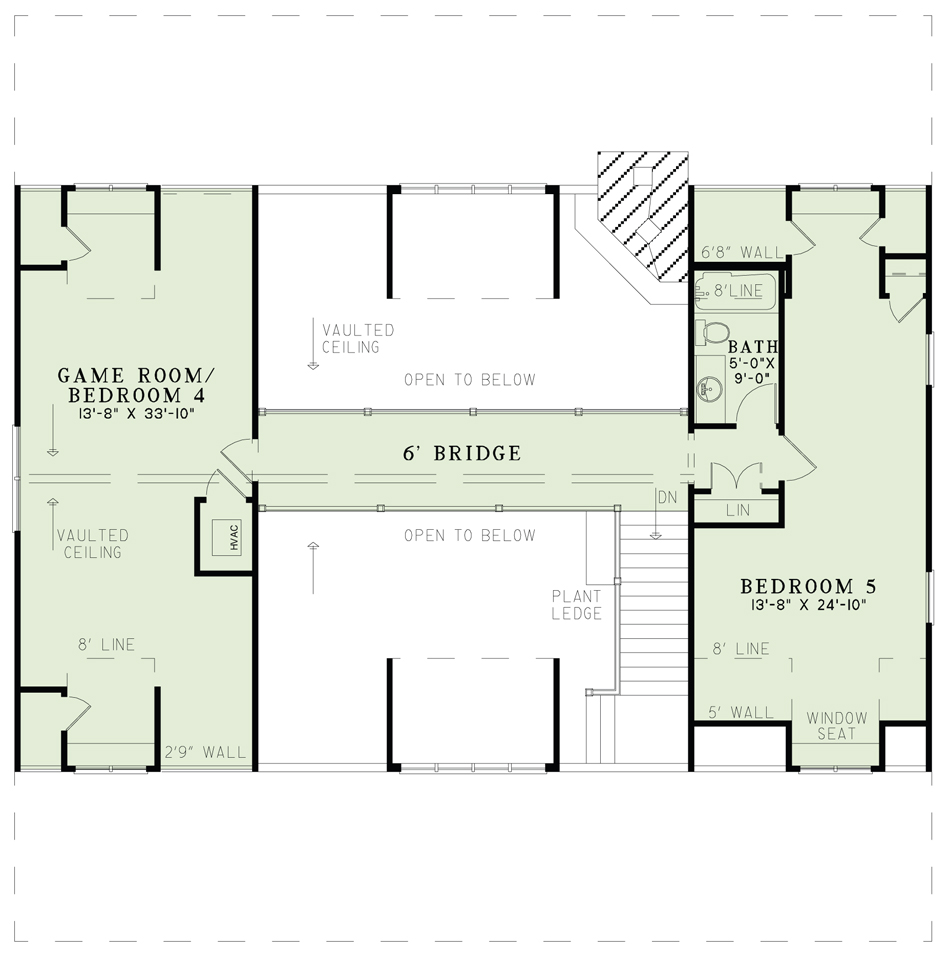

House Plan NDG 1114 Upper Floor
NDG 1114

House Plan 1114 Lake House Retreat, Riverbend House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1114
  • Total Living Space:2704 Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: No
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 60
  • Width In.: 6
  • Depth Ft.: 68
  • Depth In.: 6

Description

This retreat is part of our Riverbend Collection and is stocked with porches and decks. The massive front porch welcomes you in from the summer heat to the foyer and kitchen. The kitchen features a wrap around bar perfect for entertaining and quick meals. The large great room features a stone corner fireplace. Head out back to the huge screened porch featuring an outdoor grill for the barbeque enthusiast. Or enjoy the night sky on the lower deck. 3 bedrooms are downstairs with 2 more upstairs making this a perfect retreat for the family.

Specifications

  • Total Living Space:2704 Sq.Ft.
  • Main Floor: 1863 Sq.Ft
  • Upper Floor (Sq.Ft.): 841 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1080 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 3784 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
