House Plan 1112 Chateau Cove, European House Plan

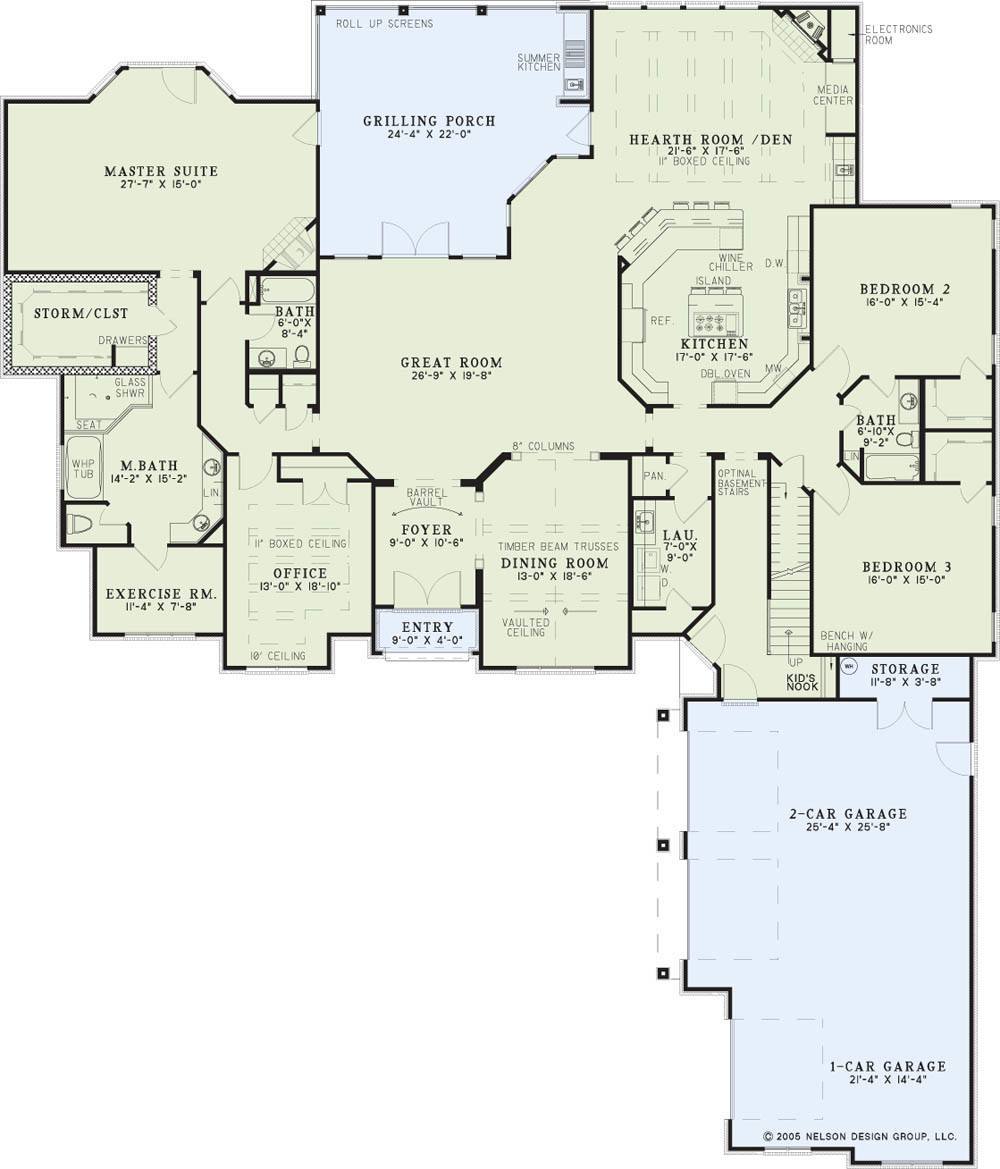

House Plan NDG 1112 Main Floor

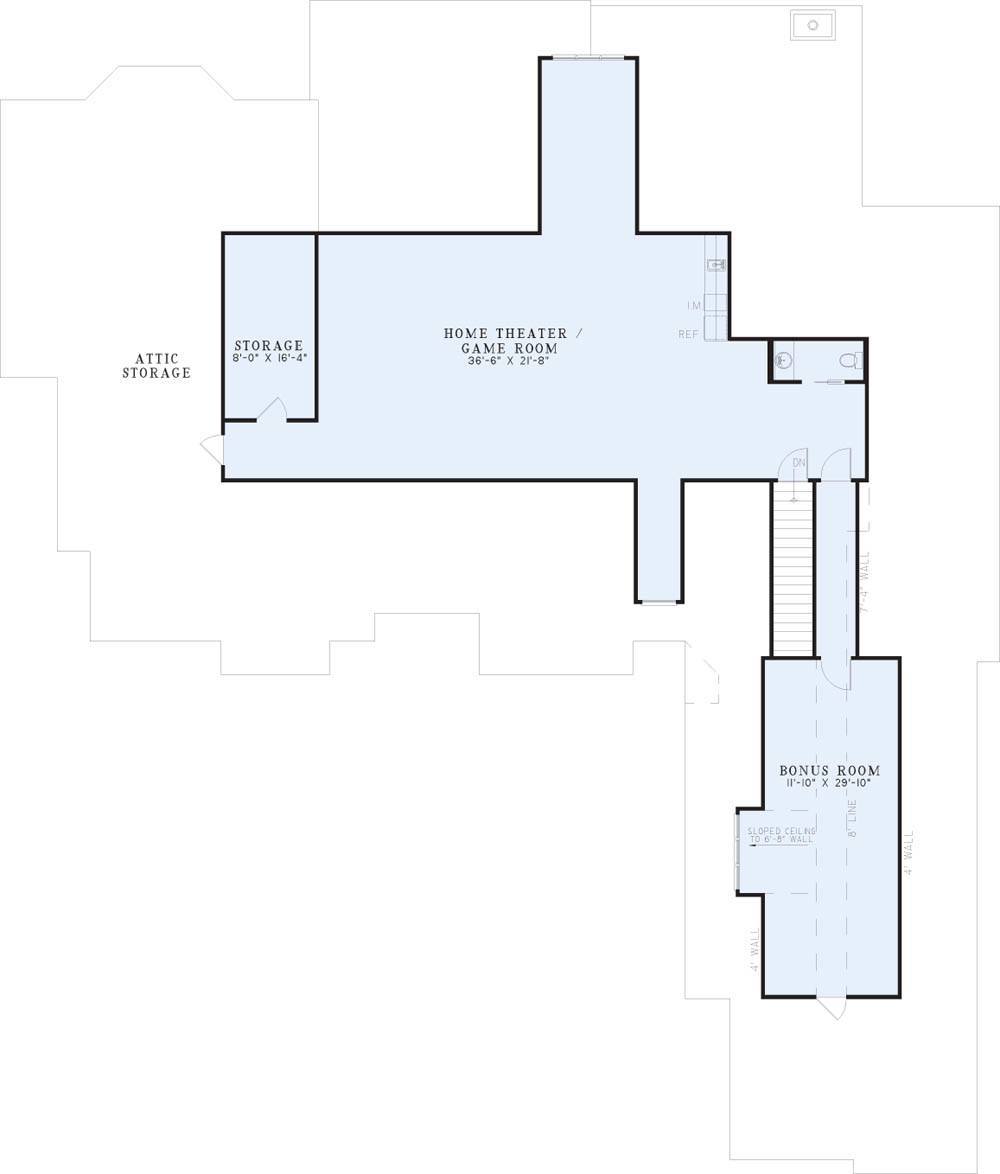

House Plan NDG 1112 Upper Floor
House Plan - NDG 1112 Front Door

Floor plans

NDG 1112

House Plan 1112 Chateau Cove, European House Plan

PDF: $2,250.00

Plan Details

  • Plan Number: NDG 1112
  • Total Living Space:4121Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 89
  • Width In.: N/A
  • Depth Ft.: 104
  • Depth In.: N/A

Description

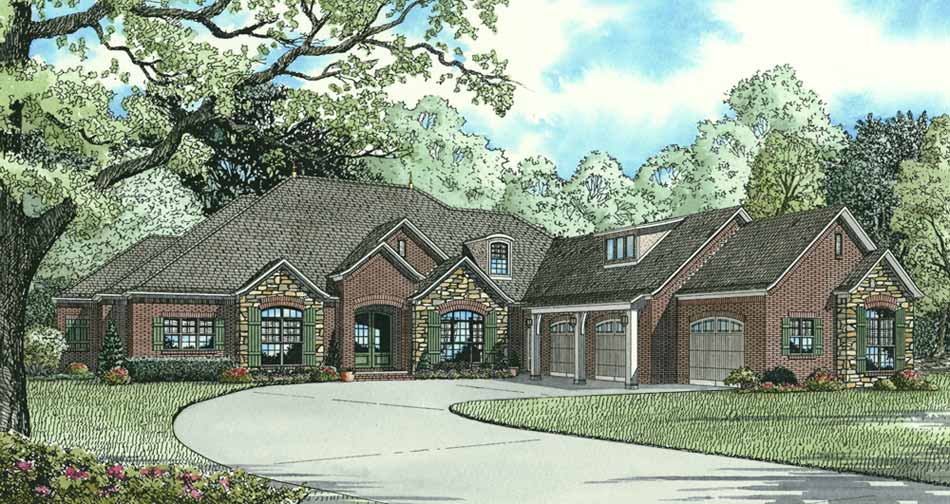

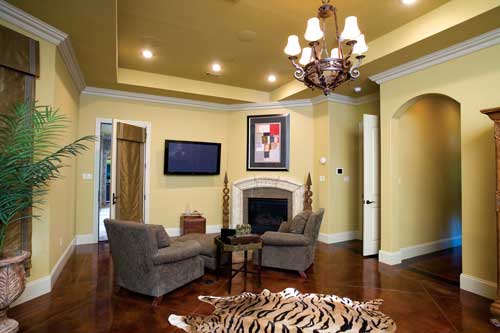

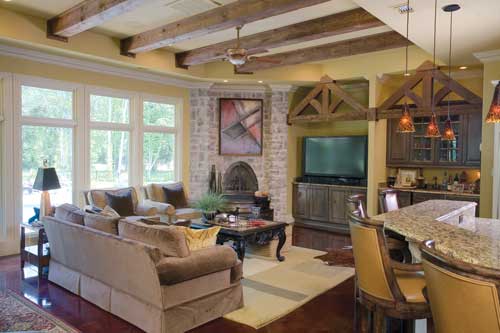

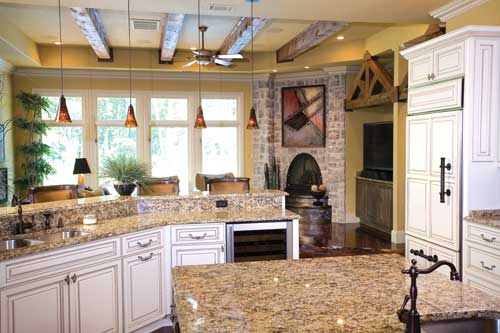

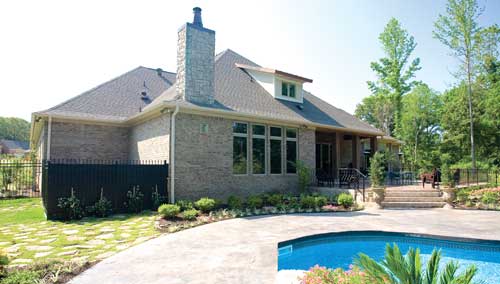

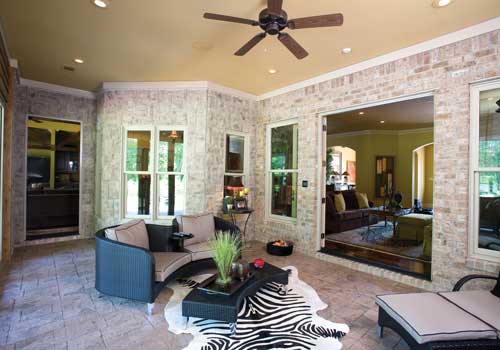

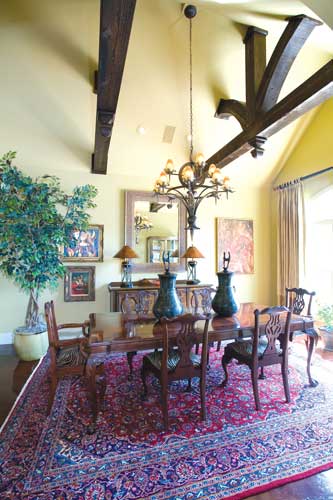

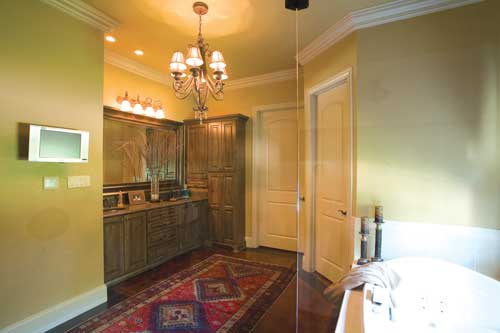

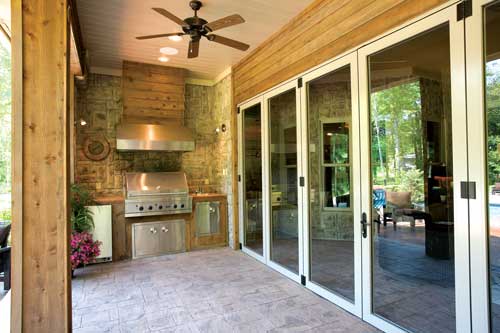

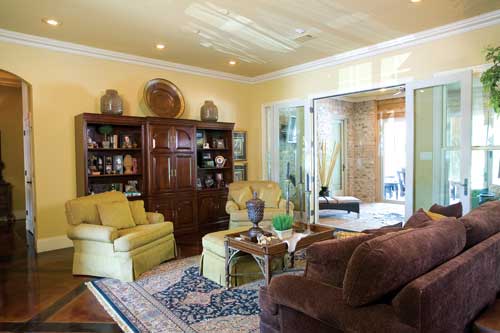

This European style house has an open floor plan, spacious outdoor living and fabulous master suite. Brick and stone create a gorgeous exterior combination for this Nelson Design Group home. Unique amenities abound in this design from the exposed timber trusses in the dining room to the storm closet included in the master suite. An elegant, open space is created by the great room and hearth room as they merge together. Head out to the grilling porch with a convenient summer kitchen and roll up the screens for a meal a little closer to nature. This sprawling master suite will call your name at the end of the day. A corner fireplace, whirlpool tub, and a private exercise room are just a few of the reasons you will love this home.

Proposed Game Room is 1336 SQ. FT. and Bonus Room is 464 SQ.FT. Total for both is 1800 SQ.FT

Specifications

  • Total Living Space:4121Sq.Ft.
  • Main Floor: 4121 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1800 Sq.Ft.
  • Porch (Sq.Ft.): 276 Sq.Ft.
  • Garage (Sq.Ft.): 1055 Sq.Ft.
  • Total Square Feet: 7252 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($2,250.00)
    • CAD ($4,500.00)
    • Five Set ($2,350.00)
    • PDF ($2,250.00)
    • PDF + Unlimited Build ($2,950.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
