House Plan 1094 Appalachian, American Woodlands House Plan

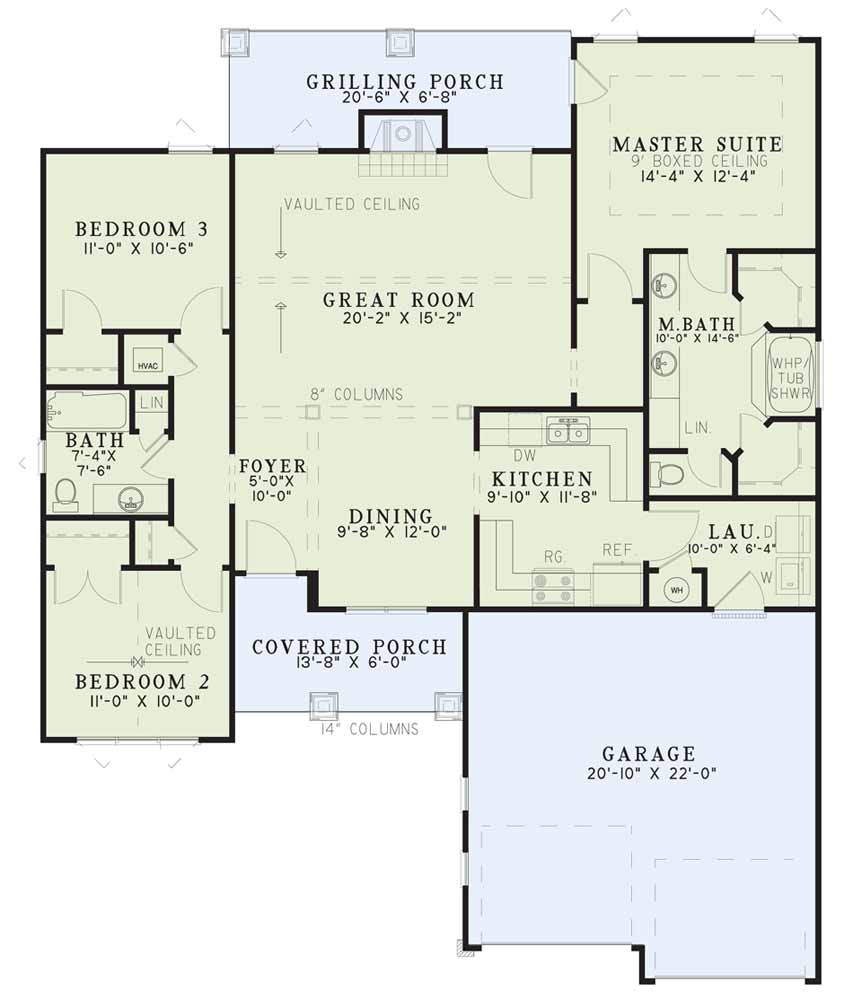

House Plan NDG 1094 Main Floor
House Plan NDG 1094 Main Floor

Floor plans

NDG 1094

House Plan 1094 Appalachian, American Woodlands House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1094
  • Total Living Space:1485Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 46
  • Width In.: 10
  • Depth Ft.: 56
  • Depth In.: 10

Description

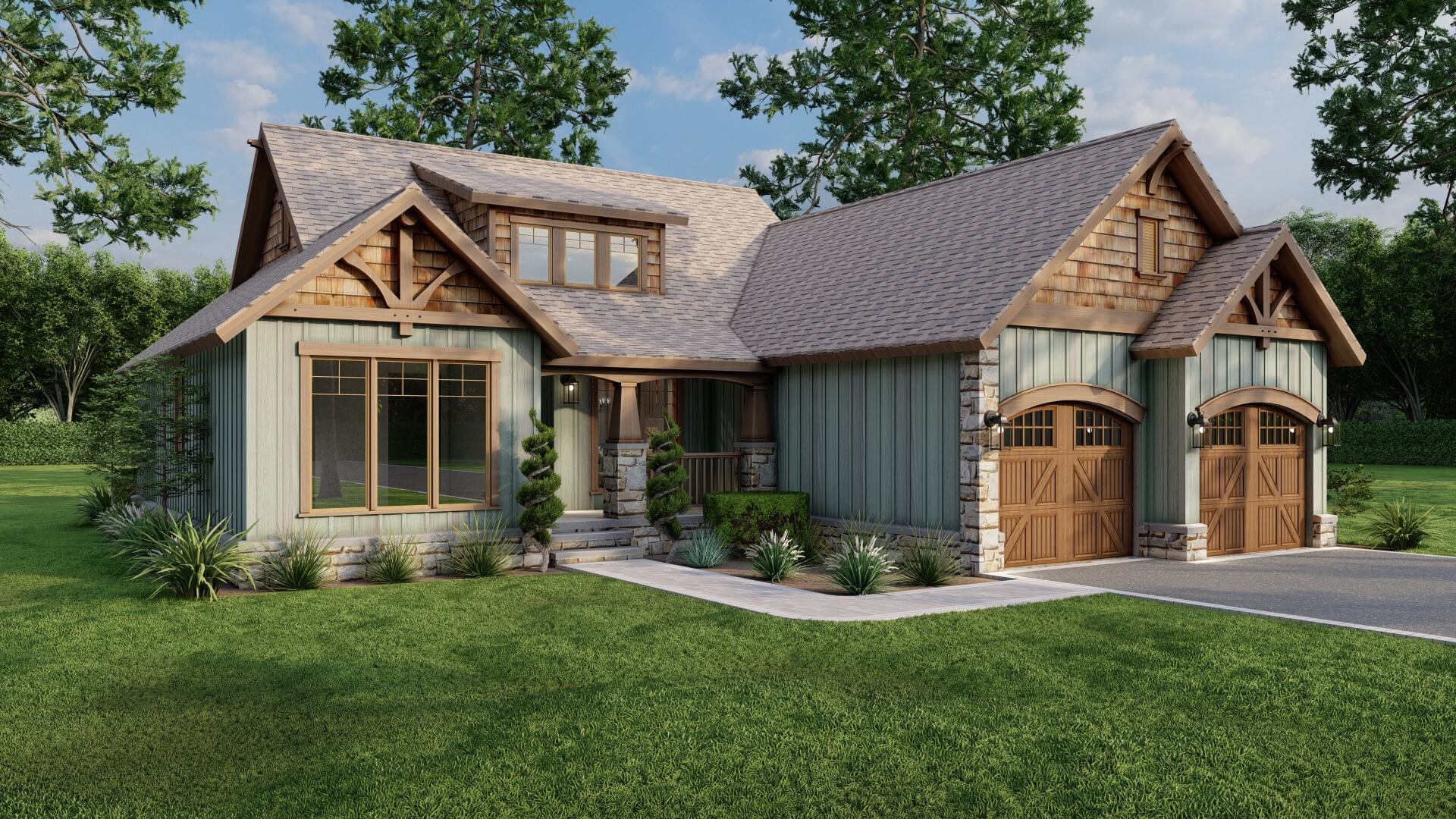

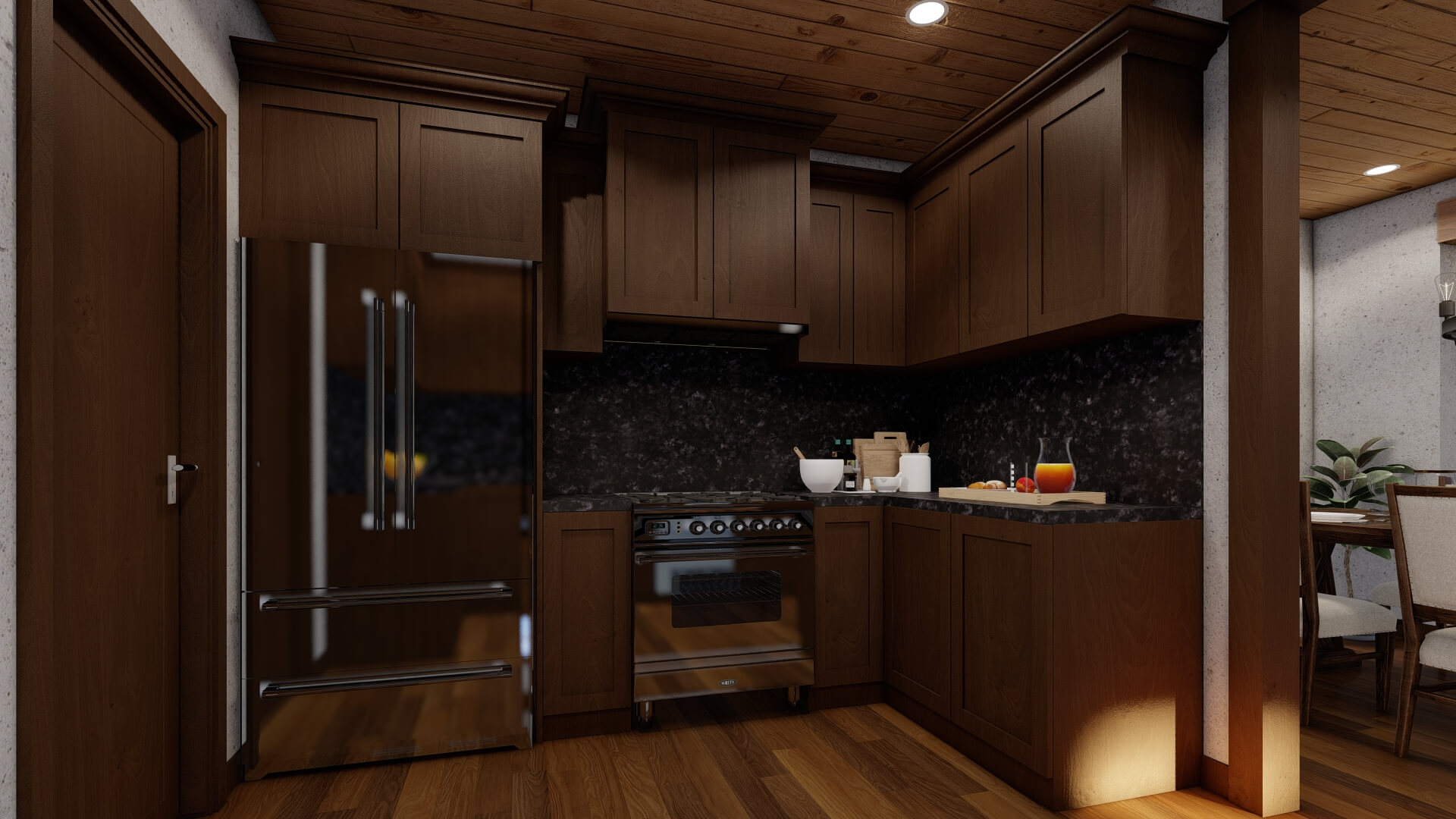

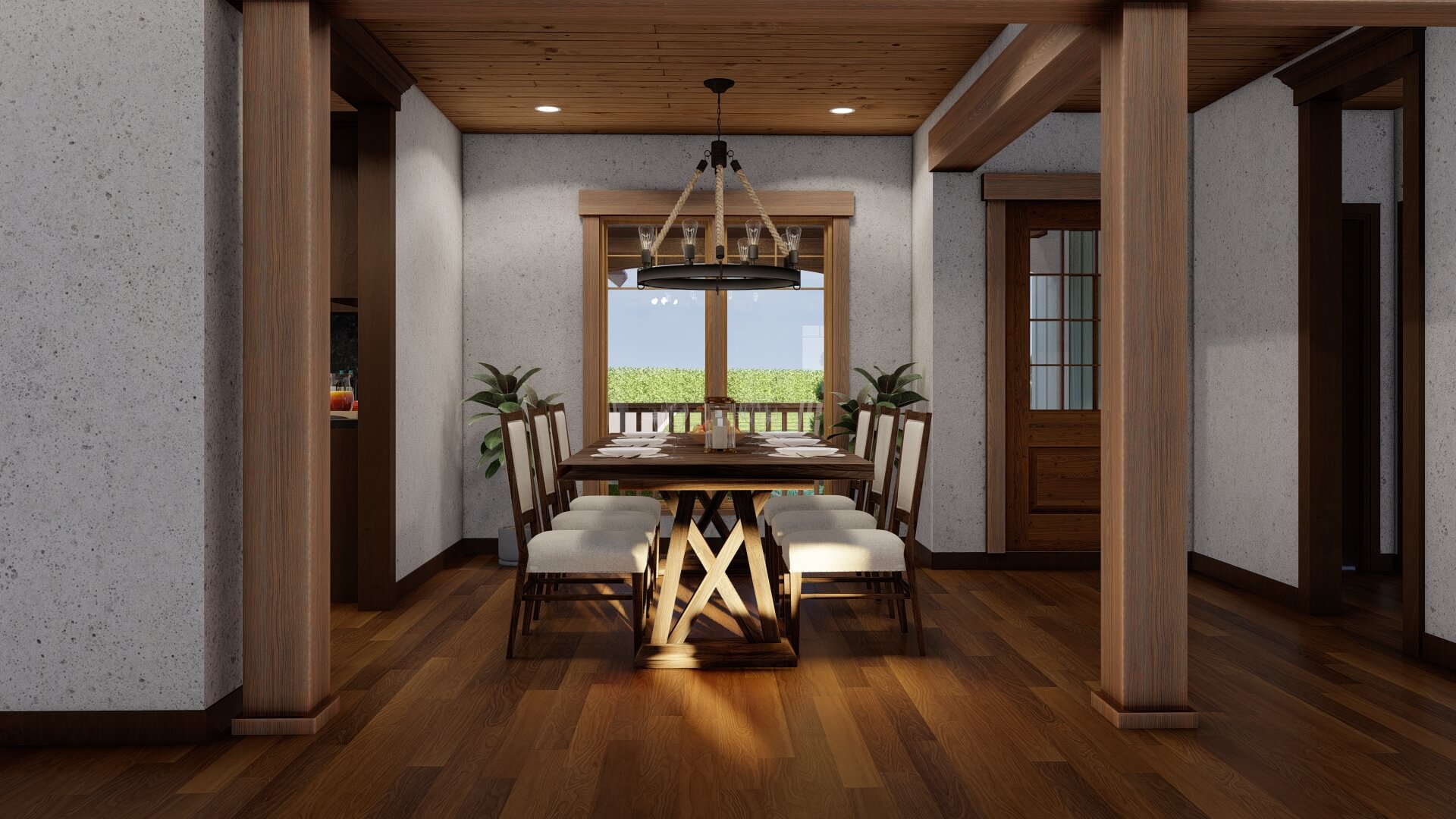

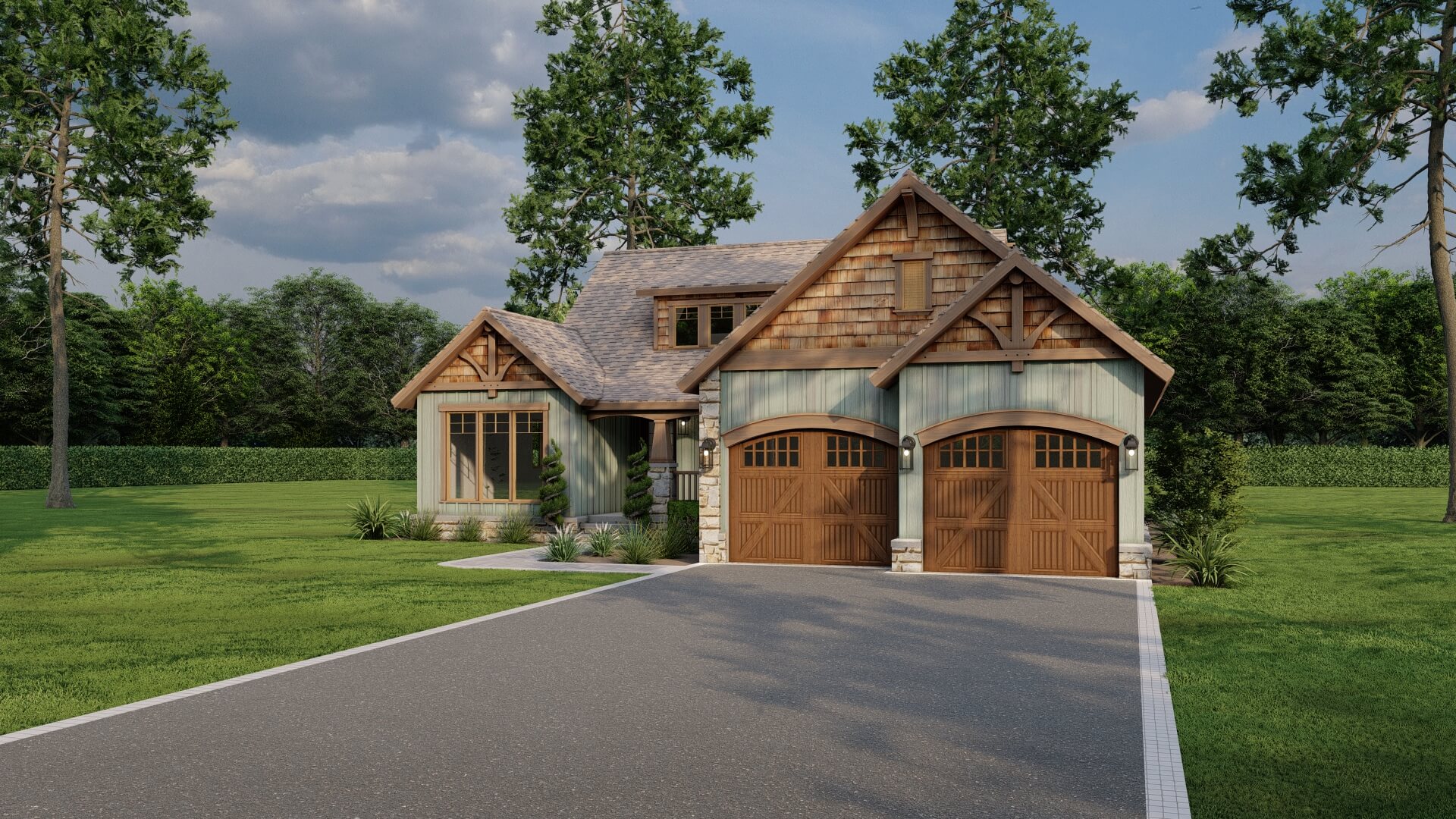

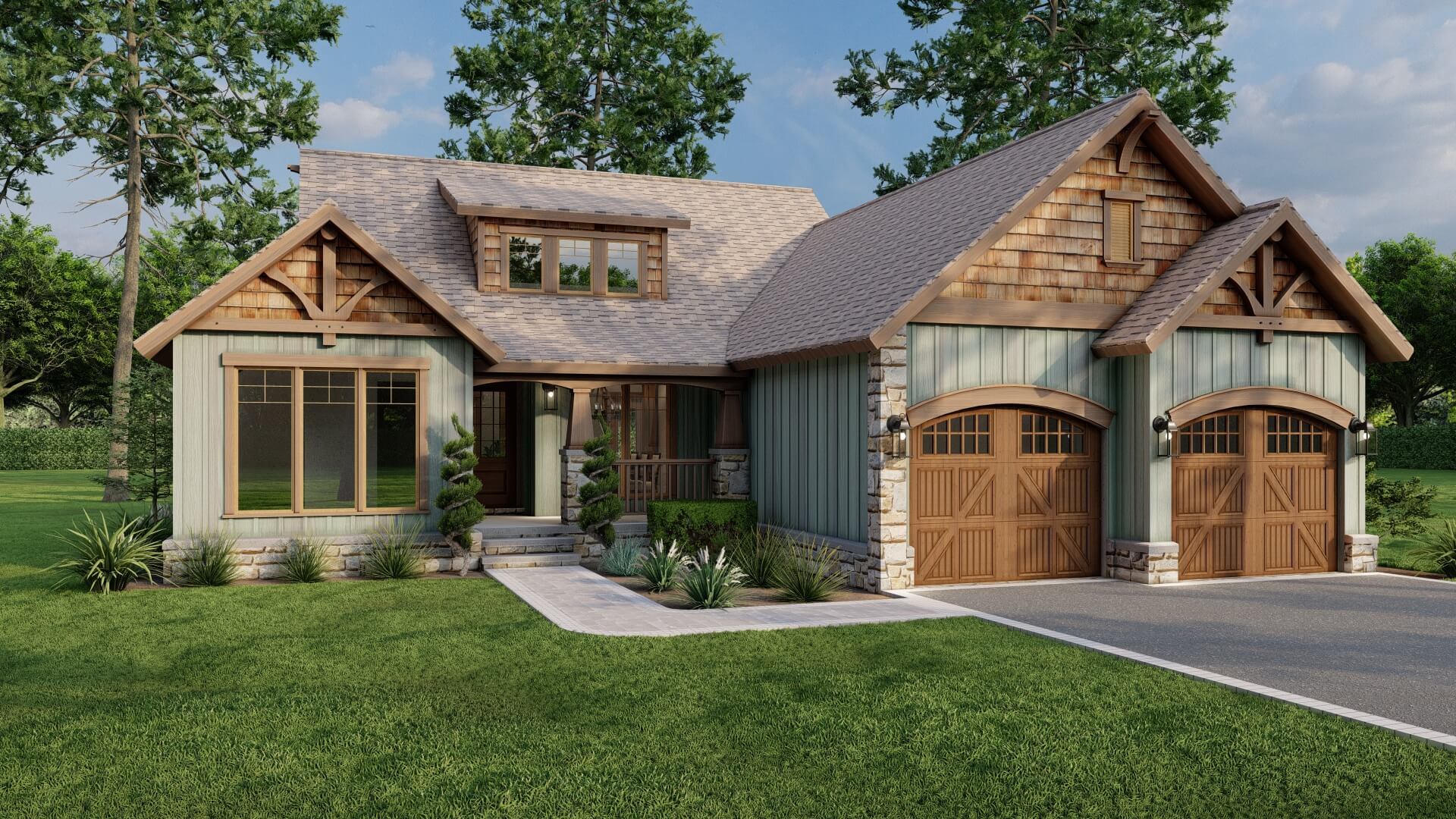

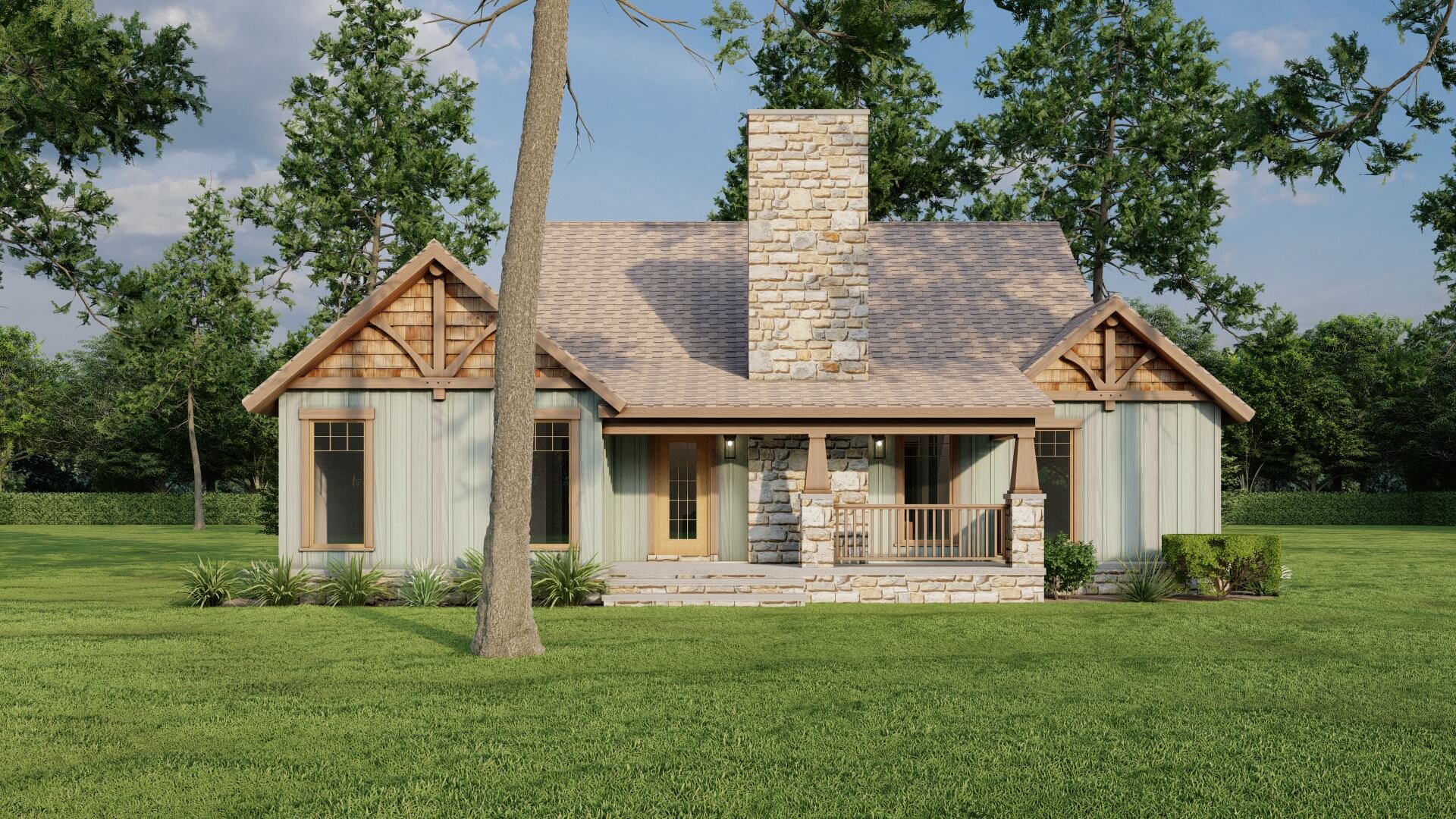

Rustic Mountain Style House Design. This home features craftsman style charm providing a focal point for great appeal. An expansive great room with the vaulted ceiling and romantic fireplace combines with the formal dining room allowing for the ultimate in relaxation. A well-designed kitchen has abundant storage and a conveniently located laundry room with garage access. The master suite has private access to the rear porch and a private bathroom with two walk-in closets. The split bedroom design allows plenty of space for the children.

Specifications

  • Total Living Space:1485Sq.Ft.
  • Main Floor: 1485 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 228 Sq.Ft.
  • Garage (Sq.Ft.): 459 Sq.Ft.
  • Total Square Feet: 2172 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
