House Plan 1088 Simpson, Country House Plan

House Plan NDG 1088 Main Floor
House Plan NDG 1088 Main Floor

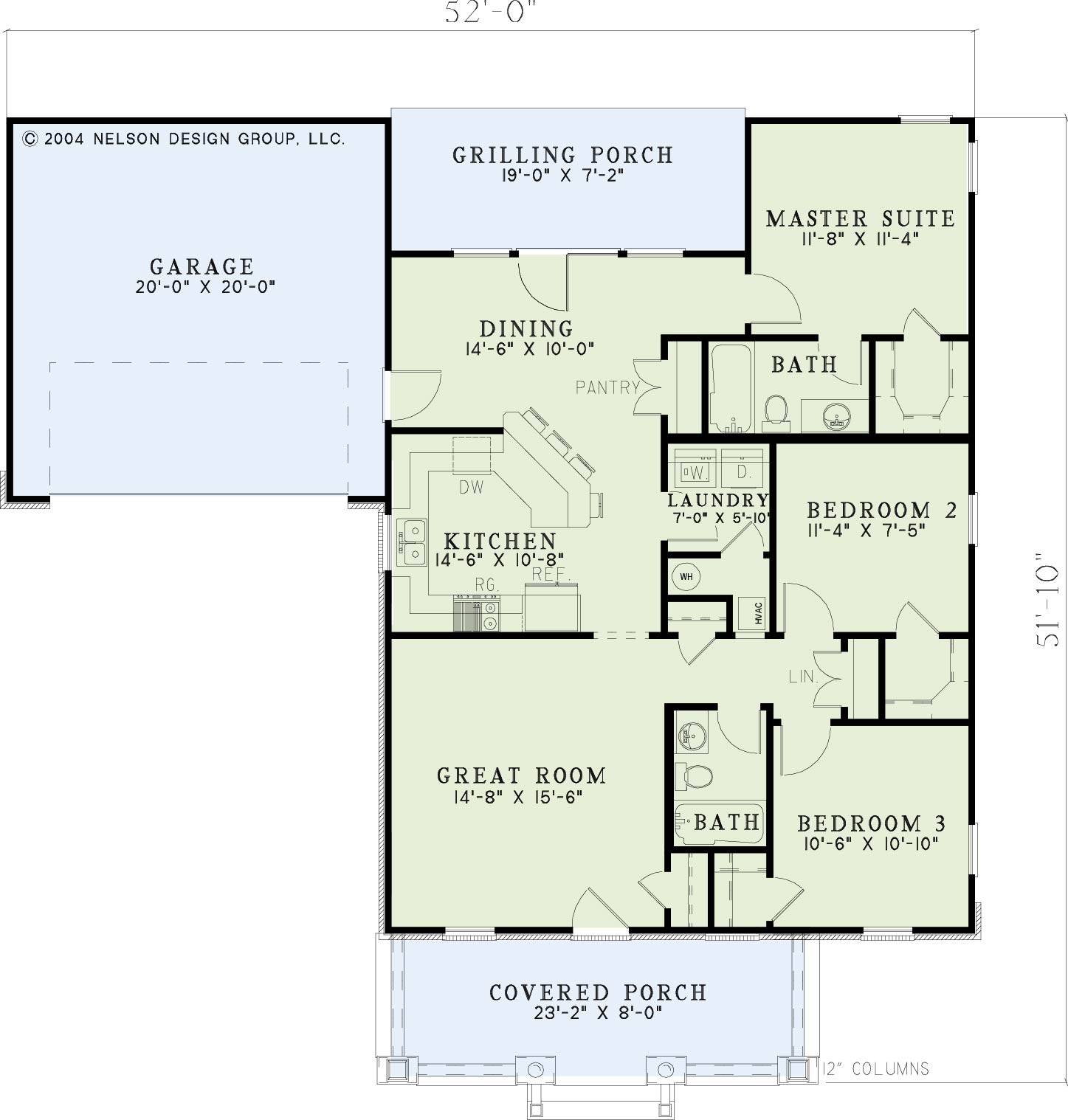

Floor plans

NDG 1088

House Plan 1088 Simpson, Country House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1088
  • Total Living Space:1250Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: N/A
  • Depth Ft.: 51
  • Depth In.: 10

Description

This lovely Nelson Design Group home has excellent street appeal. Relax on the comfortable covered porch and greet passersby. From there, entry into this home takes you directly into the spacious great room, perfect for entertaining. An angled bar with seating separates this well-equipped kitchen from the adjacent dining room. A large rear-grilling porch is also available for cookouts. Two secondary bedrooms occupy the front of this home while your private master suite is nestled peacefully in the back of this design.

Specifications

  • Total Living Space:1250Sq.Ft.
  • Main Floor: 1250 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 322 Sq.Ft.
  • Garage (Sq.Ft.): 402 Sq.Ft.
  • Total Square Feet: 1974 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 17
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
