House Plan 1087 Braxton Place, Affordable House Plan
> Floor plans
NDG 1087
House Plan 1087 Braxton Place, Affordable House Plan
Plan Details
- Plan Number: NDG 1087
- Total Living Space:1248Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 36
- Width In.: N/A
- Depth Ft.: 61
- Depth In.: 6

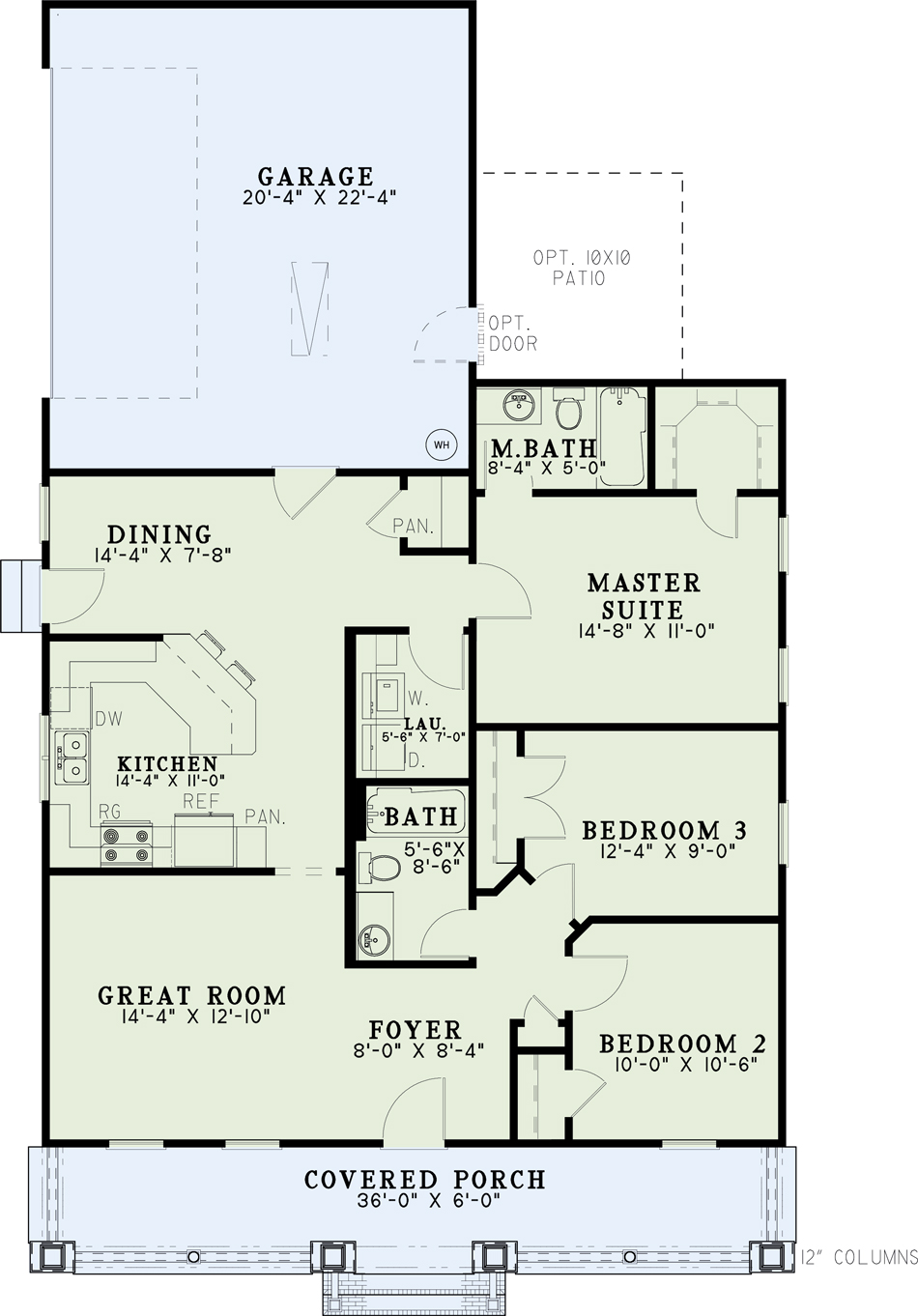

Description
Relax in the shade of the large covered porch on this Nelson Design Group home. Then, step inside and enjoy the openness of the great room. Mealtime is simplified in this well-equipped kitchen with angled bar and easy access to the dining area. Once bedtime rolls around, tuck in the kids in the two additional bedrooms included in this design before retiring to your private master suite for the night. This plan is sure to please your family!
Specifications
- Total Living Space:1248Sq.Ft.
- Main Floor: 1248 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 216 Sq.Ft.
- Garage (Sq.Ft.): 474 Sq.Ft.
- Total Square Feet: 1938 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 6:12
- Porch Roof Pitch: 3:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 20
- Ridge Height (In.): 7
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
