House Plan 1085 Victoria, Affordable House Plan

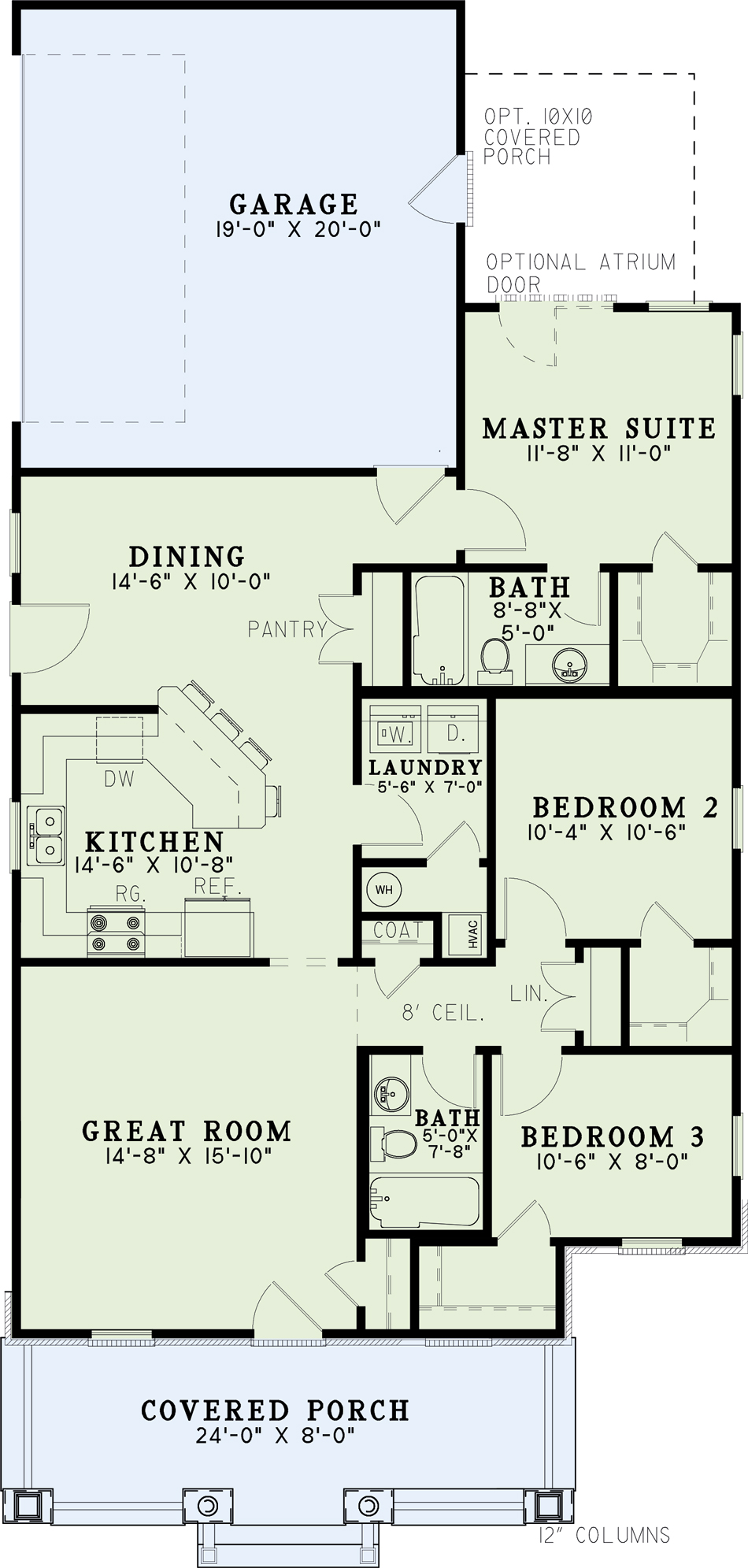

Floor plans

NDG 1085

House Plan 1085 Victoria, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1085
  • Total Living Space:1256 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 31
  • Width In.: 8
  • Depth Ft.: 66
  • Depth In.: 2

Description

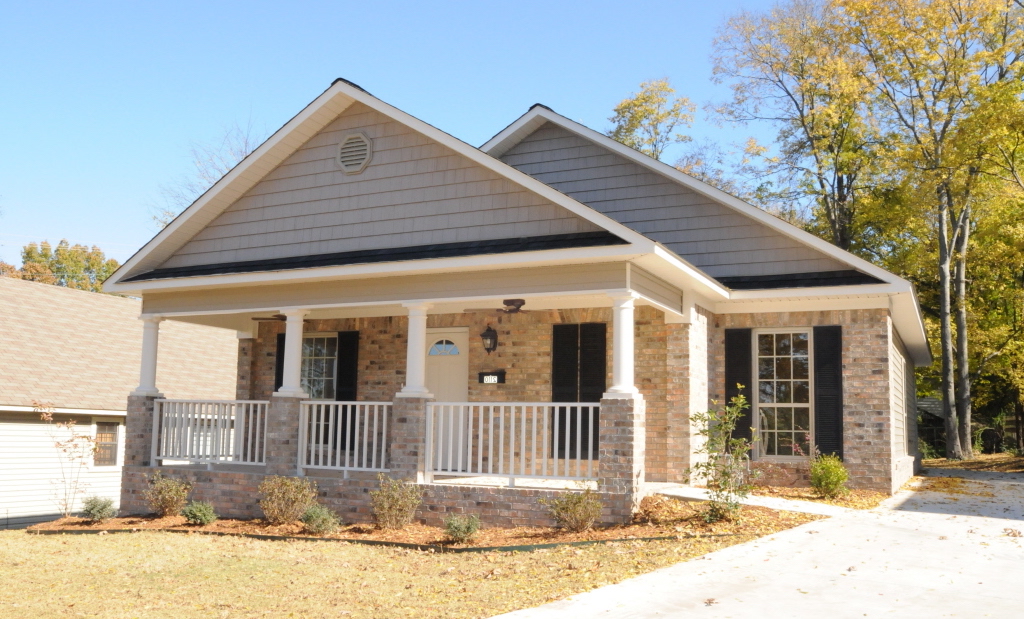

Rock away the afternoon in the shade of the front porch on this Nelson Design Group home. Let your guests mingle in the great room while you put the finishing touches on dinner in the nearby kitchen. All family members will love the privacy of this plan but will also take comfort in the fact that no one is too far away. The master suite occupies the rear of this design while the two additional bedrooms fill the front, completing this lovely home.

Specifications

  • Total Living Space:1256 Sq.Ft.
  • Main Floor: 1256 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 192 Sq.Ft.
  • Garage (Sq.Ft.): 397 Sq.Ft.
  • Total Square Feet: 1845 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 6:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
