House Plan 100 Cherry Street, European House Plan

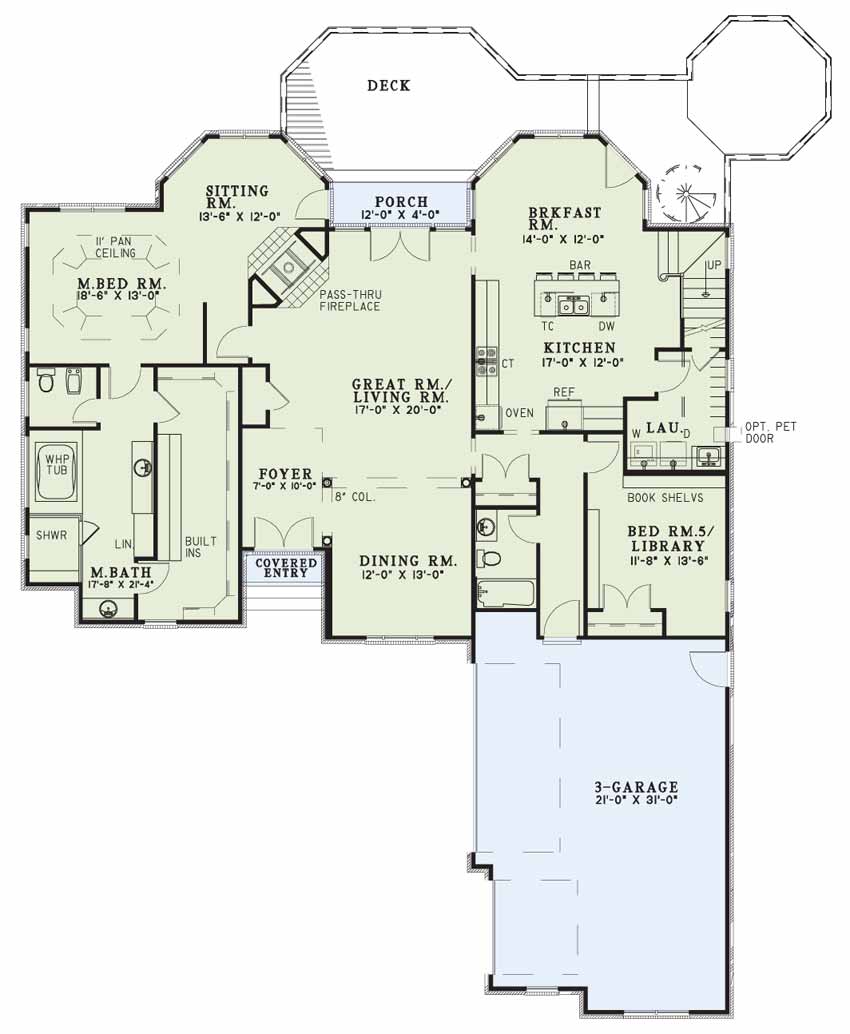

House Plan NDG 100 Main Floor

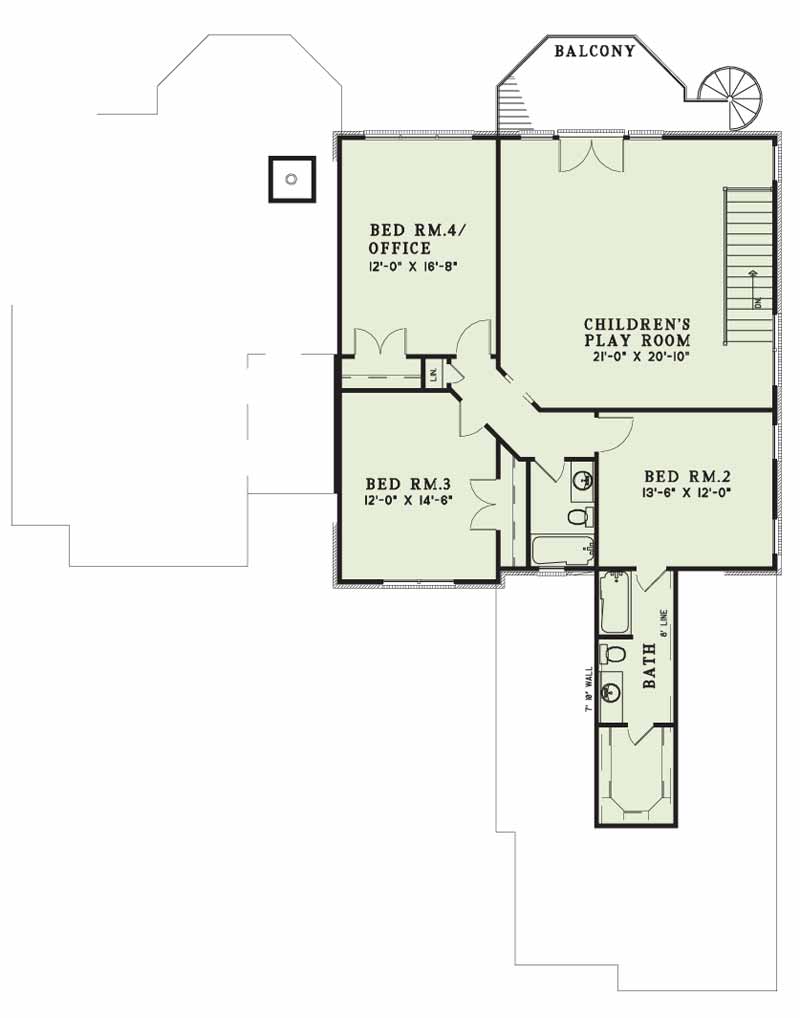

House Plan NDG 100 Upper Floor
House Plan NDG 100 Main Floor
House Plan NDG 100 Upper Floor

Floor plans

House Plan NDG 100 Main Floor

House Plan NDG 100 Upper Floor
NDG 100

House Plan 100 Cherry Street, European House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 100
  • Total Living Space:3437 Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 59
  • Width In.: 6
  • Depth Ft.: 74
  • Depth In.: 4

Description

An impressive split bedroom design makes this home a dream come true. You’ll enjoy the pass-through fireplace from the sitting room in your secluded master suite. A luxurious master bath has an enormous walk-in closet, which is every woman’s fantasy. The kids will enjoy doing their research projects in the library conveniently located nearby. Entertaining with family and friends becomes a ritual in the spacious great room with fireplace to add warmth. Traveling upstairs, the children will find all the room they need with three bedrooms and a large playroom.An impressive split bedroom design makes this home a dream come true. You’ll enjoy the pass-through fireplace from the sitting room in your secluded master suite. A luxurious master bath has an enormous walk-in closet, which is every woman’s fantasy. The kids will enjoy doing their research projects in the library conveniently located nearby. Entertaining with family and friends becomes a ritual in the spacious great room with fireplace to add warmth. Traveling upstairs, the children will find all the room they need with three bedrooms and a large playroom.

Specifications

  • Total Living Space:3437 Sq.Ft.
  • Main Floor: 2184 Sq.Ft
  • Upper Floor (Sq.Ft.): 1253 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 38 Sq.Ft.
  • Garage (Sq.Ft.): 651 Sq.Ft.
  • Total Square Feet: 4126 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 37
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
