Garage Plan 1491 3-Car Garage-Arched Doors, Garage & Pool House Plan

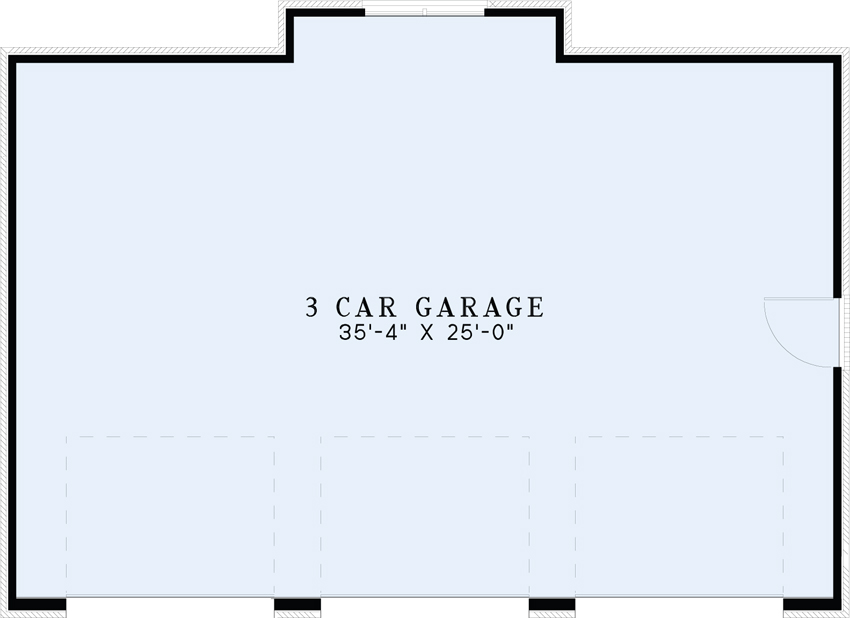

Floor plans
NDG 1491
Garage Plan 1491 3-Car Garage-Arched Doors, Garage & Pool House Plan
PDF: $455.00
Plan Details
- Plan Number: NDG 1491
- Total Living Space:N/A
- Bedrooms: N/A
- Full Baths: N/A
- Half Baths: N/A
- Garage: 3 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 36
- Width In.: N/A
- Depth Ft.: 26
- Depth In.: N/A
Description
This 3-car, deep set garage plan features 3 separate arched doors with a brick exterior. It has a 10′ tall ceiling and an outset window in the back.
Specifications
- Total Living Space:N/A
- Main Floor: N/A
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): N/A
- Garage (Sq.Ft.): 887 Sq.Ft.
- Total Square Feet: 887 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 10
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 14
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
