Garage Plan 1486 Governor Drive, Garage & Pool House Plan

Garage Plan NDG 1486 Garage
Garage Plan NDG 1486 Garage

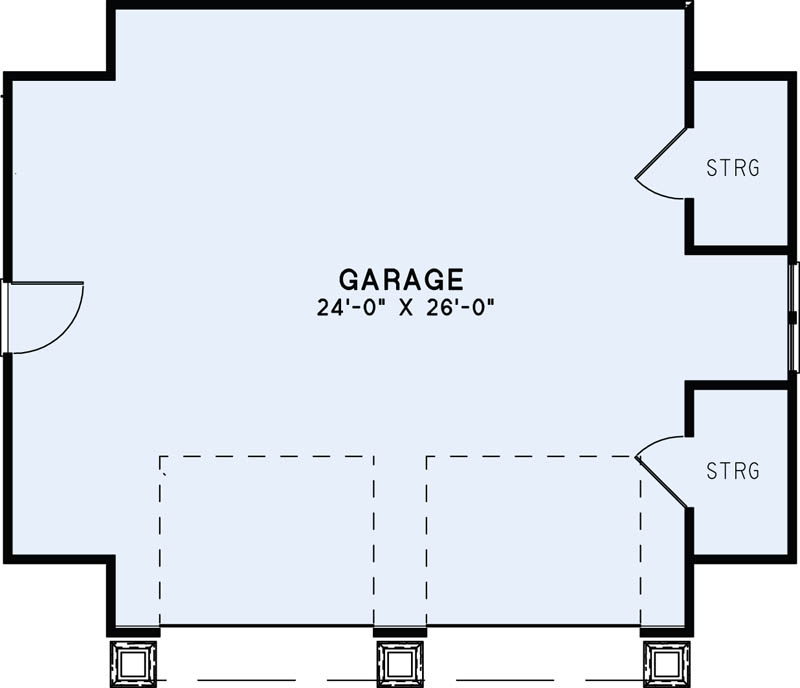

Floor plans

NDG 1486

Garage Plan 1486 Governor Drive, Garage & Pool House Plan

PDF: $455.00

Plan Details

  • Plan Number: NDG 1486
  • Total Living Space:N/A
  • Bedrooms: N/A
  • Full Baths: N/A
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 33
  • Width In.: 4
  • Depth Ft.: 28
  • Depth In.: 7

Description

This traditional style garage plan features 2 single car doors and 3 tapered wooden columns on stone bases. It has a shake siding exterior with a window and 2 storage rooms on the right side and a door on the left side.

Specifications

  • Total Living Space:N/A
  • Main Floor: N/A
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 839 Sq.Ft.
  • Total Square Feet: 839 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 20
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
