Garage Plan 1485 Apartment over Garage Plan, Garage & Pool House Plan
Floor plans
NDG 1485
Garage Plan 1485 Apartment over Garage Plan, Garage & Pool House Plan
PDF: $700.00
Plan Details
- Plan Number: NDG 1485
- Total Living Space:509Sq.Ft.
- Bedrooms: 1
- Full Baths: 1
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 33
- Width In.: 4
- Depth Ft.: 28
- Depth In.: 5
Description

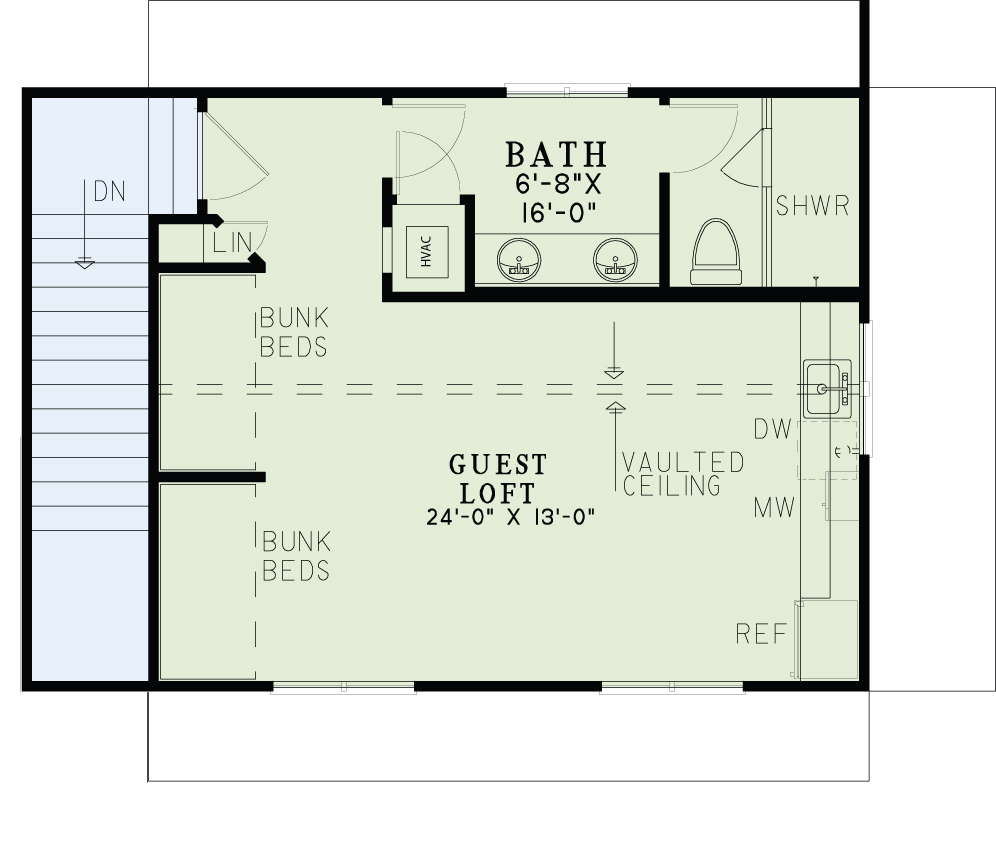

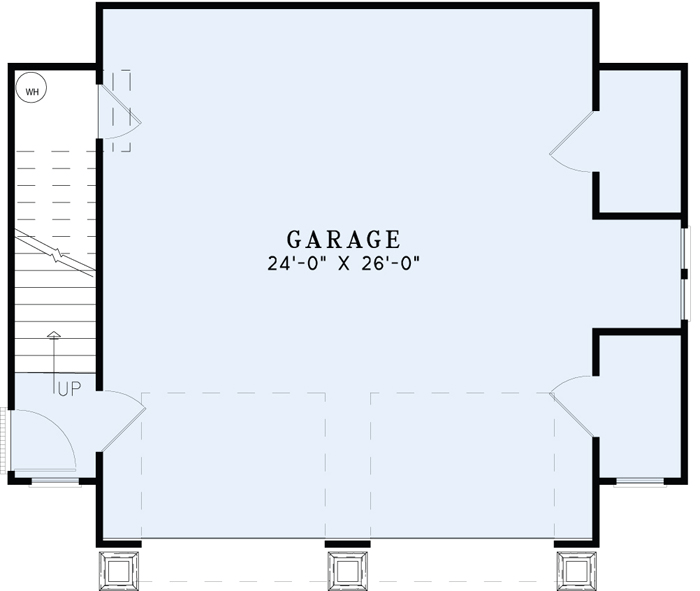

In this traditional style garage plan you will find that the exterior features timber tapered columns atop stone bases, with shake siding on a stone foundation along with exposed timber joists. The deep set garage offers 2 large storage rooms on the right side. Upstairs is a guest’s quarters or an apartment loft that features a vaulted ceiling, space for bunk beds, a mini-kitchen and a full bathroom.
Specifications
- Total Living Space:509Sq.Ft.
- Main Floor: N/A
- Upper Floor (Sq.Ft.): 509 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): N/A
- Garage (Sq.Ft.): 838 Sq.Ft.
- Total Square Feet: 1347 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 26
- Ridge Height (In.): 4
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
