House Plan 5270 Bell Manor, Contemporary Modern House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: MEN 5270
  • Total Living Space:3601 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 4 Bay
  • Garage Type: Side Load
  • Carport: Bay 1
  • Carport Type: Porte Cochere
  • Stories: 1
  • Width Ft.: 166
  • Width In.: N/A
  • Depth Ft.: 101
  • Depth In.: 5

Description

MEN 5270

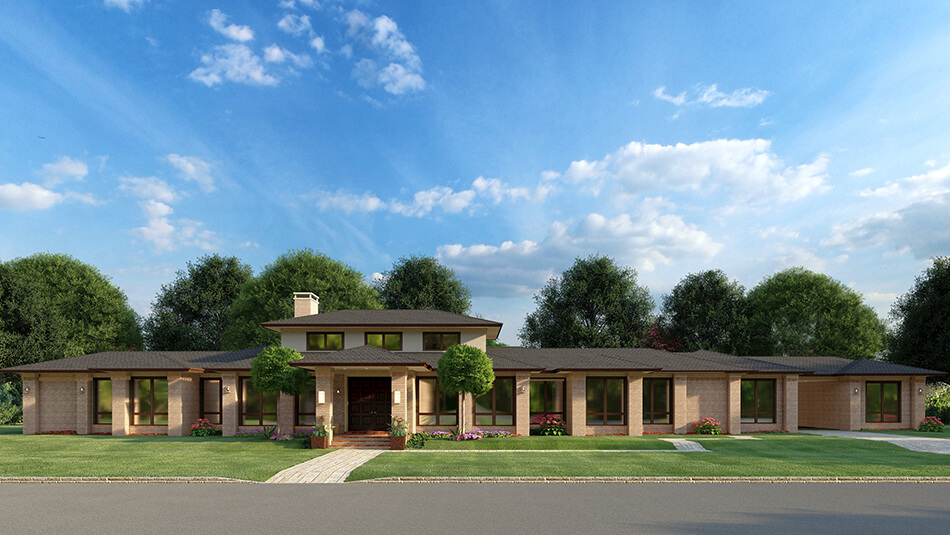

Bell Manor is a stunning contemporary modern home plan influenced by the sleek, low layout of the traditional prairie home style! Featuring smoothly placed brick columns along the exterior front, Bell Manor offers an extraordinary array of front-facing windows. The covered front entry leads to sweeping French doors for an elegant entrance to this 3,601 sq.ft. home. A comfortably spacious plan, Bell Manor holds 3 bedrooms, 2 full baths, and 1 half bath. This home plan is the perfect size for any family. A large rear covered grilling kitchen for backyard hangouts awaits ready for weekend excitement! A joint 3-bay garage sits at the rear of this floor plan past a port cochere. A solitary 4th bay is readily available for additional vehicles, golf carts, ATVs, or just yard equipment storage!

Open Floor Design

Past the sweeping front French doors, Bell Manor begins with a horizontal Grand Hall to the left and right leading to wings of the contemporary modern home plan. Ahead lies the Great Room framed by interior columns. The open floor plan provides a clear view to the kitchen and dining space. Through the Great Room and another set of gorgeous French doors, you will see the rear covered grilling porch and backyard space. A cozy fireplace rests upon the left wall of Great Room. This ideal location allows for ample entertaining space and relaxing nights before a homey fire! Leading right, the Great Room opens into the dining area. An equally roomy space, the dining area is spacious enough for a 10-seat dining table! Just beyond the dining space, the Kitchen includes a large high-low bar island with additional seating for up to 4 family or friends! Just around the corner to the front of this prairie-style home plan is a modest pantry for favorite snacks. A breakfast nook at the rear of the Kitchen gives a great view of the back property. Start the day with beautiful natural lighting! Entry to Bedroom 2 and Bedroom 3 is reached past the breakfast nook here, as well as household utility rooms.

Main Level Master Suite

The left wing of the Bell Manor floor plan is dedicated to the Master Suite. Private access to the Master Suite is reached from the Grand Hall left, leading into the Master Suite bedroom. Gorgeous windows soak the room in natural lighting for gentle morning waking at the front and the rear of the Master Bedroom. Flowing from the Master Suite bedroom to the left of the home plan takes one the luxurious master bath. A beautiful free-standing tub space and an enclosed corner glass shower emphasis the luxury of the Master Bath. A single sink vanity offers ample counter space while a center island provides additional drawer space! This unique feature is a great alternative to overstuffed closet space. A private enclosed toilet offset from the main bath area ensures maximum privacy. The large walk-in closet includes a wide array of hanging space for wardrobe favorites!

Individual Bedroom Privacy

Bell Manor includes private personal living for Bedrooms 2 and 3 on the right wing of this contemporary modern house plan. The breakfast nook leads right, first to Bedroom 2 with a modest step-in closet space for wardrobe storage. Across this brief hall is a half bath ideal for guests. A key element to this bedroom design is the lovely personal bathroom! This bathroom includes a toilet and single sink vanity with a Jack-and-Jill shower space room shared with Bedroom 3. Bedroom 3 is only slightly smaller in size and rests at the far end of the home plan. A closet is built-in making this space great for older kids and teens! The enclosed shared Jack-and-Jill shower space leads into another private bathroom vanity and toilet for Bedroom 3.

Utility By Design

The brief breakfast nook hallway leads into the open mudroom and laundry space. The laundry room is surrounded by counter space to minimize those laundry day tasks into one easy motion. The mudroom provides a sitting bench and hanging bar to organize coats, backpacks, and muddy shoes! The mudroom entry/exit onto the port cochere ensures outdoor grime stays in one place while close proximity to the Kitchen makes grocery day a breeze!

Customizing This House Plan

Making this house plan onto your dream home!

We understand that when it comes to building a home you want it to be perfect for you. Our team of experience house plan specialists would love to be able to help you through the process of modifying this, or any of the other house plans found on our website, to better fit your needs. Whether you know the exact changes you need made or just have some ideas that would like to discuss with our team send us an email at: info@nelsondesigngroup.com or give us a call at 870-931-5777 What to know a little more about the process of customizing one of our house plans? Check out our Modifications FAQ page.



Specifications

  • Total Living Space:3601 Sq.Ft.
  • Main Floor: 3601 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 996 Sq.Ft.
  • Garage (Sq.Ft.): 1414 Sq.Ft.
  • Total Square Feet: 6011 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x6
  • Vaulted Ceiling Height: N/A
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 4:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 8
  • Insulation Exterior: R19
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
