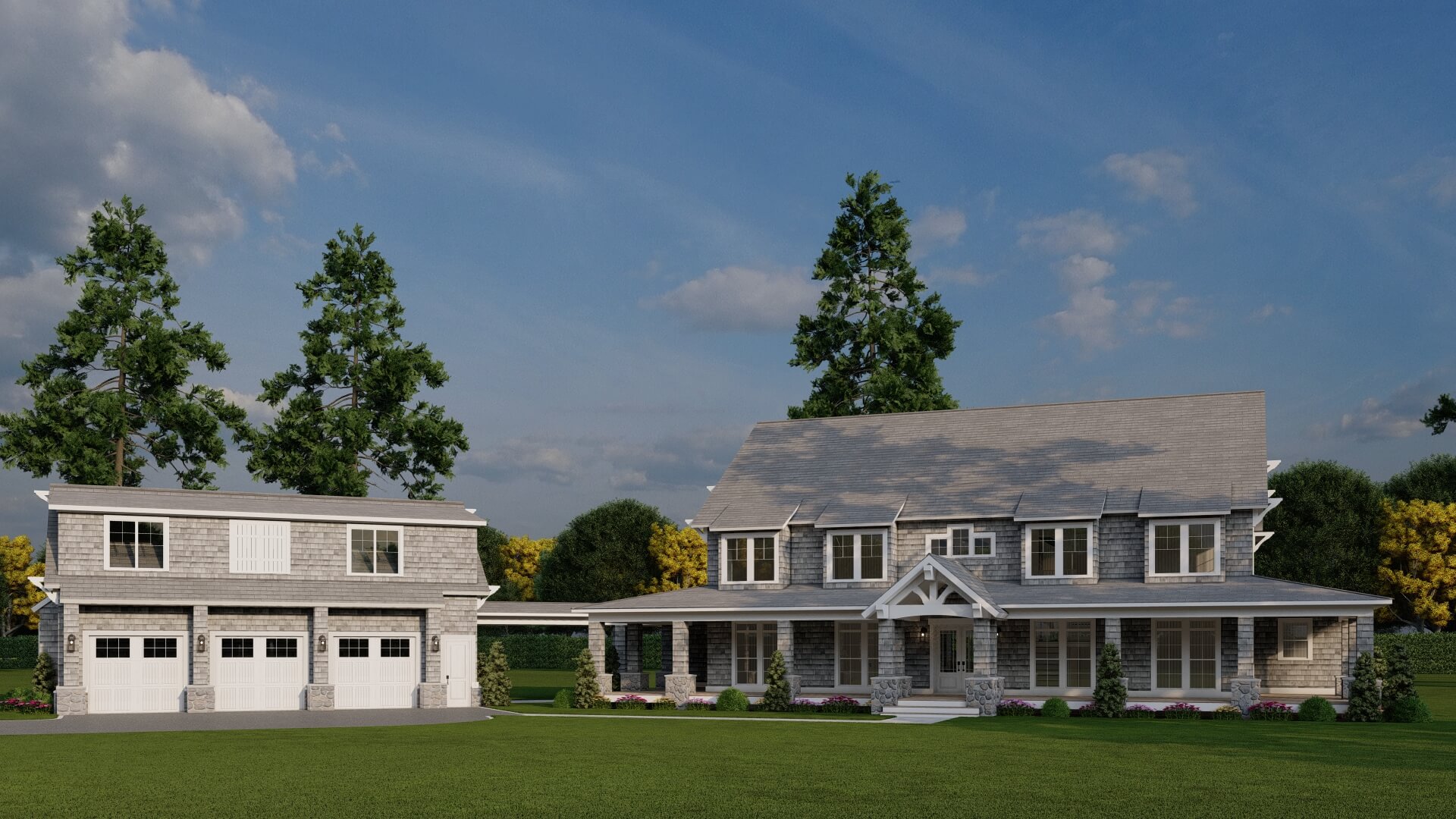

House Plan 5468 Bayside Retreat, Craftsman House Plan

Floor plans

MEN 5468

House Plan 5468 Bayside Retreat, Craftsman House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: MEN 5468
  • Total Living Space:5679Sq.Ft.
  • Bedrooms: 6
  • Full Baths: 5
  • Half Baths: N/A

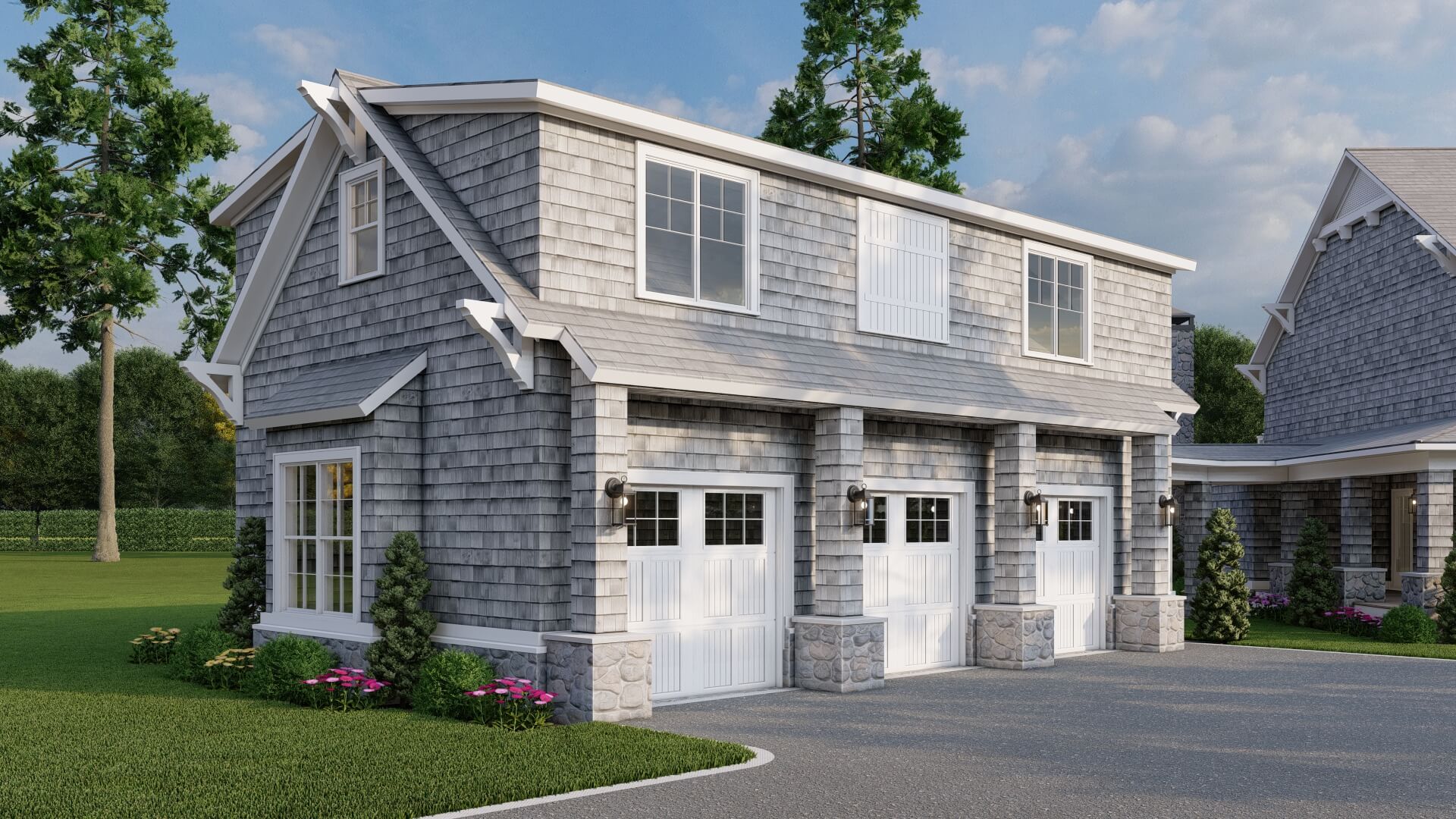

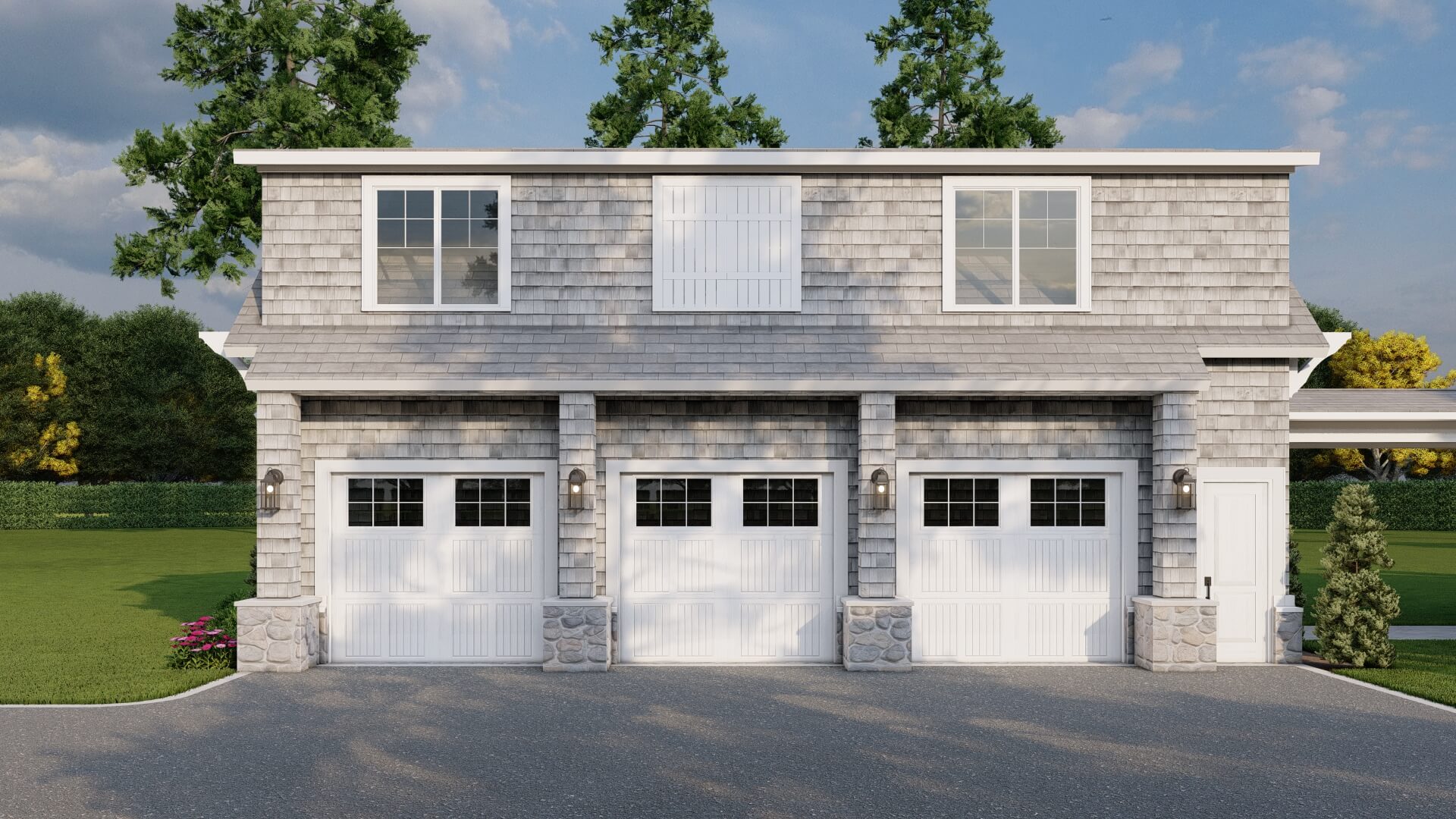

  • Garage: 3 Bay
  • Garage Type: Detached
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 139
  • Width In.: 2
  • Depth Ft.: 103
  • Depth In.: 5

Description

Specifications

  • Total Living Space:5679Sq.Ft.

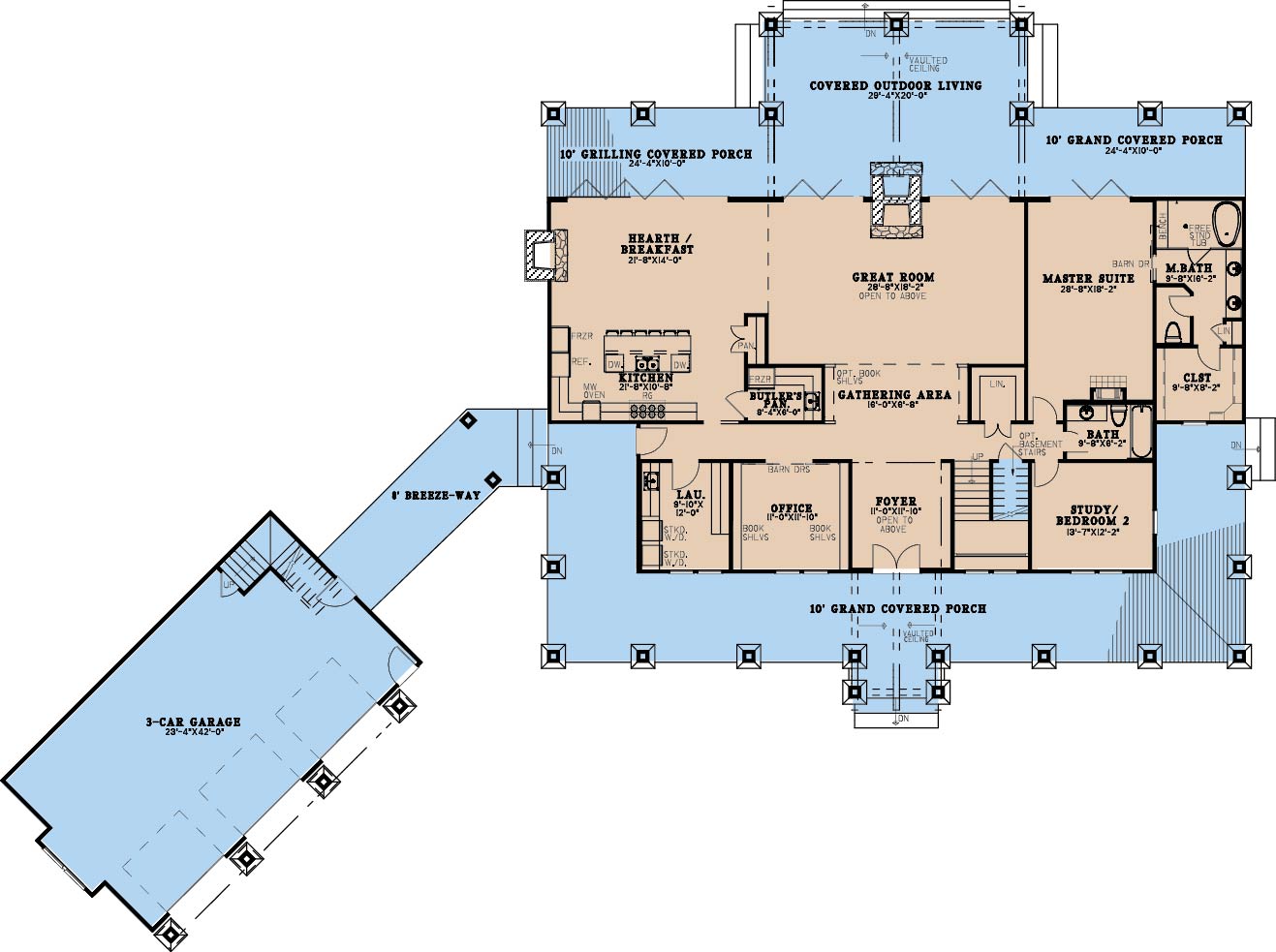

  • Main Floor: 2942 Sq.Ft

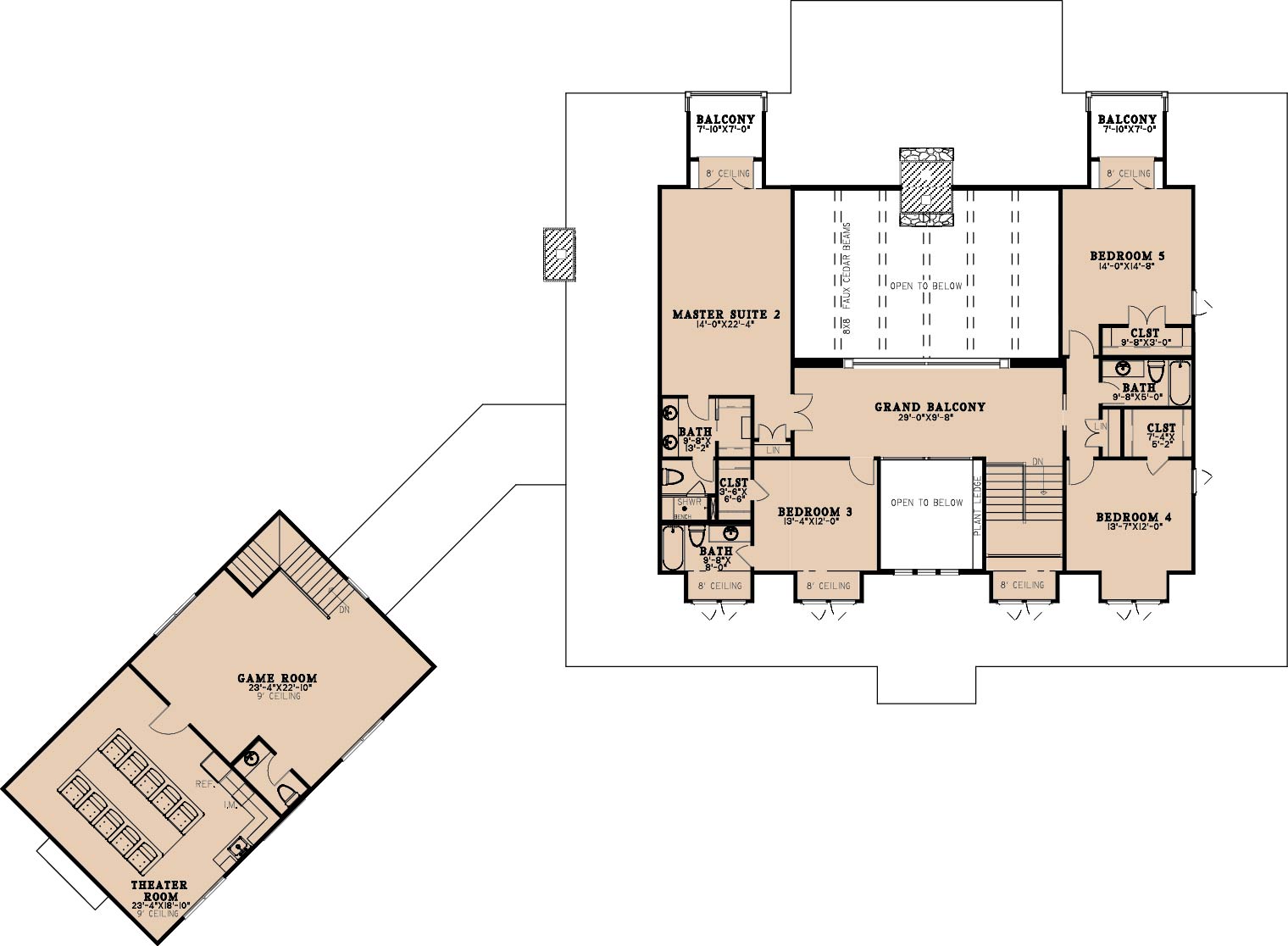

  • Upper Floor (Sq.Ft.): 2737 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 2600 Sq.Ft.
  • Garage (Sq.Ft.): 1042 Sq.Ft.
  • Total Square Feet: 9321 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 34
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
