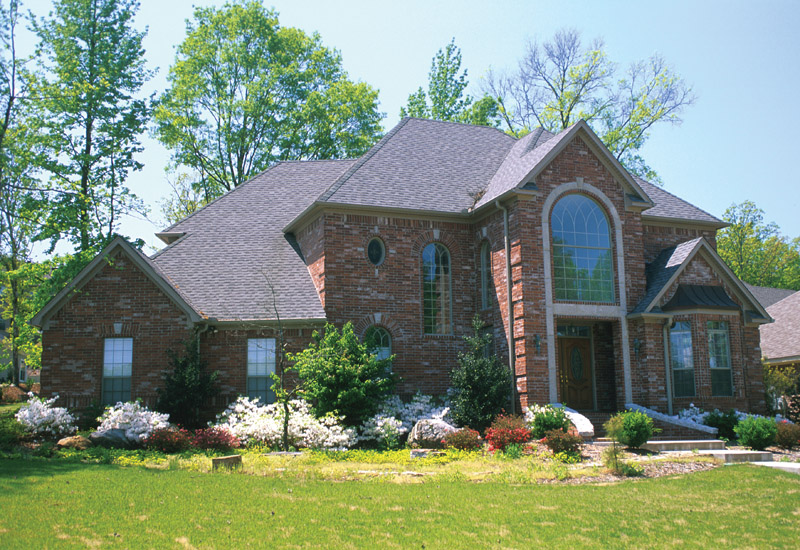

House Plan 212 Hickory Place, European House Plan

House Plan NDG 212 Main Floor

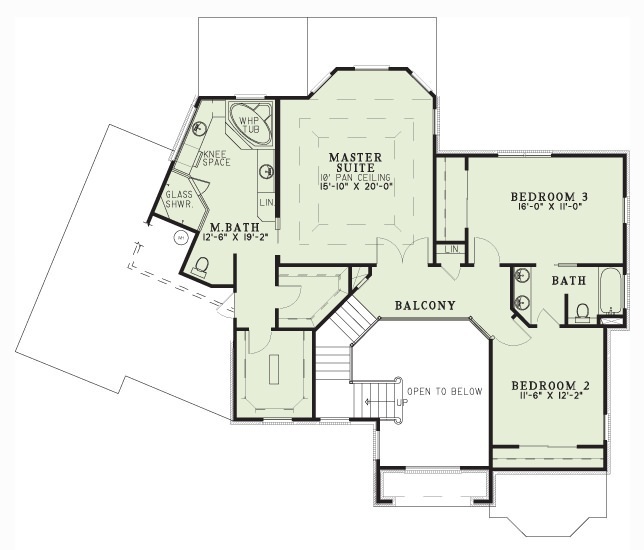

House Plan NDG 212 Upper Floor
>
House Plan NDG 212 Main Floor
House Plan NDG 212 Upper Floor

Floor plans

NDG 212

House Plan 212 Hickory Place, European House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 212
  • Total Living Space:2653Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 63
  • Width In.: 4
  • Depth Ft.: 53
  • Depth In.: 10

Description

This stately home welcomes family and friends through majestic French doors. Step down into the comfortable great room for a soothing evening by the fire’s glow. You’ll enjoy the view outside while preparing breakfast in your open kitchen. For dinner, serve your family in the dining room with sliding door access to the rear screened porch. Upstairs you’ll find all the bedrooms conveniently located in one area. Your master bath has many features, such as double vanities, ‘his and her’ walk-in closets, a glass shower and whirlpool bath.

Specifications

  • Total Living Space:2653Sq.Ft.
  • Main Floor: 1407 Sq.Ft
  • Upper Floor (Sq.Ft.): 1246 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 138 Sq.Ft.
  • Garage (Sq.Ft.): 628 Sq.Ft.
  • Total Square Feet: 3416 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
