House Plan 204 Richmond Drive, French Traditional House Plan

House Plan NDG 204 Main Floor
>
House Plan NDG 204 Main Floor

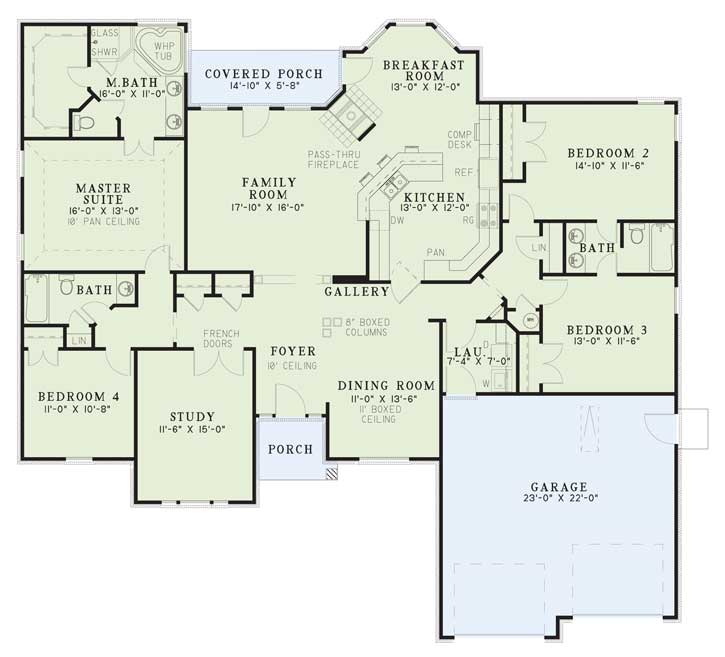

Floor plans

NDG 204

House Plan 204 Richmond Drive, French Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 204
  • Total Living Space:2439Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 65
  • Width In.: 8
  • Depth Ft.: 61
  • Depth In.: 7

Description

Casual sensibility intertwined with exciting angles defines this dazzling four-bedroom home. The impressive gallery demands attention with its French door entry into the large study and boxed columns detailing the formal dining room and family room. The openness of the pass-through fireplace merging with the spacious kitchen and sunny breakfast room promotes a cozy and casual atmosphere ideal for family fun and entertainment. A large master suite includes wonderful amenities

Specifications

  • Total Living Space:2439Sq.Ft.
  • Main Floor: 2439 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 179 Sq.Ft.
  • Garage (Sq.Ft.): 506 Sq.Ft.
  • Total Square Feet: 3124 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 1
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
